Product Descriptions

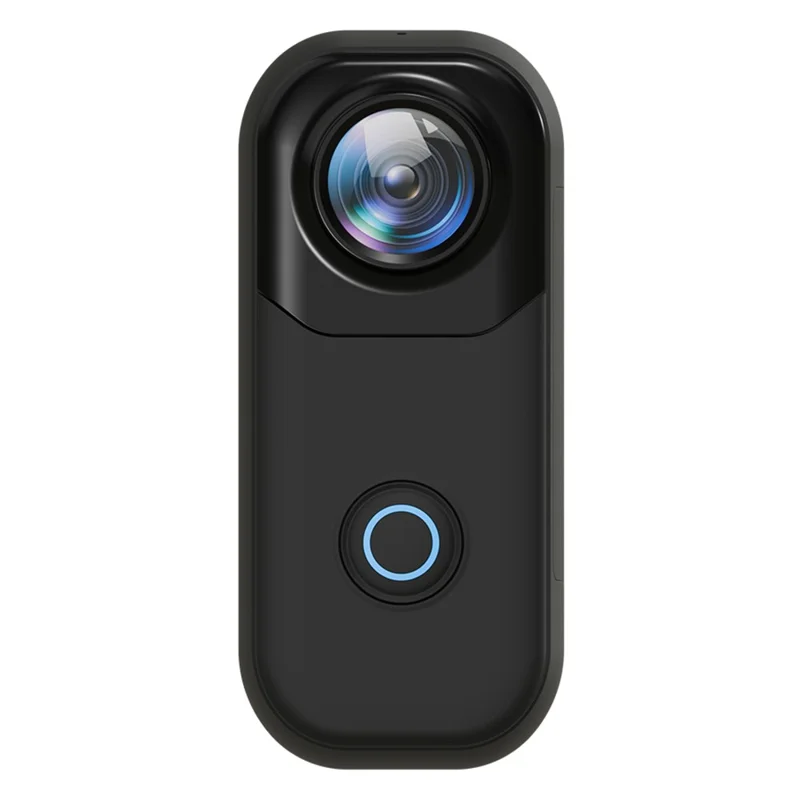

MZ01 4K Action Camera Wi-Fi HD Sports Mini Thumb Camera with Waterproof Case Electronic Stabilization Magnetic Recording Device - Black
-
【4K Ultra HD Recording】Capture stunning 4K UHD video at 30fps with CMOS sensor and wide-angle 142° field of view for professional-quality footage.
-

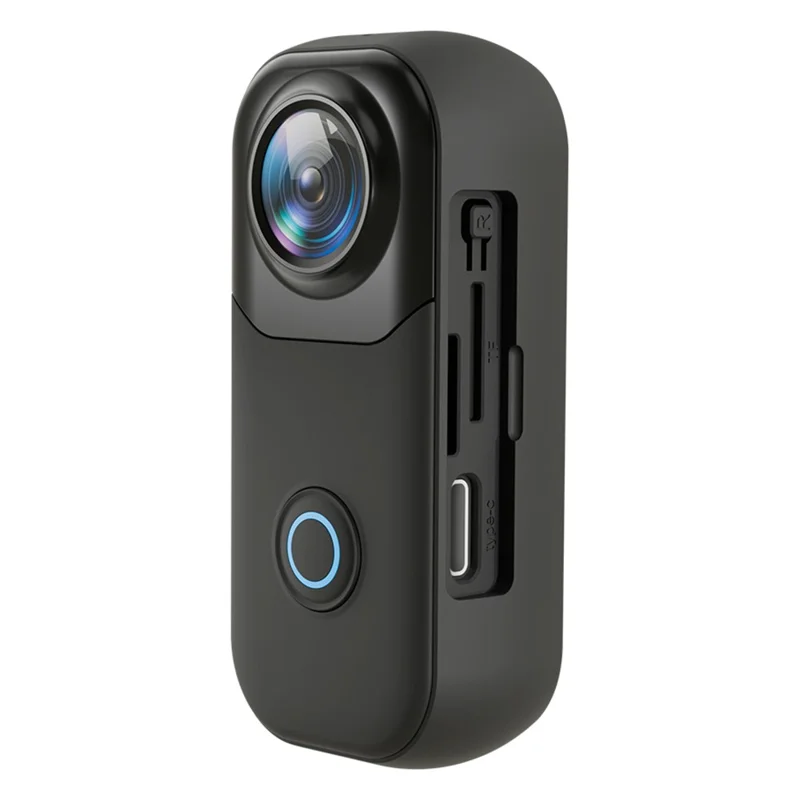

【Thumb-Sized Portable Design】Ultra-compact 5.8cm x 1.9cm dimensions make it the perfect thumb-sized action camera for discreet recording and easy portability.
-

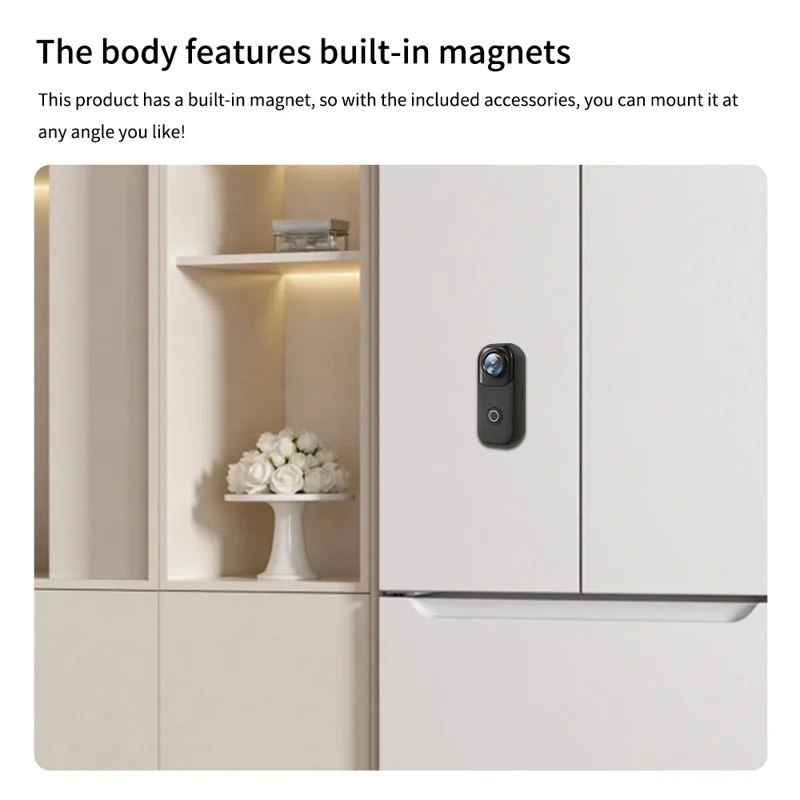

【Magnetic Mounting System】Built-in magnets allow for versatile mounting at any angle, perfect for first-person perspective shooting and hands-free operation.
-

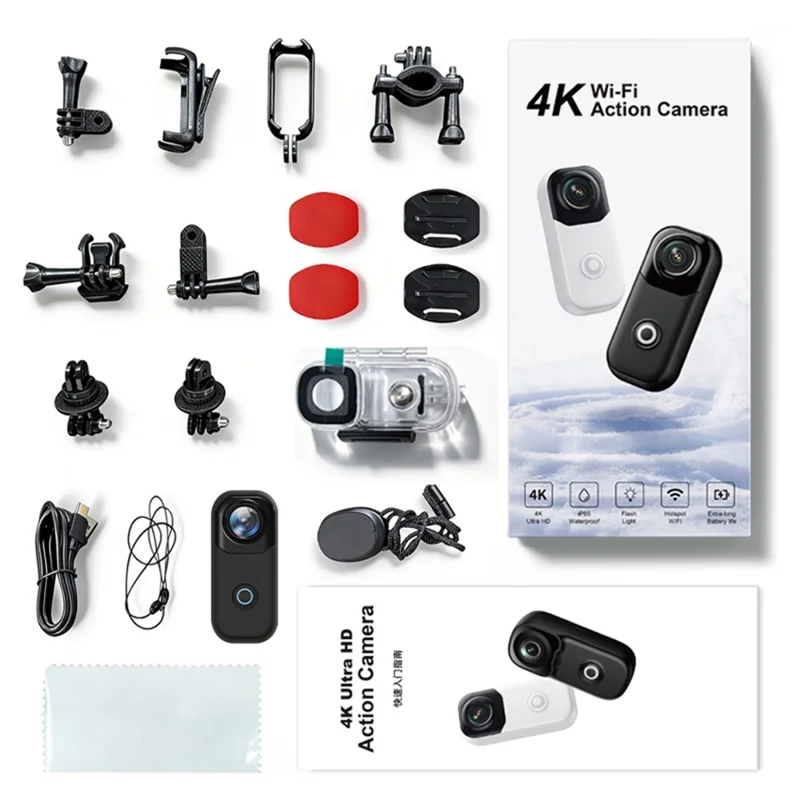

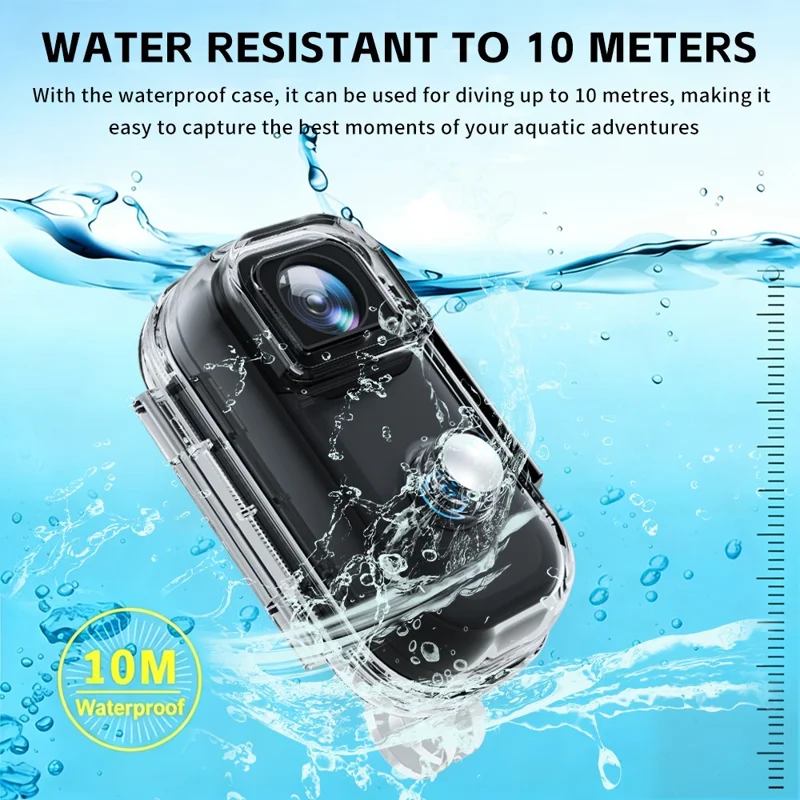

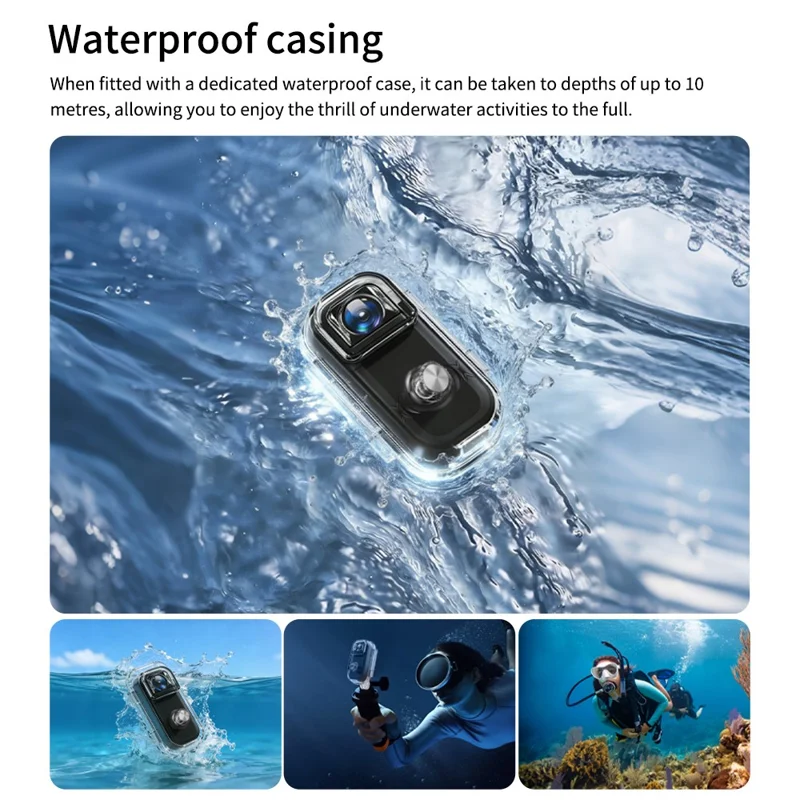

【10-Meter Waterproof Capability】IP65 protection for the main unit, with included waterproof housing enabling underwater filming up to 10 meters deep.
-

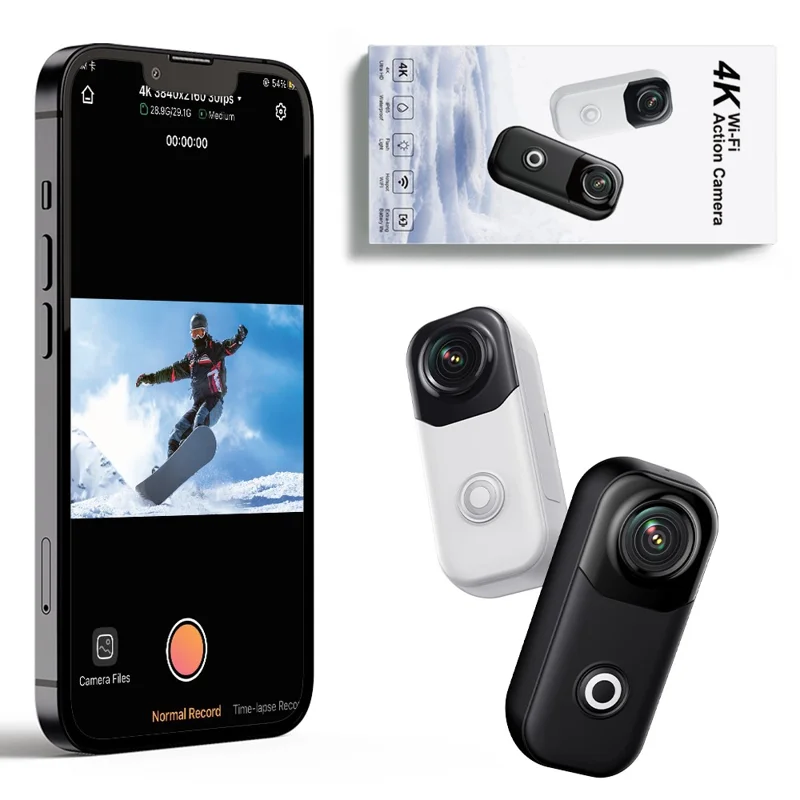

【Wi-Fi Connectivity & App Control】Connect via Wi-Fi hotspot for real-time preview, remote control, and instant sharing through the dedicated smartphone app.
Specifications:
- Model: MZ01
- Material: Engineering Plastic
- Image Sensor: CMOS GC4653
- Sensor Size: 1/3 inch
- Lens: Wide-angle, F/1.7MM aperture
- Optical Structure: 2G3P
- Focus Distance: 2M
- Field of View: Diagonal 142°, Horizontal 118°, Vertical 63°
- Main Control Chip: Liangyong 96675
- Video Resolution: 4K 3840x2160p30, 2K 2560x1440p30, 3MHD 2304x1296p30, FHD 1920x1080p60/p30, HD 1280x720p60/p30, Vertical modes supported
- Video Format: MP4
- Video Encoding: H.265, H.264
- Video Frame Rate: 30FPS
- Aspect Ratio: 16:9
- HDR: Wide Dynamic Range supported
- Photo Resolution: 16M, 12M, 10M, 8M, 5M, 3M, VGA
- Photo Format: JPG
- Memory: TF card support, max 512GB

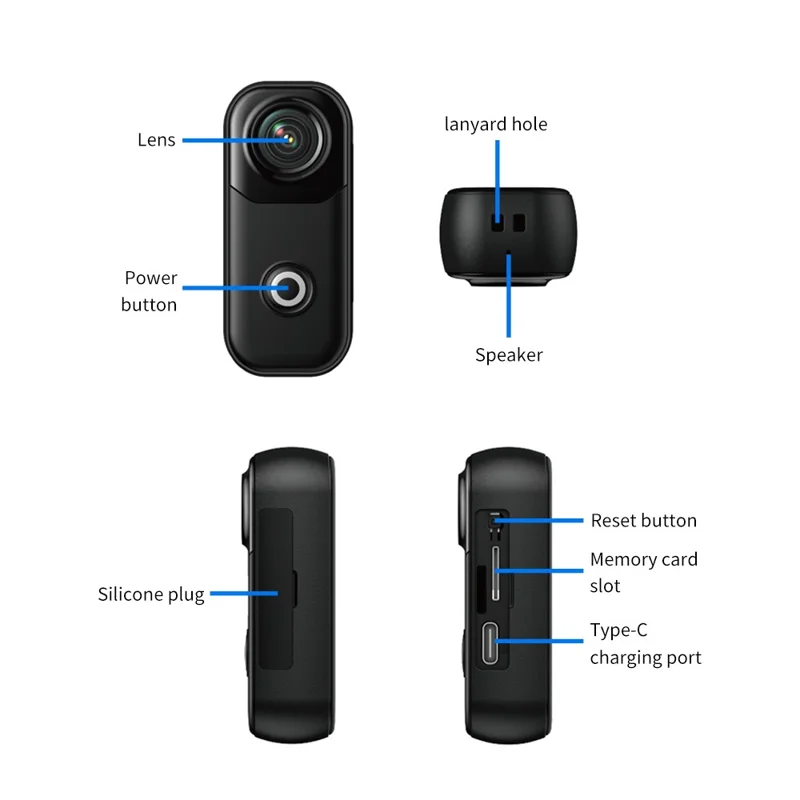

- Interface: Type-C
- Screen Orientation: Horizontal/Vertical switching supported
- Waterproof Rating: IP65 (main unit), 5-10m with waterproof housing
- Wi-Fi Standard: Bilianxin 8189FTV
- Wi-Fi Frequency: 2.4 GHz
- Recording Trigger: Button activation
- Recording Duration Options: 1min, 3min, 5min, 10min
- Audio Recording: Supported (on/off)
- Time Watermark: Supported (on/off)
- Status Indicator: LED supported (on/off)
- Auto Shutdown: 1min, 3min, 5min, 10min options
- Wi-Fi Name: MZ01_xxxxxx
- Wi-Fi Password: Default 12345678 (customizable)
- Charging Voltage: DC-5V
- Battery Type and Capacity: Polymer Lithium Battery 800mAh
- Battery Voltage: Rated 3.7V
- Battery Energy: 2.96Wh
- Charging Time: 2.5 hours
- Working Time: Approximately 2 hours (without app), 1.5 hours (with app)
- Storage Time Reference: 2 hours (32GB card in 4K mode)
- Product Dimensions: 5.8cm x 1.9cm
