• 【Plug & Play Diagnosis】No battery or charger needed; device powers directly from vehicle's OBDII data link connector for quick and convenient diagnostics.
• 【Extend Engine Life】Quickly detects major engine faults including MIL warnings to help troubleshoot early and prevent noise and temperature issues.
• 【Enhanced Performance】Get accurate real-time sensor data with faster GPU Turbo response for clear display and smoother operation on the 2.8-inch full color HD screen.

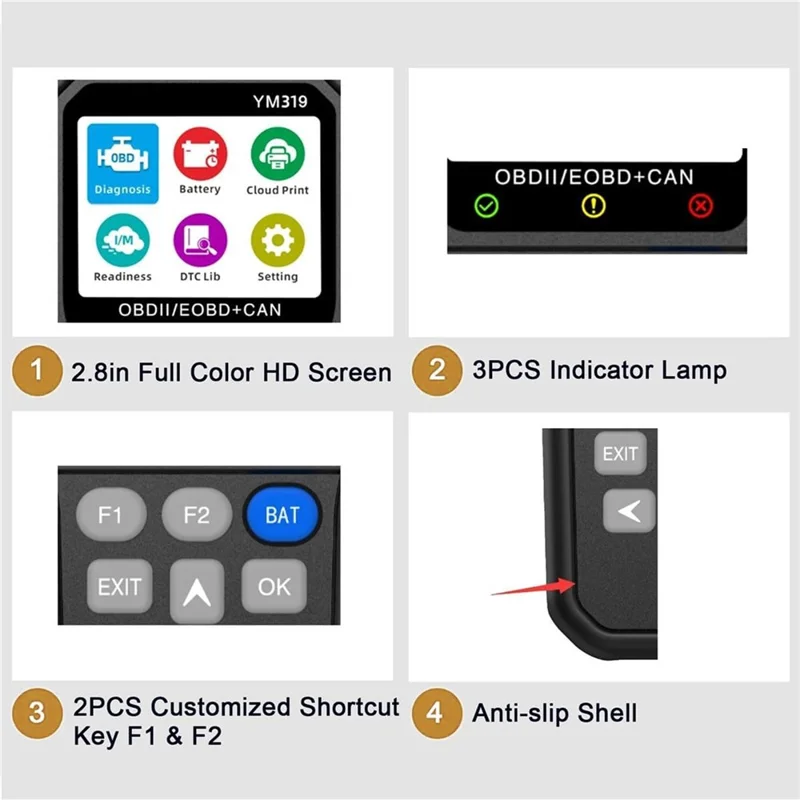

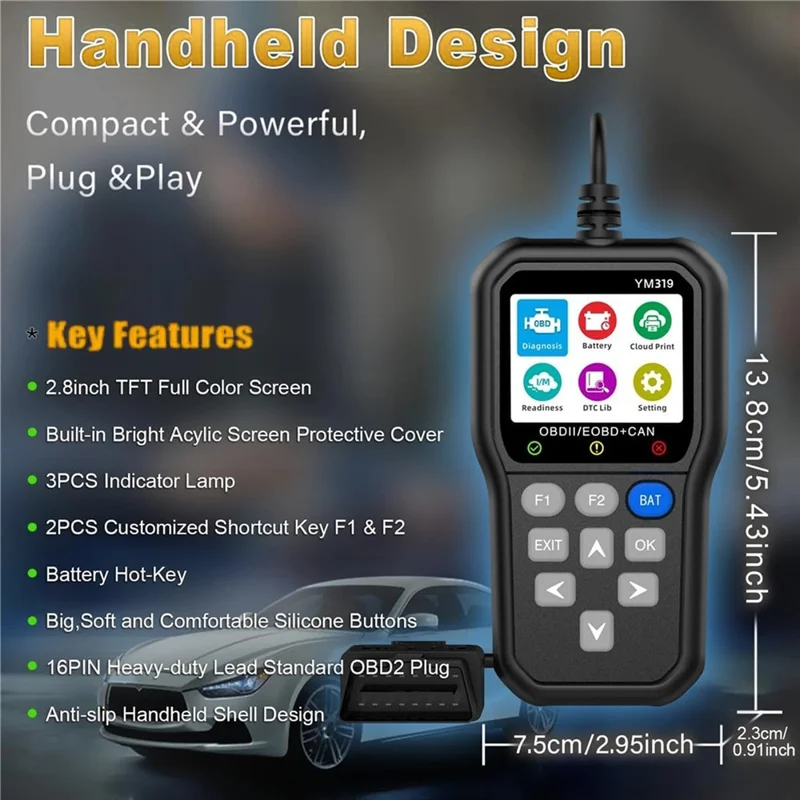

• 【Portable Design】Compact handheld design with anti-slip shell, TPU protective case, customizable F1/F2 shortcuts, and adjustable buzzer volume and backlight brightness.
• 【Multi-Language Support】Auto-detects and translates 25 languages via mobile scanning; supports cloud printing of real-time data, freeze frames, and DTC analysis with QR code generation.

Specifications:

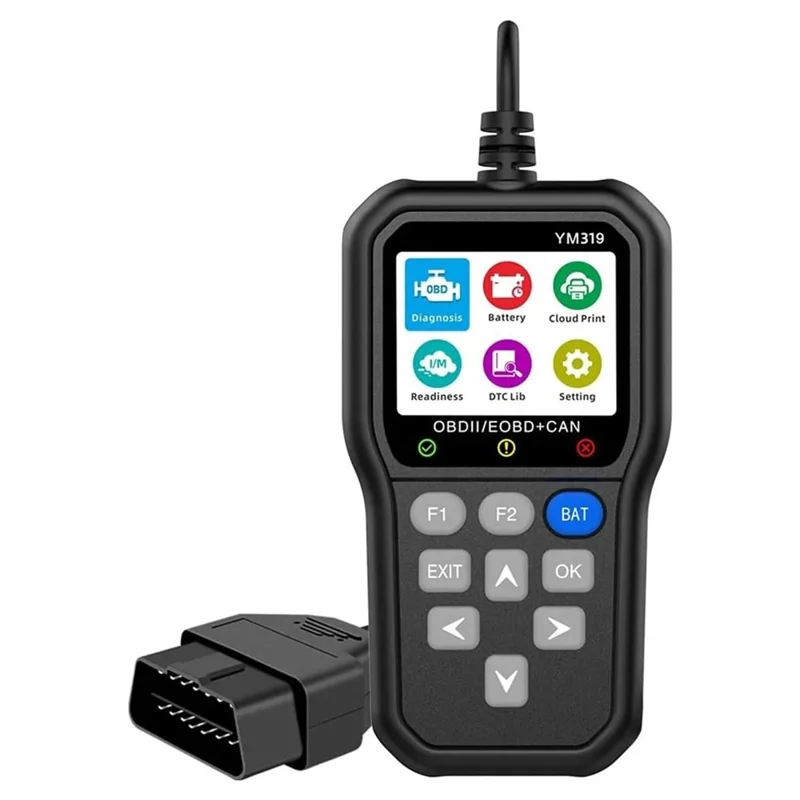

• Model: YM319
• Screen Size: 2.8 inch TFT Full Color Display
• Interface: 16PIN Heavy-Duty Standard OBD2 Plug

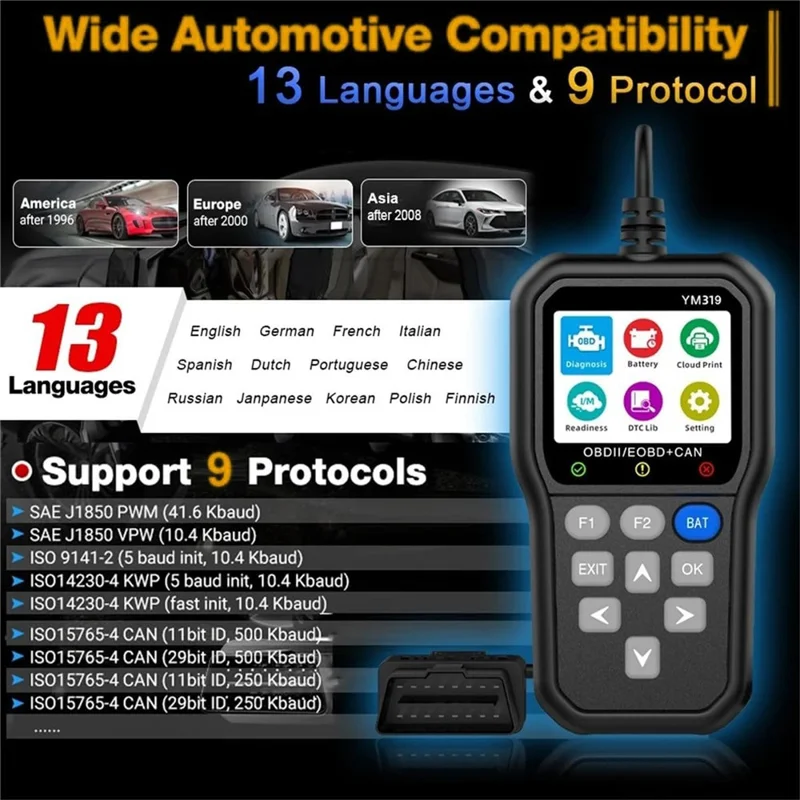

• Protocol Support: OBDII/EOBD+CAN (9 Standards)
• SAE J1850 PWM: 41.6 Kbaud
• SAE J1850 VPW: 10.4 Kbaud
• ISO 9141-2: 5 baud init, 10.4 Kbaud
• ISO14230-4 KWP: 5 baud init, 10.4 Kbaud
• ISO14230-4 KWP: Fast Init, 10.4 Kbaud
• ISO15765-4 CAN: 11bit ID, 500 Kbaud
• ISO15765-4 CAN: 29bit ID, 500 Kbaud
• ISO15765-4 CAN: 11bit ID, 250 Kbaud
• ISO15765-4 CAN: 29bit ID, 250/251 Kbaud
• Language Support: 13 Languages (English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Russian, Japanese, Korean, Polish, Finnish)
• Data Capabilities: 250+ Live Data Stream, 35000+ DTC Look-up

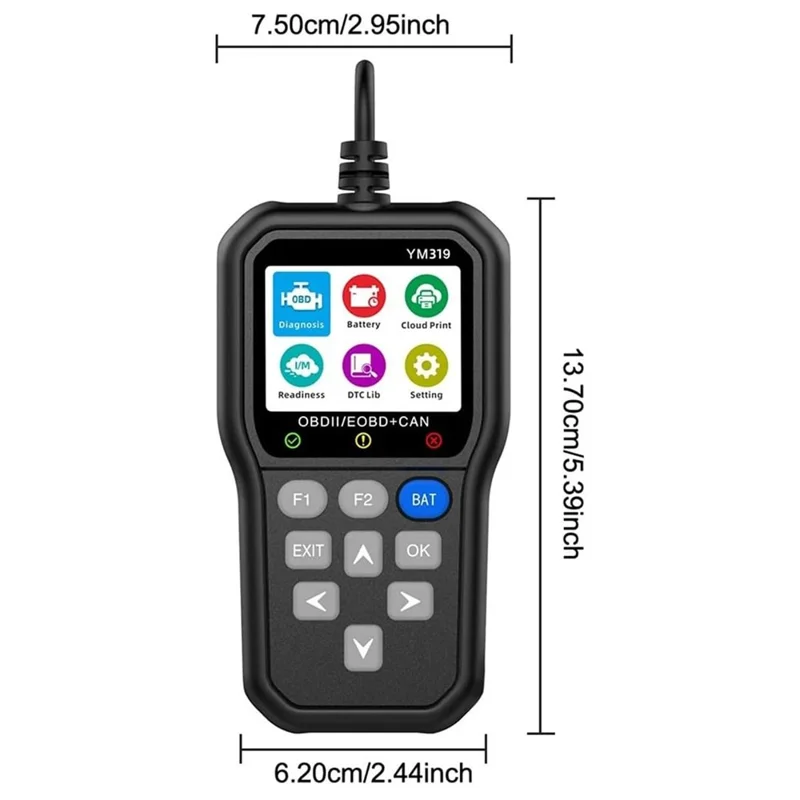

• Dimensions: 13.70 x 7.50 cm (5.39 x 2.95 inch)
• Vehicle Compatibility: American vehicles (1996 and newer), European vehicles (2000 and newer), and Asian vehicles (2008 and newer).

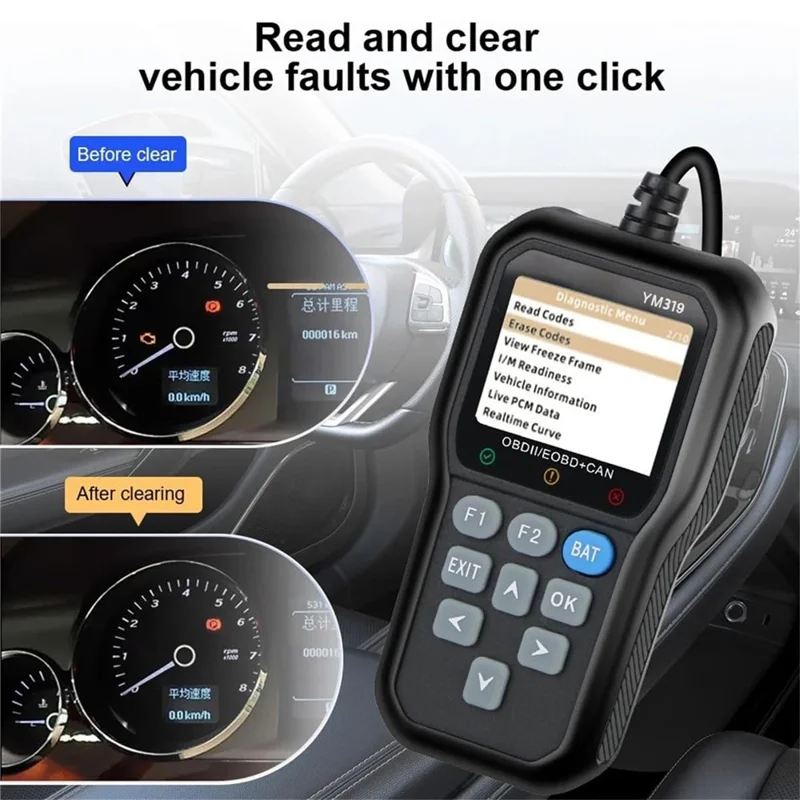

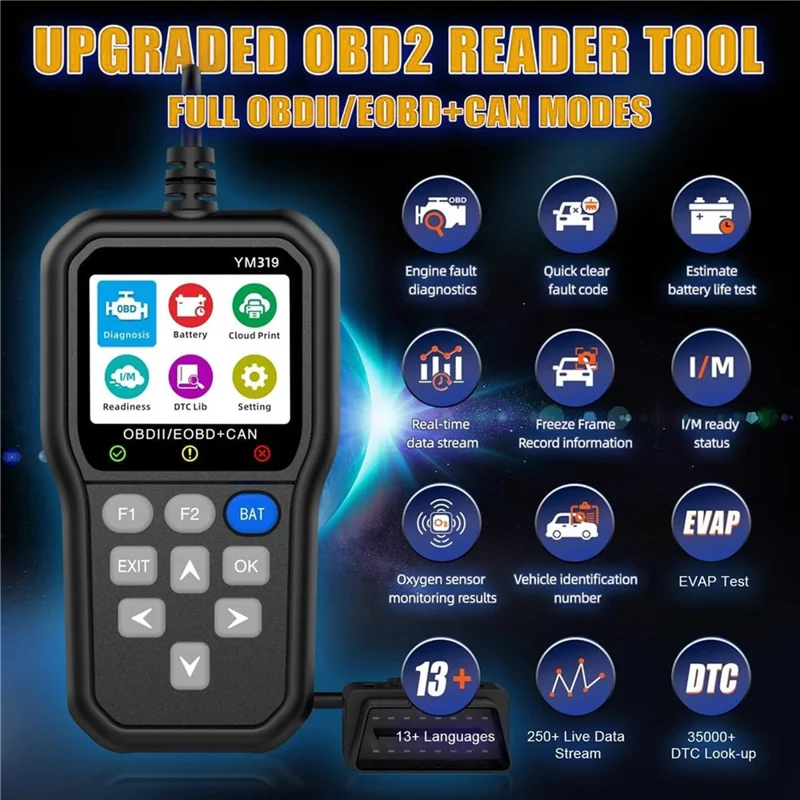

• Functions: Read/Erase Codes, Freeze Frame, I/M Readiness, Vehicle Info, Real-Time Data Stream, Mode 6 Test, O2 Sensor Test, EVAP Test, Battery Voltage Reading/Monitoring/Life Estimation, Cloud Print
