• Kevlar material, faster heating, more uniform heating, successfully passed 8000 wear tests

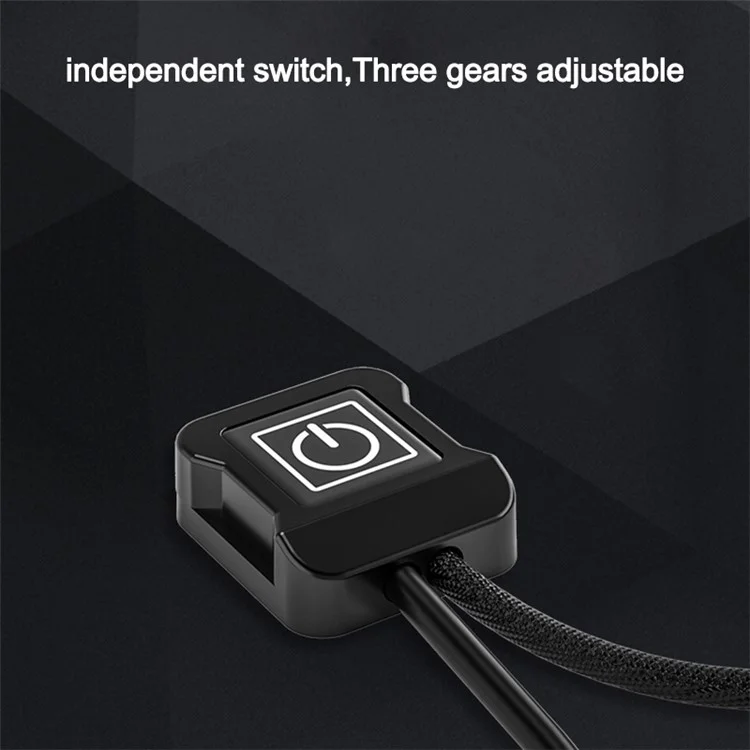

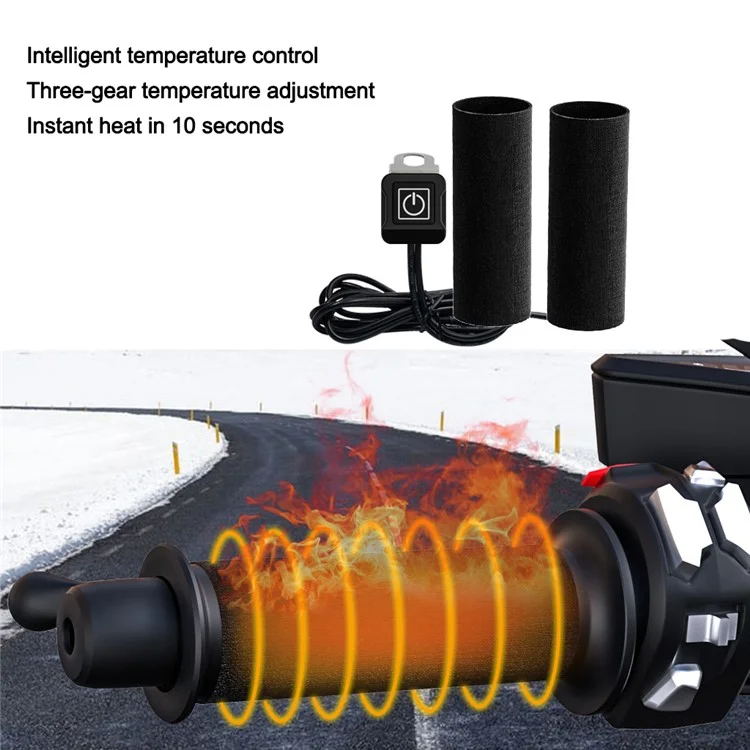

• Built-in intelligent temperature control chip, three-speed adjustable temperature, intelligent temperature control is safer
• 10 seconds rapid heating, large heating area

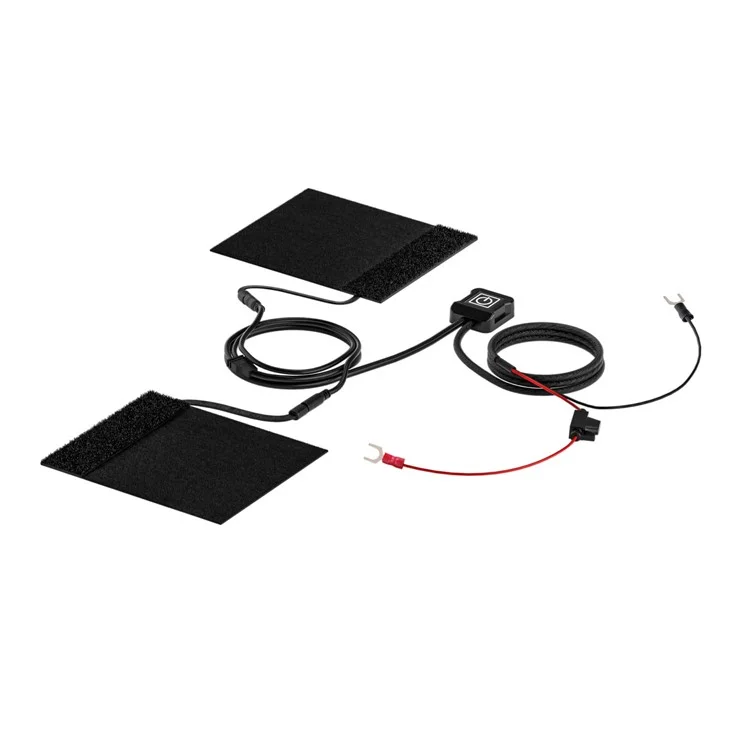

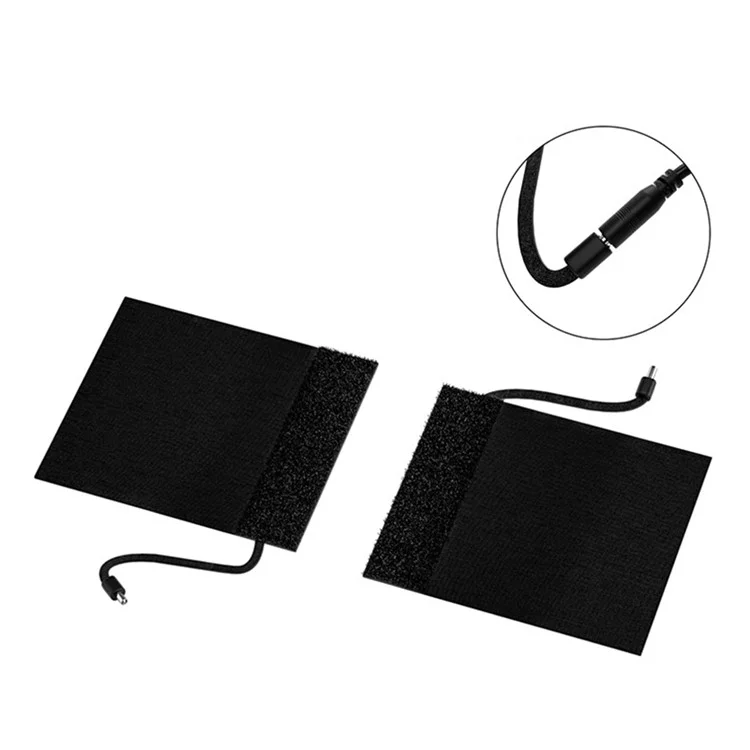

• The heating sheet is fixed by hook and loop fastener, which is convenient and quick
• IP67 waterproof rating, even if the switch and handle cover are soaked in water, they can work normally. When the handle cover needs to be cleaned, only unplug the plug and wash with water, which is very convenient

Specifications:

• Product model: CS-974A1
• Net weight: 125G
• Input voltage: DC12V

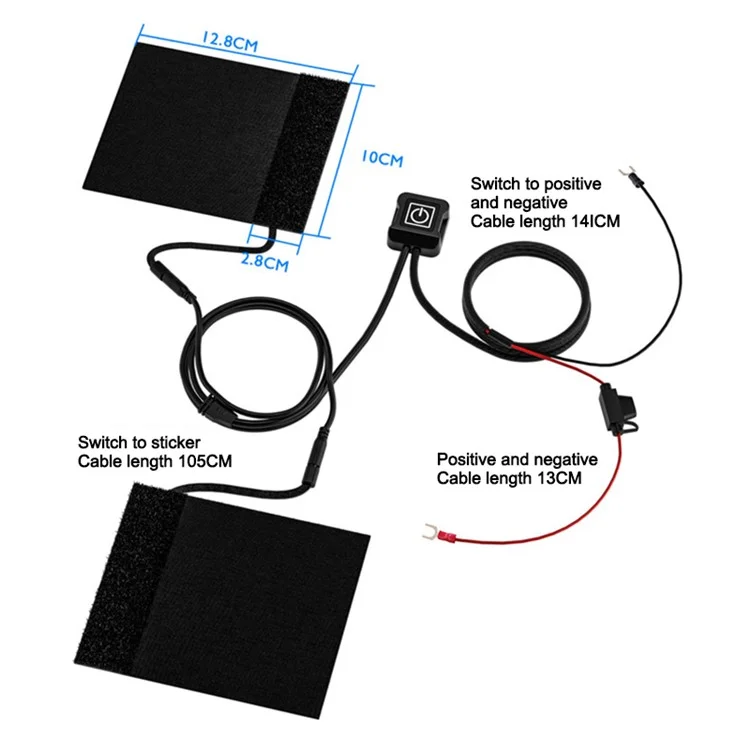

• Cable length: 108cm (heating film to switch), 146cm (switch to electric door lock)
• Working temperature: - 30 ℃ to+100 ℃
• Product power: high-grade 20W, middle-grade 15W, low-grade 10W (the above data are obtained from experiments. The laboratory room temperature is 15-20 ℃, and the specific value may fluctuate slightly due to the changes of voltage, environment and other objective factors, for reference only)
• Product material: metal heating film+Kevlar wear-resistant cloth

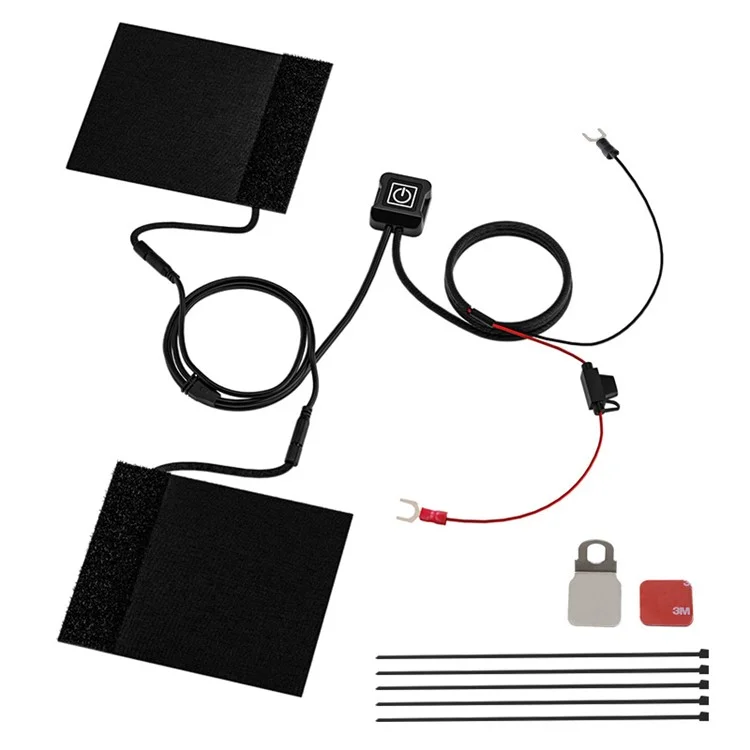

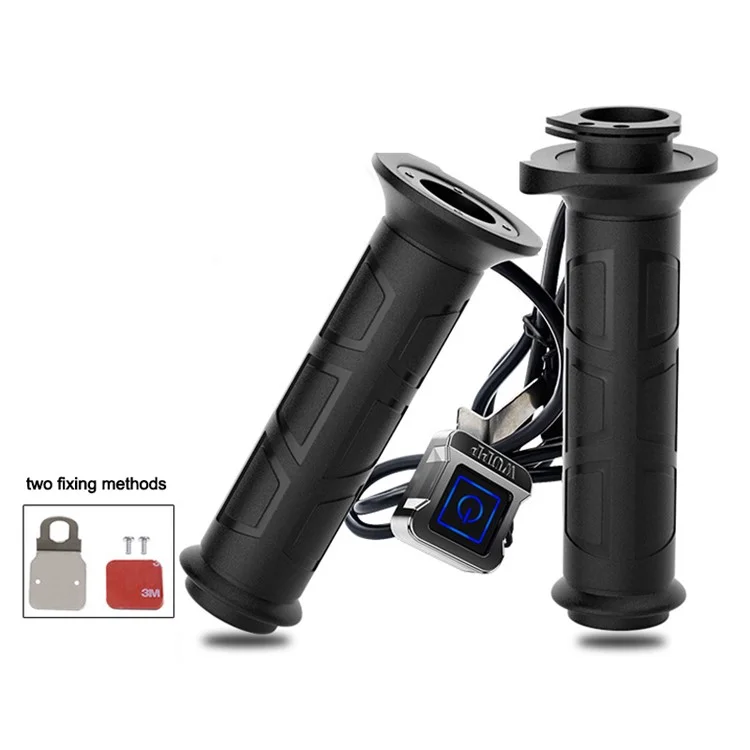

• Installation method: adhesive tape sticking and fixing, L bracket lens holder fixing
• Wiring method: red is connected to the positive pole, and black is connected to the negative pole (the lamp does not turn on when it is connected reversely, only heating)

Operating instructions:

• Power on: the red light, blue light and green light will flash once and then go out.
• Standby: the red light will flash and the temperature will automatically turn to blue when it reaches the relative temperature.

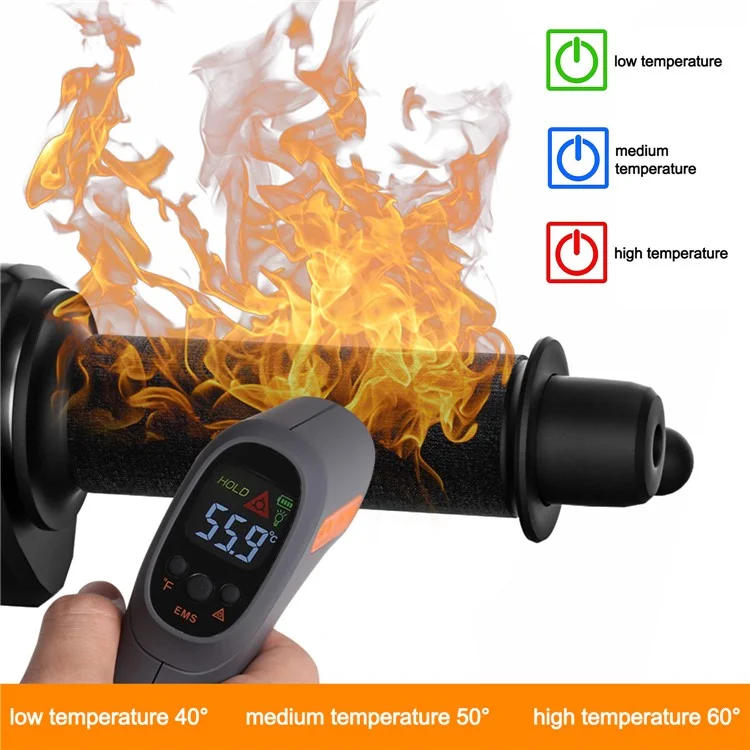

• Working status: indicator light is always on (high gear: red light is always on, middle gear: blue light is always on, low gear: green light is always on)
• Click on the key to switch gears.
• Note: The positive and negative poles are connected reversely, the switch cannot be used, and the electric heater is directly heated.

Pay attention:

• 1. Select the appropriate gear according to the ambient temperature. Under low temperature conditions, if the temperature of the electric handle sleeve can not be sensed timely and accurately due to the numbness of the hands, please use the low or middle gear first to prevent high temperature burns.
• 2. This product is only applicable to motorcycles with 12V batteries. Please read the installation diagram carefully before installation. Wrong wiring method will cause damage to parts.
• 3. This product can only be installed on the motorcycle handle for power-on use. Before installation, you can use the battery to check whether the product is correctly powered on.
• 4. It is strictly forbidden to work with power on (air burning) when not riding, to prevent the electric handle sleeve from being damaged by excessive temperature.
• 5. It is recommended to connect the wiring to the electric door lock wire. Most models are black positive and green negative. It is recommended to use a multimeter to measure the specific situation.
