• The heated grip is made of TPV material, and integrated molding, with good heat resistance, high toughness, high resilience, and other properties, the use of a wider range
• The product comes with a five-position adjustment switch, so the temperature can be adjusted at will, keeping your hands warm in winter
• Built-in intelligent chip, when the voltage is too high or too low, it will automatically cut off the power supply and enter standby mode, which is safer to use

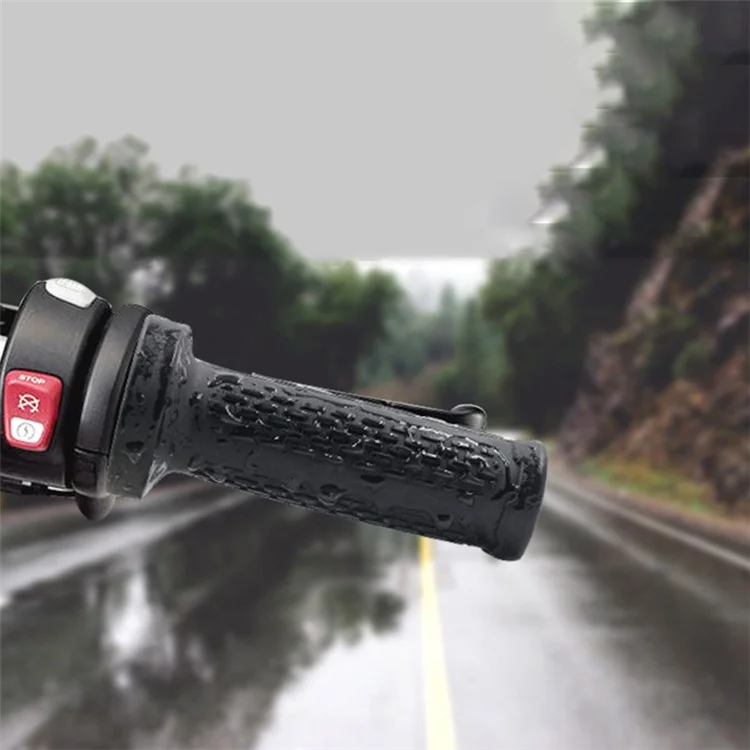

• High-strength waterproof design, not afraid of wind and rain, rain and snow can also be used normally
• Protection voltage: when the voltage is lower than (12.5±0.2V), the heated handgrip turns off the output, and the controller enters the dormant state

Instructions for Use:

• Power on the controller, the indicator light flashes 3 times, and enter the standby state Note: the color of the indicator light flashes green means normal, the color blue means that the protection function does not work (controller failure), but also can be heated normally!
• In the standby state, press the button on the handle, if the power supply voltage is lower than the starting voltage of the electric heating, the red indicator light flashes a few times and enters the standby state.
• In standby mode, press the button on the handle, if the supply voltage is higher than the electric heating starting voltage, the system will enter into rapid heating, so that the handle warms up quickly, and after some time, it enters into steady heating.
• In the working state, every time the button is pressed, the heating power will be increased by 20%, with a total of 5 gears, and the color of the indicator lamps will be in the following order: blue-green-green-purple-red.
• Under the working condition, if the power supply voltage is lower than the electric heating starting voltage, the corresponding gear indicator light will flash, if the voltage stays lower than this voltage within 7 seconds, the controller will cut off the electric heating output and enter into standby mode. If the voltage is lower than this voltage within 7 seconds, the controller will cut off the heat output and enter the standby state.
• If the supply voltage is higher than the set voltage under the working condition, the controller will cut off the heating output immediately and enter the standby mode.

Specifications:

• Product Model: CS-1324A1
• Product weight: 374g
• Product Material: TPV
• Working voltage: 12.4V-15V
• Output power: 20-40W
• Applicable tube diameter: 2.2cm
• Scope of application: ATV
