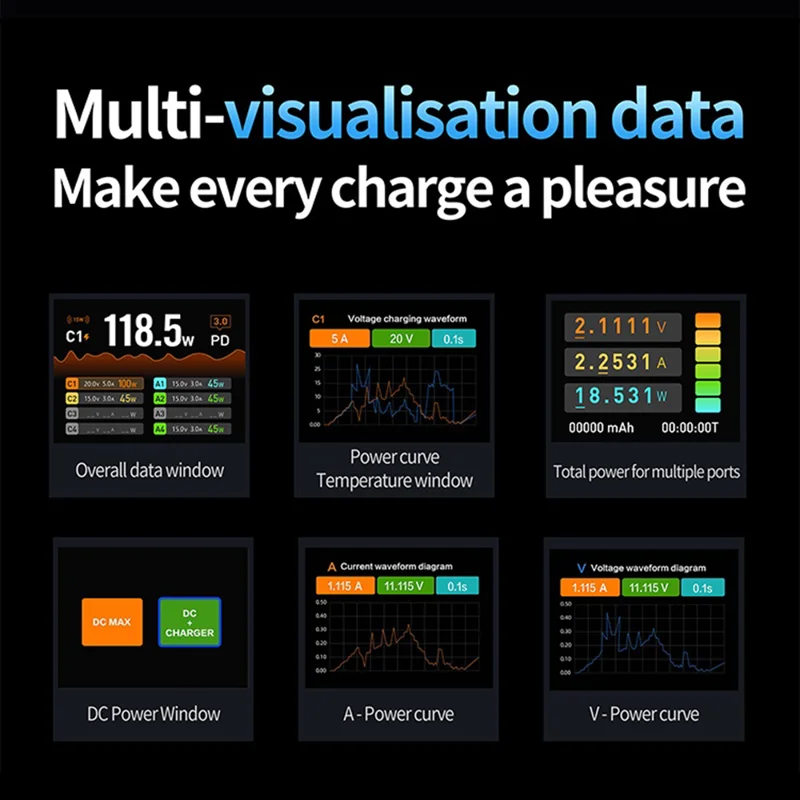

• 【All-In-One Charging Station】Features high-definition IPS display showing real-time voltage, current, power curves, and charging status with precision up to 0.001V/A for professional maintenance and testing.

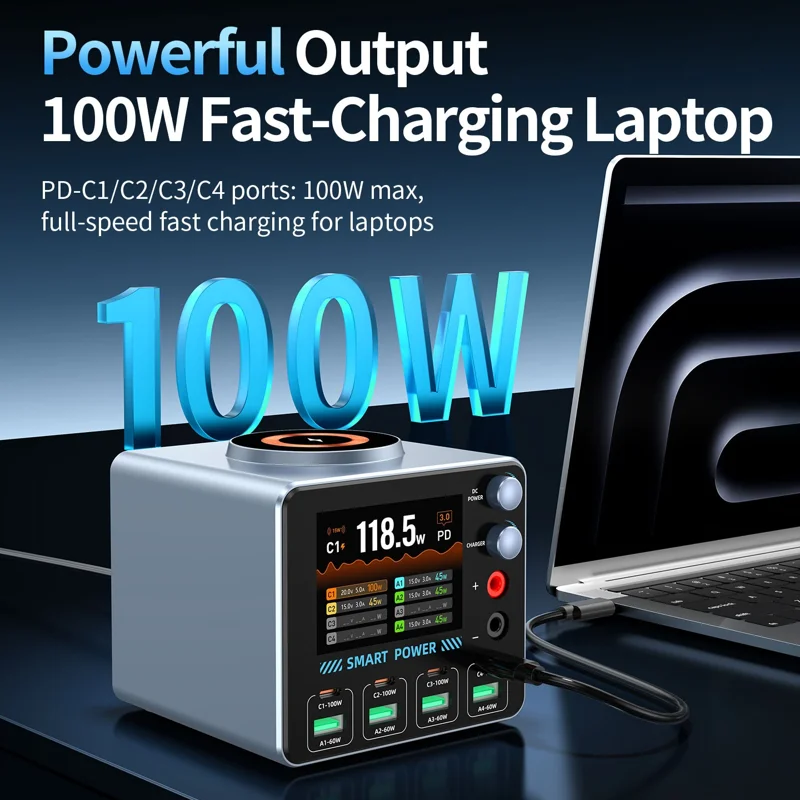

• 【PD 3.0 100W Super Fast Charging】Single port delivers up to 100W output with support for PD3.0, QC3.0, UFCS, SCP protocols, providing full-speed charging for laptops, tablets, and high-power devices.

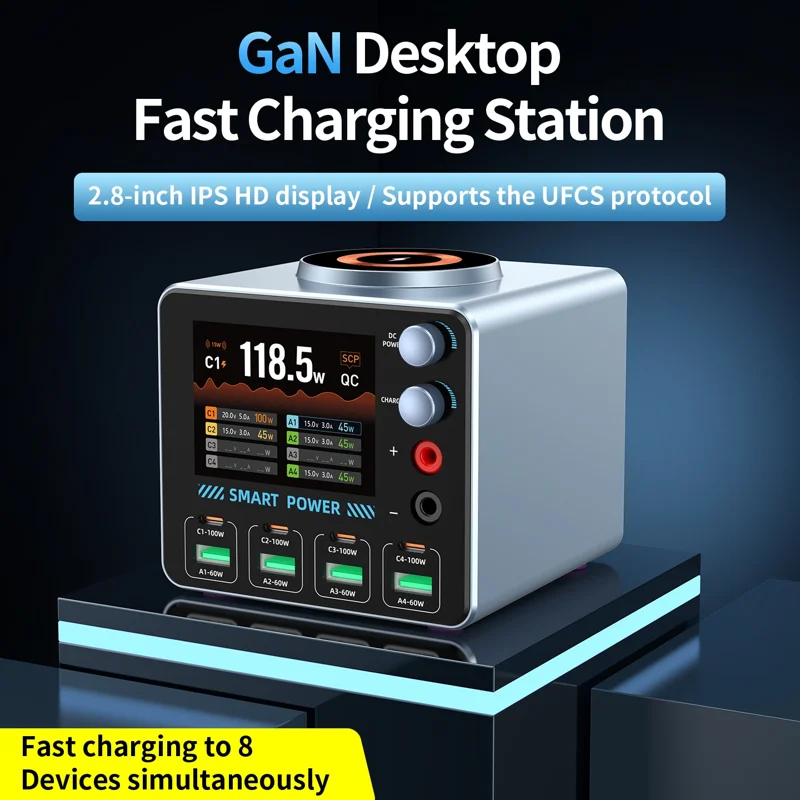

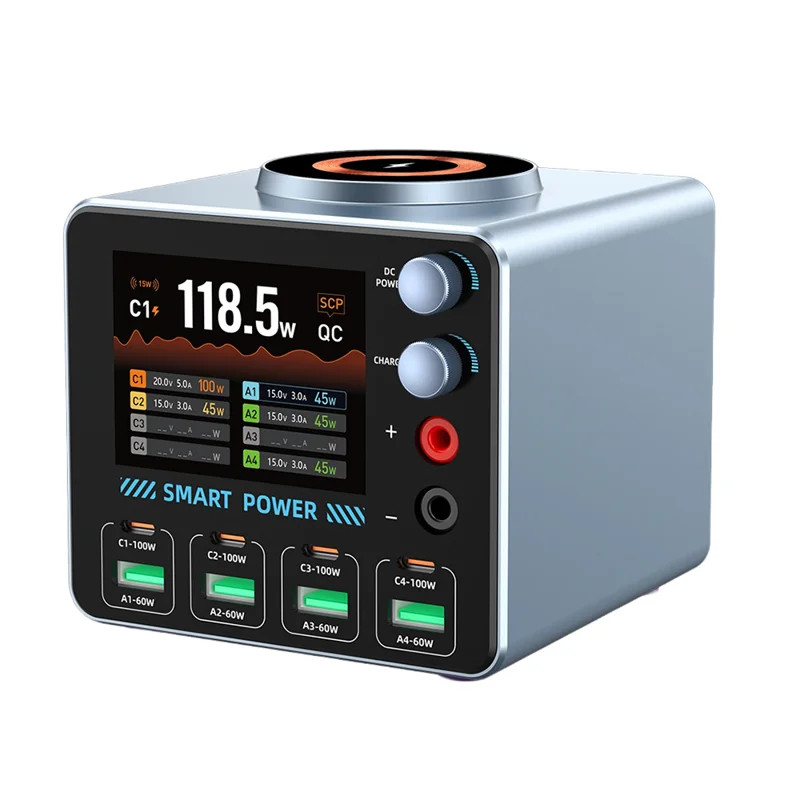

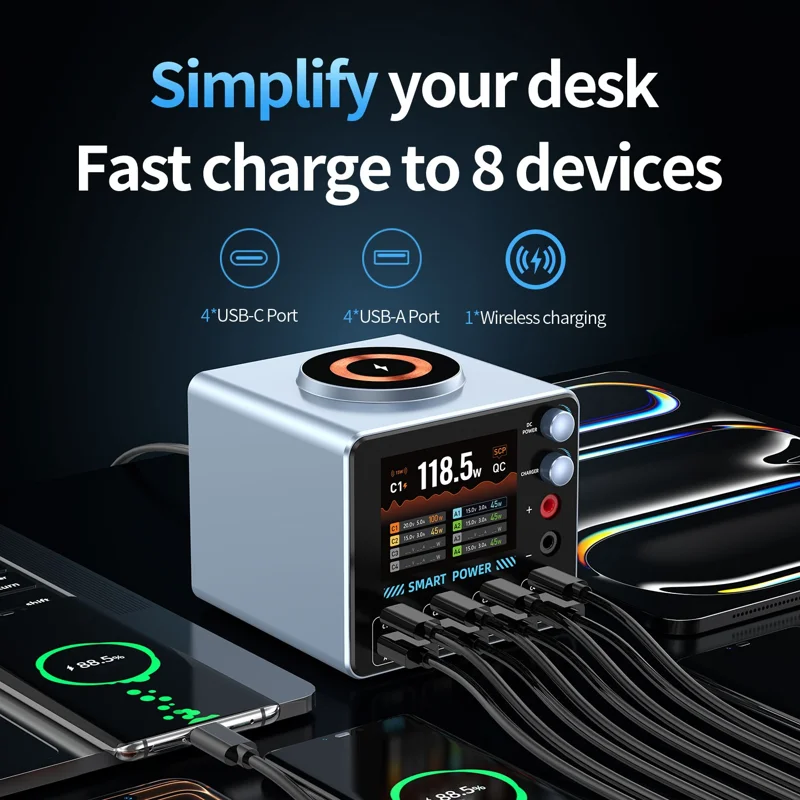

• 【Multi-Device Charging Station】Equipped with 4 USB-C ports, 4 USB-A ports, and a top wireless charging pad, supporting charging for up to 9 devices at the same time.

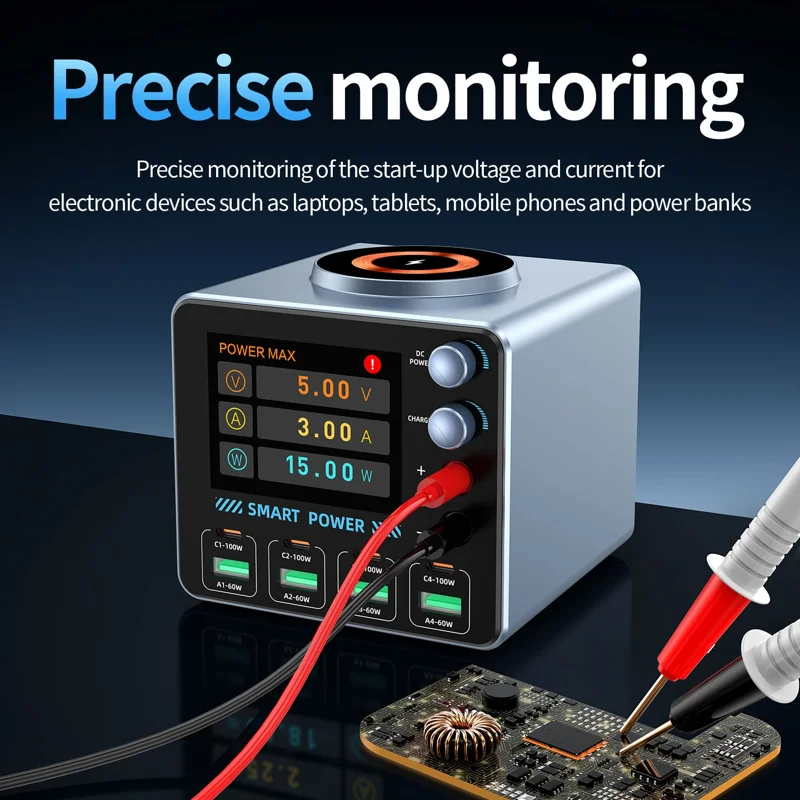

• 【Built-in DC Adjustable Power Supply】Professional DC power function with voltage adjustment range 2.7V-24V and maximum current 5.1A for circuit repair and testing requirements.

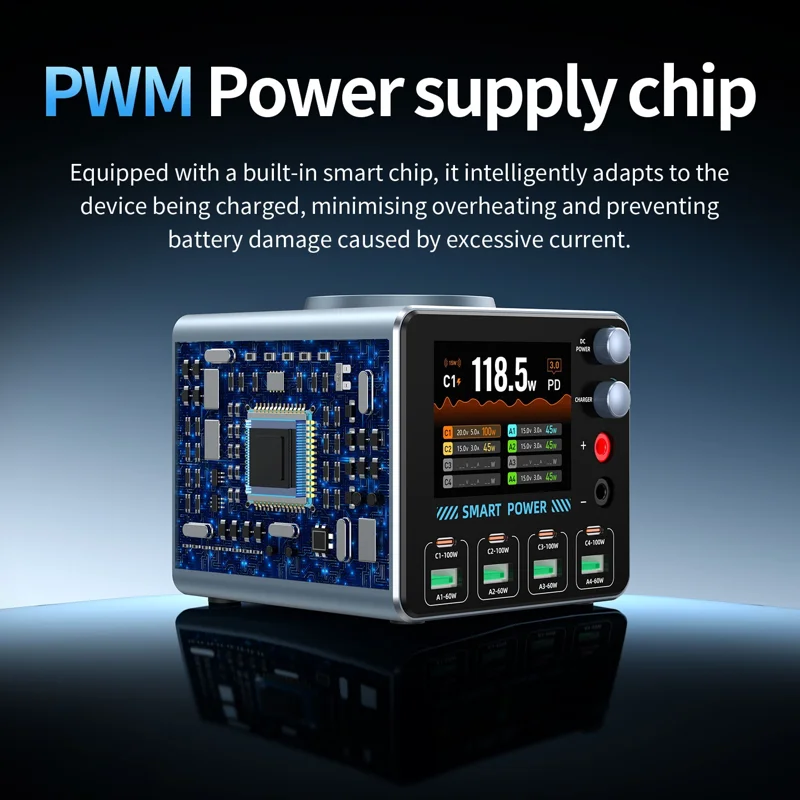

• 【GaN Technology with Safety Protection】Gallium Nitride (GaN) chip technology ensures compact size and low heat generation, with multiple safety protections including overcurrent, overvoltage, short circuit, and overtemperature.

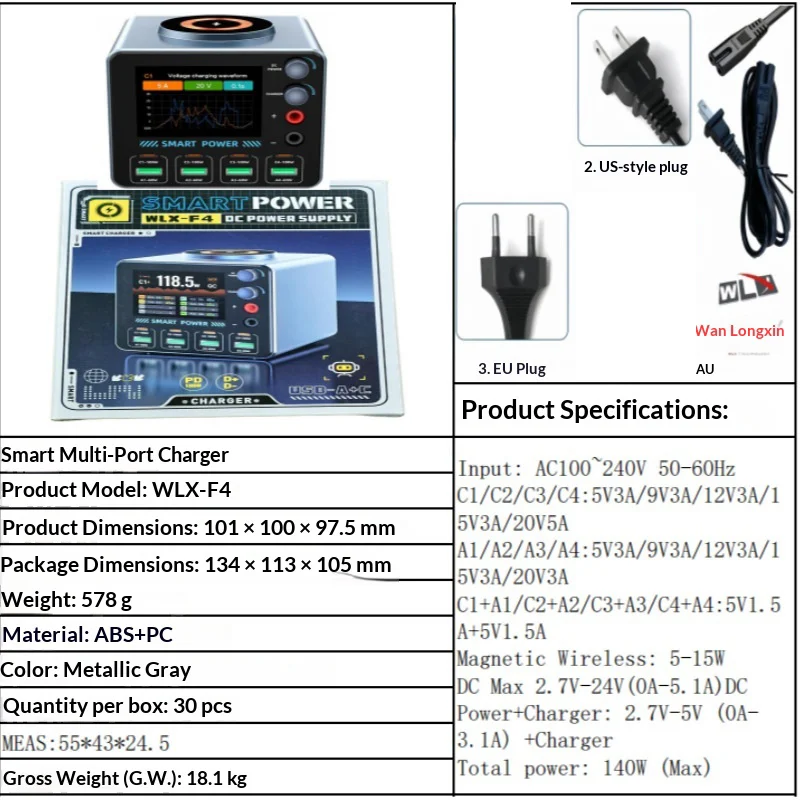

Specifications:

• Model: WLX-F4
• Material: ABS+PC
• Product Dimensions: 101×100×97.5mm
• Input: AC100-240V 50-60Hz
• USB-C Output (C1/C2/C3/C4): 5V⎓3A/9V⎓3A/12V⎓3A/15V⎓3A/20V⎓5A (100W Max)
• USB-A Output (A1/A2/A3/A4): 5V⎓3A/9V⎓3A/12V⎓3A/15V⎓3A/20V⎓3A (60W Max)
• USB-C1+A1/C2+A2/C3+A3/C4+A4: 5V⎓1.5A+5V⎓1.5A (15W Max)
• Magnetic Wireless Output: 5-15W
• Total Output: 140W Max
