• 【Advanced Connectivity】Combines Wi-Fi 6 technology with SA/NSA dual-mode 5G network for a cutting-edge internet experience, offering speeds up to 573Mbps on 2.4GHz and 2402Mbps on 5GHz bands.

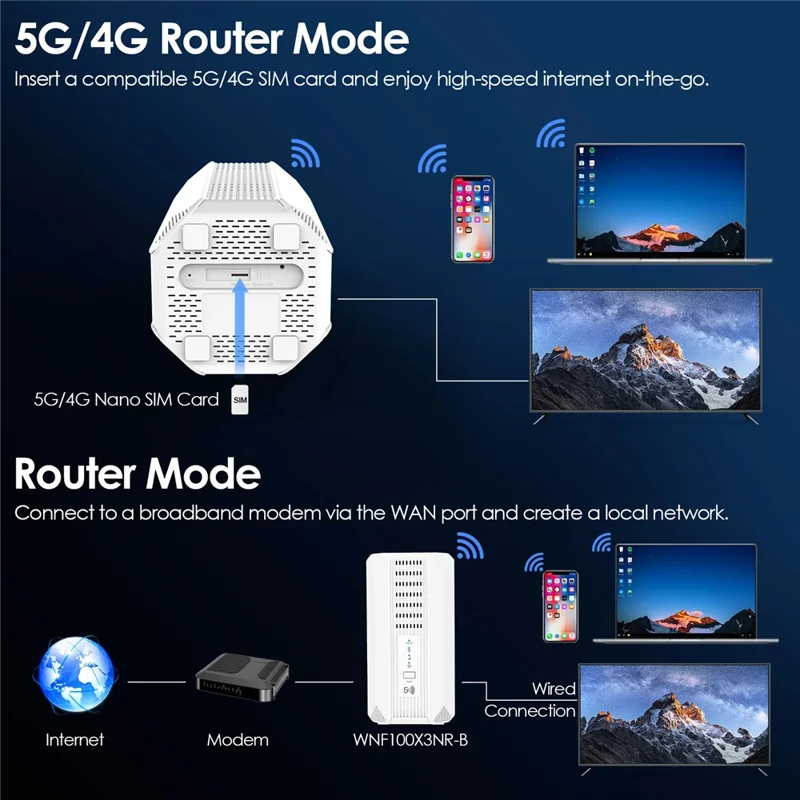

• 【Flexible Operating Modes】Features Router Mode (WAN only), 5G/4G Router Mode (5G/4G only), and Hybrid Mode (5G/4G + WAN) with automatic failover for uninterrupted internet access.
• 【High-Speed 5G NR Connection】Supports up to 3.4Gbps 5G NR connectivity, compatible with global 5G bands and 4G LTE, ensuring smooth and stable internet connection.
• 【Enhanced Signal Coverage】Equipped with 9 built-in antennas for omnidirectional stable signal and superior wireless performance.
• 【Advanced Security Features】Supports PPTP, L2TP, OpenVPN, and WireGuard protocols with encryption for all network traffic, ensuring network security when connected to public Wi-Fi.

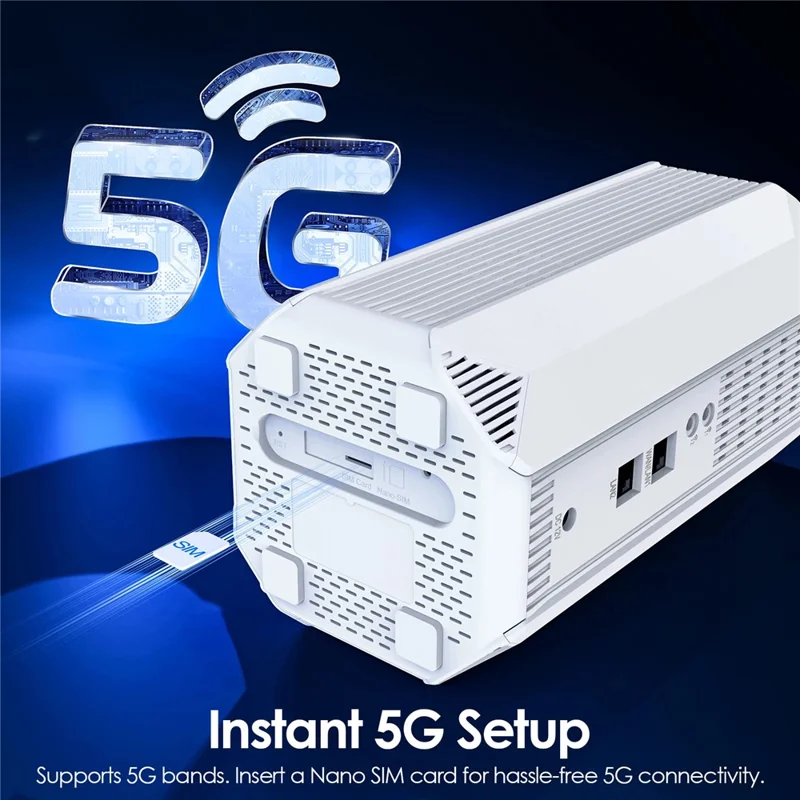

• 【Versatile Connectivity Options】Includes 2 external 5G cellular antenna ports, 1 WAN/LAN port, 1 LAN port, and a Nano SIM card slot for flexible network setup.

Specifications:

• Model: WL-WNF100X3NR-B

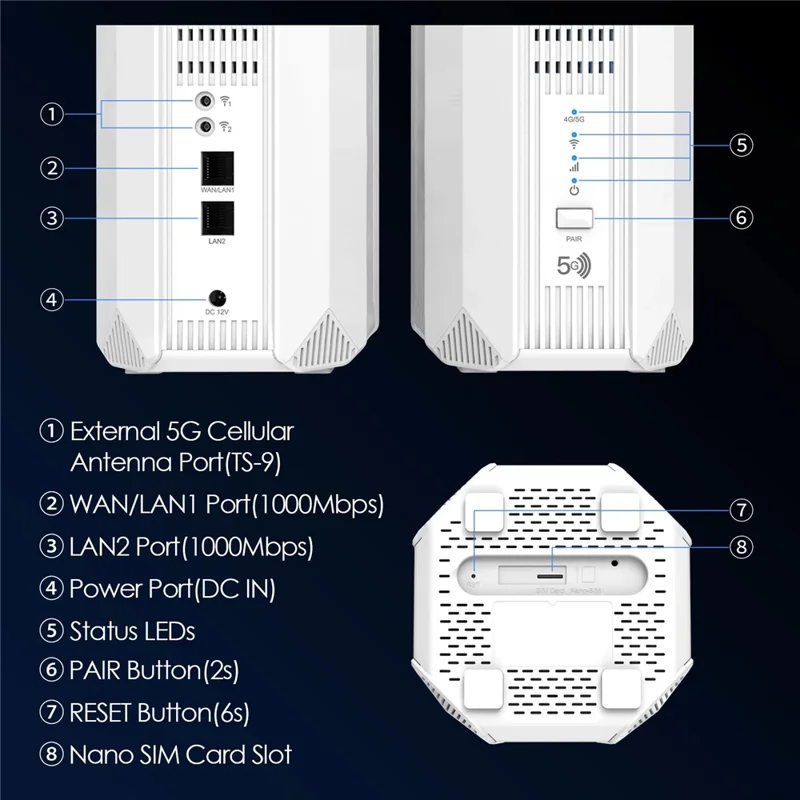

• Ports: 2 x external 5G cellular antenna ports (TS-9), 1 x WAN/LAN1 (1000Mbps), 1 x LAN2 (1000Mbps), 1 x Nano SIM slot, 1 x DC IN power port
• Buttons: 1 x PAIR button (2s), 1 x RESET button (6s)
• LED Indicators: 1 x 4G/5G LED, 1 x Wi-Fi LED, 1 x SSI (Signal Strength Indicator) LED, 1 x Power LED
• Power Adapter: DC 12V/2A 24W
• Antennas: 9 x internal omnidirectional antennas
• Wireless Standard: IEEE 802.11b/g/n/a/ac/ax
• Frequency/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
• Wireless Security: WPA3/WPA2-Mix, WPA2-PSK, WPA/WPA2-Enterprise

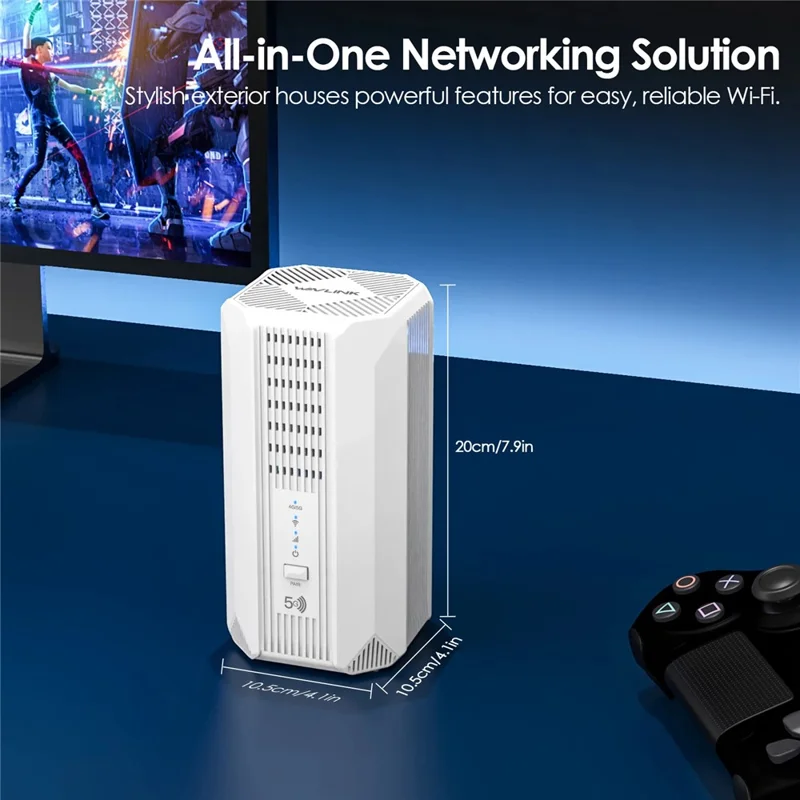

• Dimensions: 10.5x10.5x20cm / 4.1x4.1x7.9in (LxWxH)
• RM520N-GL Supported Bands, MIMO and GNSS Types:
• 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
• DL 4x4 MIMO: n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n70/n77/n78/n79
• UL 2x2 MIMO: n38/n41/n48/n77/n78/n79
• 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
• DL 4x4 MIMO: n1/n2/n3/n7/n25/n30/n66/n38/n40/n41/n48/n70/n77/n78/n79
• LTE:
• FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
• TDD: B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48
• DL 4x4 MIMO: B1/B2/B3/B4/B7/B25/B30/B38/B40/B41/B42/B43/B48/B66
• WCDMA: B1/B2/B4/B5/B8/B19
• GNSS: GPS / GLONASS / BDS / Galileo / QZSS
