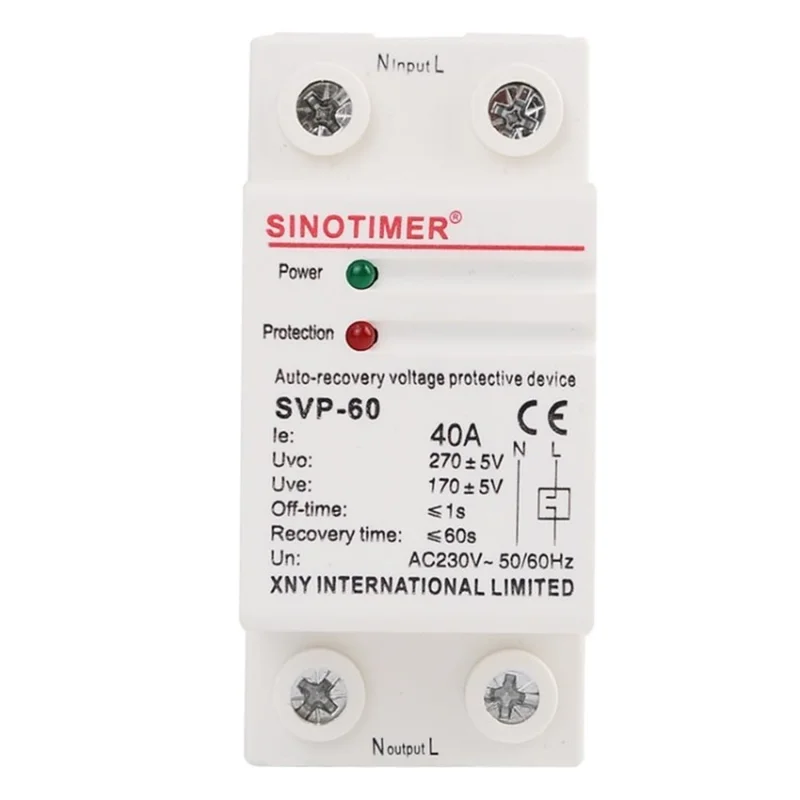

• The automatic recovery overvoltage and undervoltage protection device conform to the modular design standard

• High-quality electronic components with reliable performance

• When the power condition is unstable, the protection function is automatically activated

• If the voltage is too high, it will automatically cut off

• When the power returns to normal, it will re-power within 1 minute

• Green light - normal power supply. Red light - overvoltage or undervoltage

Specifications:

• AC voltage: 230V±10%, frequency 50Hz/60Hz

• Max current: 40A or 60A

• Max load power: 8.8KVA

• Overvoltage action cut-off value: >270VAC±5V

• Normal voltage value: 175-270VAC

• Cut-off value for undervoltage: <170VAC±5V

• Overvoltage and undervoltage cut-off: <1s

• Delay after power failure: <60s

• Self-consumption: <2W

• Motor life: = 100000 times

• Size: 35*70*77mm

• Mounting type: 35mm Din Rail

Note:

• When connecting for the first time, wait 1 minute. The product can only work after the red light goes out.
