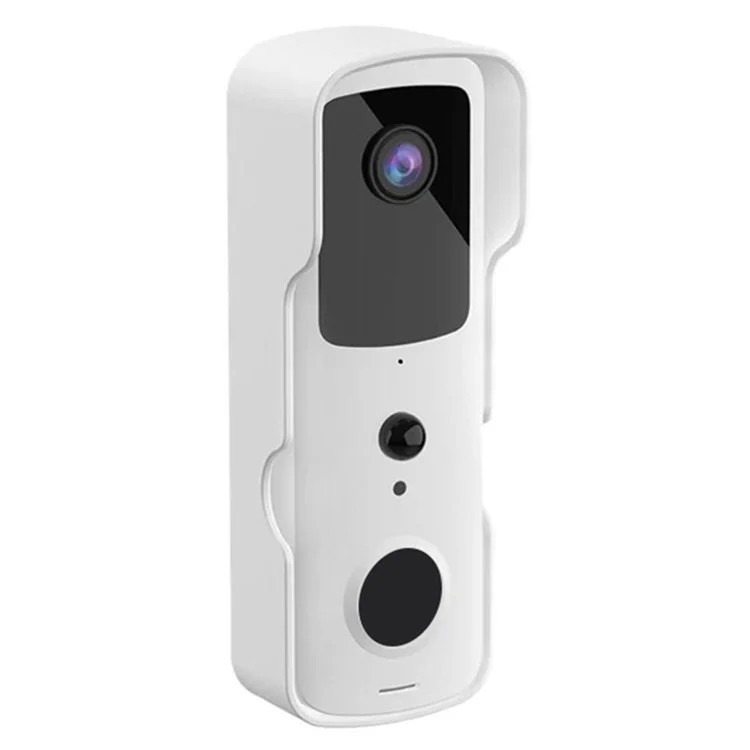

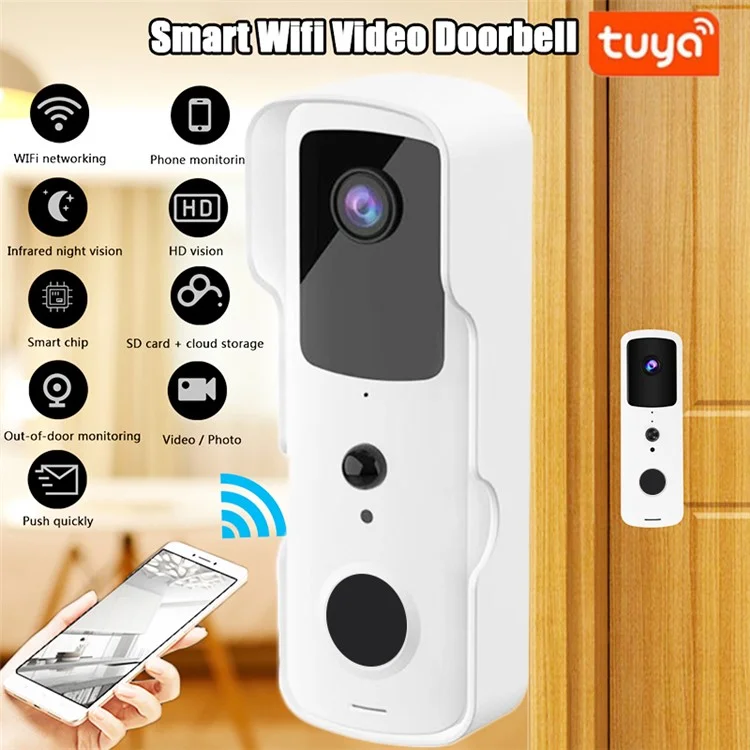

V30S Tuya Wireless Home Video Doorbell Remote Monitoring WiFi Intercom Doorbell - White

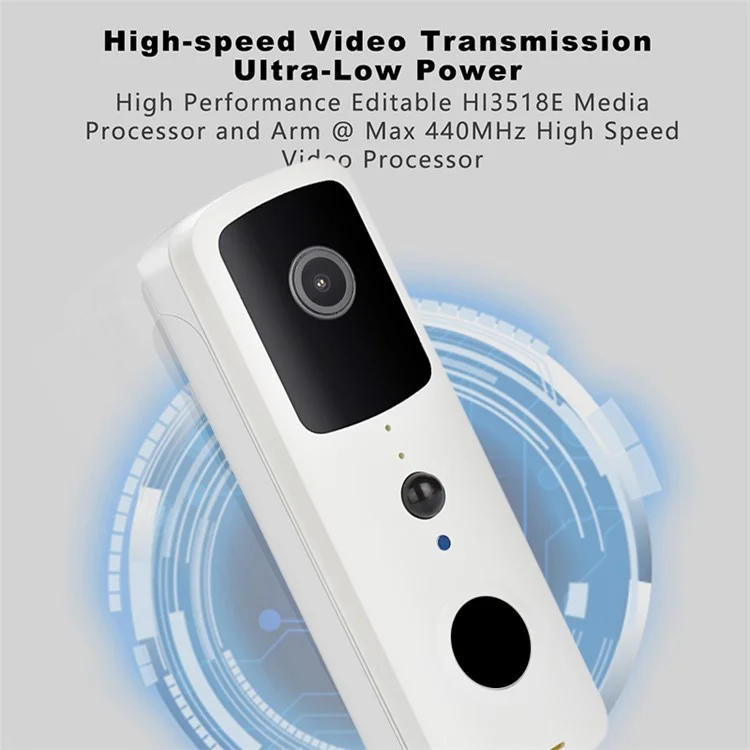

- High performance editable HI3518E media processor and ARM max 440MHZ high speed video processor
- Support multiple ways to wake up, real-time viewing and voice calls with visitors. At the same time,you can also record video at any time and save the photo shot
- Whether you are on a business trip or in the office, as long as you have a network, you can check the status of the door in real time

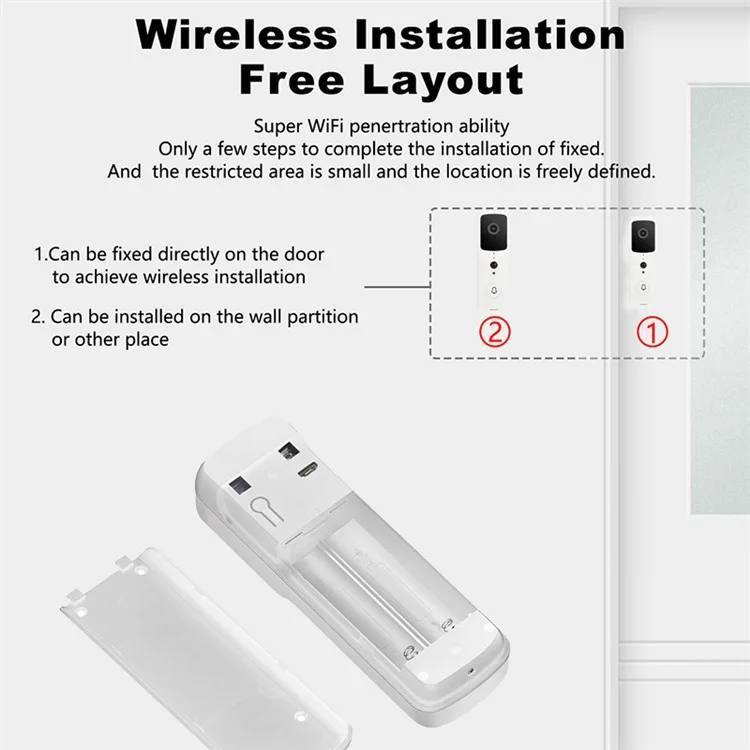

- Super WiFi penertration ability. Only a few steps to complete the installation of fixed. And the restricted area is small and the location is freely defined
- When the doorbell automatically detects a guest, it automatically opens and wakes up, and the mobile phone automatically reminds you
Specifications:
| Platform Information | Hardware solution | Realtek8715+JCF37 | |||
| Chipset | Chipset | Realtek8715 (Integrated Wi-Fi) | |||
| RAM | 32MB | ||||
| Flash | 8MB | ||||
| Sensor | Detection range | 10 meters，110 degrees | |||
| Sensitivity | High/medium/low to choose from | ||||
| Sensor Model | JCF37 | ||||
| Sensor Type | 1/3" Progressive Scan CMOS | ||||
| Effective of pixels | 2.0MP | ||||
| EFL | 3.6mm | ||||
| aperture | F2.1 | ||||
| Viewing angle | D*H*V 121°*90°*68° | ||||
| Night Vision | IR-LED | 6 EXIR infrared lights, 7 meters (wavelength 850nm) | |||
| IR-CUT | conventional | ||||
| Low illumination | 0lux | ||||
| Indicator | Working Indicator | Red and blue two-color*1 | |||
| Charge indecator | Red and blue two-color*1 | ||||
| Hardware | Standard | Main control integration, rate Max.75Mbps, open straight line distance ≥200 meters | |||
| Mic | Full duplex, sensitivity: ≥-38±3dBm | ||||
| Speaker | Built-in 8Ω/1W | ||||
| TF Card | Maximum support 64G | ||||
| Button Switch | Reset*1, doorbell button*1 | ||||
| wireless 433MHz | Wake up indoor ding dong machine | ||||
| Antenna | 3DBi*1, 433Ant*1 | ||||
| Battery | Battery Type | Removable polymer lithium battery 18650*2 (not include) | |||
| Battery Capacity | 2600mAh*2 | ||||
| Measurement accuracy | higher than 5% | ||||
| Standby life | About 60 days (calculated based on waking up 10 times a day) | ||||
| Hardware performance | WiFi | Maximum rate | 75Mbps | ||
| distance | Open straight line ≥180 meters | ||||
| standard | IEEE 802.11 b/g/n | ||||
| Power Supply | DC 5V 1A | ||||
| Charge Current | 1A | ||||
| standby power | 2.2mW | ||||
| Operational power consumption | 1.1W | ||||
| I/O | Input port | TF Card*1, Micro USB*1, Mic*1, PIR*1, | |||
| Output port | Speaker*1; | ||||
| key type | Tact Switch*2 | ||||
| Indicator light | Red and blue two-color indicator light*2 | ||||
| Audio | Echo cancellation | support | |||
| Two-Way Talk | support | ||||
| Compression method | G.711a | ||||
| Video | Video Format | H.264 encoding format | |||
| Video stream | 20fps | ||||
| Resolution & frame rate | 1080P, multiple streams: HD/SD; | ||||
| IR-control | IR turned ON | Enable night vision view, infrared, ICR auto-detection. | |||
| IR turned OFF | No such function | ||||
| White Light | No such function | ||||
| APP | Andorid | Android 4.3 and above | |||
| IOS | IOS 9.X-10.X or above | ||||
| APP | Tuya Smart | ||||
| Cloud platform | Tuya | ||||
| Language | Chinese/English | ||||
| Mobile APP | Support configuration/real-time browsing/playback/call/volume adjustment/video adjustment/recording/format SD card | ||||
| Communication Protocol | WIFI, MQTT | ||||
| Cloud recording storage | Support (user pays) | ||||
| On line visitor | Maximum 5 people online at the same time | ||||
| Remote control and monitoring | support | ||||
| Power failure memory | support | ||||
| Pairing | Scan QR Code | ||||
| Max recording duration | Determined based on the storage space | ||||
| OTA upgade | support | ||||
| Storage device full management | Cover the oldest video records | ||||
| Live browsing | Open the mobile APP and activate the camera | ||||
| Accessories | AC Adapter | DC 5V 1A | |||
| Temperature | Temperature setting | Working: -20 ~ 50℃, Humidity <95% </95>Storage: -20 ~ 70℃, Humidity <95% |
|||
