UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance and automatic measurements.

Large LCD screen

High resolution analog pointer display

Full range overload protection

Data hold, REL, Peak value measurement

Low battery indication, backlight, and sleep mode

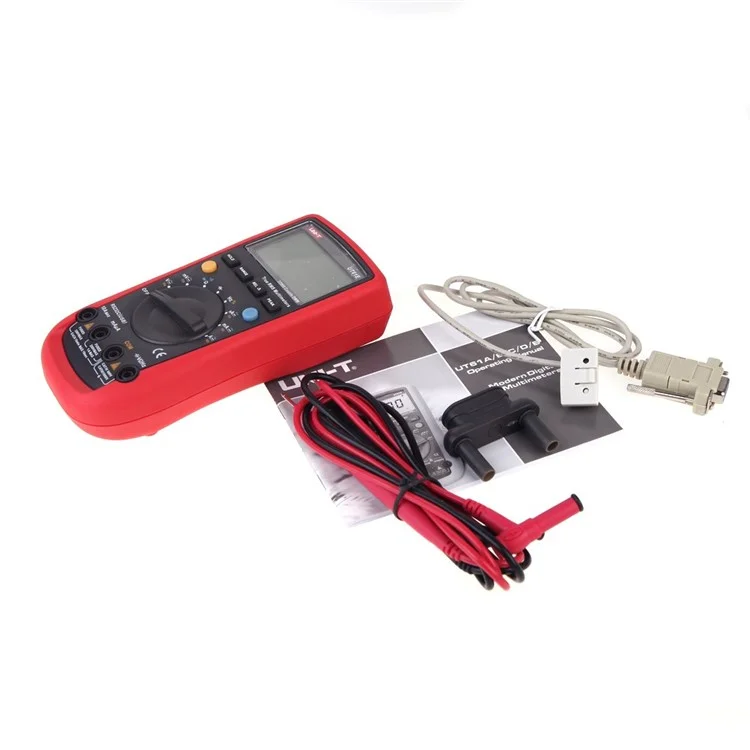

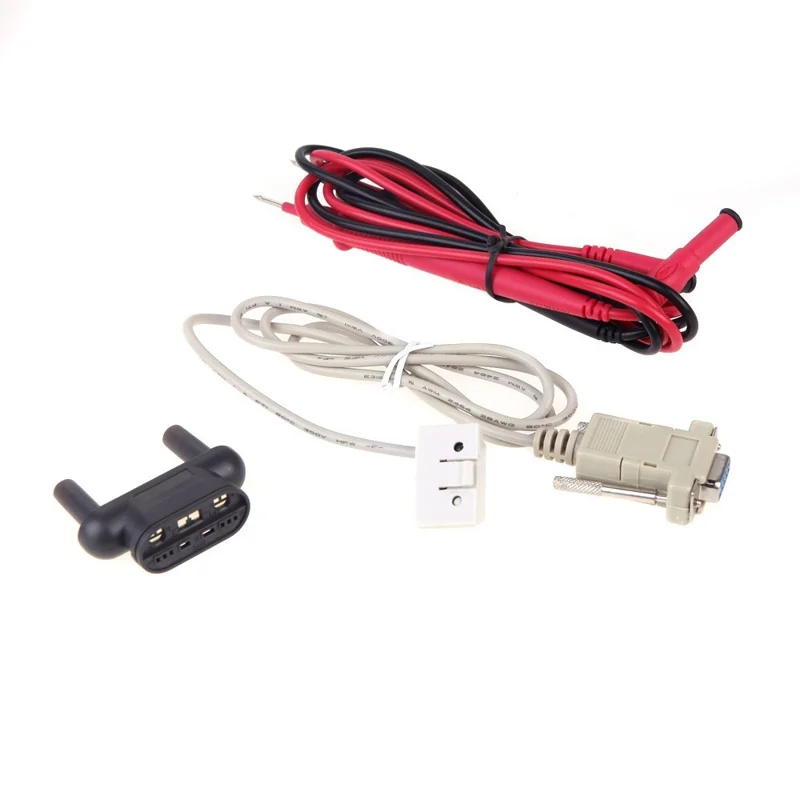

External interface supports RS-232C and USB cable

UT61 Series can measure AC/DC voltage and current (UT61D, UT61E has true RMS), resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc.

UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry.

• Display Count: 22000

• Auto Range: √

• True RMS: √

• Bandwidth (Hz）: 45Hz ～10kHz

• Duty Cycle: 0.1% ～ 99.9%      √

• Diode: √

• Continuity Buzzer: √

• Low Battery Indication:   ≤7.5V

• Data Hold: √

• Relative Mode: √

• Peak Value: √

• RS-232: √

• LCD Backlight: √

• Analogue Bar Graph: 46

• Input Protection: √

• Input Impedance for DCV: Around 10MΩ

Specifications:

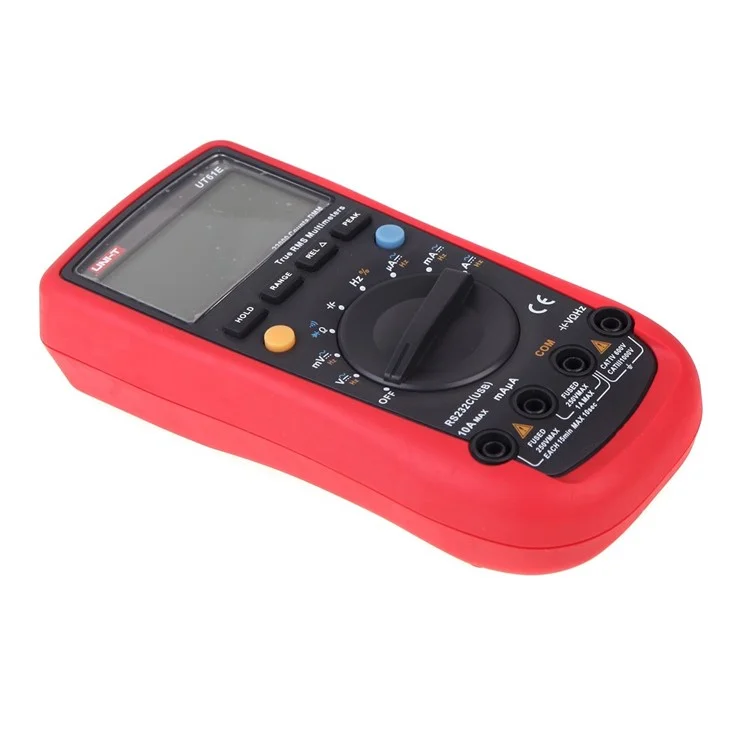

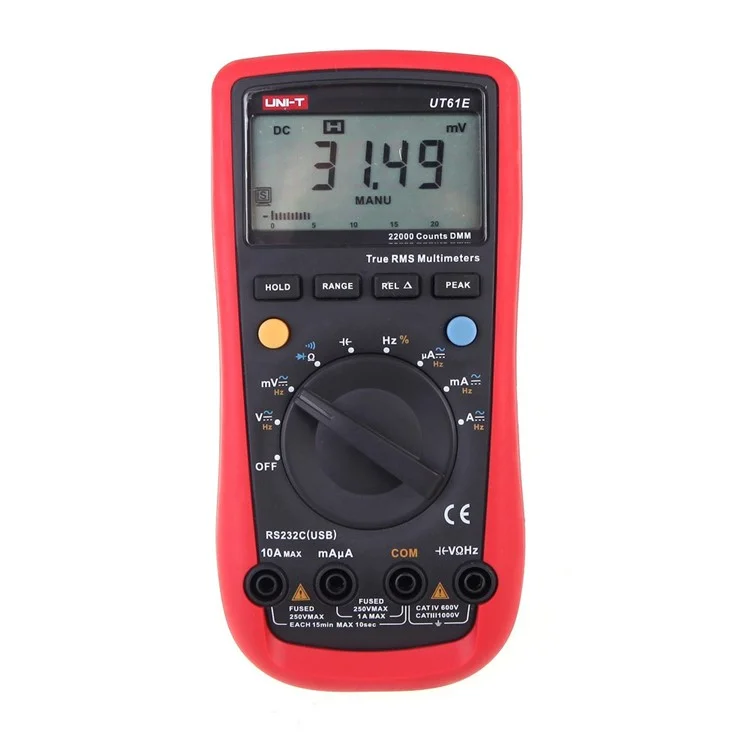

• Model: UT61E

• DC Voltage (V): 220mV/2.2V/22V/220V/1000V ±(0.1%+2)

• AC Voltage (V): 220mV/2.2V/22V/220V/750V ±(0.8%+10)

• DC Current (A):    200μA/2200μA/22mA/220mA/2.2A/10A ± (0.5%+10)

• AC Current (A): 200μA/2200μA/22mA/220mA/2.2A/10A ±(0.8%+10)

• Resistance (Ω): 220Ω/2.2kΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ±(0.5%+10)

• Capacitance (F): 22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF ±(3.0%+5)

• Frequency (Hz): 10Hz-220MHz ±(0.01%+5)

General Characteristic:

• Power: 9V Battery 6F22 (not included)

• LCD Size: 65mm * 43 mm

• Product Color: Red and Grey

• Product Net Weight: 370g

• Product Size: 180mm * 87mm * 47 mm
