• 【Compatible Capture And Recording】HD video capture supports 4K/60Hz input and 4K/30Hz capture for live streaming or recording with high-resolution source content.
• 【HDR Loop-Through Support】HD loop-through passes HDR signals to a display while maintaining support for high-refresh input modes up to 240Hz.
• 【USB-C Capture Connectivity】USB-C capture output works at up to 4K/30Hz and supports downward compatibility for connection to compatible host systems.

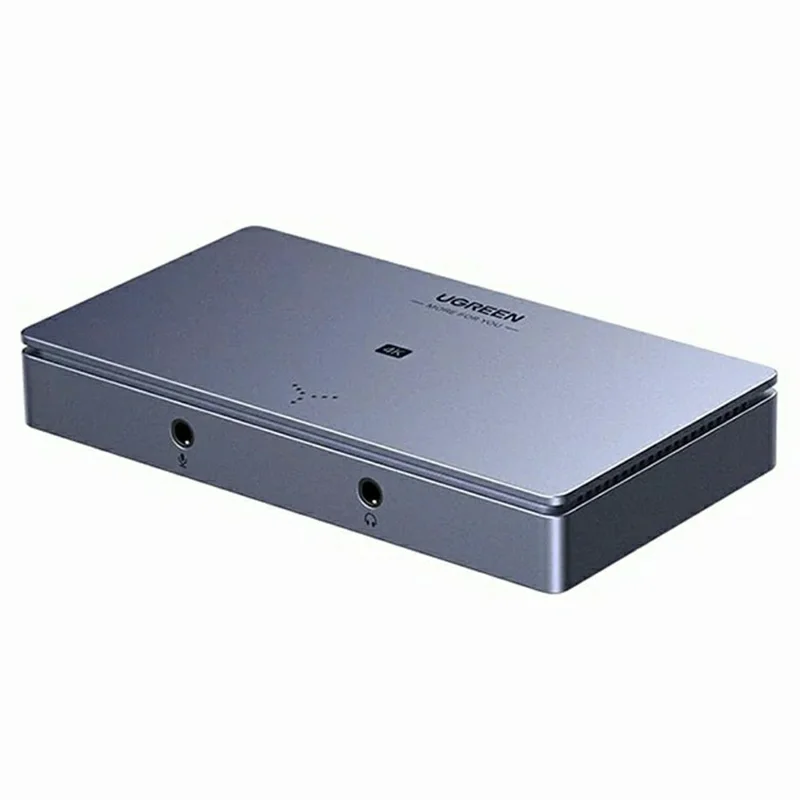

• 【Dedicated Audio Interfaces】3.5mm microphone input and 3.5mm audio output provide dedicated ports for connecting a microphone and headphones during capture or streaming.
• 【Multi-System Plug And Play】Driver-free operation supports multiple systems, while bilateral ventilation openings and high-conductivity material support extended streaming operation.

Specifications:

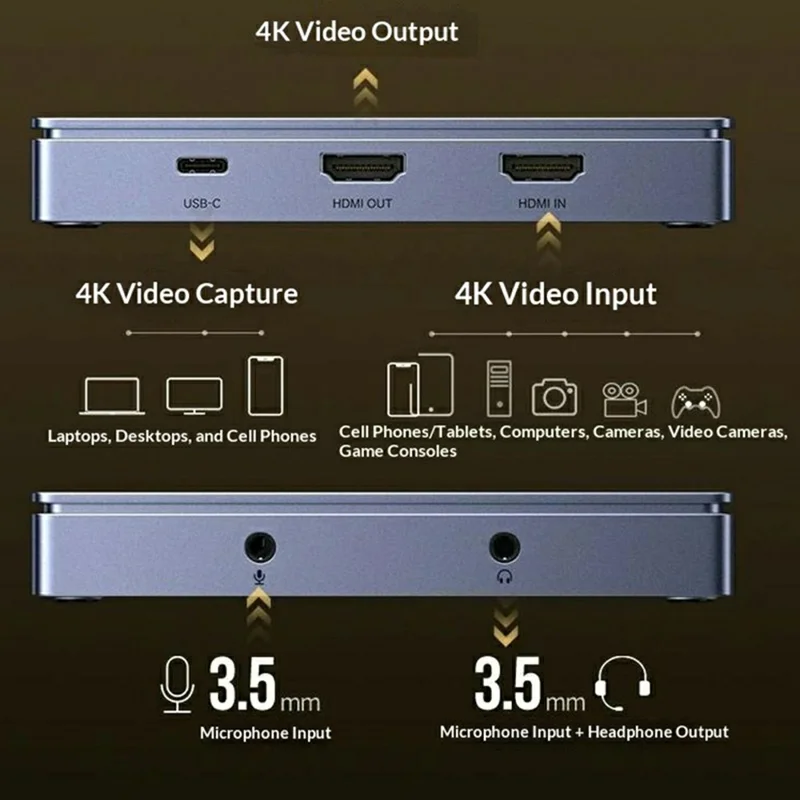

• Input Interface: HD input, up to 3840 x 2160 at 60Hz, downward compatible
• Loop-Through Interface: HD output, up to 3840 x 2160 at 60Hz, downward compatible
• Capture Interface: USB-C, up to 3840 x 2160 at 30Hz, downward compatible

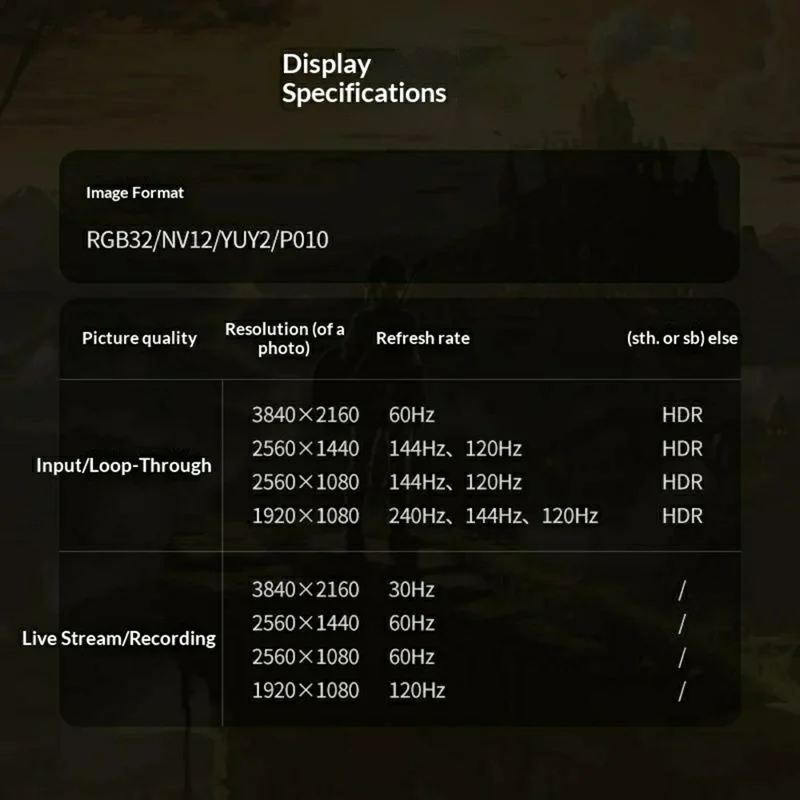

• Input And Loop-Through Modes: 3840 x 2160 at 60Hz HDR; 2560 x 1440 at 144Hz or 120Hz HDR; 2560 x 1080 at 144Hz or 120Hz HDR; 1920 x 1080 at 240Hz, 144Hz, or 120Hz HDR
• Live Stream And Recording Modes: 3840 x 2160 at 30Hz; 2560 x 1440 at 60Hz; 2560 x 1080 at 60Hz; 1920 x 1080 at 120Hz
• Image Formats: RGB32, NV12, YUY2, P010
• Audio Input: 3.5mm microphone input
• Audio Output: 3.5mm audio output
• Material: PC + ABS
• Power Supply: 5V/1A
• Driver: Driver-free operation for multiple systems
• Chipset: Five high-performance chips
• Continuous Live Streaming: 48 hours

Note: VRR requires a monitor and gaming device that support VRR.
