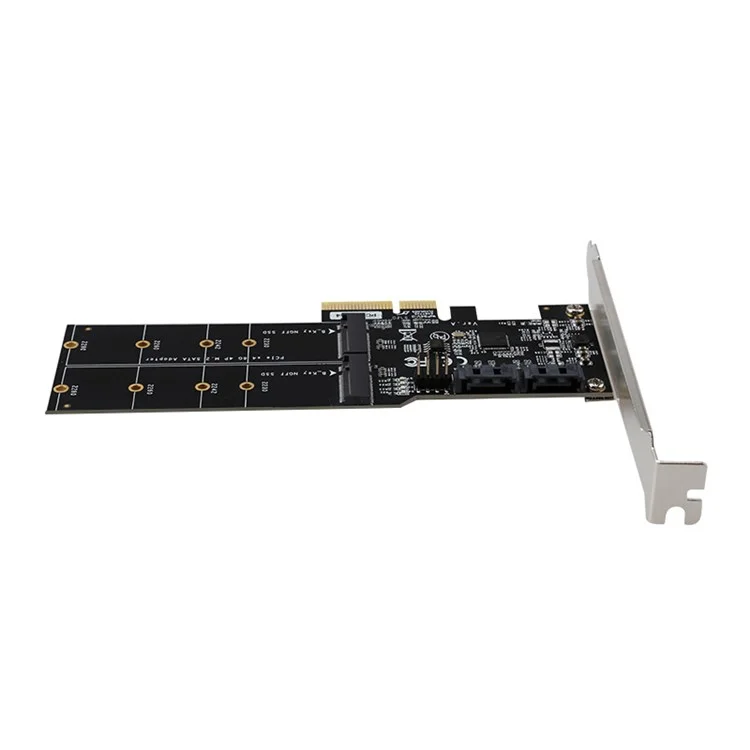

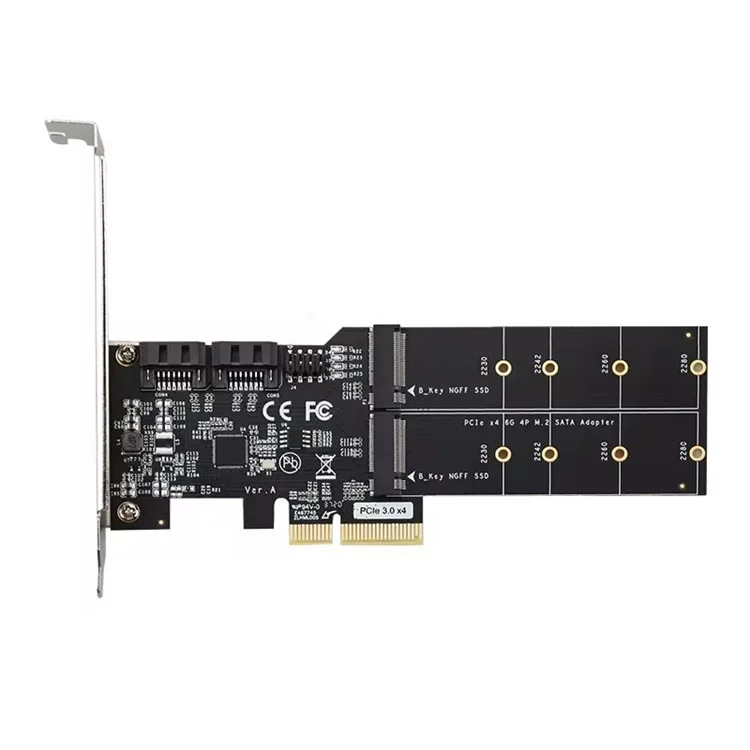

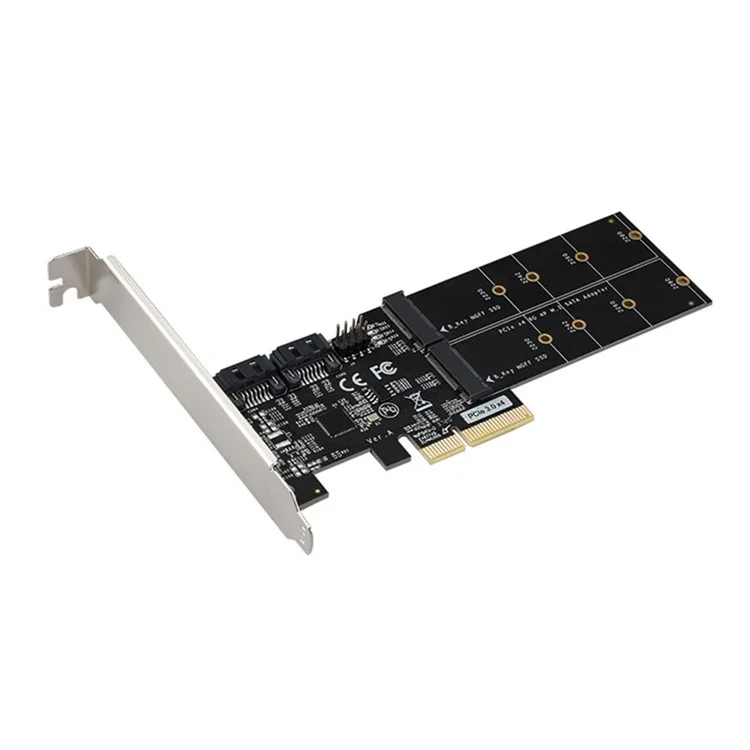

This M.2 SSD control card allows you to install two M.2 NGFF drives on your desktop computer. The card also has two SATA III (6Gbps) ports and supports software RAID. Now you can combine the speed and compact size of an M.2 solid-state drive (SSD) with the storage capacity of a traditional hard disk drive (HDD).

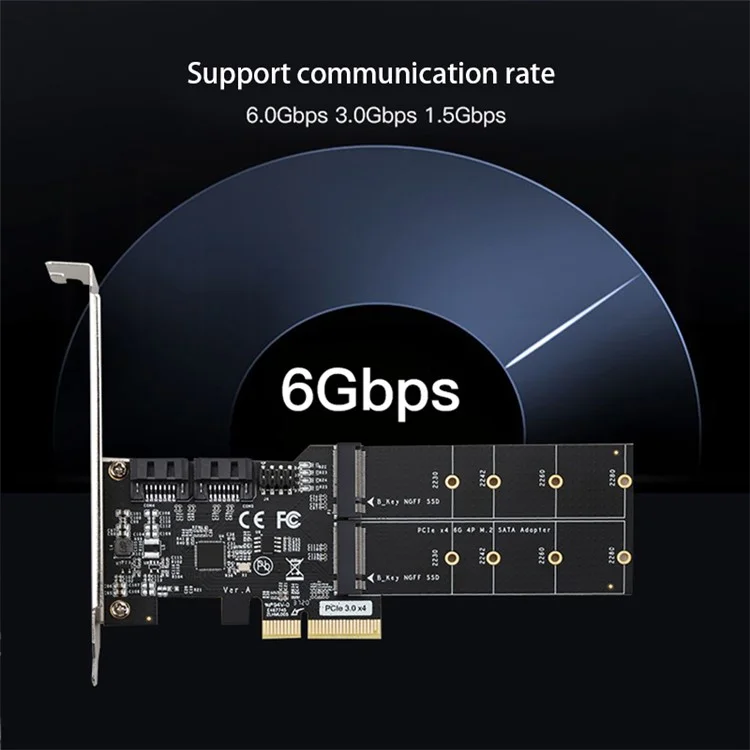

• Supports communication rates of 6.0 GBPS, 3.0 GBPS and 1.5 GBPS
• Support GEN 1I, GEN 1X, GEN2I, GEN2X, GEN3I
• Support AHCI1.0 and IDE programming interface
• Supports Native Command Queuing (NCQ)
• Supports command signal interference (MSI)
• Recover data or increase your desktop's performance and storage capacity by adding two M.2 solid-state drives (SSD) and two SATA III drives
• Broad installation compatibility, supports almost all M.2 NGFF drives (2280, 2260, 2242, 2230), as well as hybrid drives
• Two M.2 B-Key onboard sockets, supporting SATA III transfer speeds up to 6Gbps
• Adjustable bracket and multiple mounting holes support 80mm, 60mm, 42mm and 30mm SSDs
• Quick, hassle-free setup with native support for most operating systems

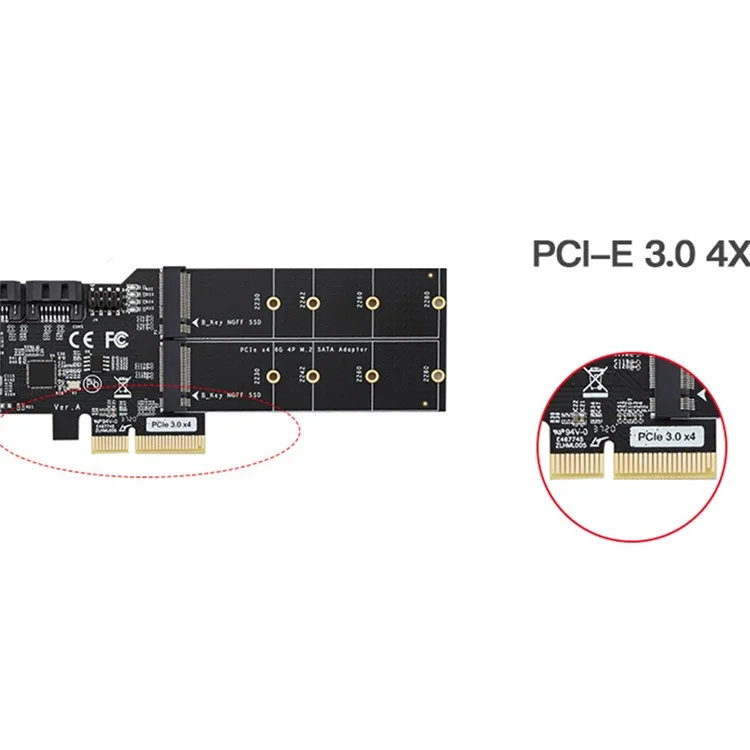

• PCI Express 3.0 compliant
• PCIe bus powered
• Comes with full contour stand
• Can be installed in x4, x8, x16 PCIe slots

Specification:

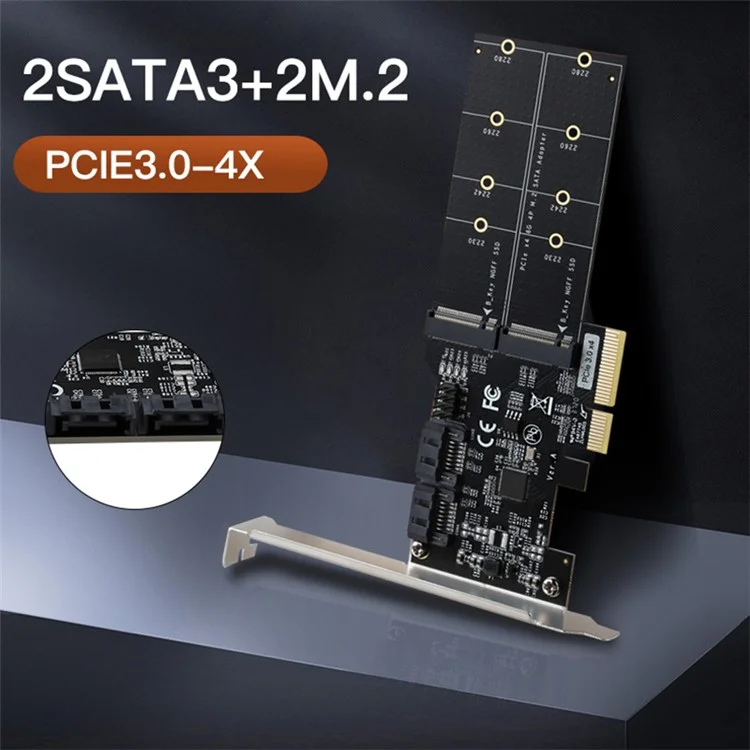

• Supported interfaces: two B-KEY M.2 (NGFF) interfaces + two SATA3.0
• Motherboard interface: PCIE 3.0X4
