• 【Dual CS43131 DAC Chips】Featuring two high-performance CS43131 DAC chips for exceptional audio decoding and processing.

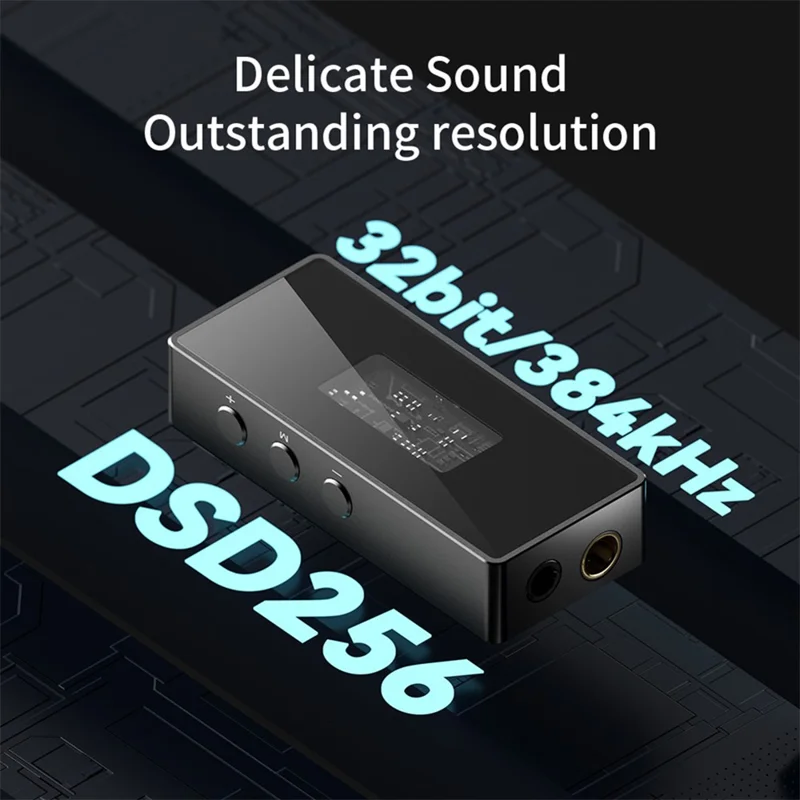

• 【High-Resolution Audio Support】Supports up to 32bit/384kHz and DSD256 for audiophile-grade sound quality.

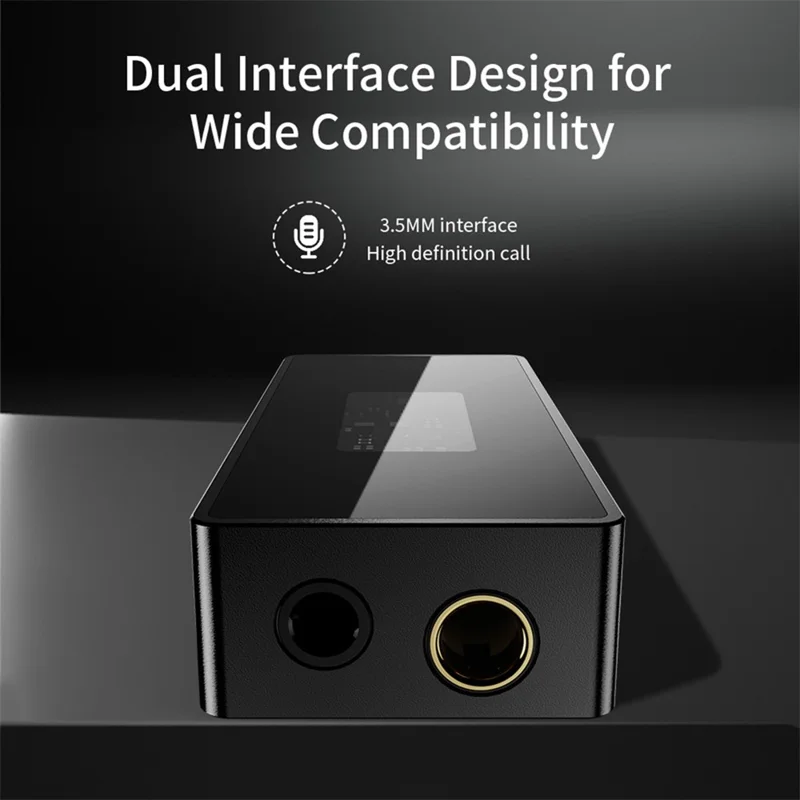

• 【Versatile Connectivity】Equipped with both 4.4mm balanced and 3.5mm single-ended outputs for wide device compatibility.
• 【Powerful Output】Delivers up to 320mW through the 4.4mm balanced output and 125mW through the 3.5mm single-ended output at 32ohm load.
• 【Exceptional Dynamic Range】Boasts a 130dB dynamic range for the 4.4mm output and 125dB for the 3.5mm output, ensuring detailed and immersive audio.
• 【Ultra-Low Distortion】Achieves remarkably low THD+N levels of -110dB, providing crystal-clear audio reproduction.

Specifications:

• DAC Chip: Dual CS43131
• USB Type: Type-C USB 2.0
• Audio Support: Up to 32bit/384kHz, DSD256
• Dimensions: 57mm x 23mm x 13mm
• Weight: 25g (without cable)

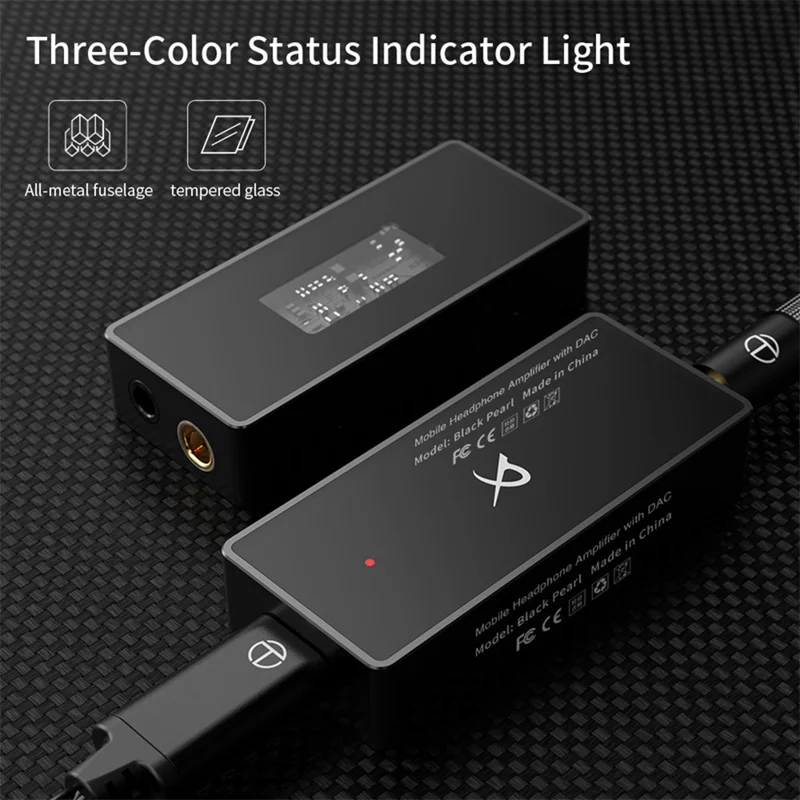

• LED Indicators: Blue, Green, Red
• Output Power (32ohm): 4.4mm - 320mW, 3.5mm - 125mW
• Dynamic Range (600ohm/32ohm): [email protected]/4Vrms, [email protected]/2Vrms
• Signal-to-Noise Ratio (600ohm/32ohm): [email protected]/4Vrms, [email protected]/2Vrms
• THD+N (600ohm): [email protected]/2Vrms, [email protected]/1Vrms
• THD+N (32ohm): [email protected]/2Vrms, [email protected]/1Vrms
• Operating Voltage: 4.5V - 5.25V
• Total Harmonic Distortion: -108dB (RL=32Ω, single-ended, 100mW)
