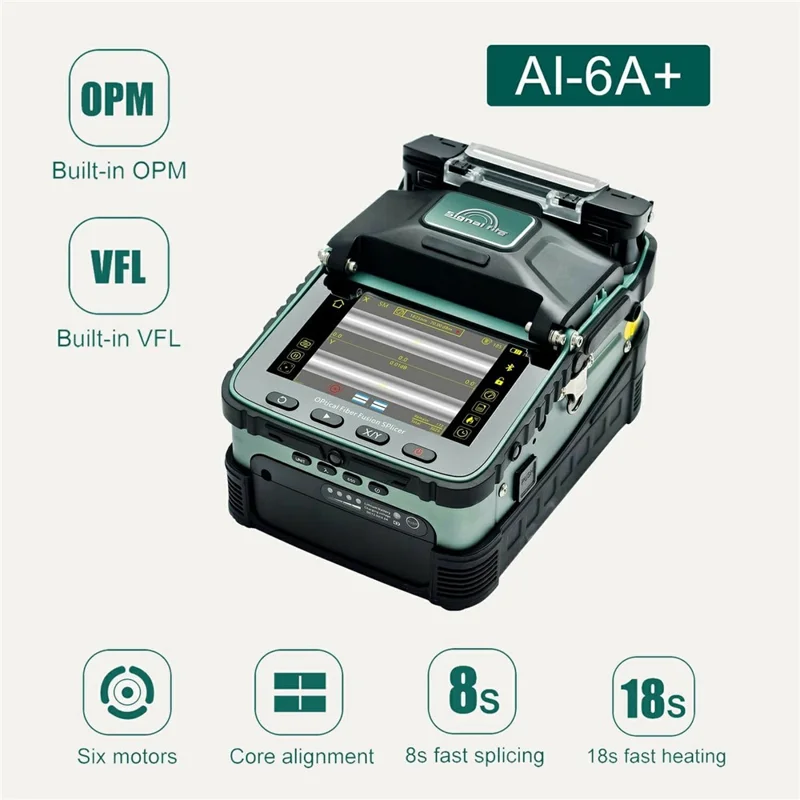

• 【Fast Splicing And Heating】Core alignment technology supports 8-second splicing and 18-second heating, helping fiber technicians complete repeated fusion operations with less waiting time.

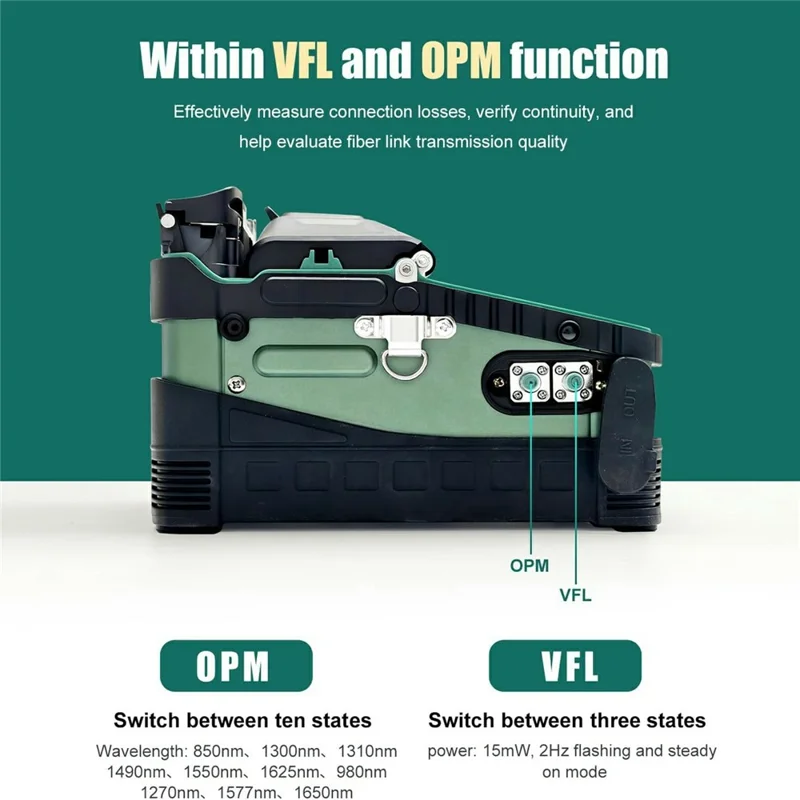

• 【Built-In OPM And VFL】The optical power meter measures connection loss and verifies continuity, while the visual fault locator provides 15mW output with flashing or steady-on modes.
• 【Three-In-One Fiber Holder】The removable holder supports SM/G.652, BIF (G.657), bare fiber, pigtail, rubber-insulated, and multifiber cable applications with specified splice loss values.

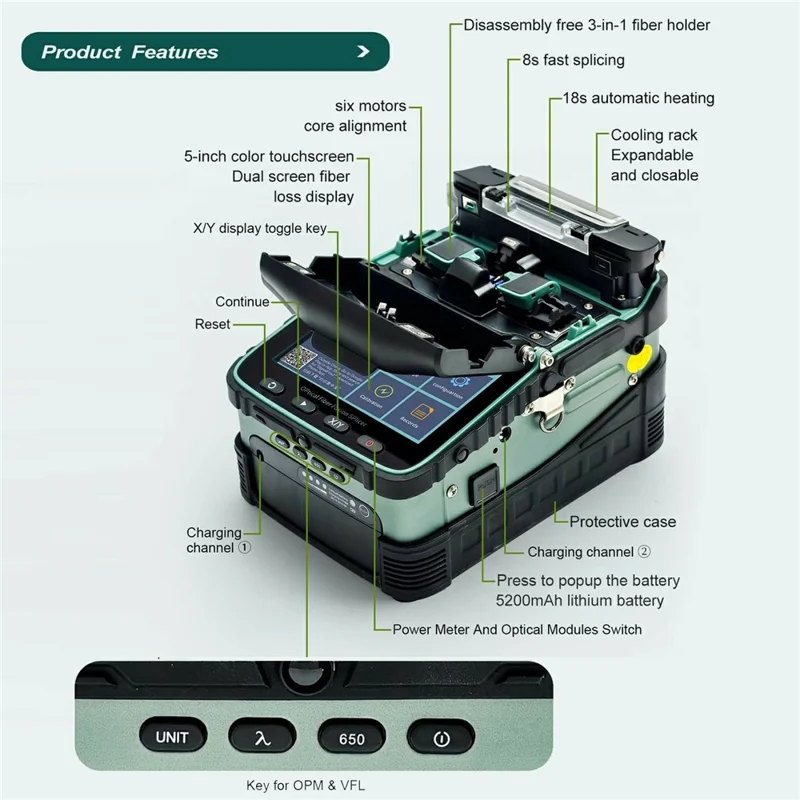

• 【Touchscreen Display And Controls】A 5-inch high-resolution color touchscreen displays X/Y axis information, while physical keys support unit, wavelength, VFL, power, continue, and reset operations.
• 【App Connected Data Management】Mobile app connectivity supports eleven selectable languages, allowing users to check, download, or output data while storing splicing records indefinitely.

Specifications:

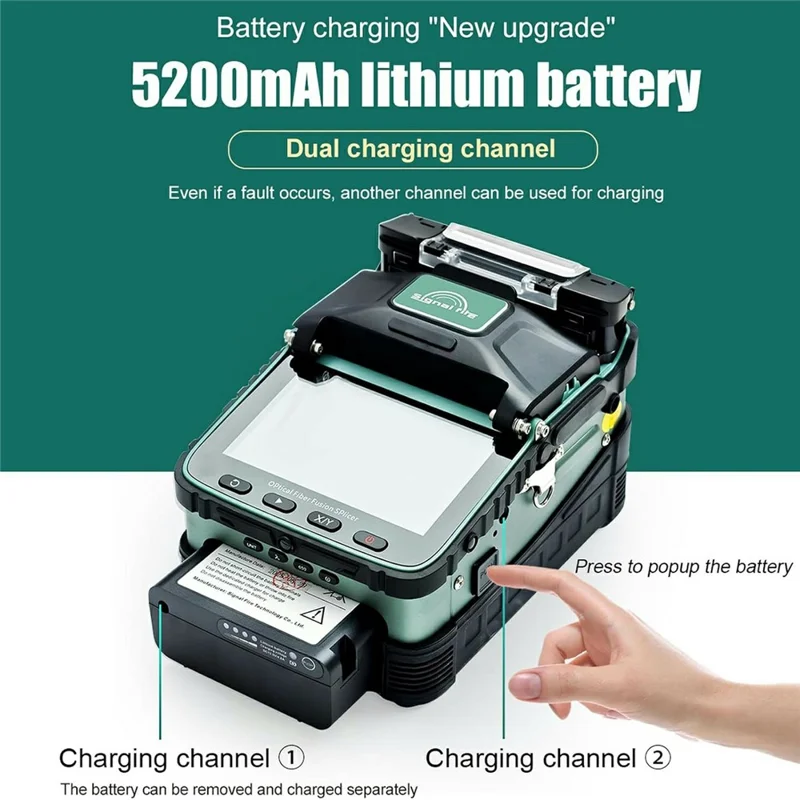

• Battery: 5200mAh lithium battery
• Charging Time: ≤ 3 hours
• Continuous Splicing And Heating: About 160 times
• OPM Wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm
• VFL Output: 15mW; 2Hz flashing and steady-on modes
• Screen: 5-inch high-resolution color touchscreen
• Magnification: Up to 320x with separate X/Y axis display; 200x with simultaneous X/Y axis display
• Splice Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
• Charging System: Dual charging channels
• Holder: Removable 3-in-1 fiber holder
• Cooling Rack: Expandable and closable
• Battery Ejection: Side-button release
• Splicing Time: 8s
• Heating Time: 18s
