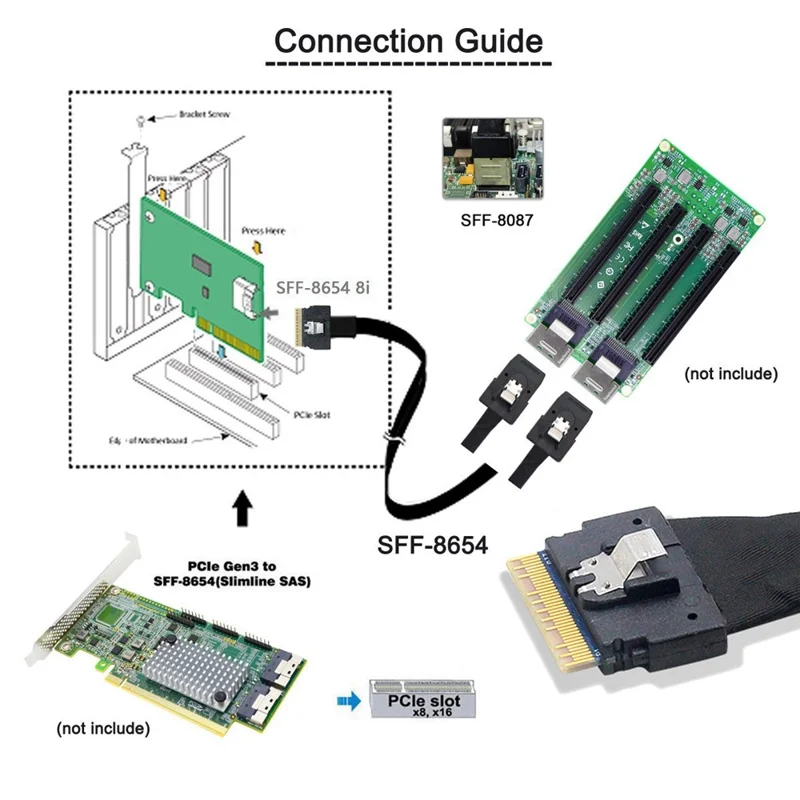

• This cable can be used to connect internal devices, e.g. a backplane with Slimline 8654 74pin connector to a controller with SFF-8087 connector
• Smaller size connector and cable, save device space
• Provide four channels of signal transmission as per industry standard
• Data speed is 24Gbps for SAS and 8GT/s for PCIe per channel
• Meet PCIe Gen3/4 and SAS4.0 specification, ultraport SlimSAS SFF-8654 specification

Specification:

• Length: 50cm

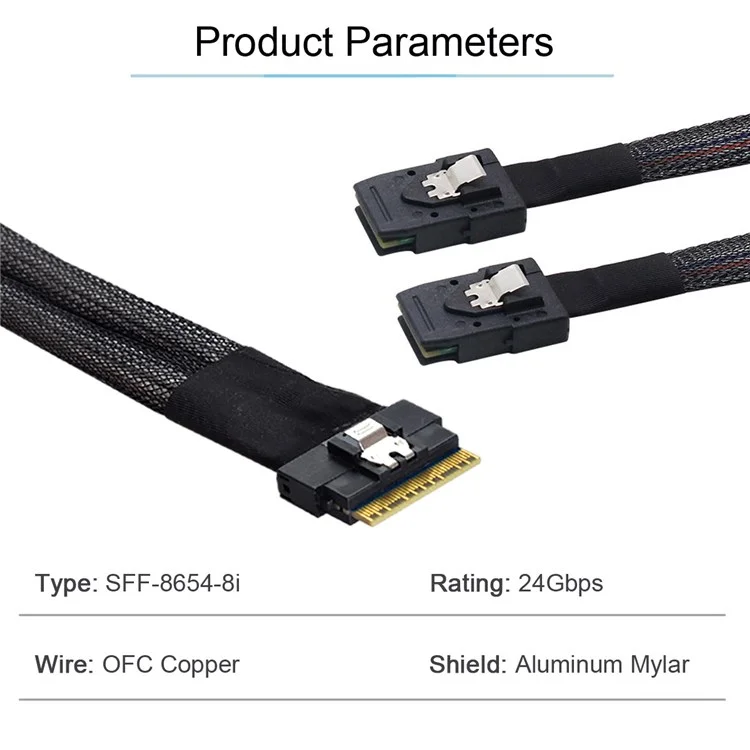

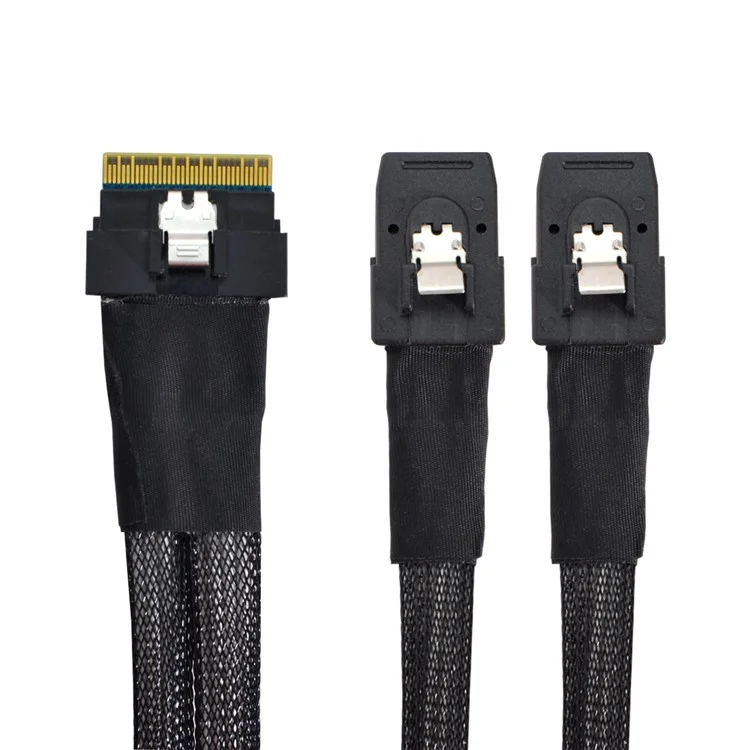

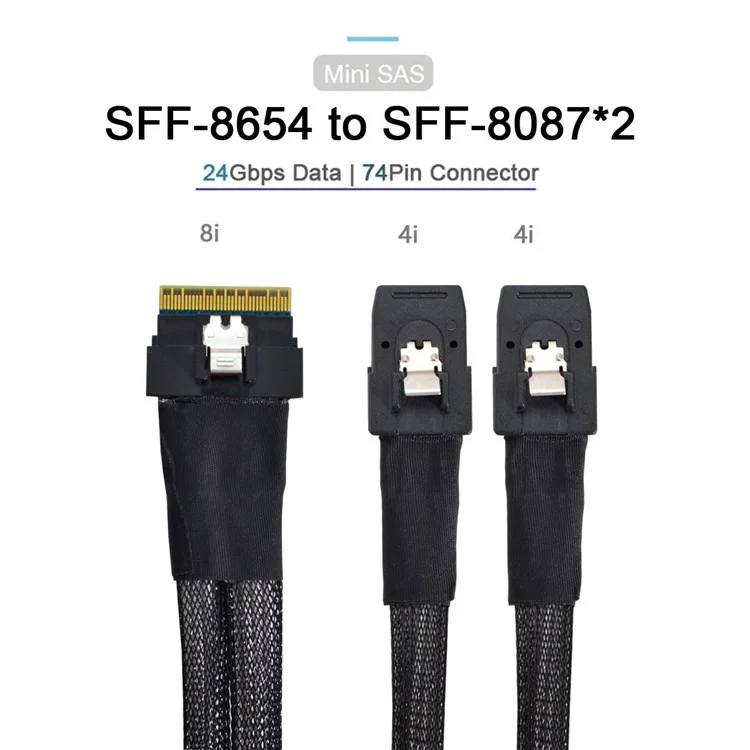

• Connector 1: Slimline SFF-8654 8i 74pin
• Connector 2: Dual SFF-8087 Mini SAS
• Application: for Servers, Data Storage, Workstation
