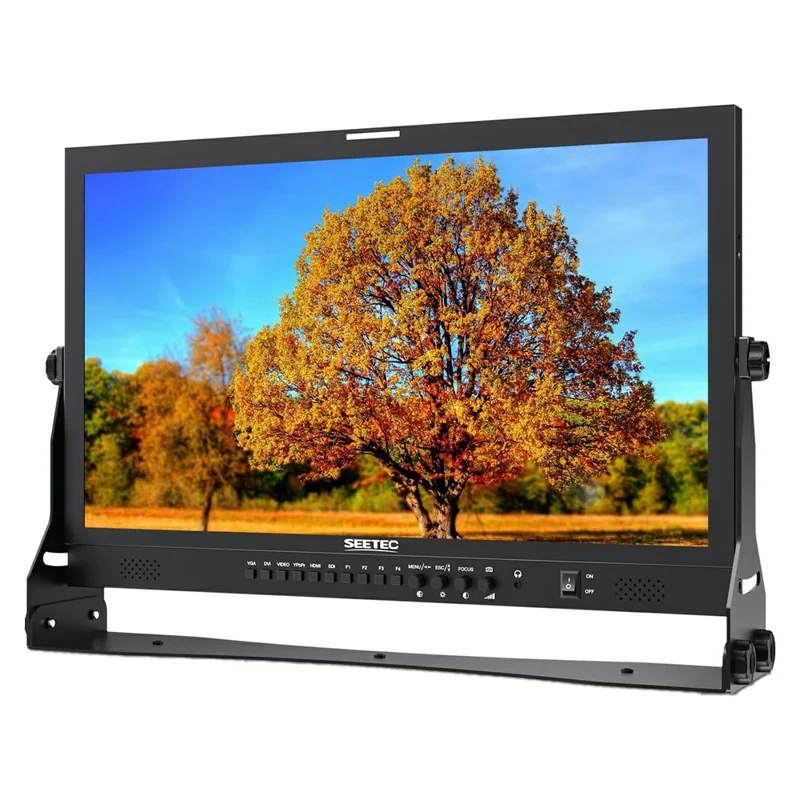

• 【Full HD IPS Display】23.8-inch IPS screen with 1920x1080 resolution, 16.7M colors, and wide 178° viewing angles for vibrant and accurate image reproduction.

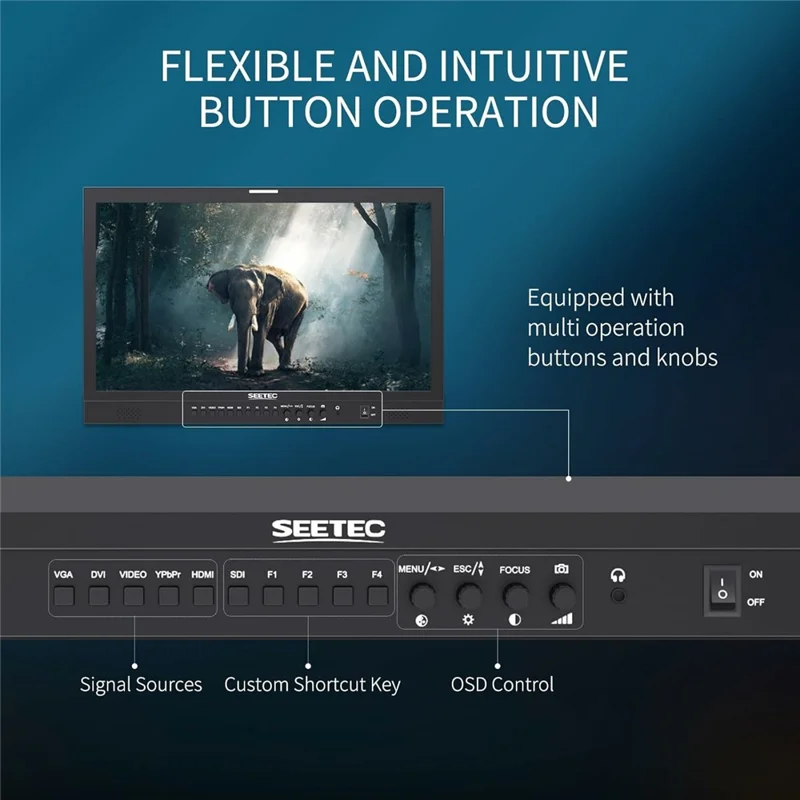

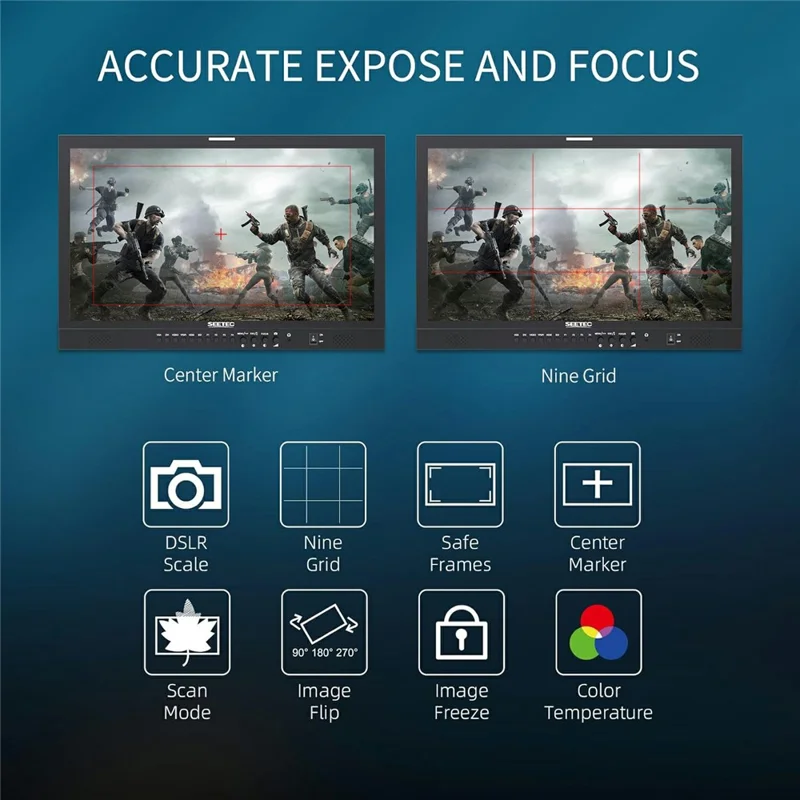

• 【Professional Monitoring Features】Advanced functions like Peak Focus Assist, Check Field, Camera Mode, Pixel-to-Pixel, Center Marker, and Safety Markers for precise image analysis.

• 【High Brightness and Contrast】1000 cd/m² brightness and 1000:1 contrast ratio ensure excellent visibility in various lighting conditions.

• 【4K UHD Compatible】Supports 4K UHD 3840x2160p and 4096x2160p input via HD, making it future-proof for high-resolution content.

• 【Audio Monitoring】Built-in speakers and 3.5mm stereo headphone jack for convenient audio monitoring options.

Specifications:

• Screen Size: 23.8 inches
• Panel Type: IPS
• Resolution: 1920 x 1080 pixels
• Color Depth: 16.7M (8-bit)
• Pixel Pitch: 0.2745(H) x 0.2745(V) mm
• Aspect Ratio: 16:9
• Brightness: 1000 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 89°/89° (L/R), 89°/89° (U/D)

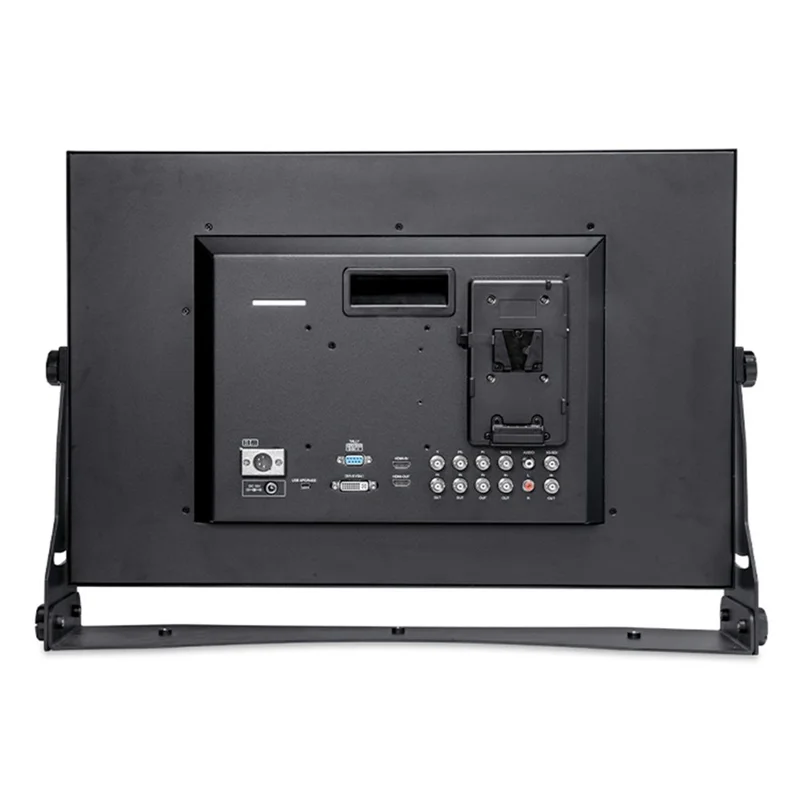

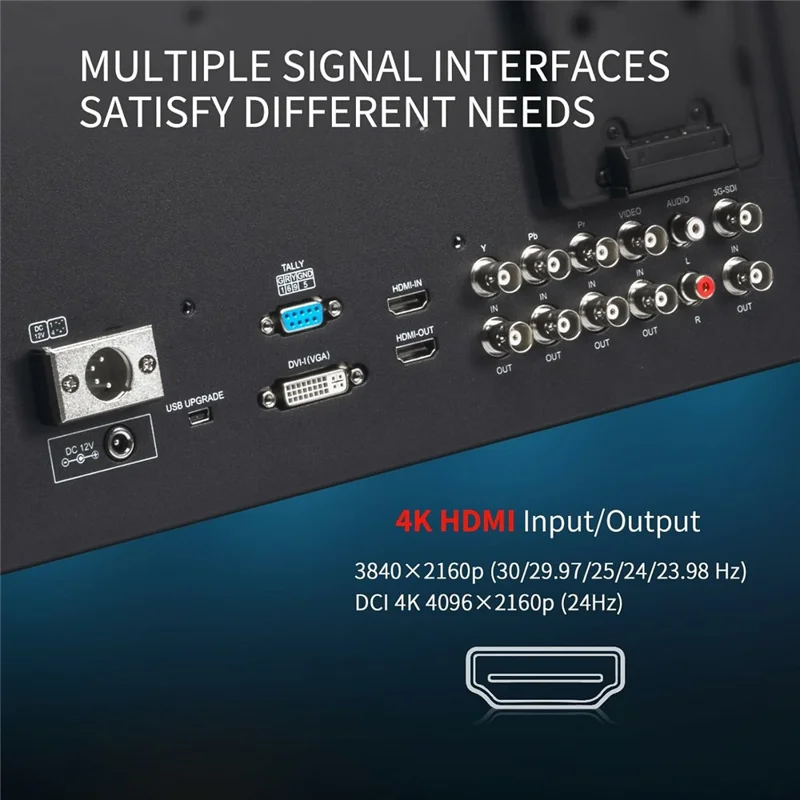

• Inputs: 3G-SDI, HD, YPbPr, DVI-I, Video, Audio (L/R)
• Outputs: 3G-SDI, HD, YPbPr, Video
• SDI Support: 480i/576i, 720p, 1080i, 1080p
• HD Support: 480i/576i/480p/576p, 720p, 1080i, 1080p, 4K UHD

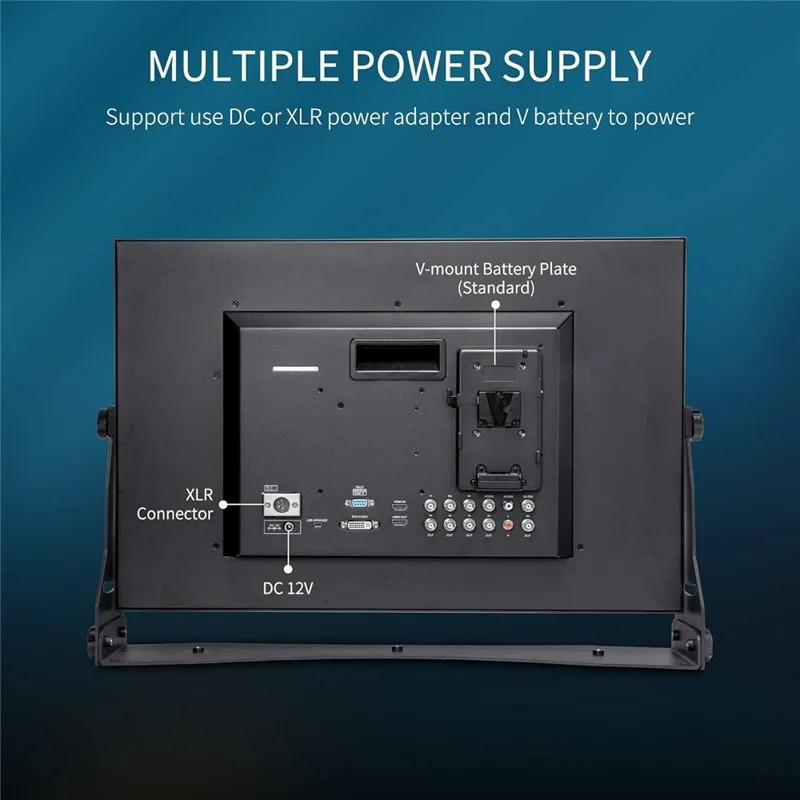

• Power Input: DC 9~24V
• Power Consumption: ≤24W
• Operating Temperature: 0°C to 50°C
• Dimensions: 567L x 372H x 46.7D mm (without stand)
• Weight: 5.9kg (without stand)
