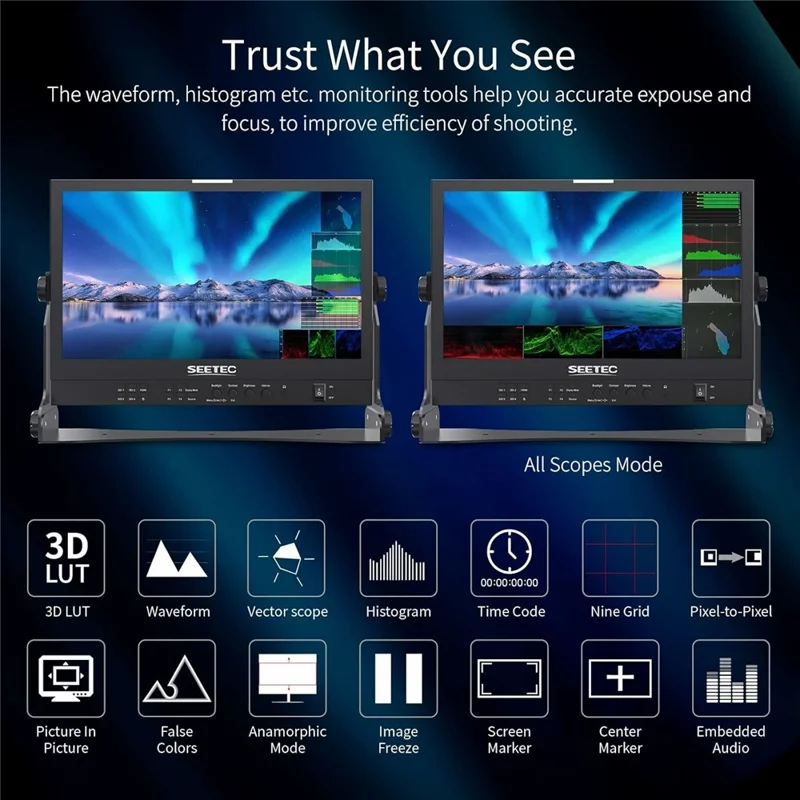

• 【Comprehensive Monitoring Tools】Equipped with essential features like histogram, HDR support, focus assist (with 5 color options), false color, zebra patterns, and waveform monitoring for precise image analysis.

• 【Versatile Display Modes】Offers various display modes including Picture-in-Picture, underscan/overscan, anamorphic modes, pixel-to-pixel, and multiple aspect ratio markers for flexible viewing options.

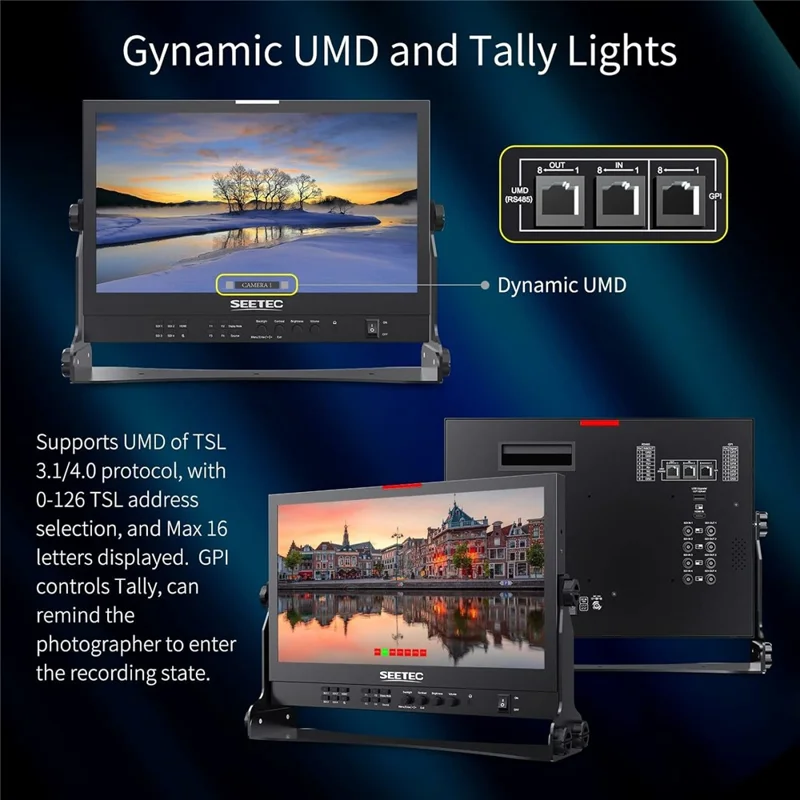

• 【Professional Connectivity】Supports GPI control, dynamic IMD with TSL 3.1/4.0 and IMAGE VIDEO protocols, TALLY, and displays up to 16 channels of embedded audio meters.

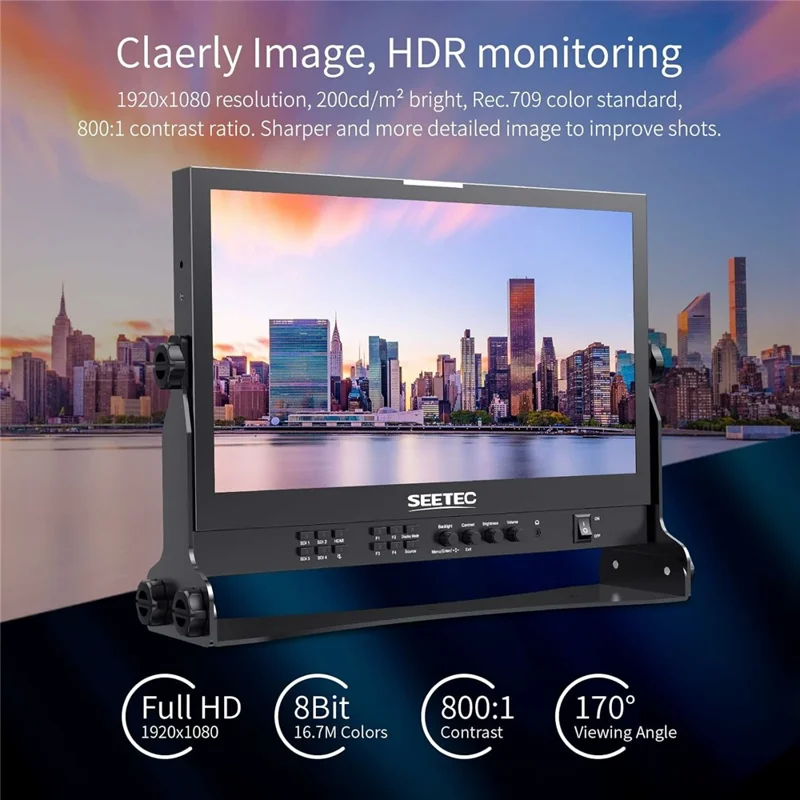

• 【High-Quality IPS Panel】Features a 15.6-inch IPS display with 1920x1080 resolution, 16.7M colors, 200cd/m² brightness, and an 800:1 contrast ratio for exceptional image quality.

• 【Extensive Signal Support】Compatible with a wide range of SDI and HDMI formats, including 720p, 1080i, 1080p, and 2K resolutions, making it suitable for various production workflows.

Specifications:

• Display: 15.6-inch IPS, 1920x1080 pixels, 16.7M colors
• Brightness: 200cd/m²
• Contrast Ratio: 800:1
• Viewing Angle: 85°/85° (L/R), 85°/85° (U/D)

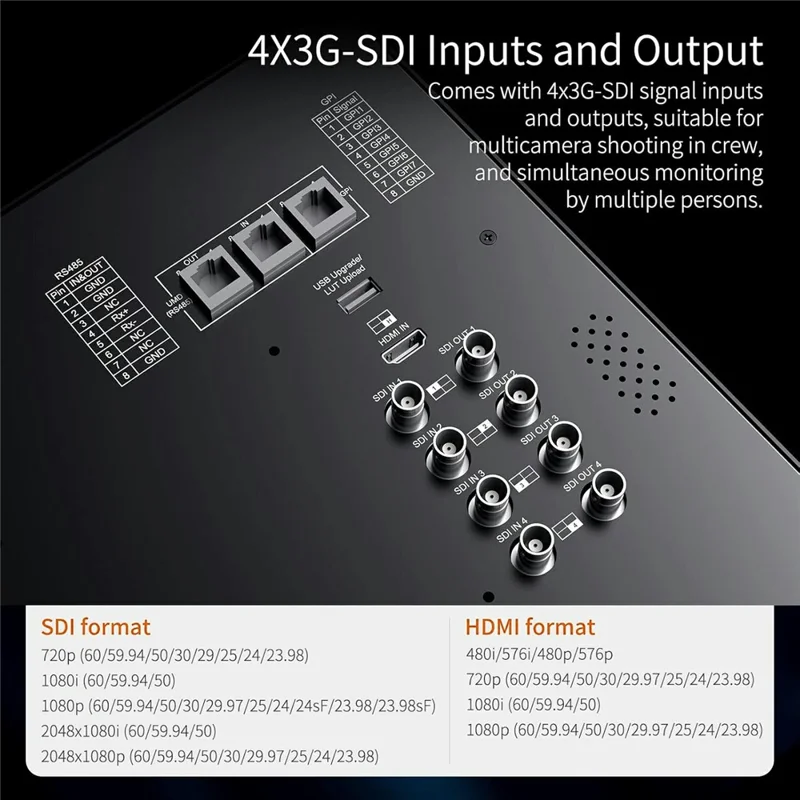

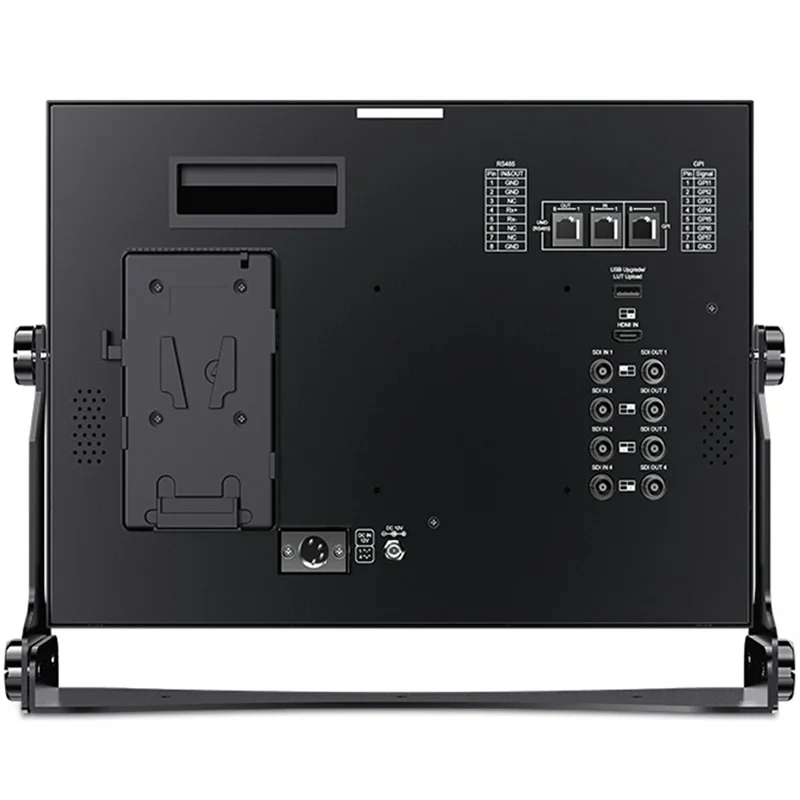

• Inputs: 4x 3G-SDI, 1x HD, 1x RS485, 1x GPI, 1x USB
• Outputs: 4x 3G-SDI, 1x RS485
• Audio: Stereo headphone output

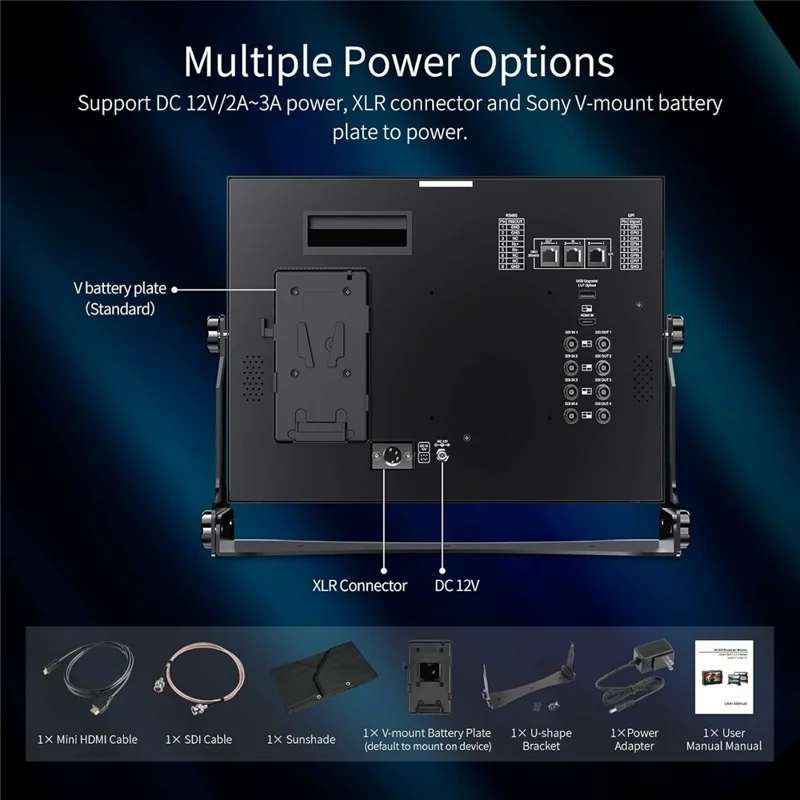

• Power Input: DC 12V
• Power Consumption: ≤21W
• Dimensions: 372L x 262H x 28.4D mm (without stand)
• Weight: 1.81kg
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• SDI Supported Formats: 720p, 1080i, 1080p, 2048x1080i, 2048x1080p
• HD Supported Formats: 480i/576i/480p/576p, 720p, 1080i, 1080p
