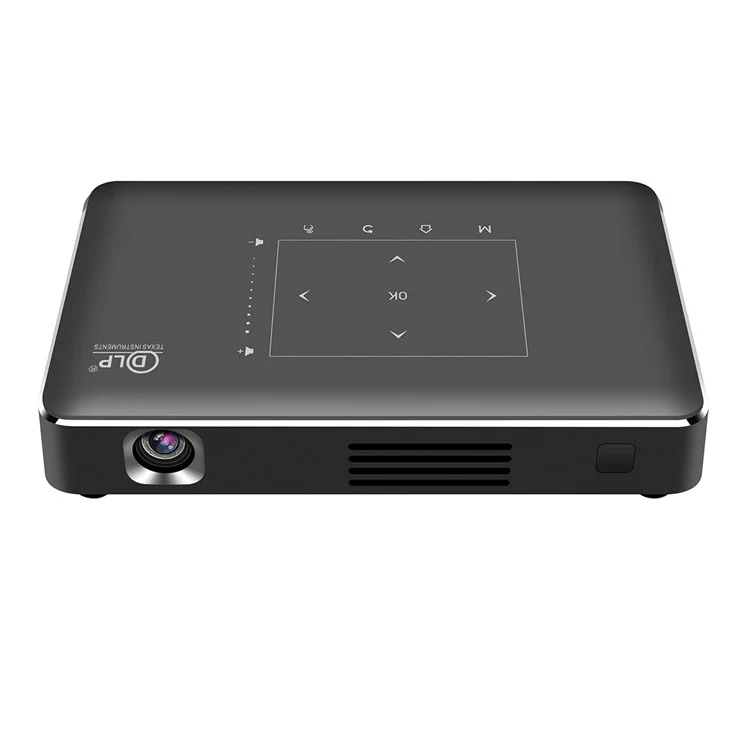

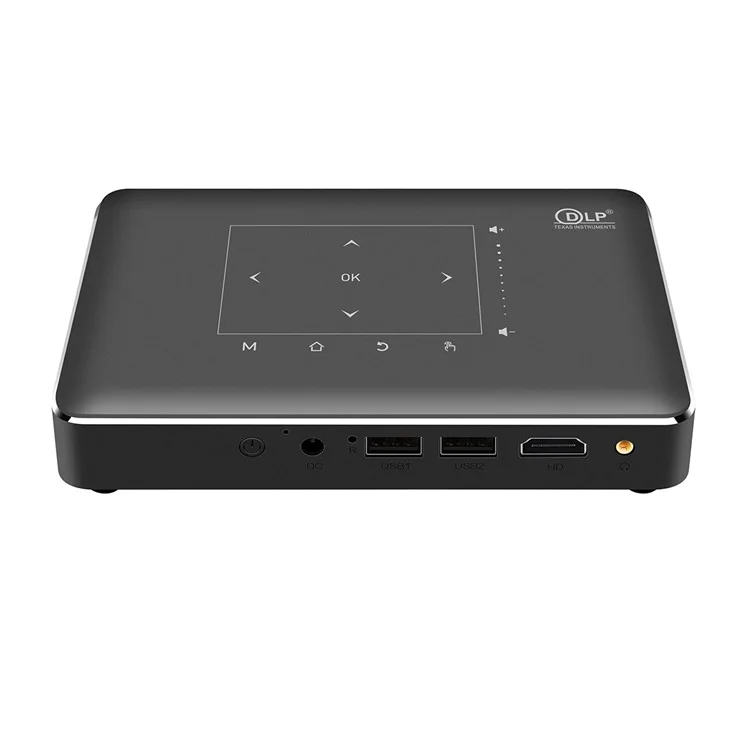

Intelligent touch panel, accurate touch panel without a mouse

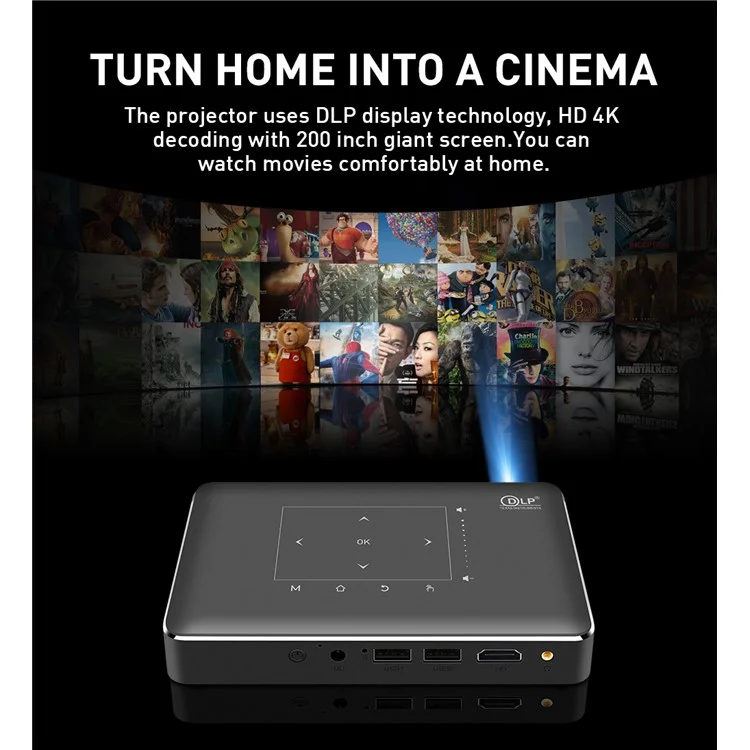

Use DLP display technology, HD 4K decoding with 200 inch giant screen
Verticle keystone correction ±45°, you can watch movies more freely by adjusting screen picture
Synchronizing the picture of computer to the big screen
In the absence of network, the projector can built WiFi hotspots and enter the APP "EShare" to realize the same screen
Amlogic S912 is designed with high performance flagship 8 core CPU and T820 GPU
Use 2.4G/5G AC WiFi with stable transmission without stutter
Features a wearable, coated glass lens and high quality LED bulb
Specification:
Display Technology | DMD Technology |
Light Source | RGB LED |
Resolution | 854 x 480 |
Brightness | 150LM |
Aspect Ratio | 16:9 |
Effective Focal Length | 6.5mm |
Focusing | Manual focus in sliding adjustment |
Keystone Correction | Vertical: ±45 degree |
Projection Distance | 0.5m to infinite |
Image Size (normal operation) | 31"@ 1m |
Offset | 100% |
Throw Ratio | 1.4 |
Contrast Ratio | 500:1 |
Distortion | ≤1.5% |
Uniformity (JBMA.) | 80% |
Color Saturation | 100% NTSC |
LED Life | 10,000 hours |
Operating Temperature | 0 ~ 50℃ |
OS | Android 9.0 |
CPU | Amlogic S912 Octa core ARM Cortex-A53 CPU up to 2GHz (DVFS) |
GPU | ARM Mali-T820MP3 GPU up to 750MHz (DVFS) |
RAM | 2G |
ROM | 16G |
WiFi | 2.4G/5G WiFi |
Bluetooth | BT 4.1 |
Ethernet | Ethernet 10/100M |
Built-in Battery | 7.4V 4100mA/h |
Remote Control | Support(IR) Infrared |
Screen Mirror | Eshare/iMirror/Miracast |
Office Software | WORD/EXCEL/PDF(Depends on APK install) |

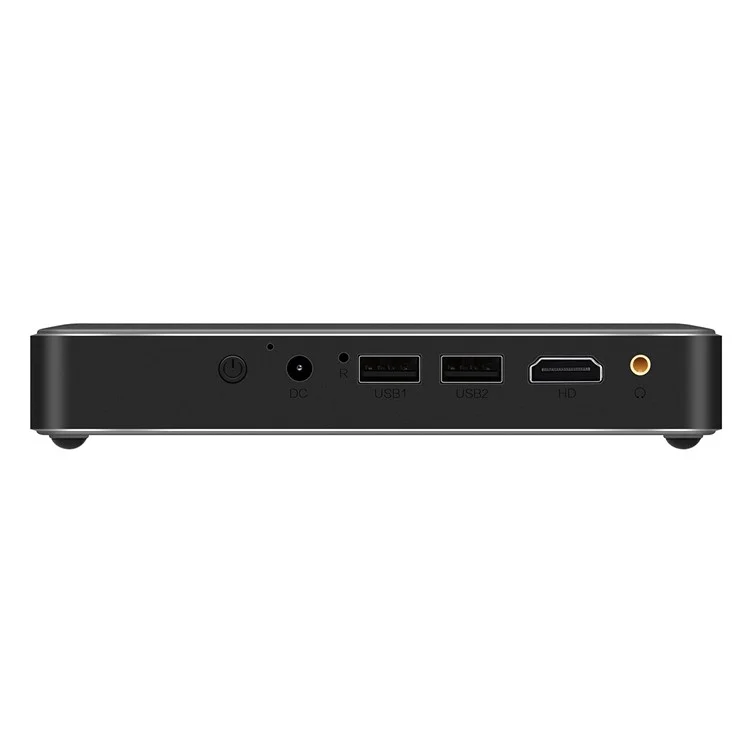

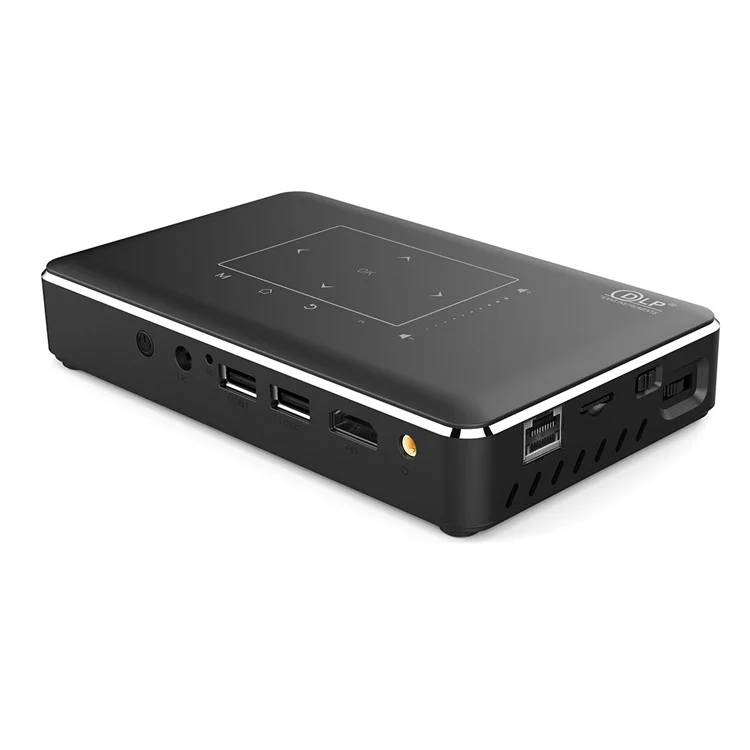

1*DC | AC: 100-240V, 50/60Hz; DC: 12V/3A |

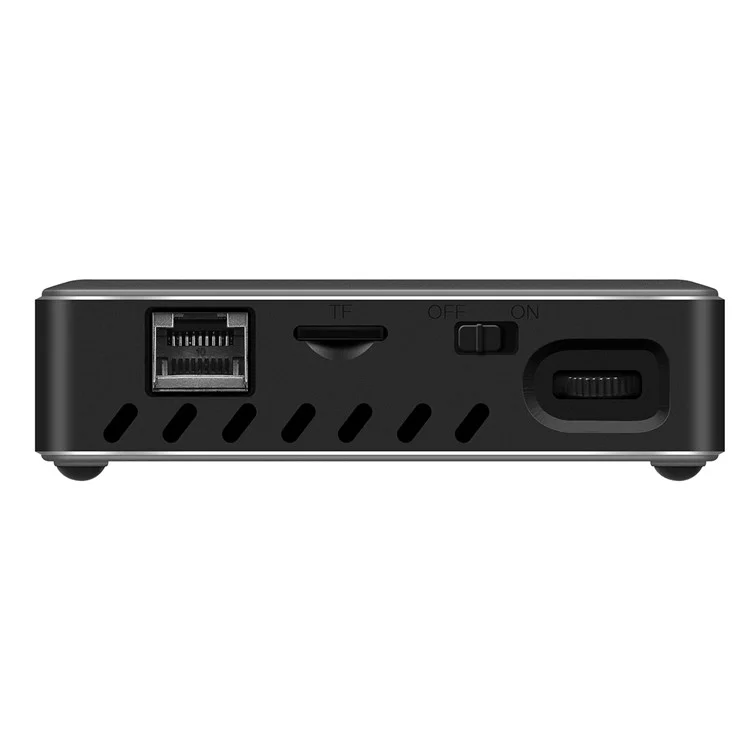

1*TF Card | Max 32G |
1*HDMI | HDMI Input |
2*USB | USB 2.0 |
1*RJ45 | 10/100M |
1*Earphone | Audio output, 3.5mm joint (can connect with earphone or speaker box) |
Dimension | 160 x 98 x 28mm |
