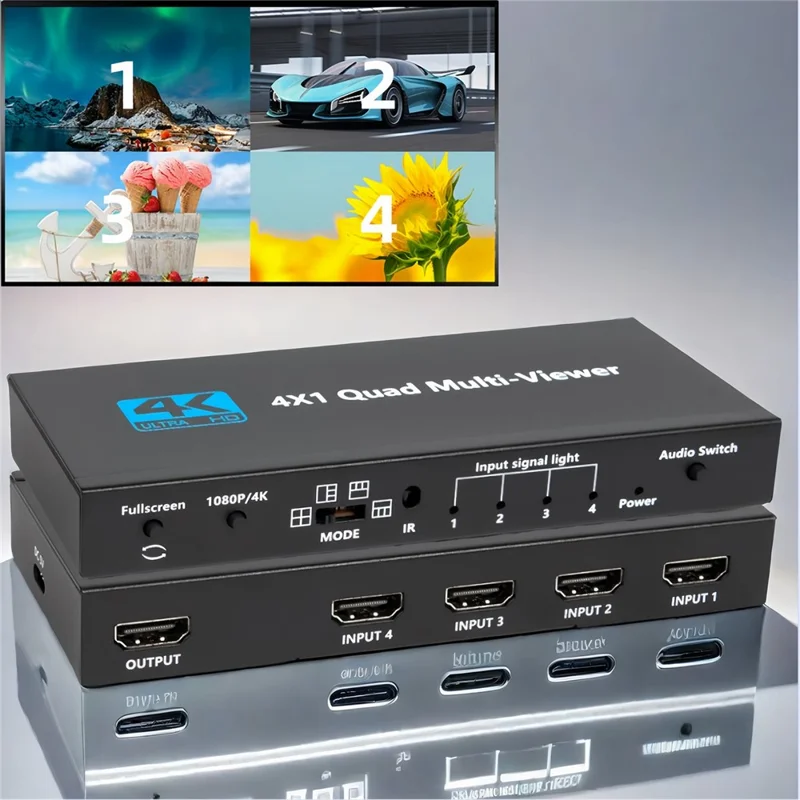

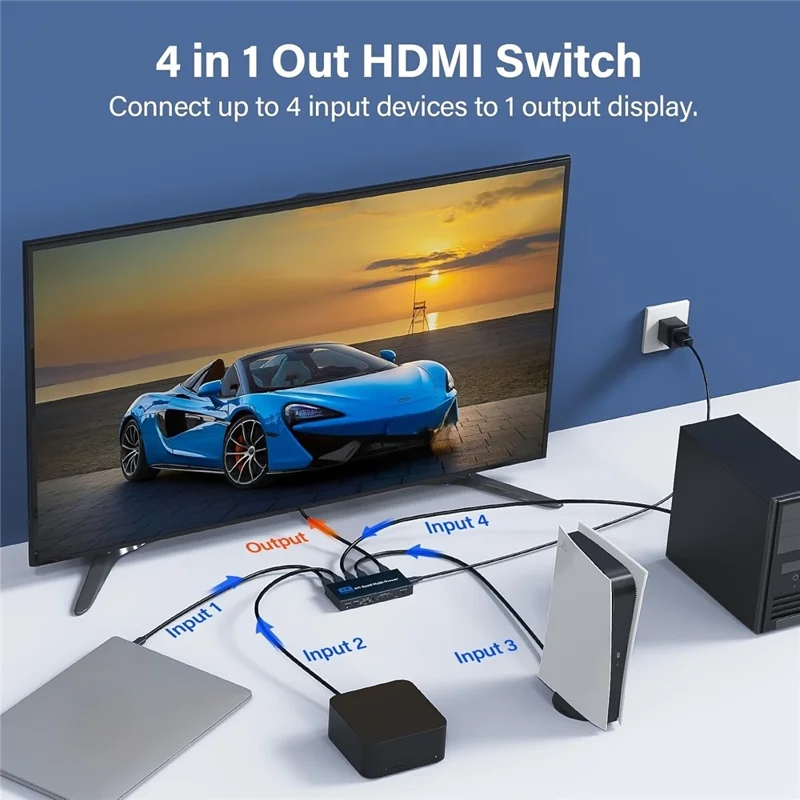

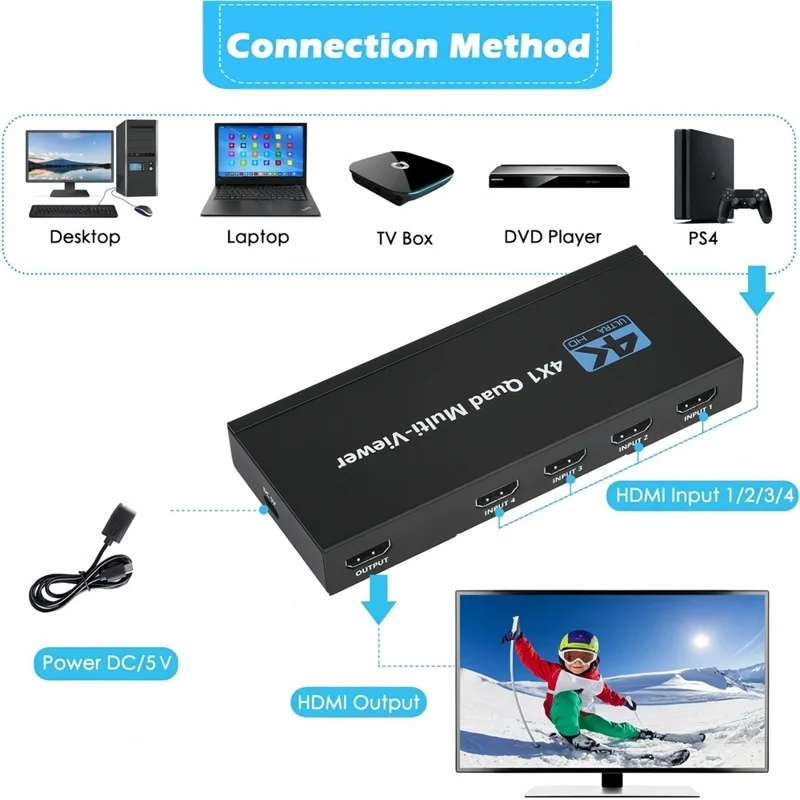

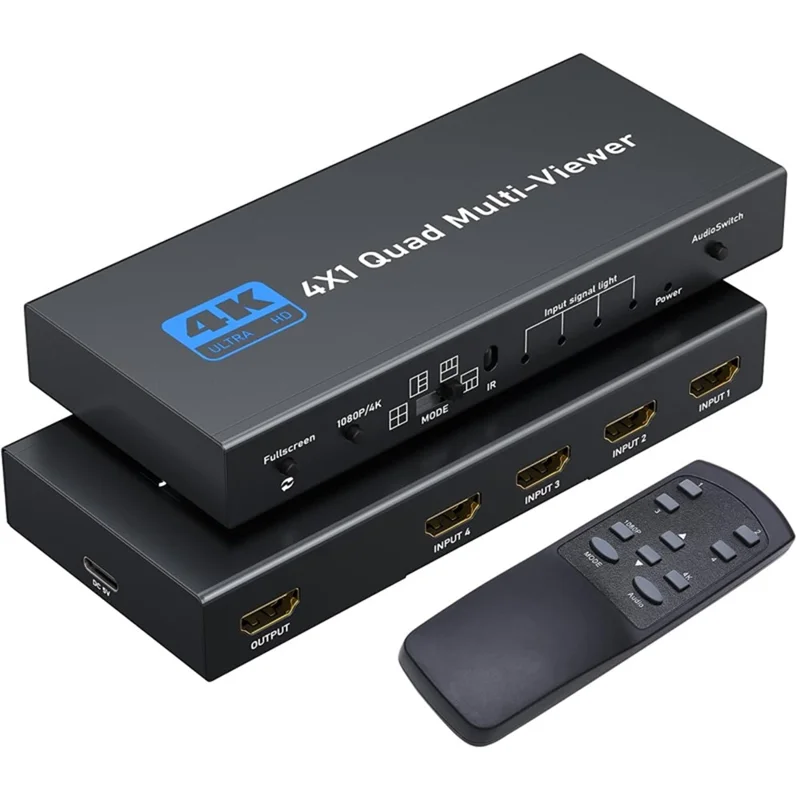

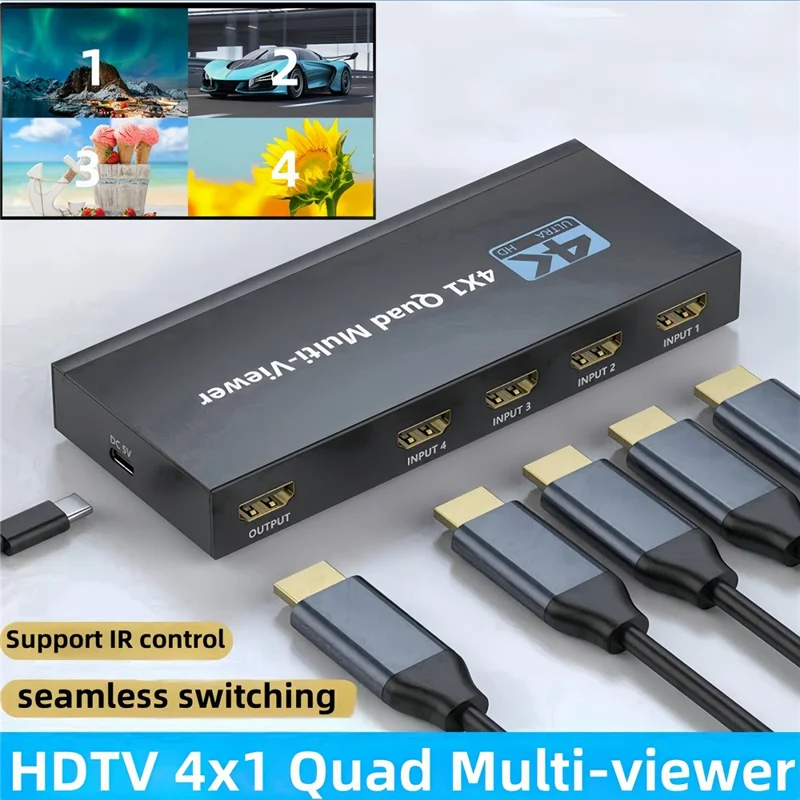

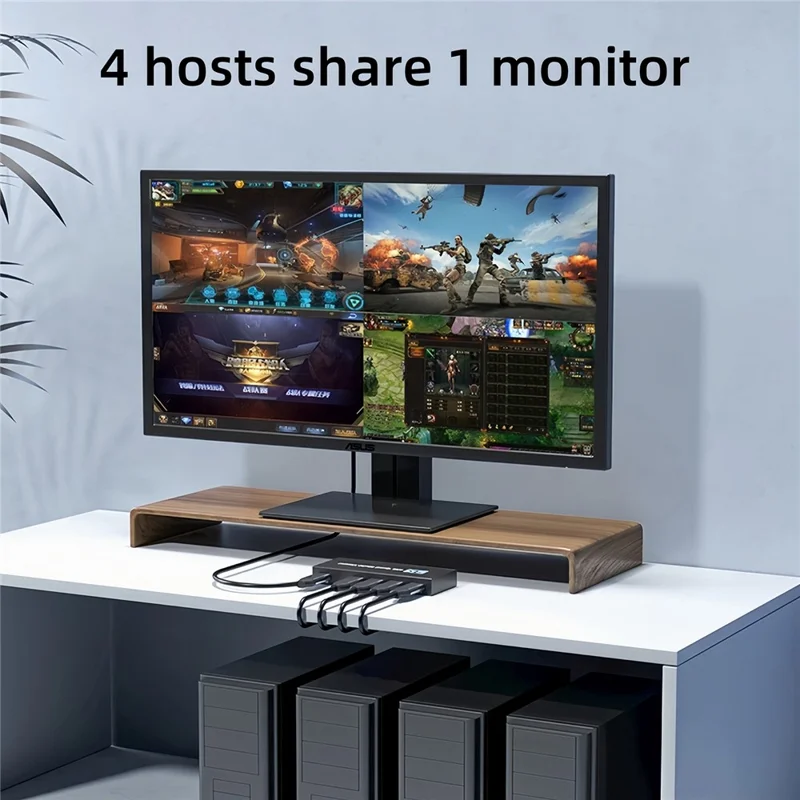

• 【Multi-Viewer Functionality】 Connect up to four HDMI input devices to a single high-definition display, solving multi-device connectivity issues.

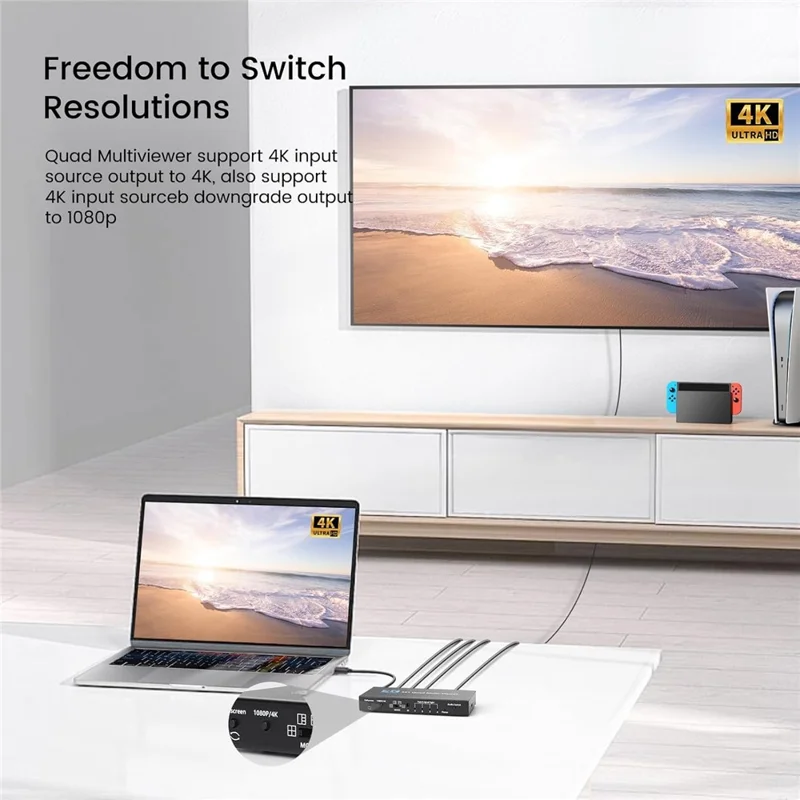

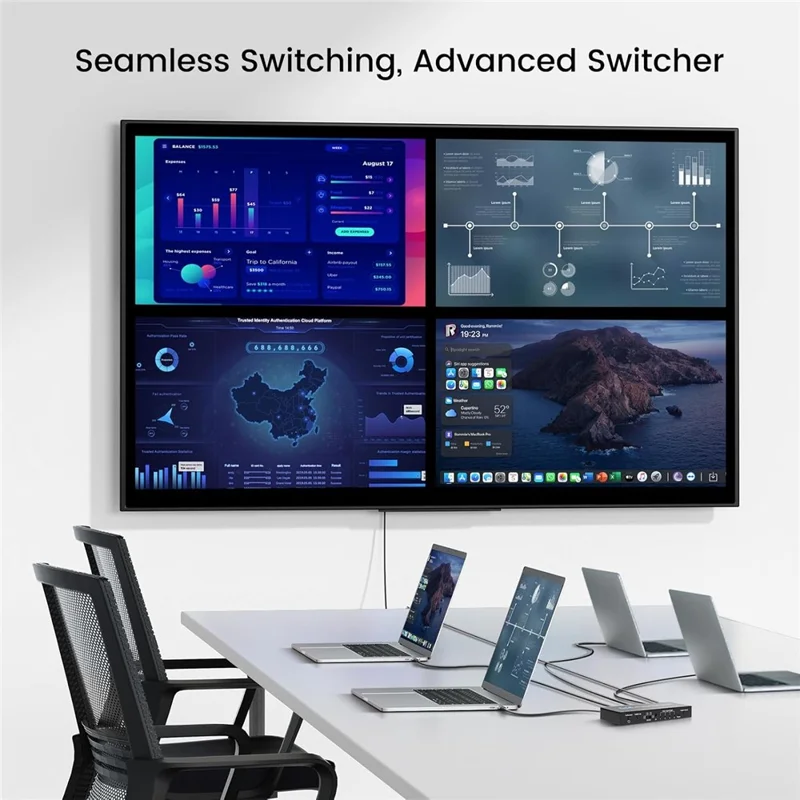

• 【Seamless Switching】 Switch between gaming and movie sources without interruption, supporting transitions between 1080P/60Hz and 4K/30Hz.

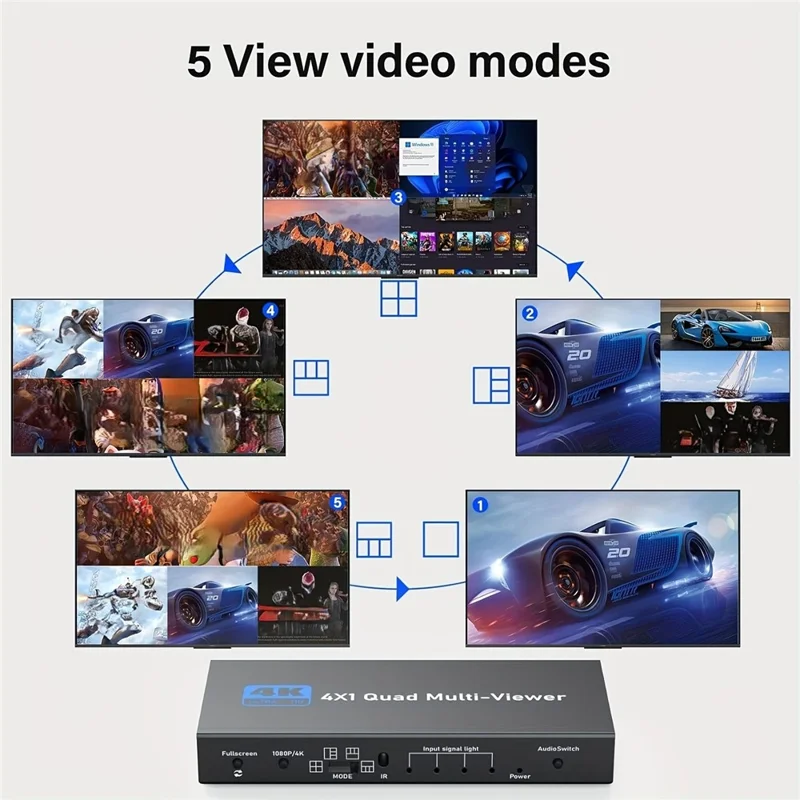

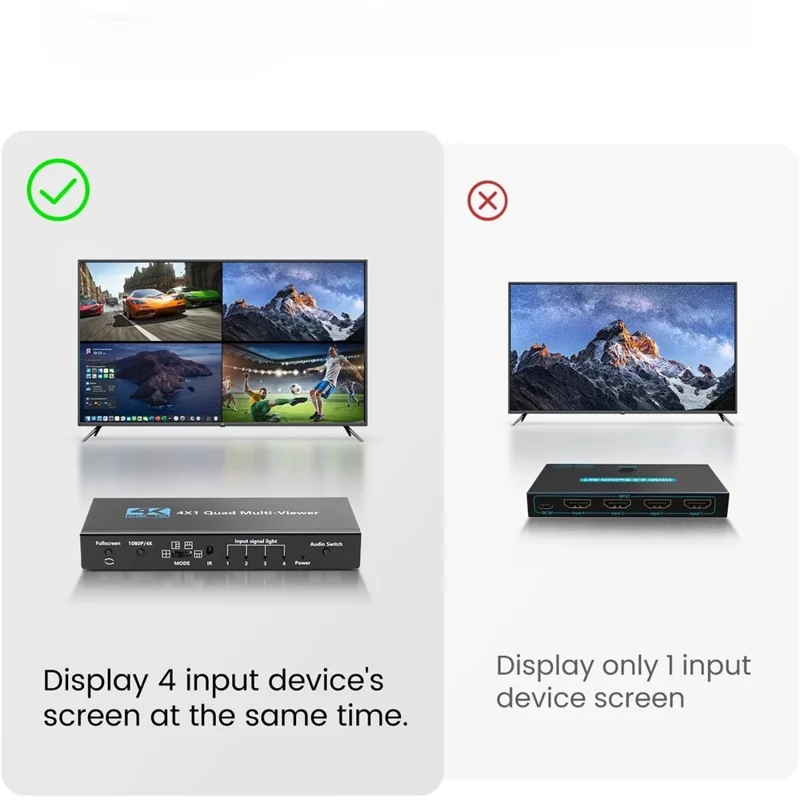

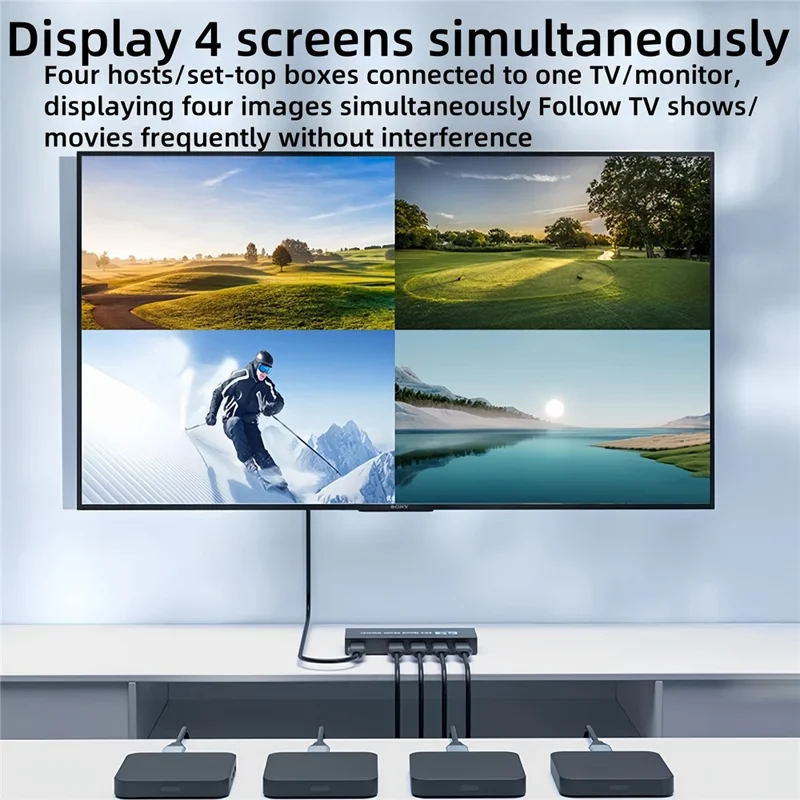

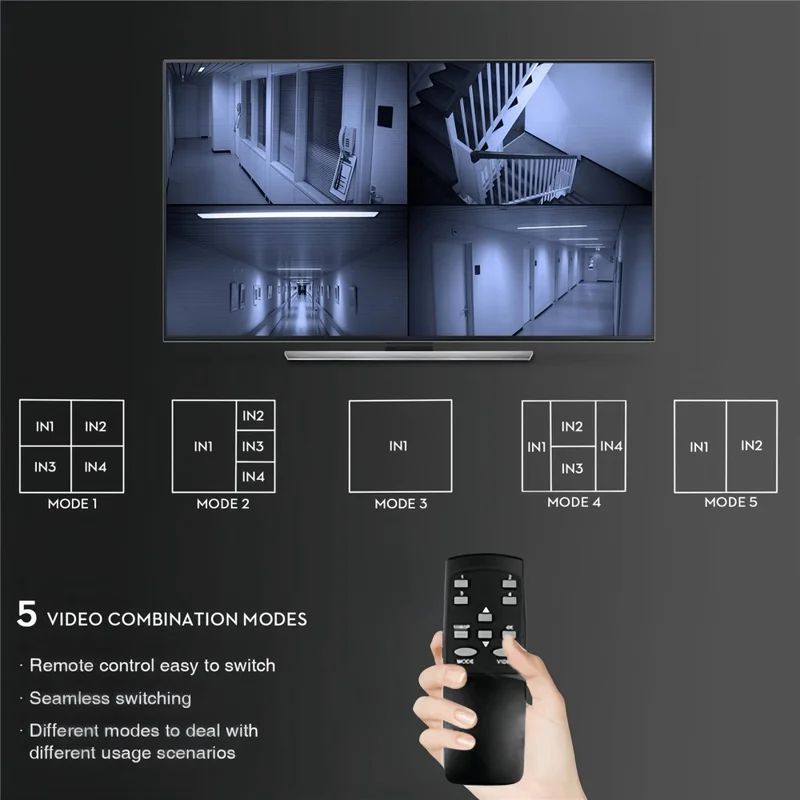

• 【Multiple Display Modes】 Offers four different viewing options, allowing simultaneous display of one or all four connected devices.

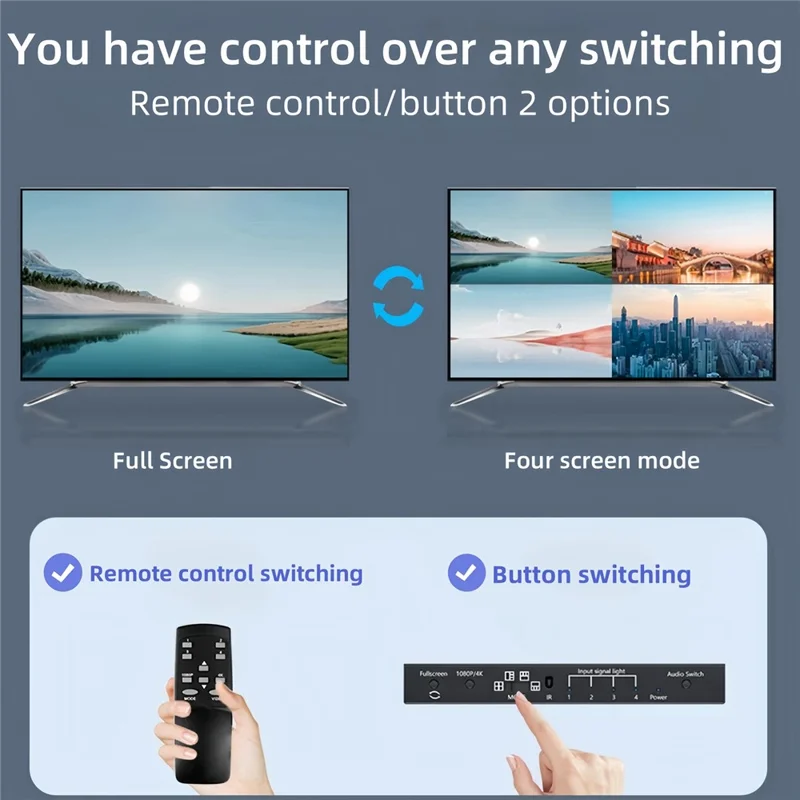

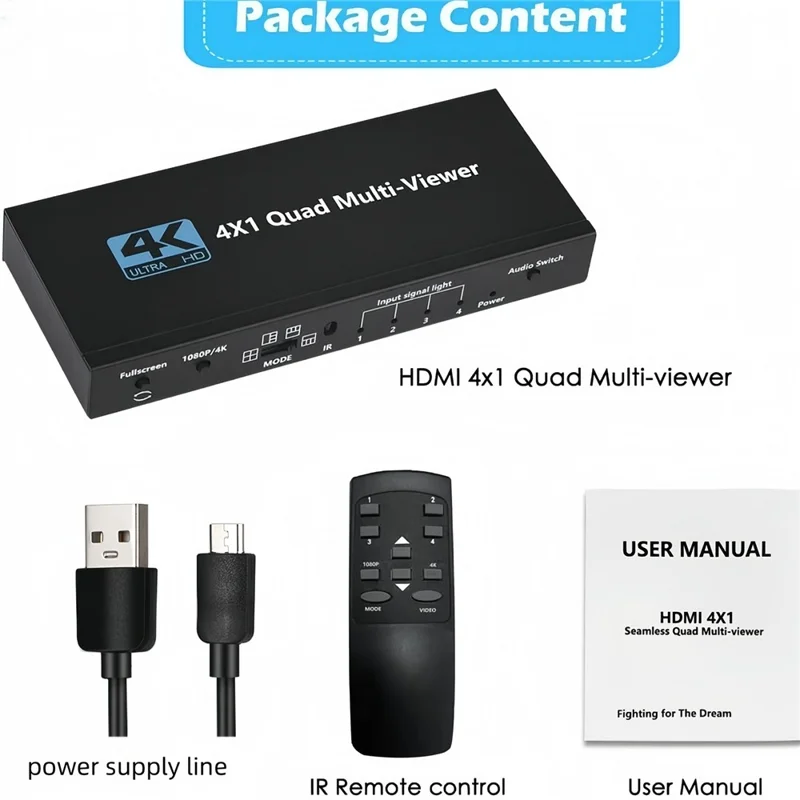

• 【Remote Control】 Includes IR remote control for convenient operation without leaving your seat.
• 【Wide Compatibility】 Compatible with various HDMI-integrated devices including streaming devices, gaming consoles, and Blu-ray players.

Specifications:

• Input: 4 x HDMI
• Output: 1 x HDMI
• Maximum Resolution: 4K@30Hz (RGB)
• HDMI Version: 1.4
• HDCP Version: 1.4
• Video Color Format: 24bit/30bit/36bit
• Audio Input Formats: DTS-HD, Dolby-realHD, LPCM7.1, DTS, Dolby-AC3, DSD
• Audio Output Formats: LPCM, PCM2
• Maximum Bandwidth: 330MHz
• Maximum Bit Rate: 10.2Gbps
• Input/Output TMDS Signal: 0.5~1.5V p-p (TTL)
• Input/Output DDC Signal: 5Volts p-p (TTL)
• Input Cable Distance: ≤15m (AWG24 HDMI standard cable)
• Output Cable Distance: ≤24m (AWG24 HDMI standard cable)
• Power Supply: DC 5V/2A
• Operating Temperature: -15 to +55℃
• Operating Humidity: 5~90%RH (No Condensation)

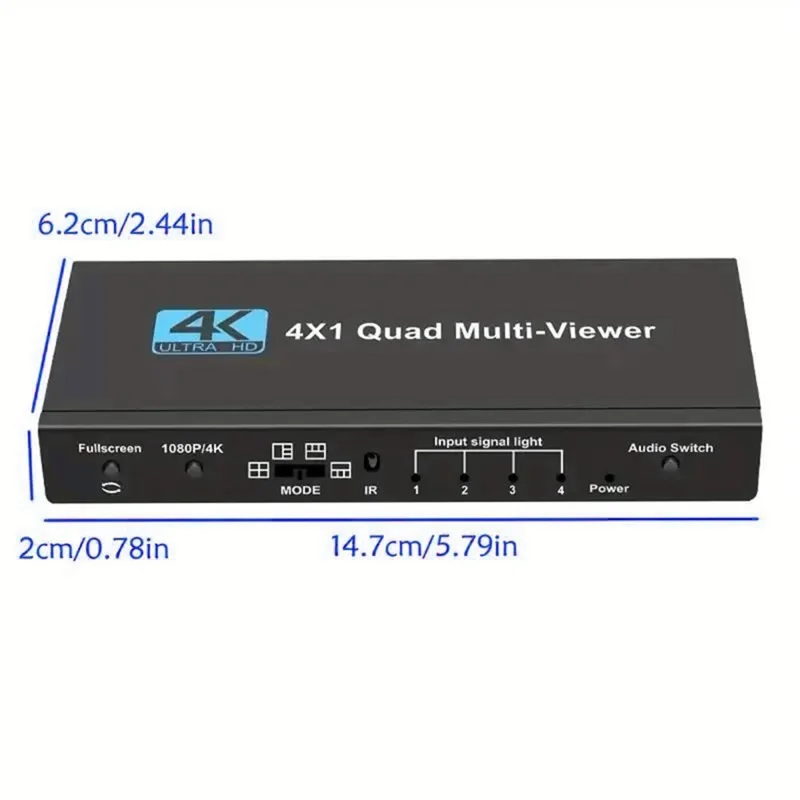

• Dimensions: 148 x 63 x 23mm
• Weight: 206g
