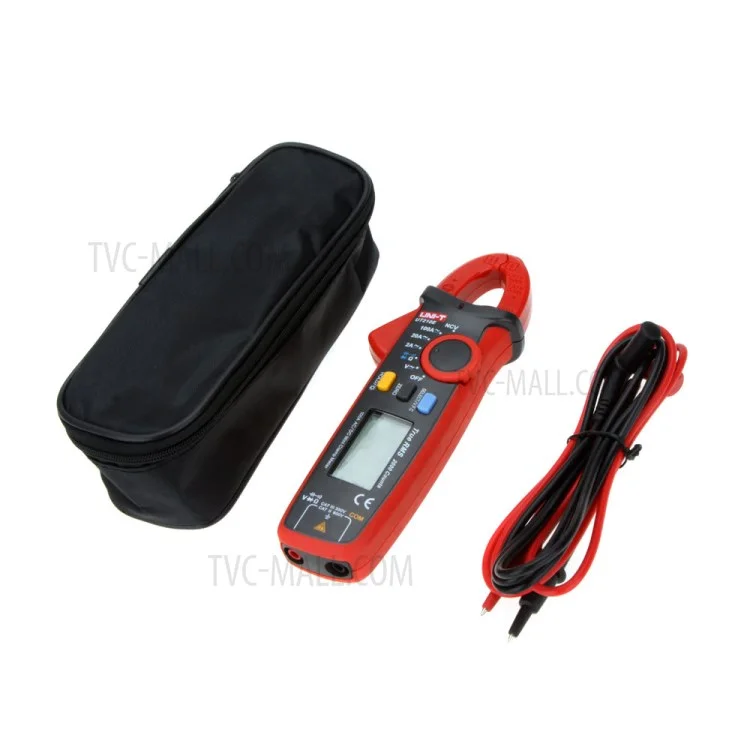

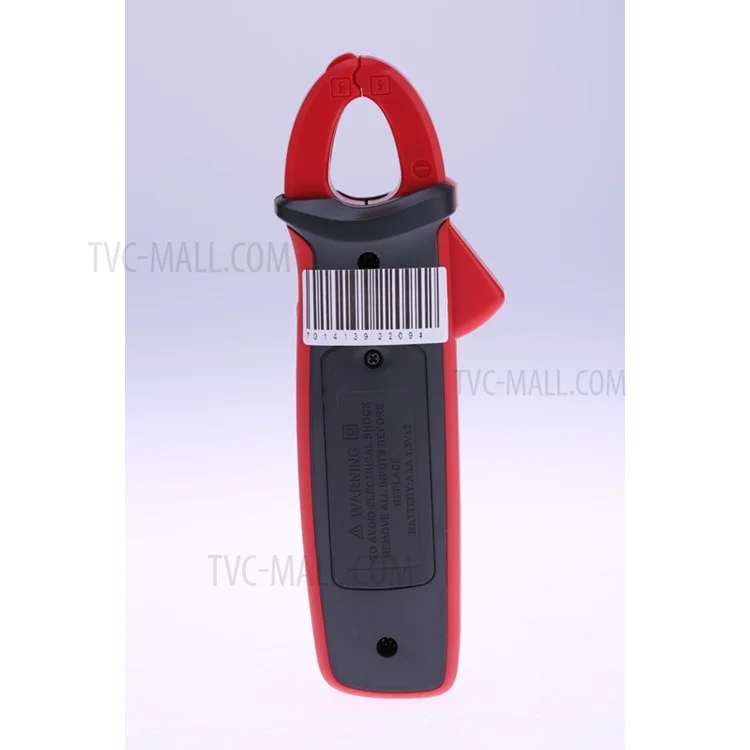

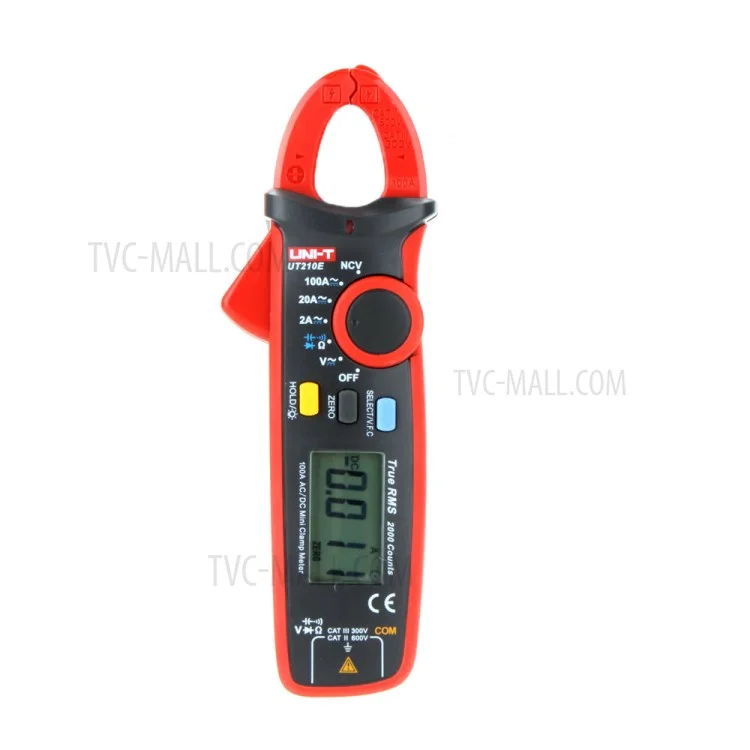

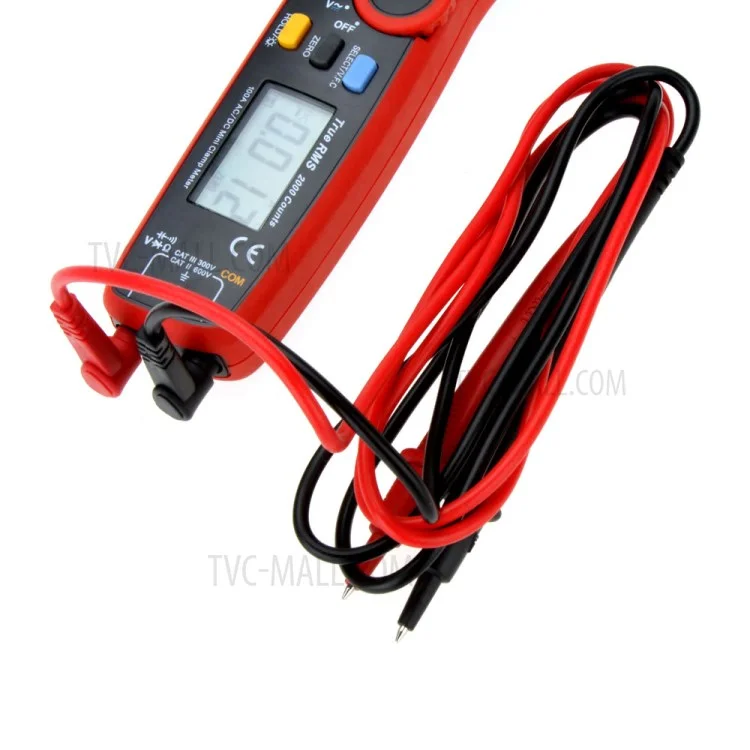

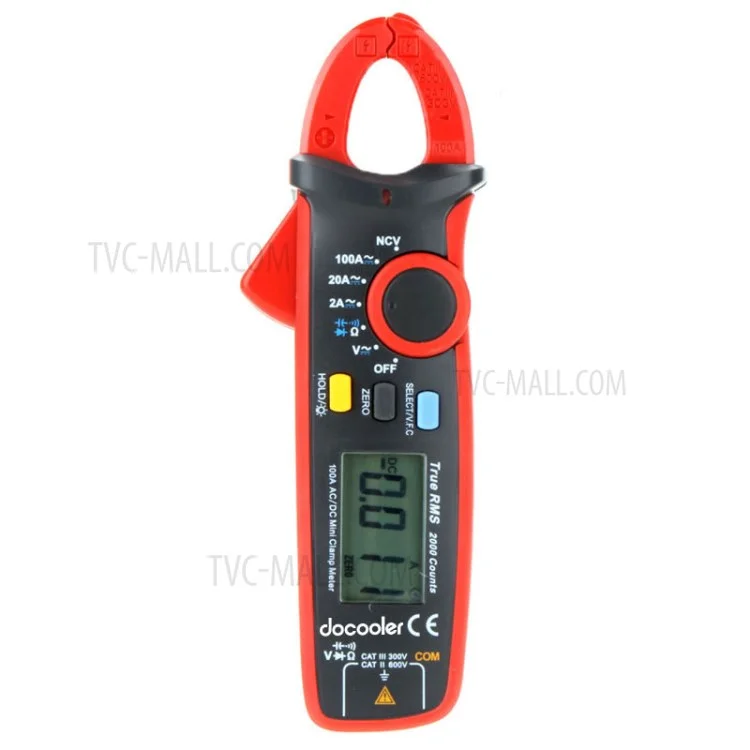

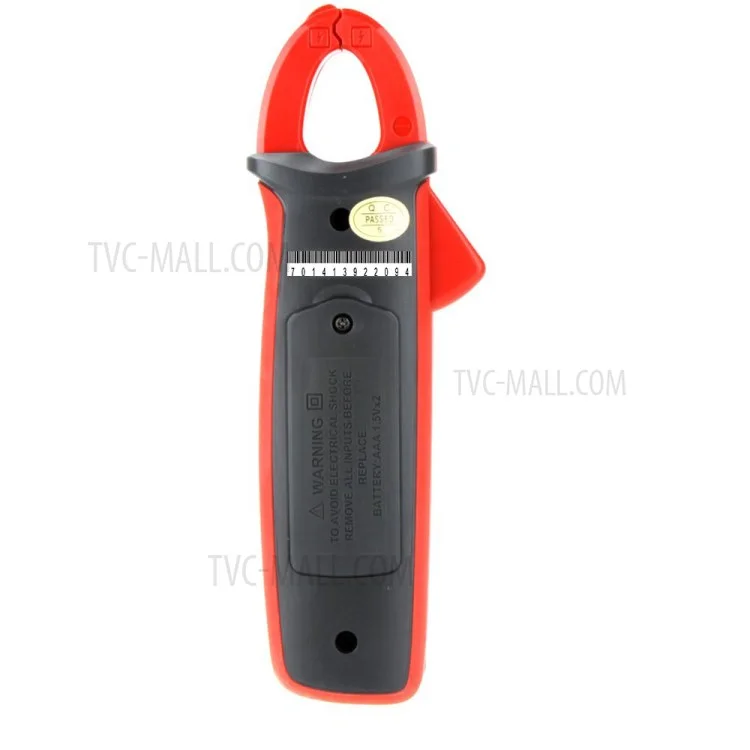

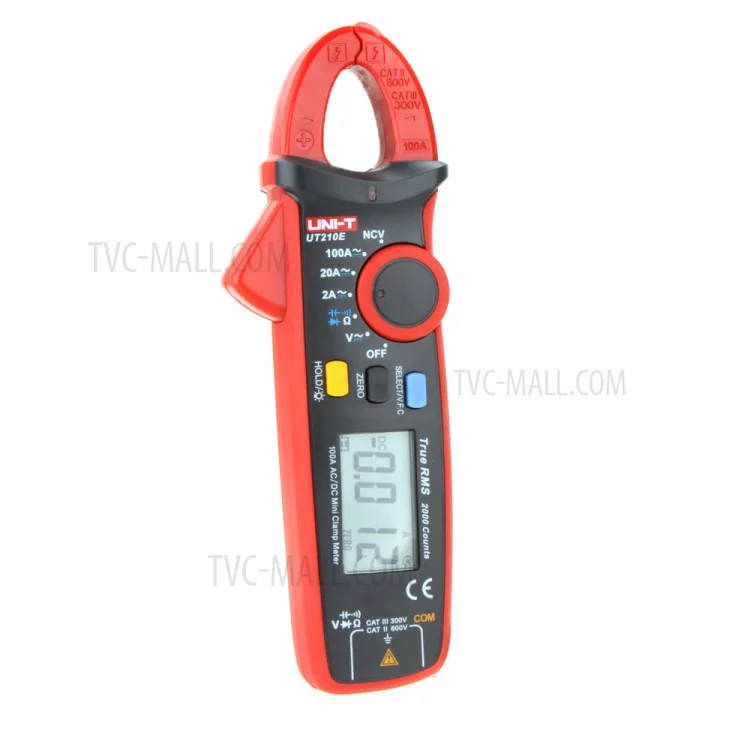

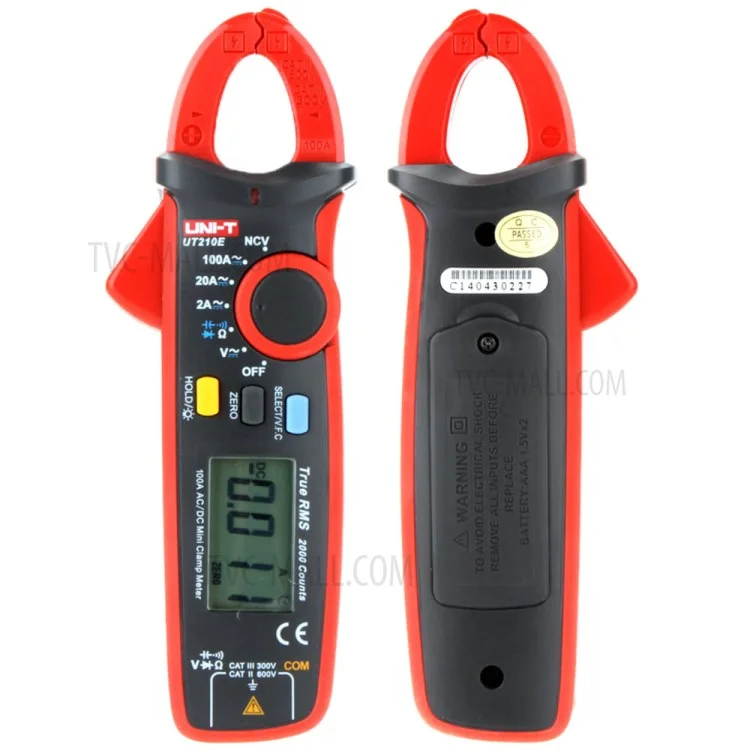

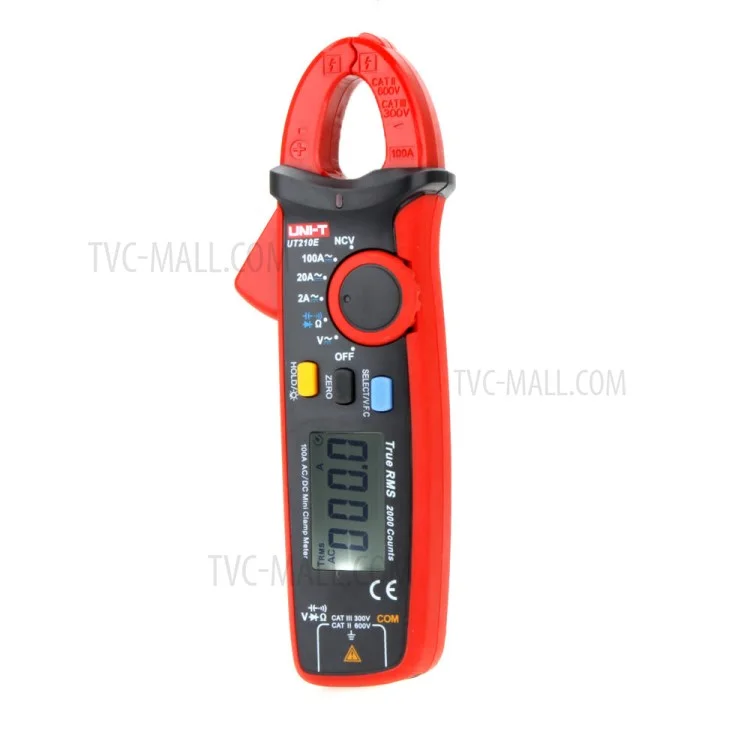

This LCD Digital AC/DC clamp multimeter is a portable clamp meter. It is ideally suited for field, laboratory, shop and home applications

• Multi-purpose clamp meter can measure AC/DC voltage, AC/DC current, capacitance and resistance measurement

• With NCV function (Non-contact voltage detection function)

• High resolution and data hold

• Mini and portable to carry and use

• Auto range and auto power off

• Manual back light LCD screen, the maximum display value is 2000

Specifications:

• Model：UT210E

• AC Current (A): 2A / 20A / 100A ±(2.5%+5)

• DC Current (A): 2A / 20A / 100A ±(2%+3)

• AC Voltage (V): 2V / 20V200V / 600V ±(1.0％＋3)

• DC Voltage (V): 200mV / 2V / 20V200V / 600V ±(0.7%+3)

• Resistance (Ω): 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ / 20MΩ ±(1.0％+2)

• Capacitance (F): 2nF / 20nF / 200nF / 2μF / 20μF / 200μF / 2mF / 20mF ±(4%+5)

General Characteristic:

• Display Count: 2000

• Auto Range: √

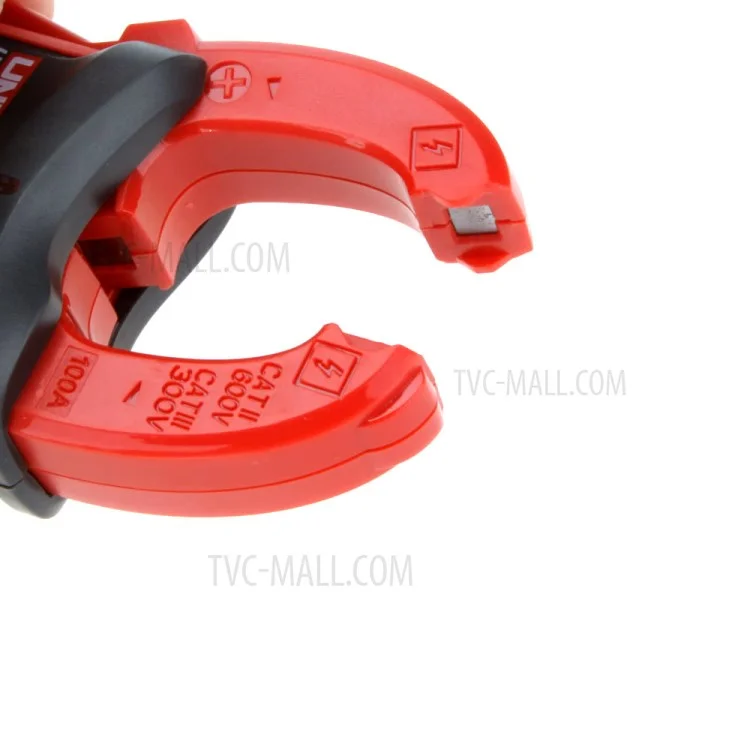

• Jaw Capacity: 17mm

• True RMS: √

• Diode: Around 3.0V

• V.F.C.: √

• NCV: √

• Data Hold: √

• Zero Mode: √

• LCD Backlight: √

• Auto Power Of: Around 15 Minutes

• Continuity Buzzer: √

• Low Battery Indication: ≤2.5V

• Input Protection: √

• Input Impedance for DCV: ≥10MΩ

• Product Net Weight: 170g

• Product Size: 175mm x 60mm x 33.5mm

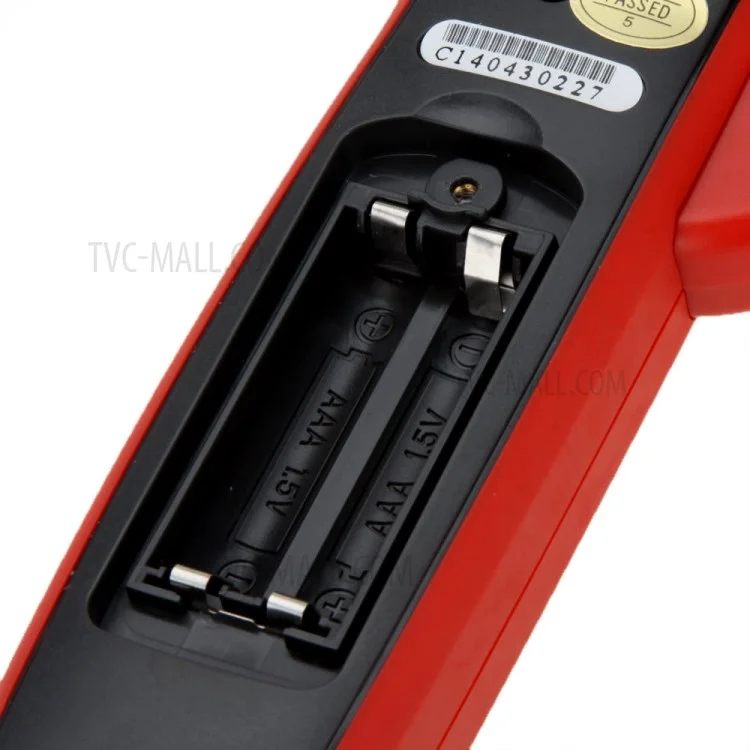

• Power: AAA 1.5V x 2(not included)

• LCD Size: 39.3mm x 21.5 mm
