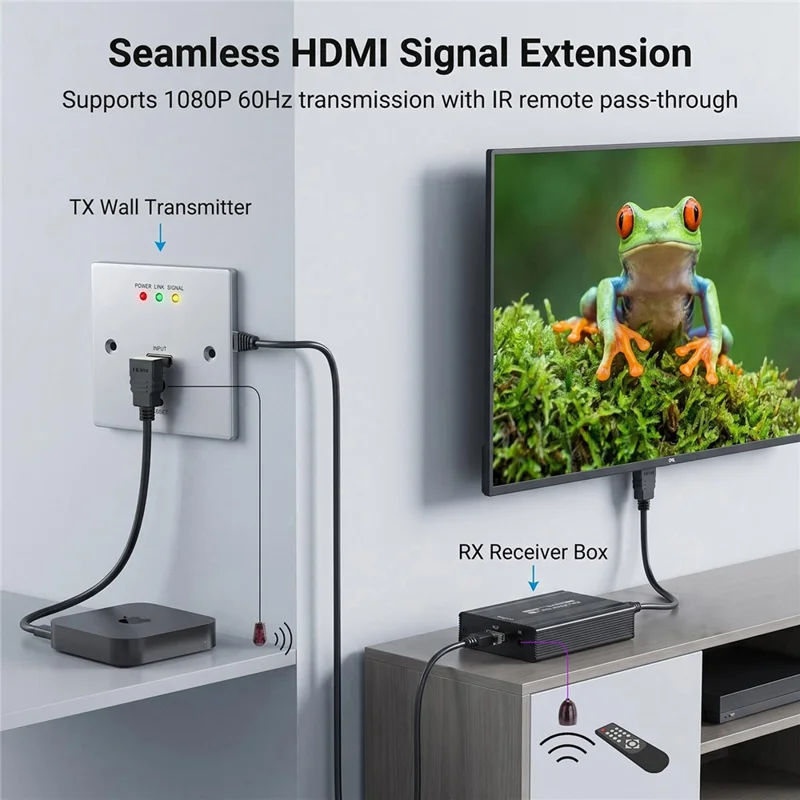

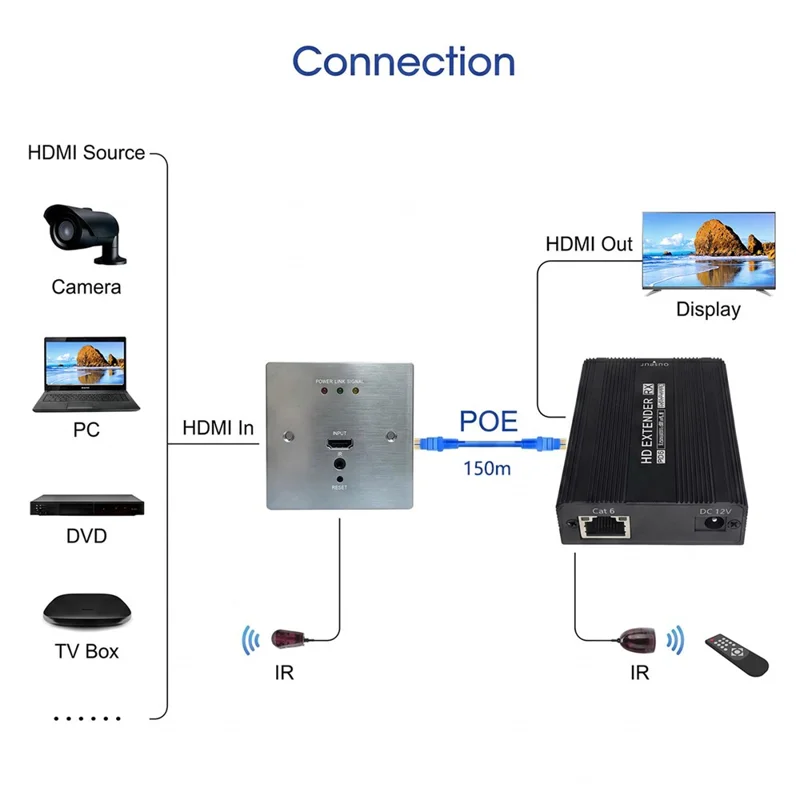

• 【HD Signal Extension】The extender transmits HD video and audio signals through a single network cable over distances up to 150m when using Cat6 or higher cabling.
• 【Full HD Output】Maximum resolution reaches 1920 x 1080P at 60Hz, with total interface bandwidth of 6.75Gbps for HD signal transmission.

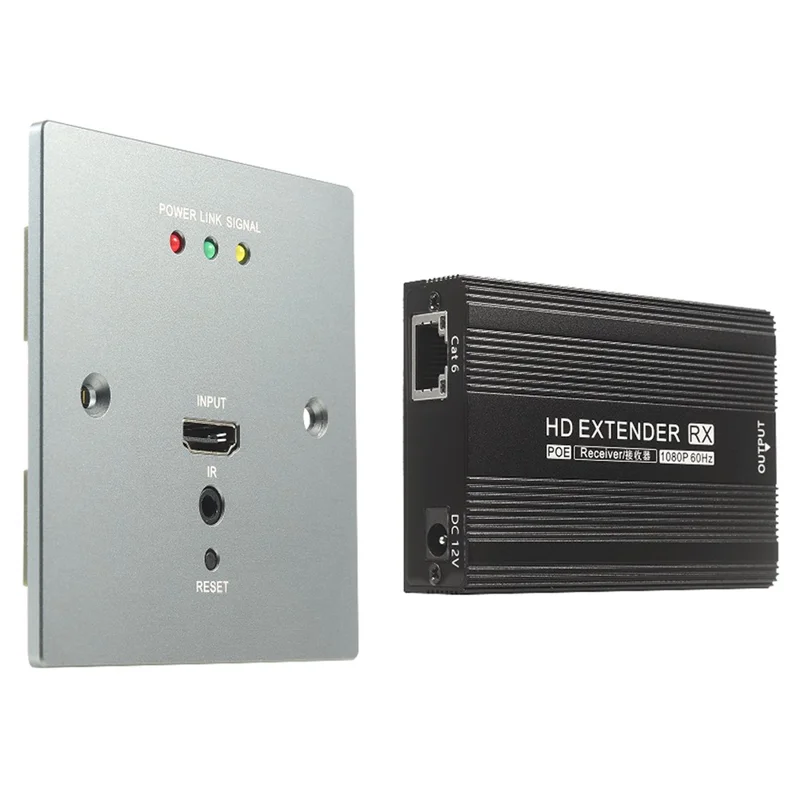

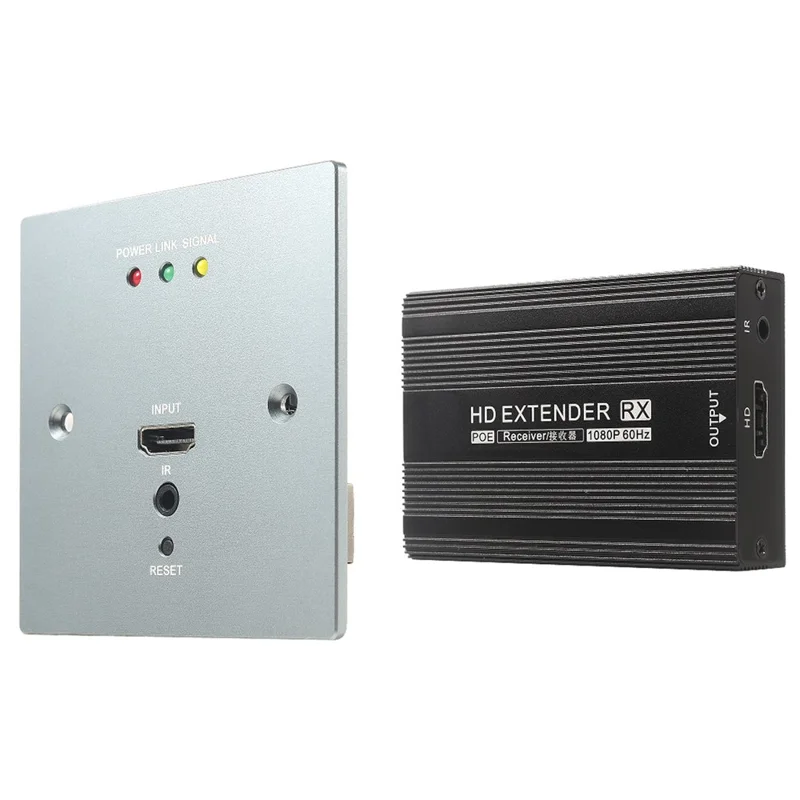

• 【Wall Plate Design】The transmitter uses a wall-mounted plate design, while the receiver is a separate box, forming a two-part extender system.

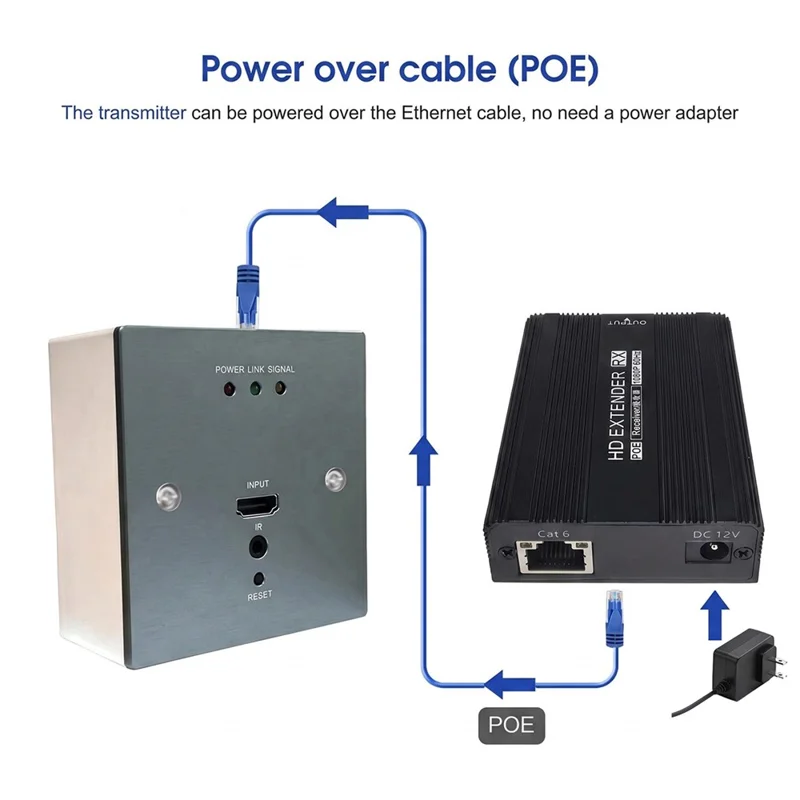

• 【POE Power Support】The receiver can provide power to the transmitter through the network cable, reducing the need for a separate transmitter power adapter.
• 【Automatic Signal Management】EDID pass-through, automatic adjustment, and built-in automatic equalization support display mode configuration and stable image transmission during operation.

Specifications:

• Material: Aluminum Alloy Casing
• Transmission Distance: Up to 150m using Cat6, Cat6a, or Cat7 network cable
• Maximum Resolution: 1920 x 1080P @ 60Hz
• HD Input/Output: 1920 x 1080P @ 60Hz
• Total Bandwidth: 6.75Gbps
• Interfaces: Standard RJ45, HD Input, HD Output, DC 12V Power
• Power Supply: DC 12V, 1A
• Power over Ethernet: Supported

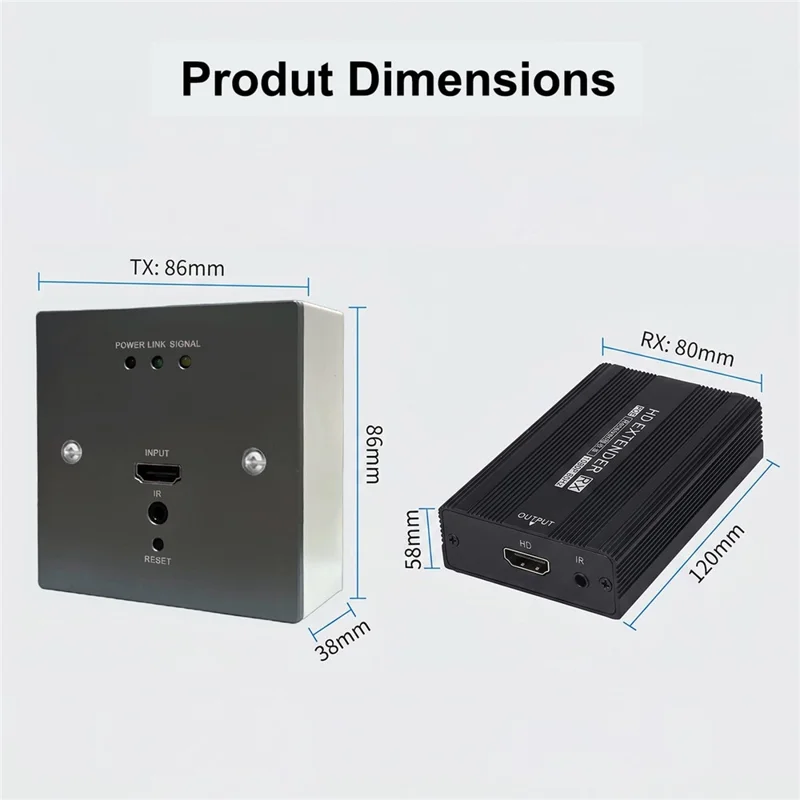

• TX Dimensions: 86mm x 86mm x 38mm
• RX Dimensions: 120mm x 80mm x 58mm
• Operating Humidity: 5% to 90%
• Operating Temperature: -5°C to +70°C
• IR Remote Pass-through: Supported
• Reset Button: Included
• LED Indicators: POWER, LINK, SIGNAL
