Specifications:
system | Main Processor | T23, pure hard compression, watchdog | |
image sensor | high-performance CMOS sensor | ||
Operation System | Embedded LINUX OS system | ||
Video Compression | Smart H.265X | ||
APP | OKAM PRO(support andriod and IOS) | ||
Video | High Definition | 2MP | |
Image resolution | 1920*1080@12FPS | ||
Minimum illumination | 0.01LUX/F1.2 | ||
Lens | 3.6mm | ||
Perspective | 92° | ||
Turn video | Upside down/Turn around | ||
lighting | Light control mode | Dual light night vision | |
Number of lights | 8+4PCS | ||

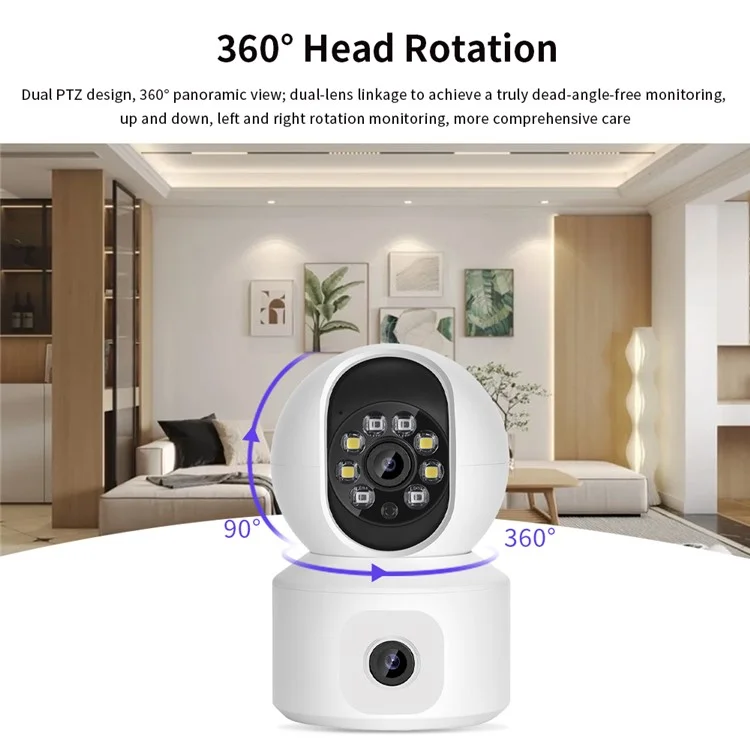

PTZ | PTZ control | Rotation Angle level: 360°; Vertical: 90° | |
Turn PTZ | Upside down/Turn around | ||
Audio | Coding standard | G.711 | |
Mitou | Support | ||
Two-way Speech | Support | ||
Record management | Video file size | ≈6G/day | |
Record Mode | Manual record, motion detection record, scheduled record, alarm record | ||

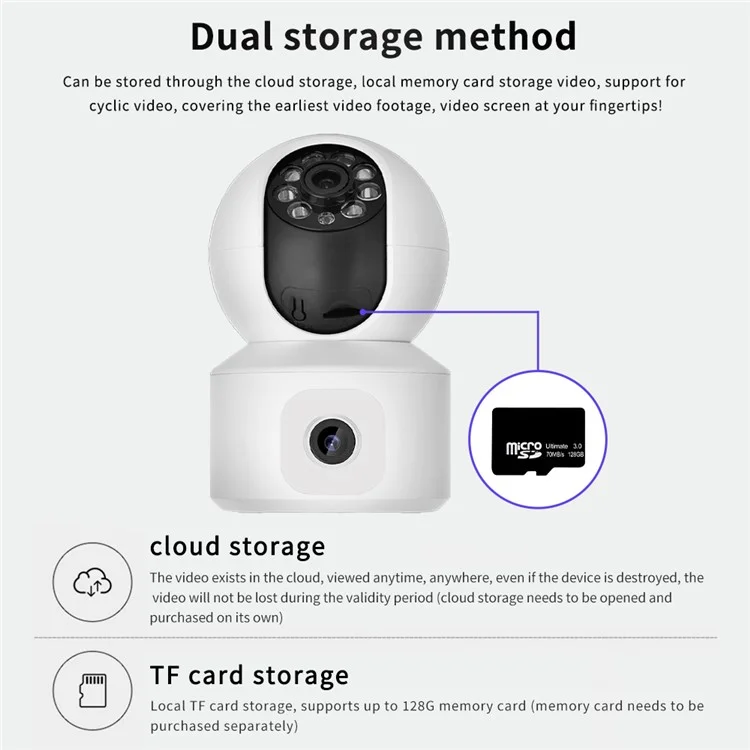

Video storage | TF Card/Cloud | ||
storage | support TF card(max 128GB) or cloud storage | ||
Remote playback | Support | ||
Image capture | Support | ||
Network | WIFI | 2.4G WIFI 802.11b/g/n | |

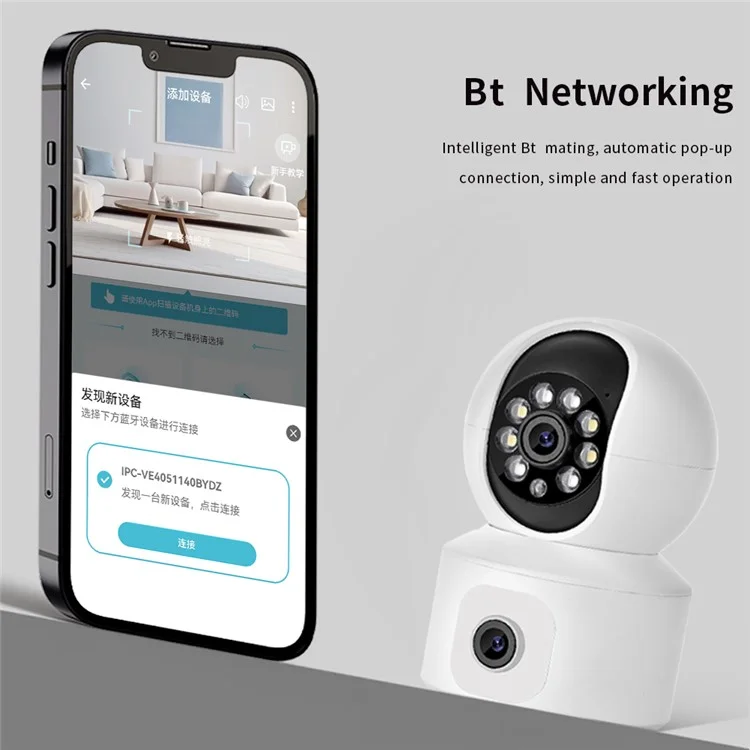

Pairing | Sweep QR code, Network Cable connection, AP Hotspot Addition | ||
Network Protocol | Support TCP/IP, ONVIF, RTSP | ||

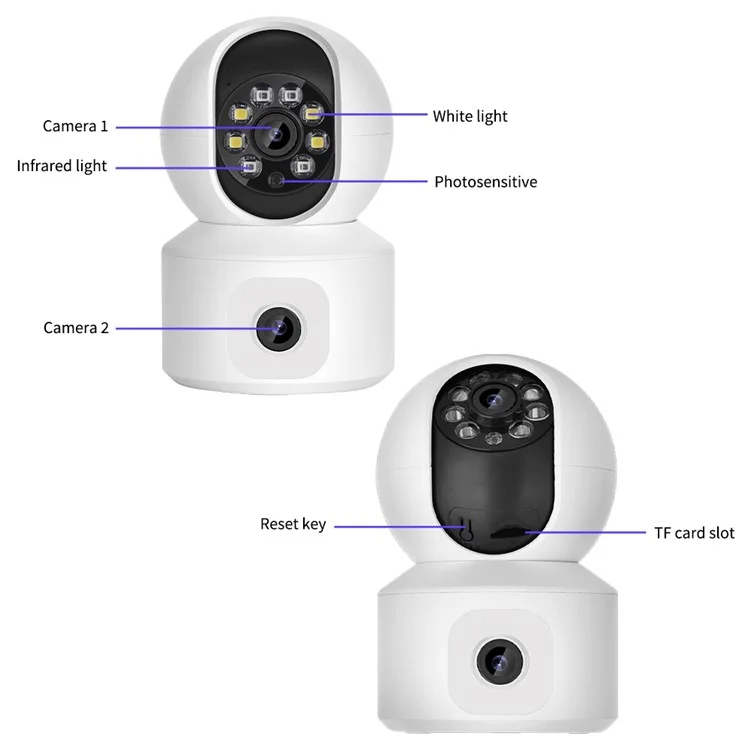

extension | Reset key | Support | |
Human tracking | Support | ||
360degree coordinate positioning | Support | ||
power supply | Power | DC 5V | |
power interfac | usb | ||
work environment | Suitable place | outdoor, home, shop, school, factory | |

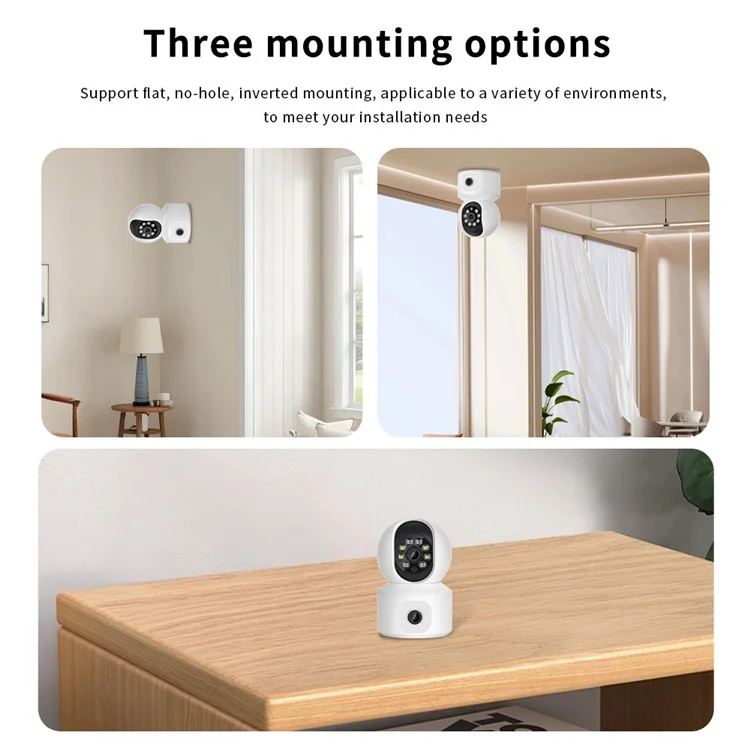

Installation mode | Wall hanging, lifting, flat | ||
Working Temperature | -20℃-+55℃ | ||
Working humidity | 10%-90% |
