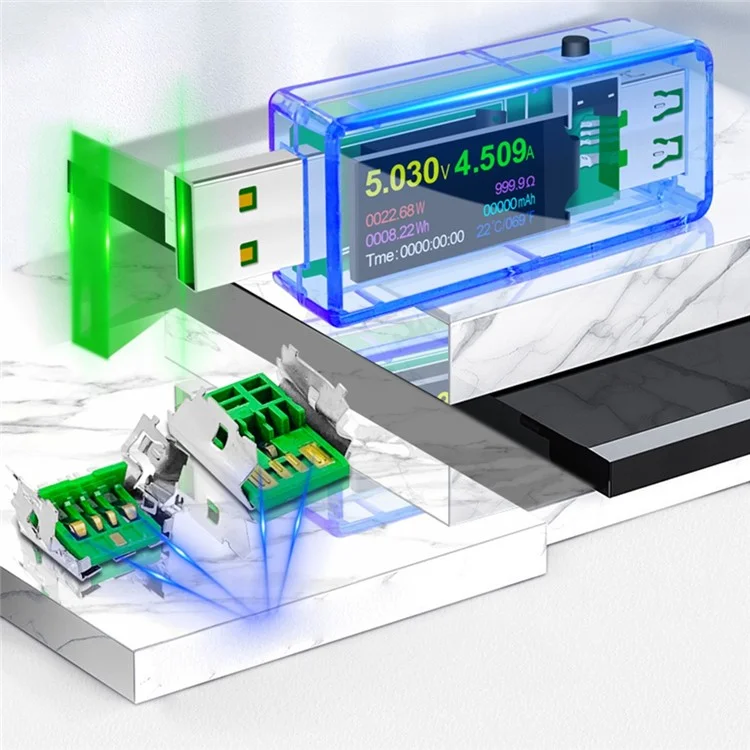

• 7.0A high current USB interface is adopted, which can realize 7.0A high current measurement and is not easy to burn the USB interface due to overheating
• Fast charge identification covers almost all fast charge protocols, including for Huawei FCP and SCP, which meet the requirements of Huawei mobile phone users
• Add the time measurement function, up to 100 hours, time minutes and seconds intuitive display, no need to use the phone time

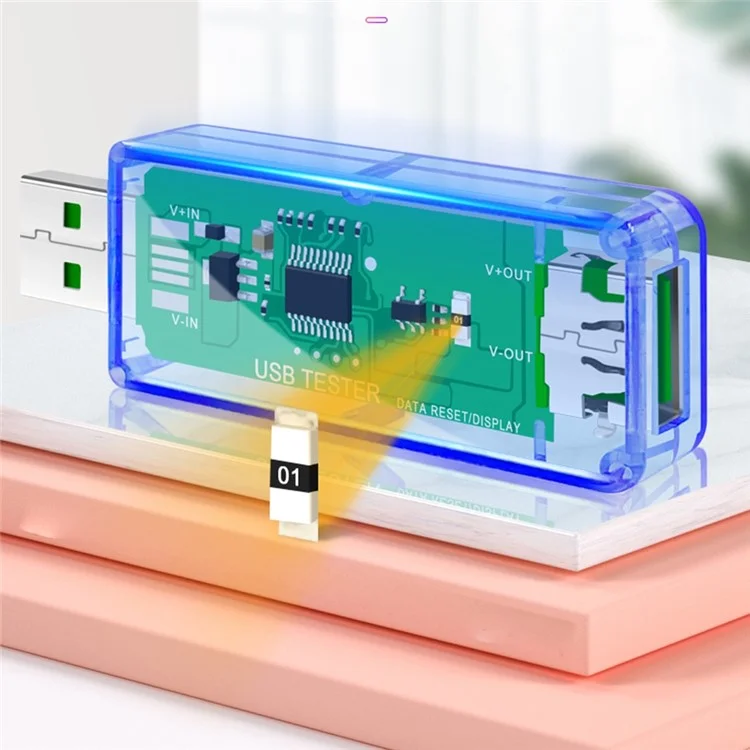

• 1 milliohm sampling, real charging almost does not affect the original fast charging flow, reducing losses
• Click on the Screen Rotation Screen to enable the Screen to rotate so that you can view the Screen from multiple angles

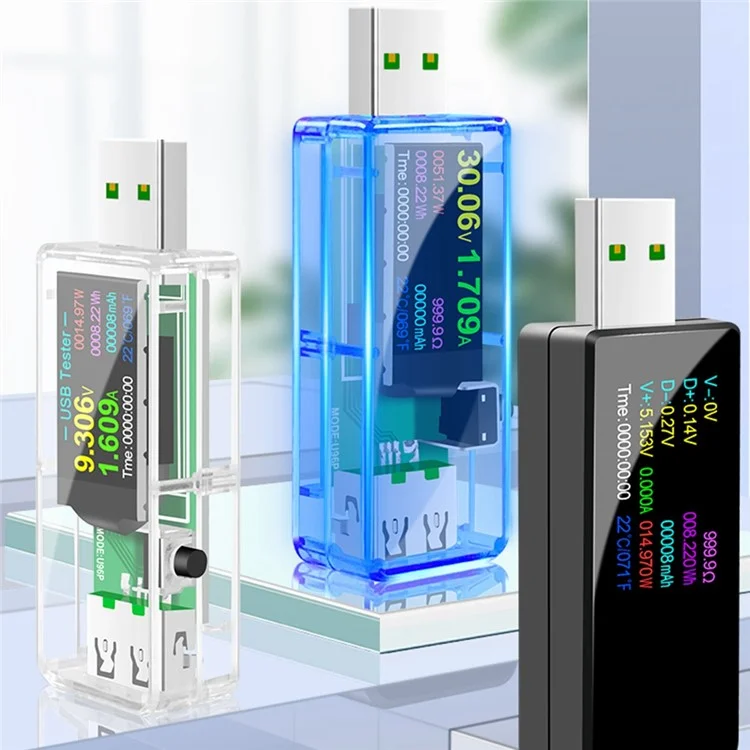

• Multi-interface display, to meet the needs of different users

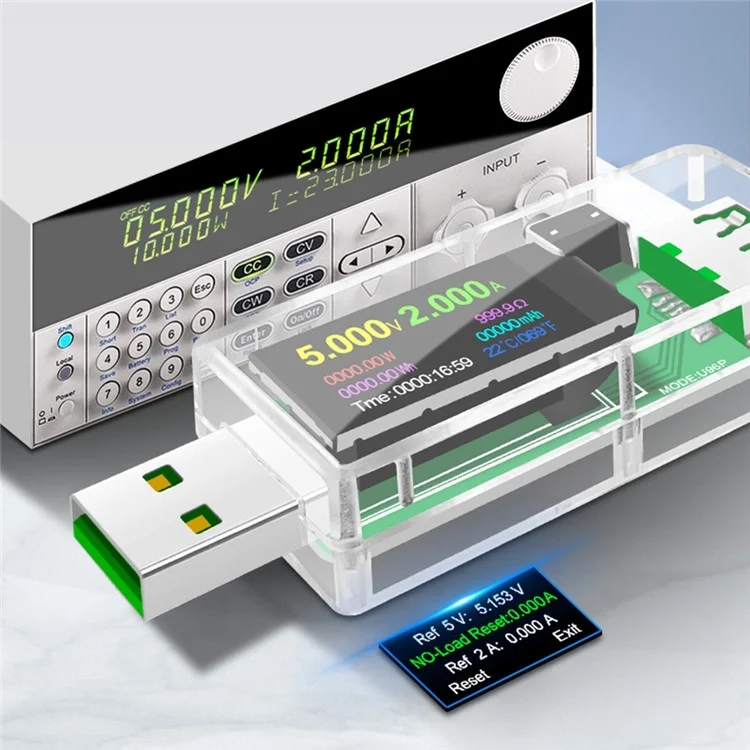

• Soft calibration technology, so that customers can receive directly use the accurate detector
• Power memory function, data reset by one key, the screen can be flipped 180°, multi-function digital display

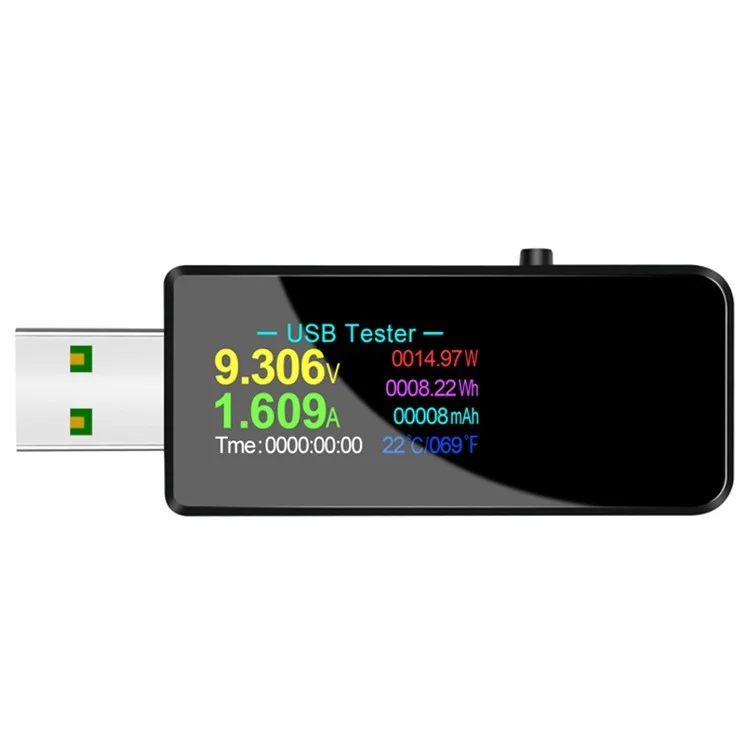

• True IPS HD digital display color screen, showing clear and beautiful data, and bright colors, greatly prolong the service life

Wide Application:

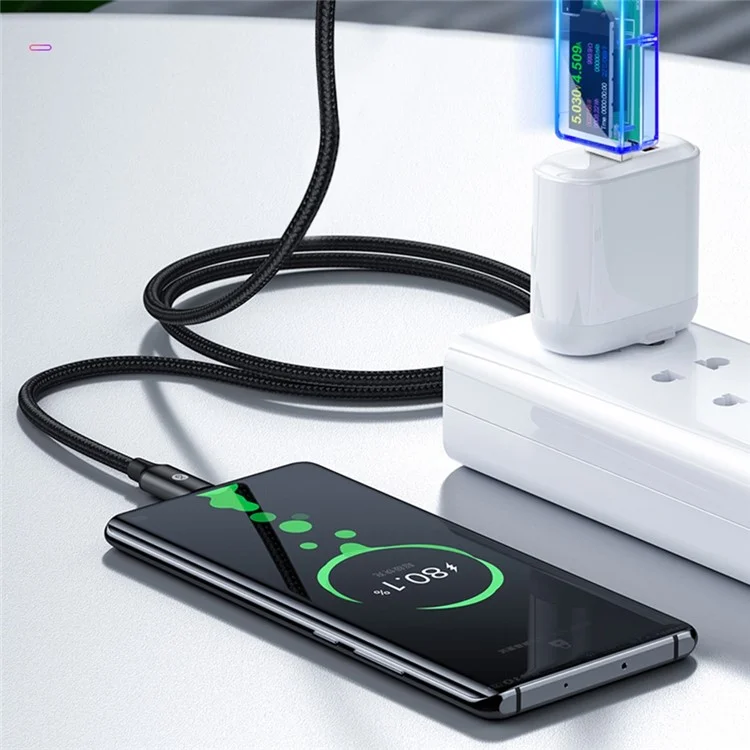

• Test charger: Mark the parameters corresponding to the charger, match the load to test its maximum output current and good or bad
• Test data line: For the same mobile phone and charger, compare different data lines to see which one charges faster (consult customer service for another test method)
• Test the battery bank: The battery bank is fully charged and can be quickly discharged before using the load to find out how much mah capacity the battery bank can hold
• Mobile phone fast charge protocol support parameters table: this product's internal protocol and the data line is the same as direct, the original mobile phone fast charge actual charging how much we show how much, will not change the original fast charge has purchased customers blueprint all kinds of fast charge in the buyer show inside, you can see the actual use of the user
• Test your phone's battery capacity: The charging voltage of your phone is 5V or 9V, and the internal voltage of your phone's battery is about 3.7V. According to physics: current X time = capacity. When the phone is charged at 5V or 9V, it fills up faster than when it is charged at 3.7V. The time taken is reduced, so there will be a reduction calculated by the capacity formula. At this time, according to another physical formula, power Wh÷3.75V mobile phone battery voltage = capacity value; The capacity of the test multiplied by 90% efficiency will be close to the capacity of the mobile phone battery (the same is true for the battery of the battery bank)

Specification:

• Voltage measurement range: 3.60V~30.0V
• Current measurement range: 0.00~7.00A
• Cumulative capacity: 0 to 999999 mah
• Cumulative power range: 0~99999mWh
• Power measurement range: 000.00 to 150.00 W
• Impedance measurement range: 1~999.9 ohms
• Temperature range: 0 ° C to 80 ° C
• Time: 999 hours, 59 minutes and 59 seconds
• Input port: 7A high current USB port
• USB D+ voltage range: 0V to 2.99V
• USB D-voltage range: 0V to 2.99V
• Refresh time: >500mS/time >500mS/times
• Measurement rate: about 0.5 times/second
• Display type: IPS true color digital LCD screen with 12,800 pixels is adopted
• Screen resolution: 160*80
• Consumable current: <0.02A
• Operating temperature: -10℃~+60℃
• Working humidity: 10~80 (no doubt) 10~80
• Working pressure: 80~106kPa

Guide:

• 1) Press the button to change the screen
• 2) Quick double click capacity reset Reset (mAh)
• 3) Quick three-strike reset and zero (Wh)
• 4) Quick Four strikes are timed reset to clear the current group (00:00:00)
• 5) Long press the key to reset and clear the current group of capacity, power and time
• (mAh, Wh, 00:00:00)
• 6) When the screen is flipped, press and hold the key again to flip the screen
• 7) When the screen is black, long press the key to enter the background mode
• 8) When in background mode, short press the button to the second item and then the long press is to reset the current in no-load condition
