• 【Single Cable Transmission System】HDMI KVM extender transmits audio, video and USB keyboard/mouse signals through one Cat5e/Cat6/Cat7 network cable, simplifying installation and replacing expensive long HDMI cables for remote control applications.

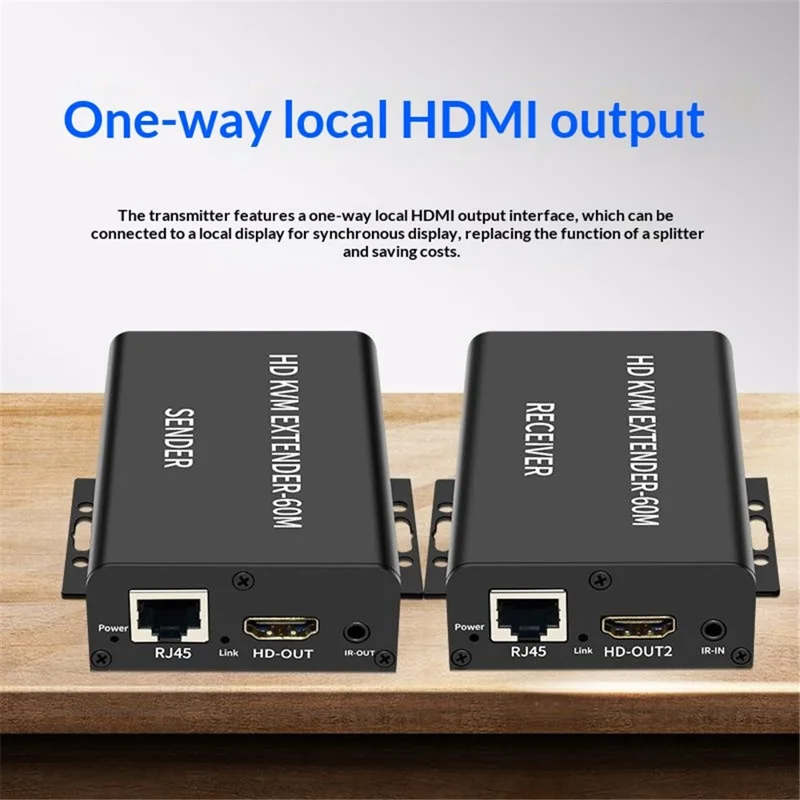

• 【Dual HDMI Loop-Out Design】Both sender and receiver units feature HDMI output ports, with the receiver providing dual HDMI outputs to connect two display devices simultaneously for synchronized content display.
• 【IR Signal Back-Transmission】Supports infrared reverse transmission through IR-IN and IR-OUT ports, allowing remote control of host devices or media players from the receiver end location.
• 【POC Power-Over-Cable Technology】Single-end power supply system provides power to both sender and receiver units through the network cable connection, reducing power adapter requirements for simplified engineering installations.
• 【Metal Housing with Mounting Ears】Black metal enclosure features side-mounted fixing ears with screw holes for wall mounting or rack installation, providing effective heat dissipation for stable long-term operation.

Specifications:

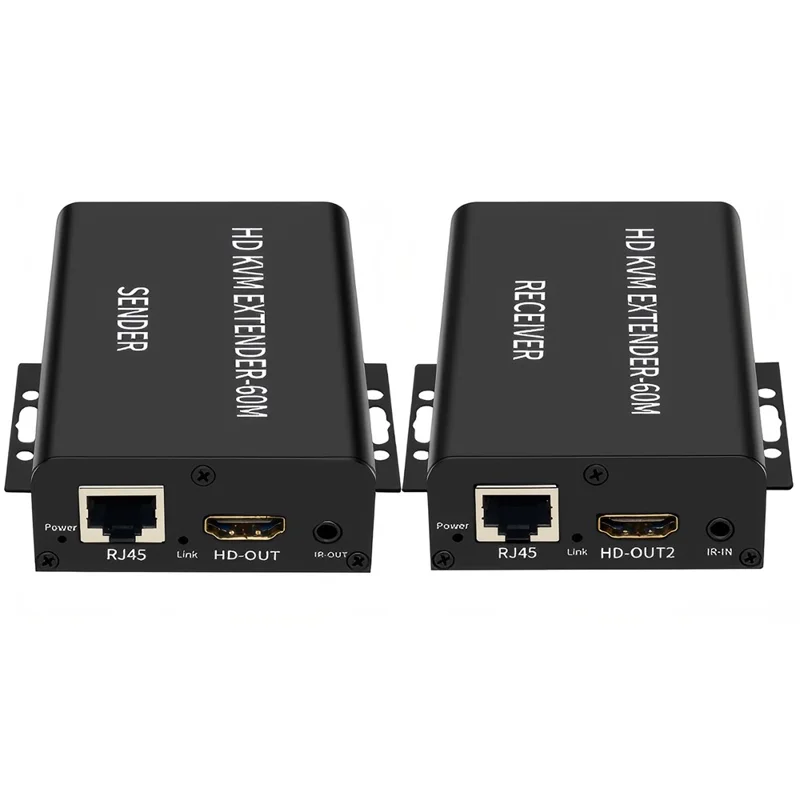

• Model: HKE60A
• Transmission Distance: 60m
• Cable Specification: Cat5e / Cat6 / Cat7
• Resolution: 1080P@60Hz
• Core Functions: KVM Keyboard and Mouse Control, Dual HDMI Loop Out, IR Infrared Reverse Transmission, POC Single End Power Supply
• Interface: TX: HD-OUT, RJ45, IR-OUT, Power; RX: HD-OUT2 Dual HDMI, RJ45, IR-IN, Power
• Transmission Medium: Single Network Cable
• Installation Method: Wall Mounting
