• 【HD to AV/S-Video Conversion】 Converts high-definition HD signals to standard composite video output, enabling connection of HD devices to older CRT TVs.
• 【Wide Compatibility】 Supports multiple input formats including 480P, 576P, 720P, 1080i, and 1080P at various refresh rates.
• 【Dual Output Options】 Features both CVBS and S-Video output ports for versatile connectivity with legacy displays.
• 【Flexible Video System】 Switchable between PAL and NTSC output formats to accommodate different regional standards.
• 【Broad Operating Range】 Designed to function effectively in temperatures from -25°C to 75°C, ensuring reliability in various environments.

Specifications:

• Input Signal: HD
• Output Signals: CVBS (1.0Vpp), S-Video (Y: 1.0Vpp, C: 0.3Vpp)
• Input Formats: 480P (60Hz), 576P (50Hz), 720P (50Hz/60Hz), 1080i (50Hz/60Hz), 1080P (50Hz/60Hz)
• Output Video Systems: PAL, NTSC
• Output Video Signal Impedance: 75 ohms
• Power Supply: DC 5V
• Operating Temperature: -25°C to 75°C
• Operating Humidity: 10% to 60%

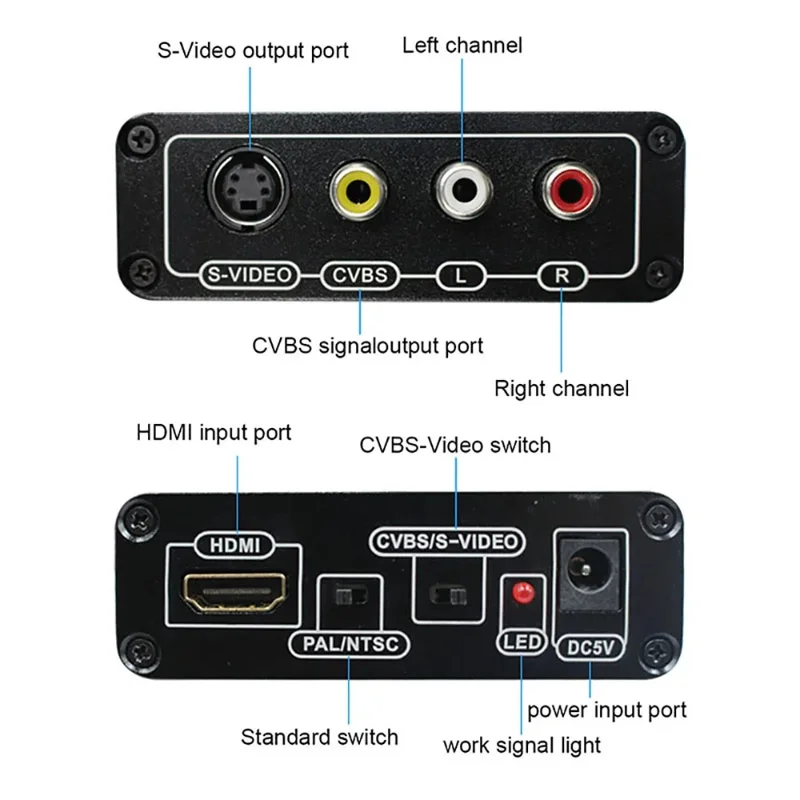

• Ports: HD input, S-Video output, CVBS output, Stereo audio output
