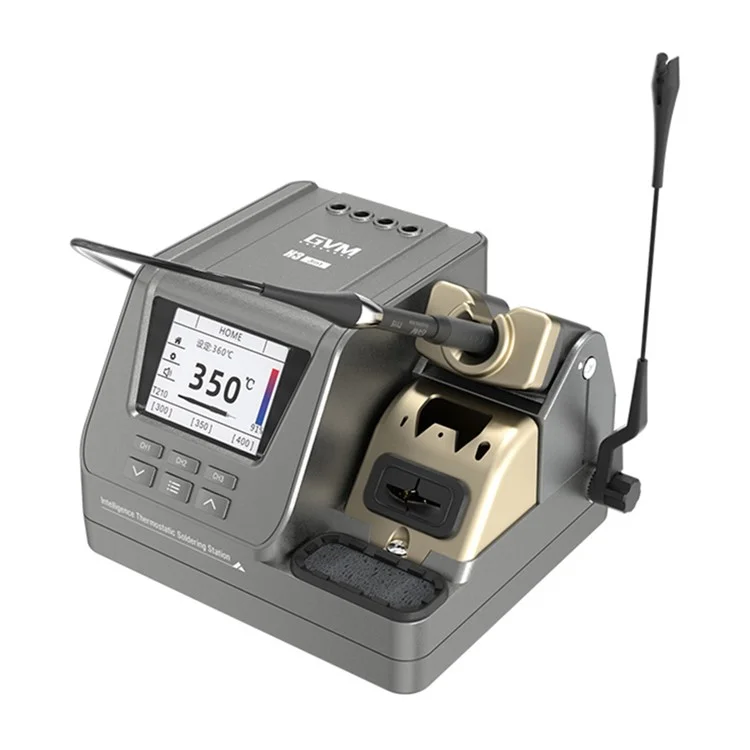

• 3-in-1 smart soldering station, 2s rapid heating, ready to use, improving maintenance efficiency
• Automatic identification of welding tools supports T245/T210/T115 handles, which can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboard flying lead desoldering, etc.

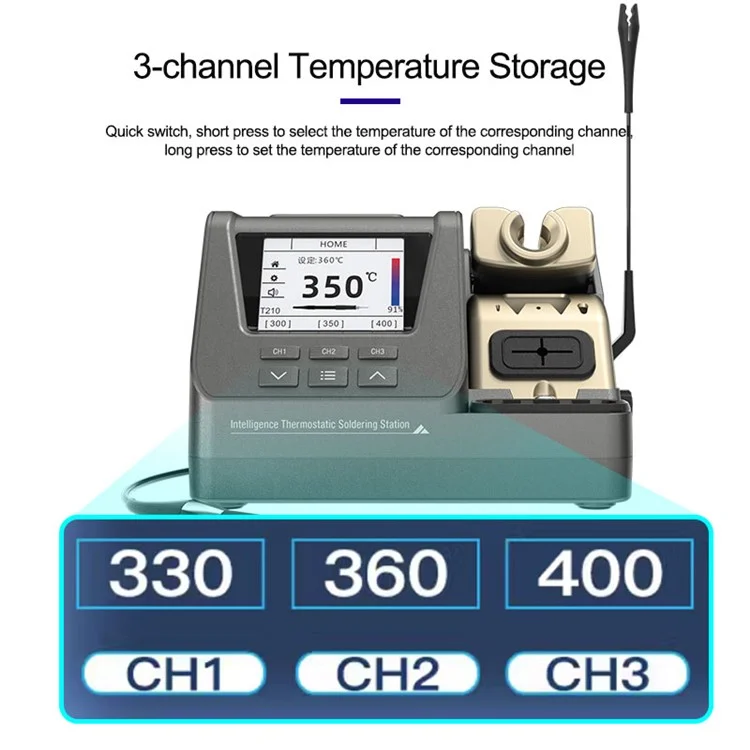

• 3-channel temperature storage, quick switch, short press to select the temperature of the corresponding channel, long press to set the temperature of the corresponding channel
• LCD display supports temperature grouping, switching between Chinese and English, and intuitive temperature control at any time
• USB-linked computer assistant can display real-time temperature, set temperature, and optimize and upgrade soldering station firmware

Specifications:

• MODEL: H3
• NET WEIGHT: 1650g

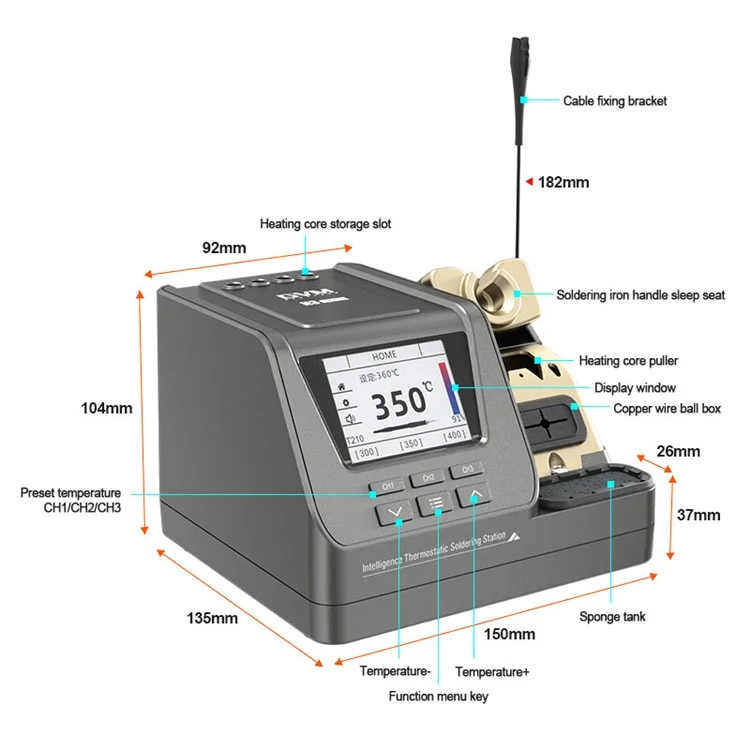

• HOST SEZI: 150 * 135 * 104mm
• T245 HANDLEWRE TOTAL LENGTH: about 128cm
• T210 HANDLEWRE TOTAL LENGTH: about 126cm
• T115 HANDLEWRE TOTAL LENGTH: about 126cm
• T245 HEATING CORE: 101*4.8mm
• T210 HEATING CORE: 80*3.5mm
• HEATING CORE: 44.5*2.8mm
• RATED WORKING VOLTAGE: AC 220V/110V (customizable)
• RATED POWER: 80W
• TEMPERATURE RANGE: 100-480℃/212-900℉
• TEMPERATURE RANGE ACCURACY: ±5℃/40℉
• TEMPERATURE STABILITY: ±1℃/30℉ SUPPORTED HANDLE TYPES: 115/210/245
• TEMPERATURE ADJUSTMENT STEP: ±5℃/10℉
• DELAYED SLEEP: 0-180S, the delayed sleep function is canceled by default
• DISPLAY RESOLUTION: 240 * 320PX ( LCD color screen)
• SYSTEM LANGUAGE: Chinese-English bilingual switching
• WORKING CONDITIONS: 0-40℃, humidity＜80%
• STORAGE CONDITIONS: Temperature -20-80℃, humidity＜80%
