Specifications:

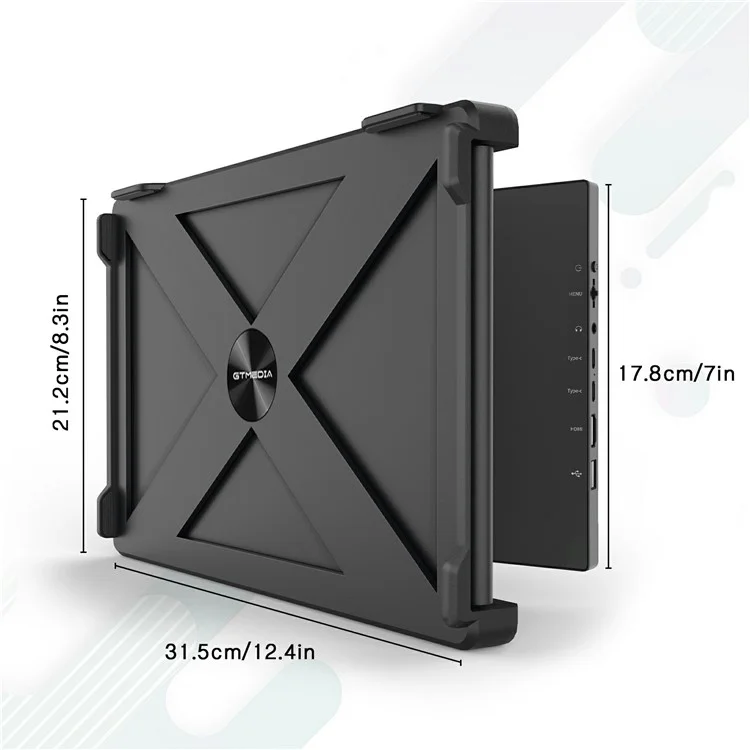

Product specifications | Model | MATE X | Size | 314*213*38mm(After folding) |
Screen Size | 11.6 inches | Resolution | 1920(H)*1080(V) | |
Screen Ratio | 16:9 | Pixel Pitch | 0.1335(H) x 0.1335 (V) | |
Weight | 1.25KG | Refresh Rate | 60Hz | |
Packing Weight | 2.25KG | Brightness | 300cd/㎡ | |
Screen Type | IPS | Contrast | 1000:1 | |
Touch | NO | Display Colors | 16.7M (Color Depth:8bit) | |
Speaker | Speaker*2 | Color Gamut | 72% sRGB | |

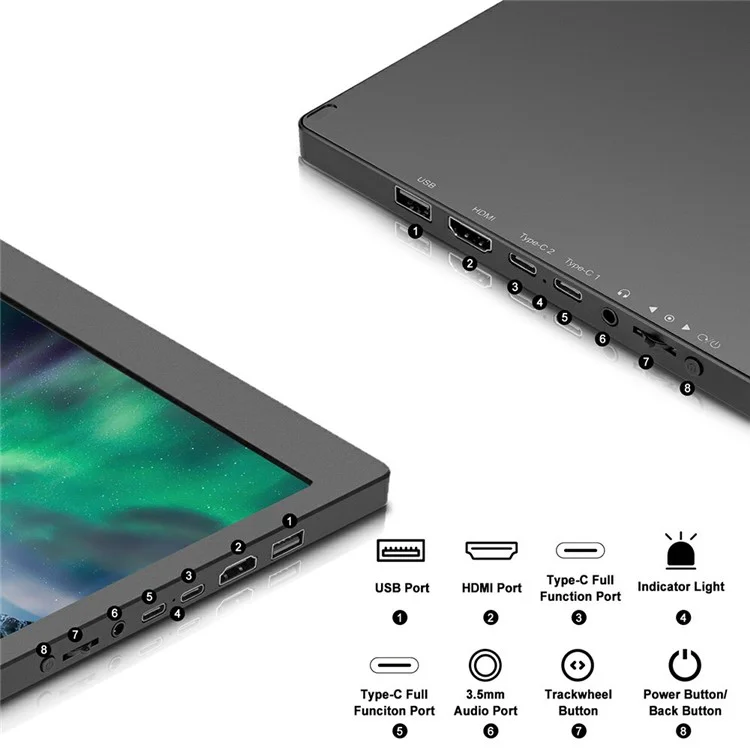

Single Screen Socket | Type-C*2, HD*1, USB 2.0*1, 3.5mm Headphone hole*1 |
HDR | HDR10 | |
Screen Folding Angle | 195°(L)+195°(R) | Viewing Angle | 178°/178° | |
Suitable Laptop Size | 13.0"-17.3" | Pixels Per Inch | 190 ppi | |
Adapter | 5V 2.4A | Response Time | 8ms | |
Button introduction | Trackwheel Button | When there is no menu---Press down:show menu; Dial up: brightness menu; Dial down: volume menu When the menu opens---Dial up: adjust up, Dial down: adjust down,Press down: OK |
||
Power Button | Long press for 3 seconds:Turn on/off Power Short press:Return |
|||
Type-C Port (Support PD Protocol) | Type-C 3.1 can be used for data transmission, audio and video output, and power supply | |||
Operational notes | 1. Both Type-C ports can be used as video input or power input, however, they cannot be used for the same function at the same time. (For example: one Type-C interface is used for charging, and the other Type-C interface is used for video input). |
|||
2. If the monitor needs to be connected to an external power source, please connect the power source first and then connect the video cable. This is important for high-quality and smooth video signal transmission. | ||||
3. When no external power is connected to the laptop and monitor, the power saving mode will be turned on automatically, and the screen will be darker. Users can adjust the brightness according to their needs, and insufficient power will cause the display to turn off or display inconsistently. |
