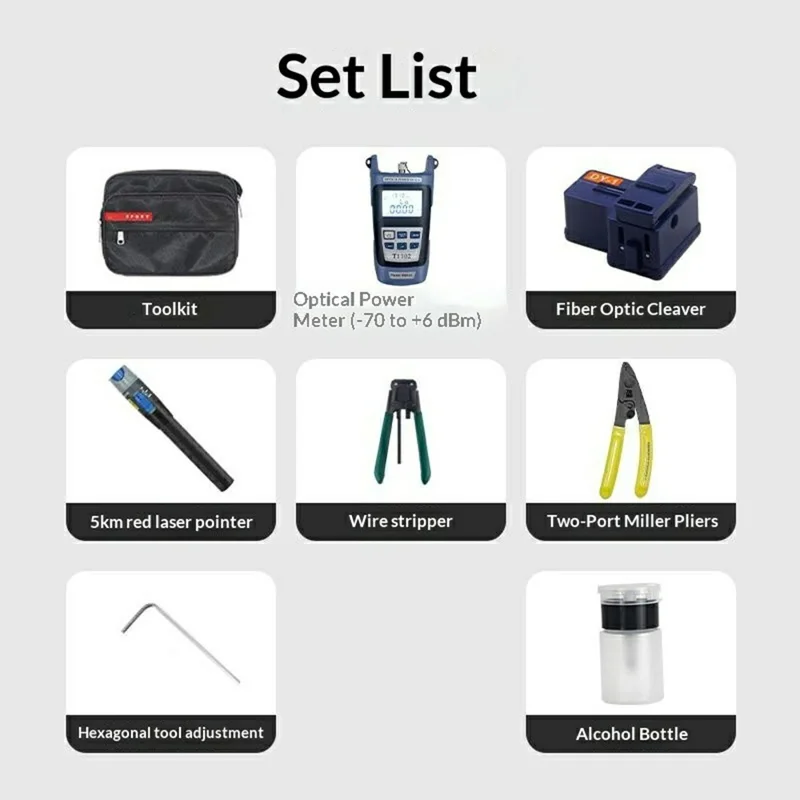

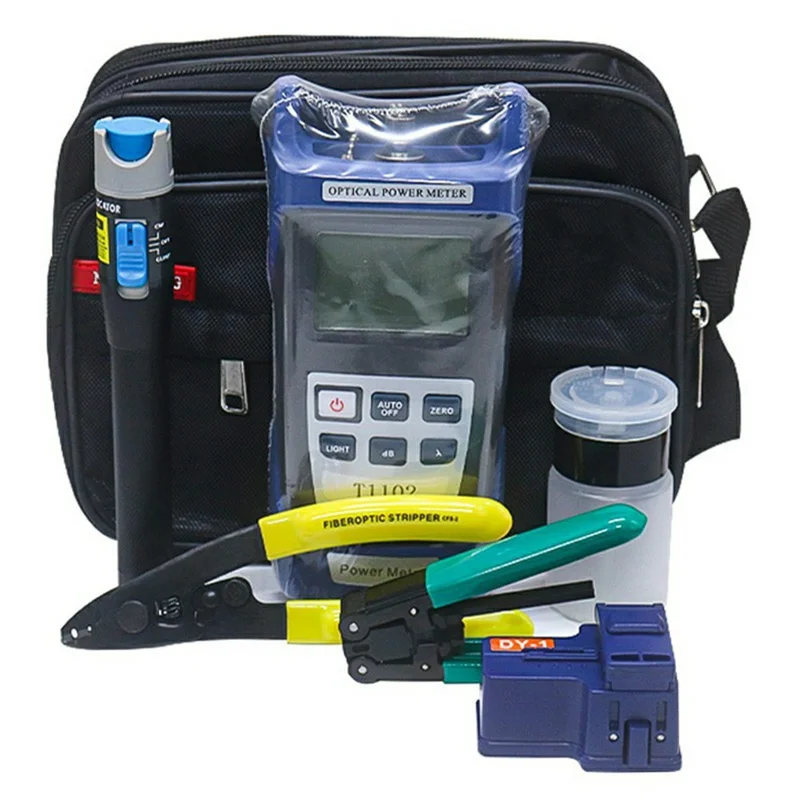

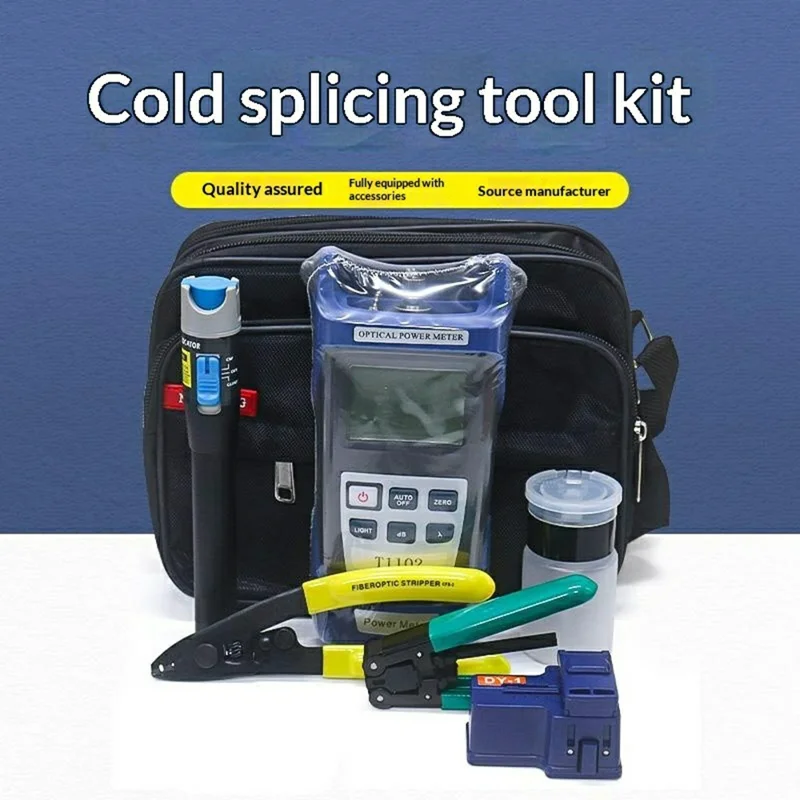

• 【Complete Cold Splicing Kit】FTTH fiber optic tool kit combines equipment for cold splicing, fiber testing, maintenance, cabling, cleaning, and related field work.

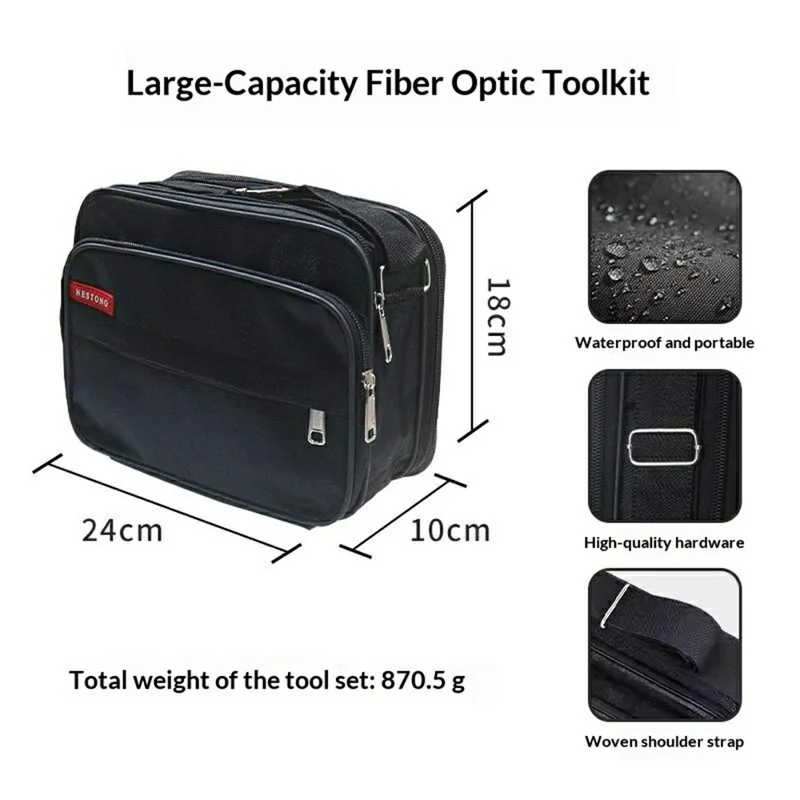

• 【Waterproof Tool Bag】The portable tool bag features waterproof construction, metal hardware, and a woven shoulder strap for organized storage and carrying.

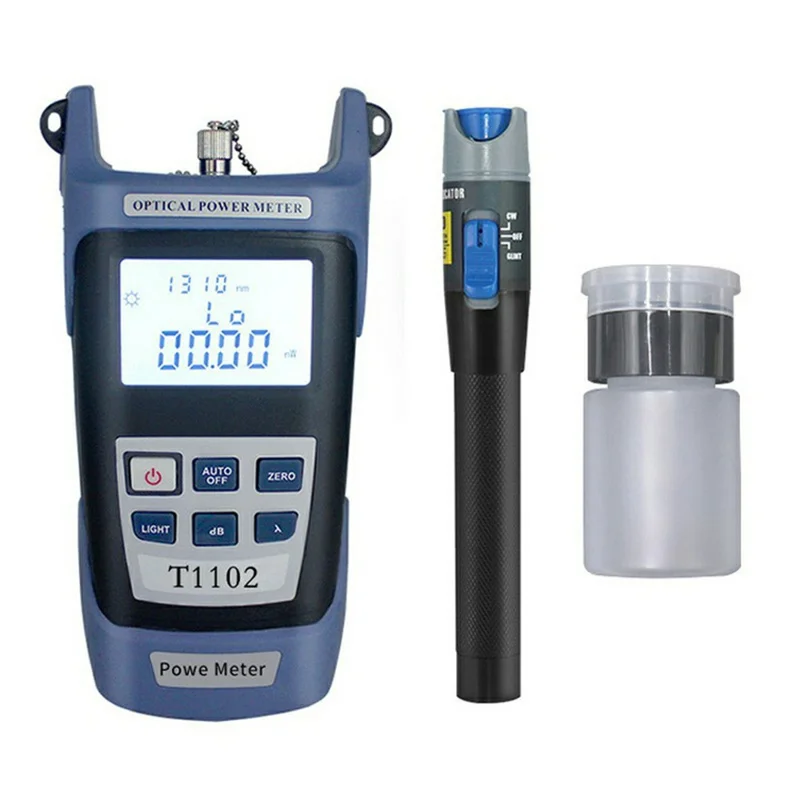

• 【Optical Measurement Tools】The optical power meter supports SC, FC, and ST connectors with -70 to +6 dBm measurement and 800 to 1700 nm wavelength coverage.
• 【Fiber Fault Detection】The visual fault locator provides a 5 km testing distance, 650 nm output wavelength, and SC, FC, and ST connector compatibility.

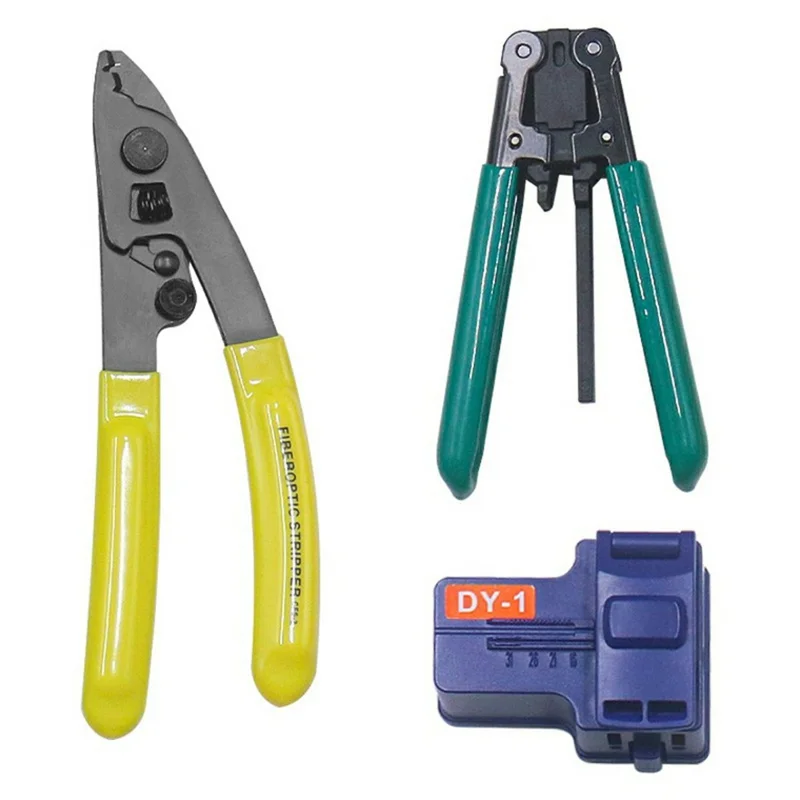

• 【Precision Fiber Preparation】The DY-1 fiber cleaver uses a tungsten carbide blade with automatic retraction, while strippers support precise coating removal without damaging the fiber core.

Specifications:

• Tool Bag Dimensions: 24cm x 10cm x 18cm
• Total Kit Weight: 870.5g
• Optical Power Meter Dimensions: 100mm x 180mm
• Optical Power Meter Measuring Range: -70 to +6 dBm
• Optical Power Meter Compatible Connectors: SC / FC / ST
• Optical Power Meter Wavelength Range: 800 to 1700nm (850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625nm)
• Optical Power Meter Power Supply: 3 x AA Batteries (not included)
• Visual Fault Locator Dimensions: 20mm x 175mm
• Visual Fault Locator Testing Distance: 5km
• Visual Fault Locator Output Wavelength: 650nm
• Visual Fault Locator Compatible Connectors: SC / FC / ST
• Visual Fault Locator Power Supply: 2 x AA Batteries (not included)
• Fiber Cleaver Model: DY-1
• Fiber Cleaver Dimensions: 64mm x 47mm x 40mm
• Fiber Cleaver Application: Drop cable, patch cord, bare fiber, pigtail
• Fiber Cleaver Blade Material: Tungsten carbide
• Miller Stripper Dimensions: 60mm x 164mm
• Miller Stripper Applicable Fiber Diameter: 125–250μm
• Drop Cable Stripper Dimensions: 60mm x 105mm
• Drop Cable Stripper Applicable Cable: 3.1 x 2.0mm drop cable
• Alcohol Bottle Dimensions: 40mm x 80mm
• Alcohol Bottle Capacity: 60mL
• Alcohol Bottle Type: Push-type
