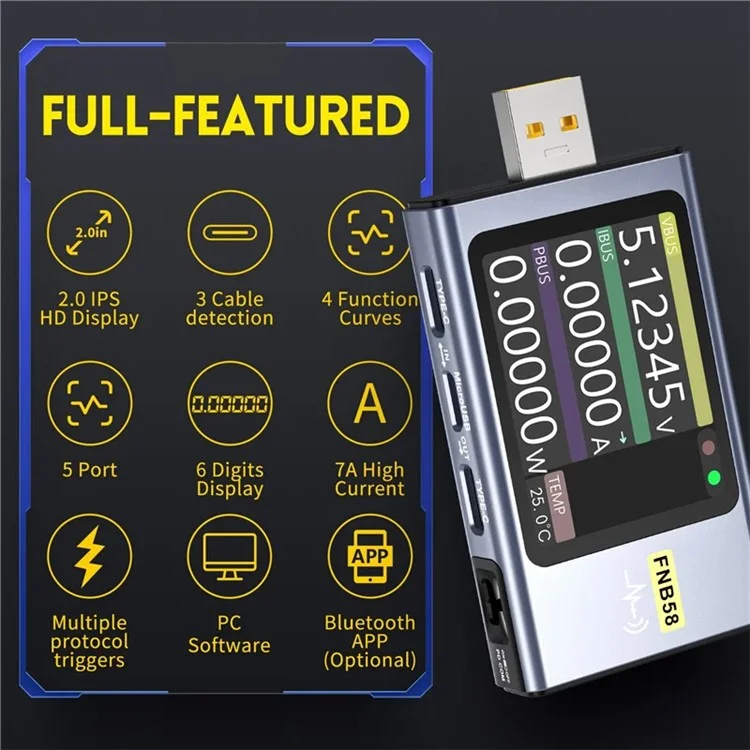

• Equipped with a 2.0-inch LCD high-definition display, the measurement data is clearly visible. It has 5P high-current USB-a and 24P full-pin Type-C input and output interfaces, and charging detection is one step faster
• 0.00001 low resolution, real-time monitoring of subtle changes in voltage, current and power during charging

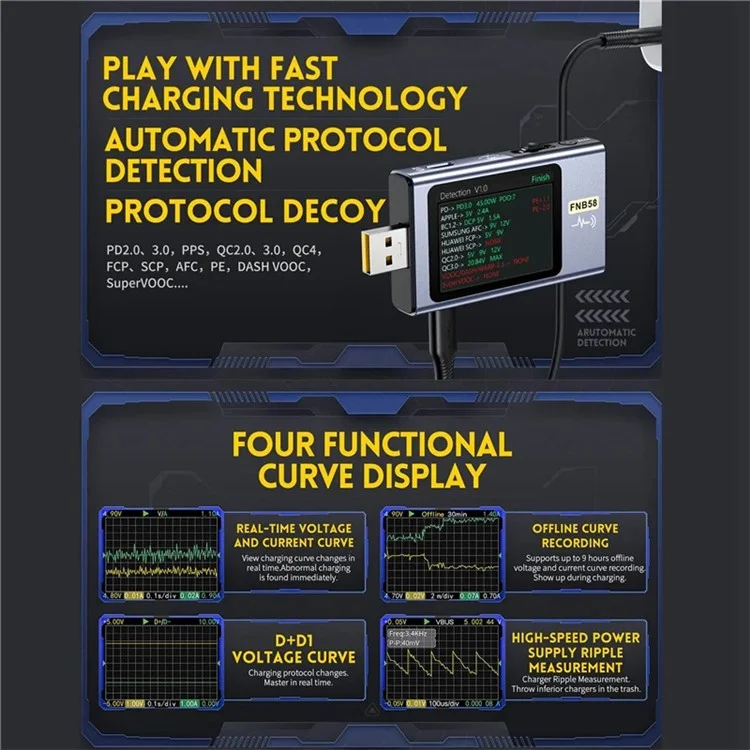

• Supports automatic protocol detection, co-signature spoofing, fast charging, PD2.0, 3.0, PPS, QC2.0, 3.0, QC4, FCP, SCP, AFC, PE, DASH VOOC, Supervooc
• Supports 10 sets of charge and discharge energy data records; built-in battery capacity calculation formula can quickly calculate battery capacity from recorded data
• Driver-free installation, data synchronization, efficient and convenient, supports Bluetooth-compatible-compatible APP over-voltage and over-current alarm

Specifications:

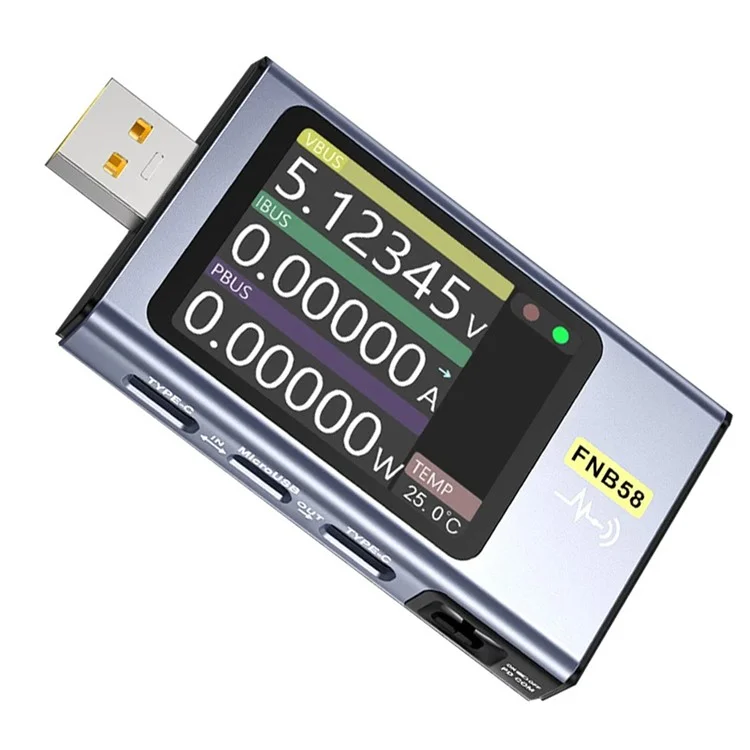

• Model: FNB58
• Type: Digital Voltage Meter

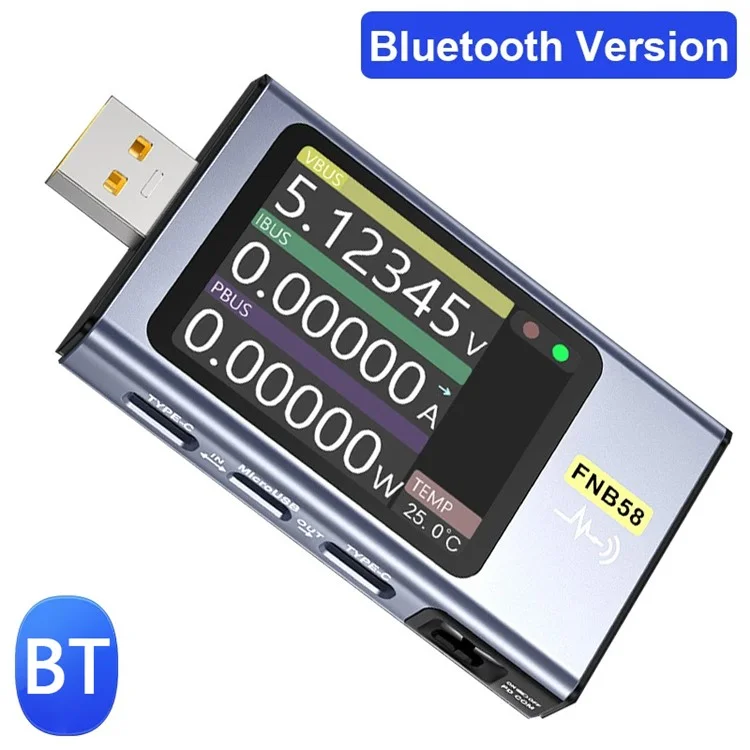

• Version: with Bluetooth-compatible
• Monitor size: 2.0 inches
• Monitoring voltage: 4~28V
• Monitoring current: 0~7A
• Monitoring power: 0~120W
• Load equivalent internal resistance: 0~9999.9 ohms
• D+/D- voltage: 0~3.3V
• Capacity: 0~9999.99Ah
• Power consumption: 0~9999.99Wh
• Cable internal resistance: 0~9999.9 ohms
• Equipment running time: 99 days, 23:59:59
• Recording time: 99 days, 23:59:59
• Product size: 82x42x13mm
• Material: aluminum alloy
