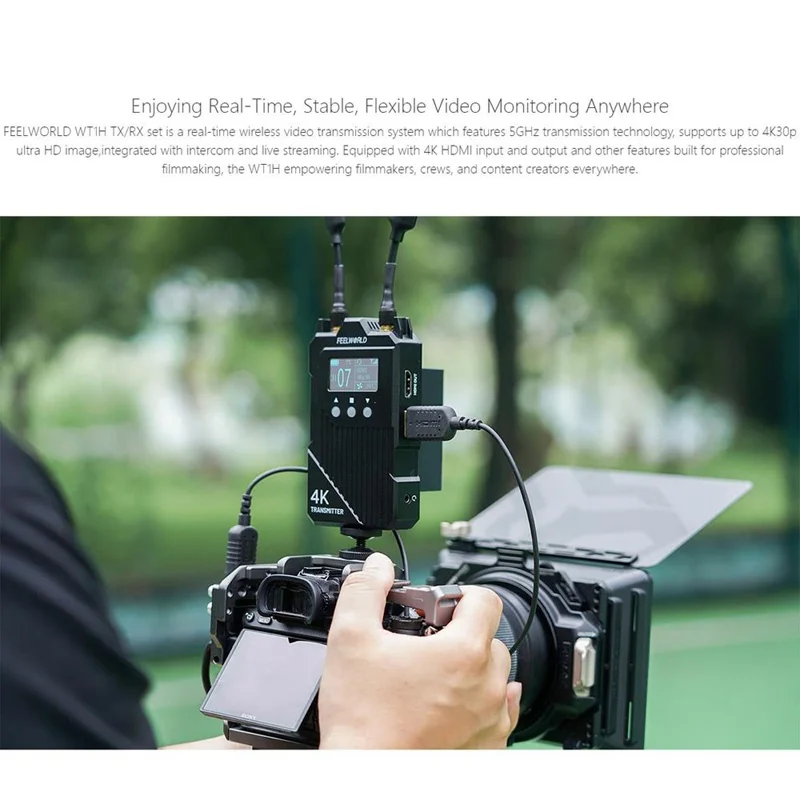

• 【Ultra-Low Latency Transmission】 Experience exceptional performance with 0.08-second ultra-low latency and a transmission range of over 1000 feet.
• 【4K Resolution Support】 Delivers crystal-clear, lifelike images with up to 4K 30Hz resolution for professional-grade video quality.

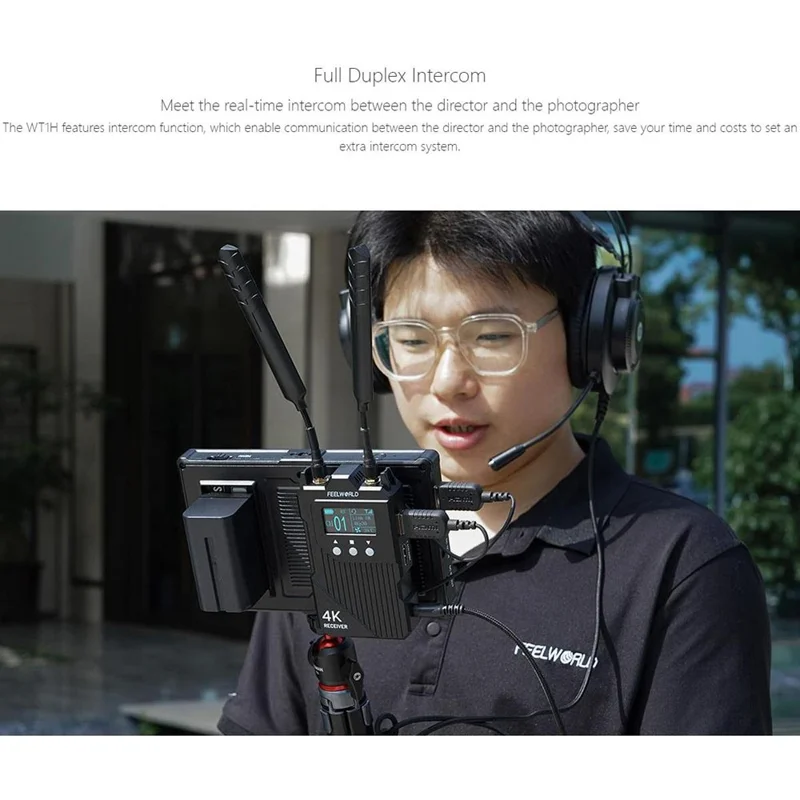

• 【Wireless Full-Duplex Intercom】 Enables real-time communication between directors and camera operators for seamless coordination.

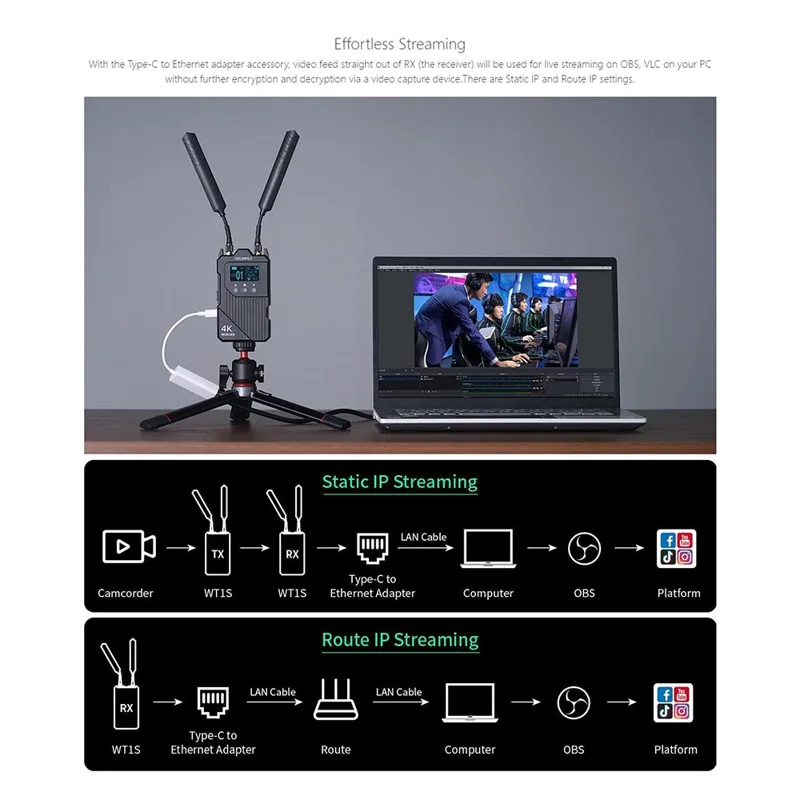

• 【Versatile Connectivity】 Equipped with a Type-C to Ethernet adapter for real-time streaming capabilities.

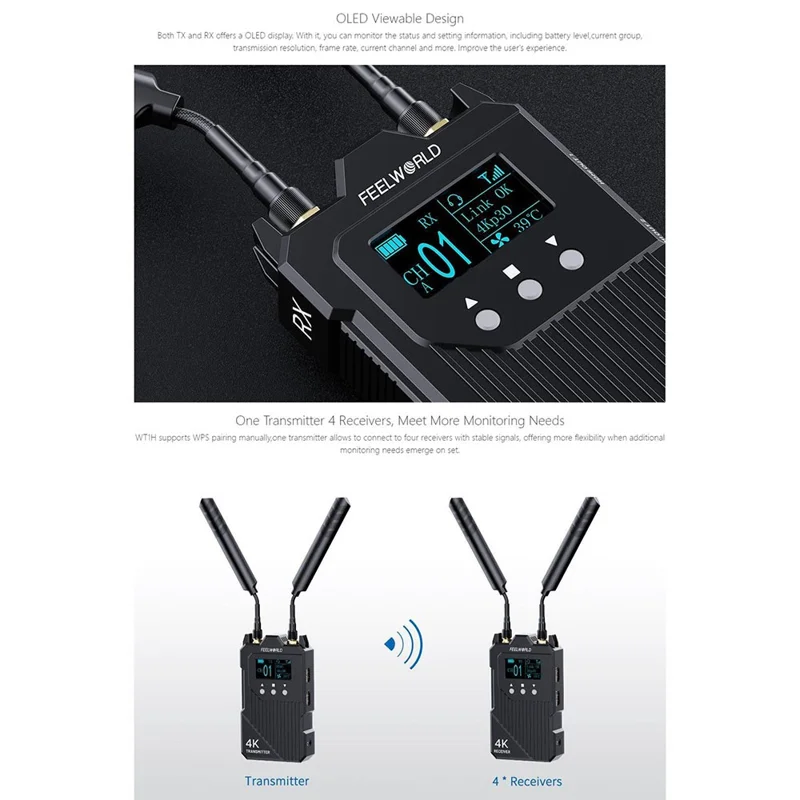

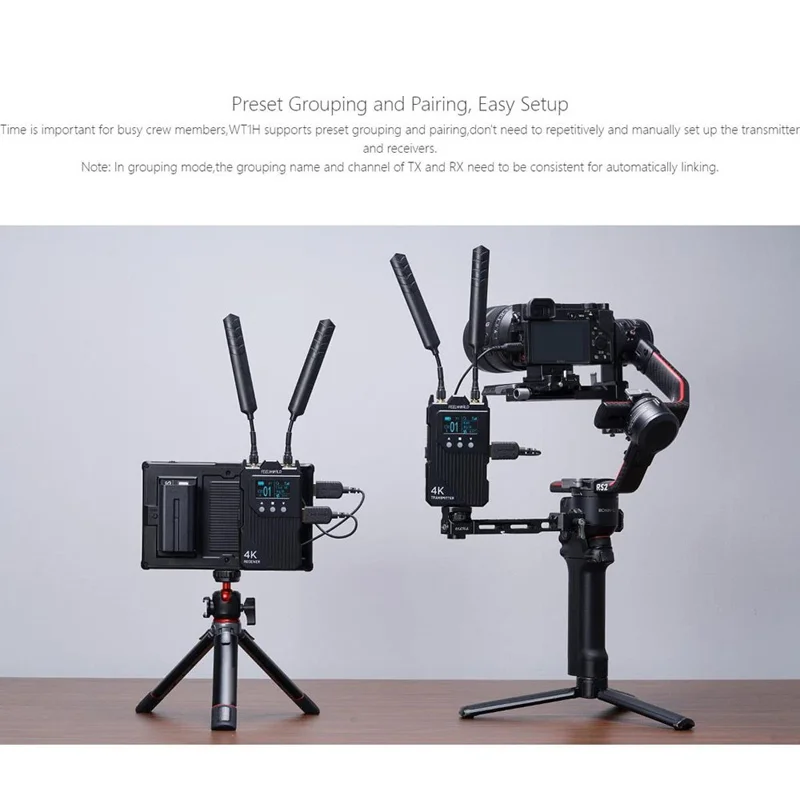

• 【Multi-Device Compatibility】 One transmitter can pair with up to 4 receivers, providing monitoring for the entire crew on set.

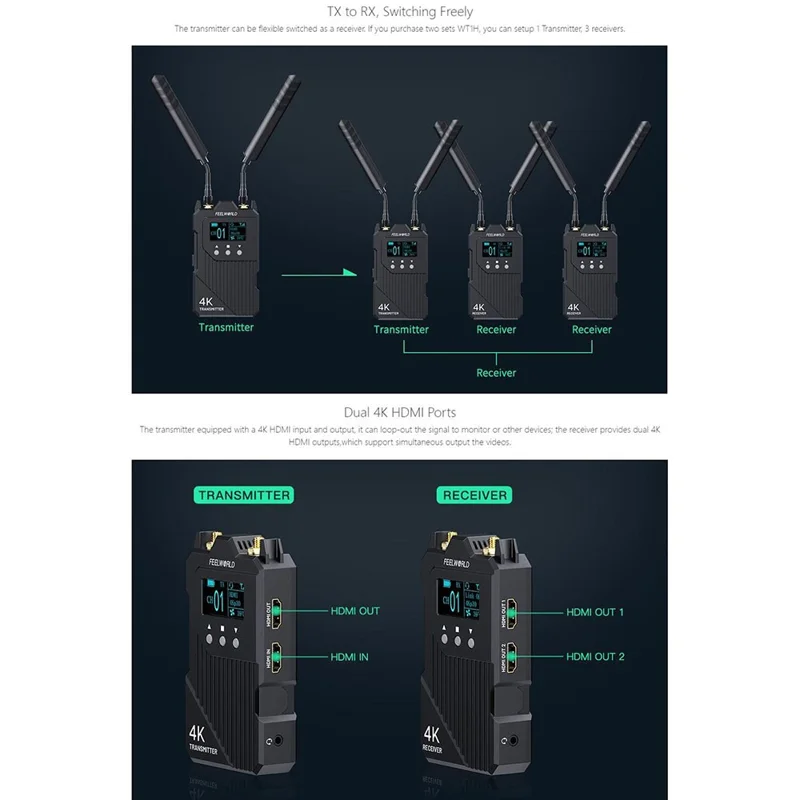

• 【Flexible Device Roles】 Transmitter can easily switch to receiver mode, offering adaptability in various shooting scenarios.

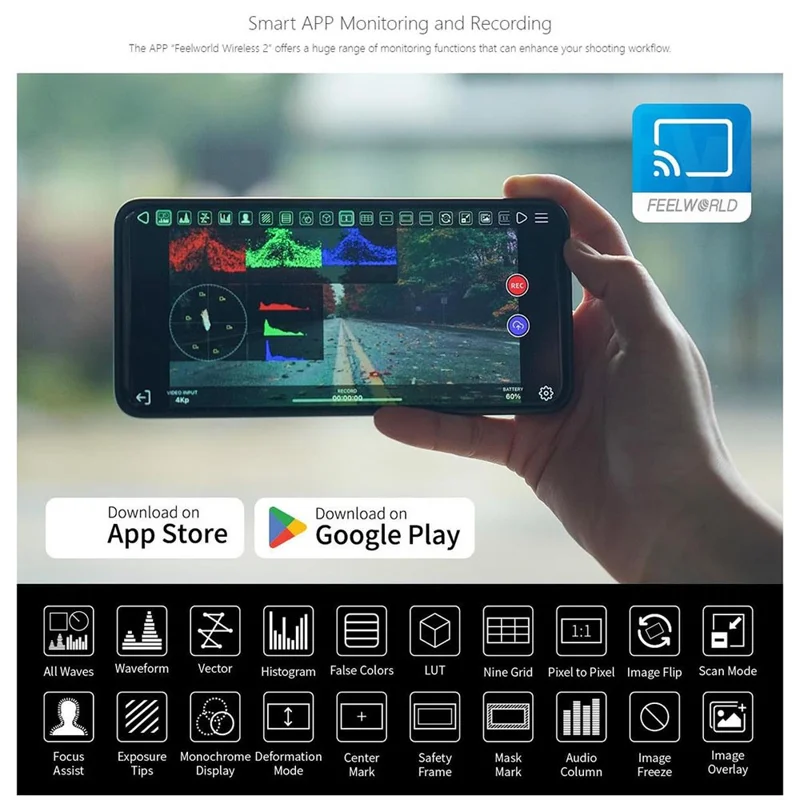

• 【Mobile App Integration】 Compatible with both Android and iOS systems for real-time monitoring and recording.

Specifications:

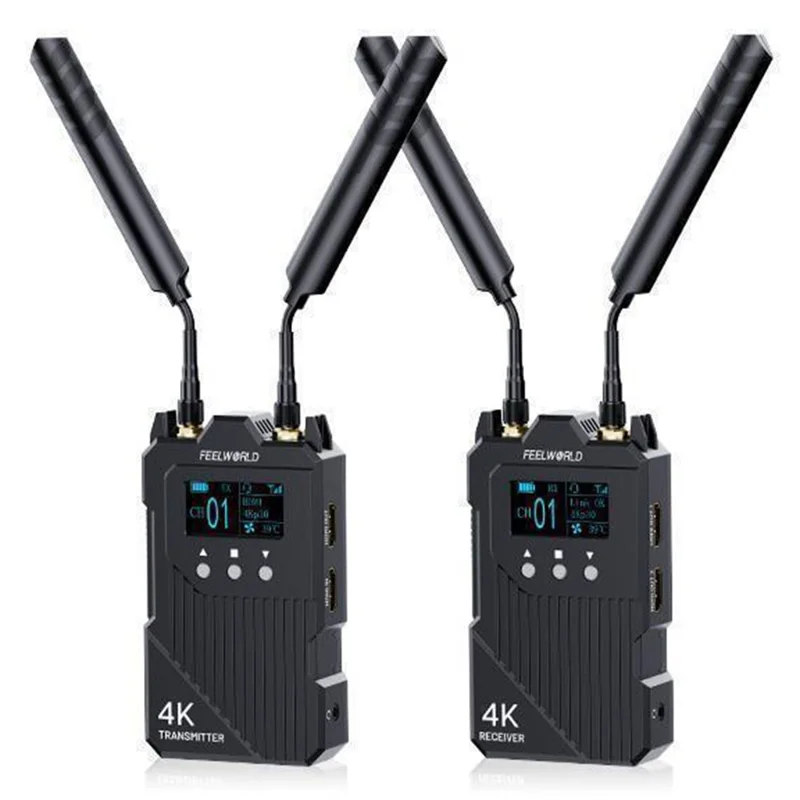

• Transmitter:
• Display: OLED
• Interfaces:
• 1 x HD Input
• 1 x HD Output
• 2 x Antenna Ports (RP-SMA Male)
• DC Power Input
• 3.5mm Headphone Jack
• Type-C Port

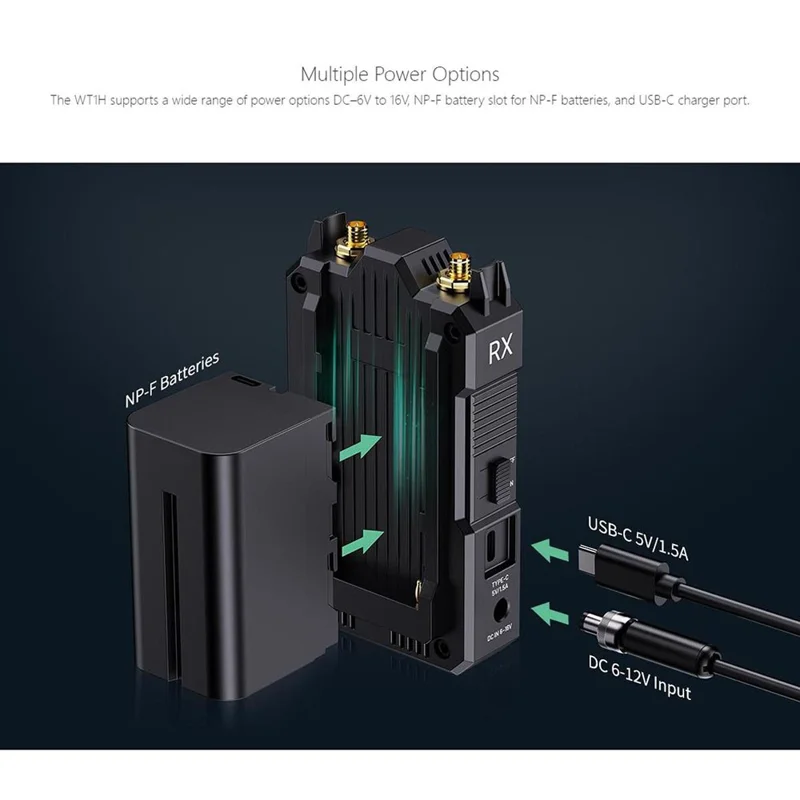

• Power Supply / Voltage:
• NP-F Battery Slot
• Type-C Port: 5V / 1.5A
• DC Adapter: 6–16V
• Power Consumption: < 5.5W
• HD Format:
• 480P60, 576P60
• 720P60 / 59.94 / 50
• 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080I60 / 59.94 / 50
• 2160P30 / 25 / 24
• HD Type-A
• Frequency Range: 5.1–5.9GHz
• Modulation: OFDM
• Transmission Power: 22dBm
• Bandwidth: 20 / 40MHz
• Latency: Minimum 0.08s
• Intercom Frequency Response: 20Hz–20KHz
• Operating Temperature: 0℃ – 40℃
• Storage Temperature: -20℃ – 60℃
• Dimensions (mm): 77.1 x 30 x 118.6 (excluding antenna)
• Weight: 138.8g
• Receiver:
• Display: OLED
• Interfaces:
• 2 x HD Outputs
• 2 x Antenna Ports (RP-SMA Male)
• DC Power Input
• 3.5mm Headphone Jack
• Type-C Port
• Power Supply / Voltage:
• NP-F Battery Slot
• Type-C Port: 5V / 1.5A
• DC Adapter: 6–16V
• Power Consumption: < 6W
• HD Format:
• 480P60, 576P60
• 720P60 / 59.94 / 50
• 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080I60 / 59.94 / 50
• 2160P30 / 25 / 24
• HD Type-A
• Frequency Range: 5.1–5.9GHz
• Modulation: OFDM
• Receiving Sensitivity: -87dBm
• Bandwidth: 20 / 40MHz
• Latency: Minimum 0.08s
• Intercom Frequency Response: 20Hz–20KHz
• Operating Temperature: 0℃ – 40℃
• Storage Temperature: -20℃ – 60℃
• Dimensions (mm): 77.1 x 30 x 118.6 (excluding antenna)
• Weight: 138.8g
