• 【High-Resolution Display】 6-inch IPS screen with 1920 x 1080 pixel resolution and 450cd/m² brightness for clear, vivid image reproduction.

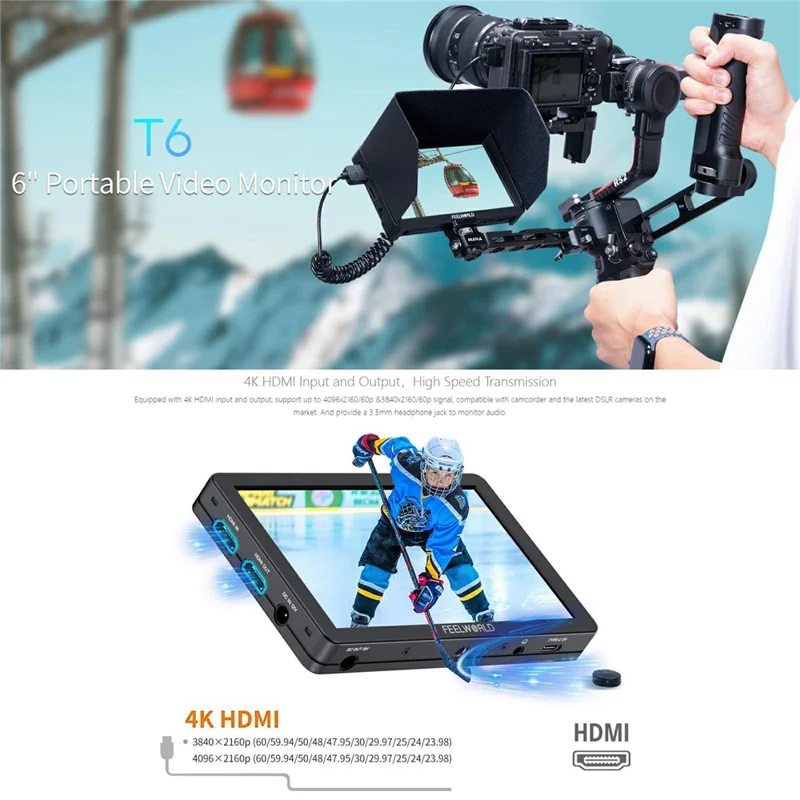

• 【Versatile Connectivity】 HD 2.0 input and output support multiple video formats, including 4K up to 60fps.

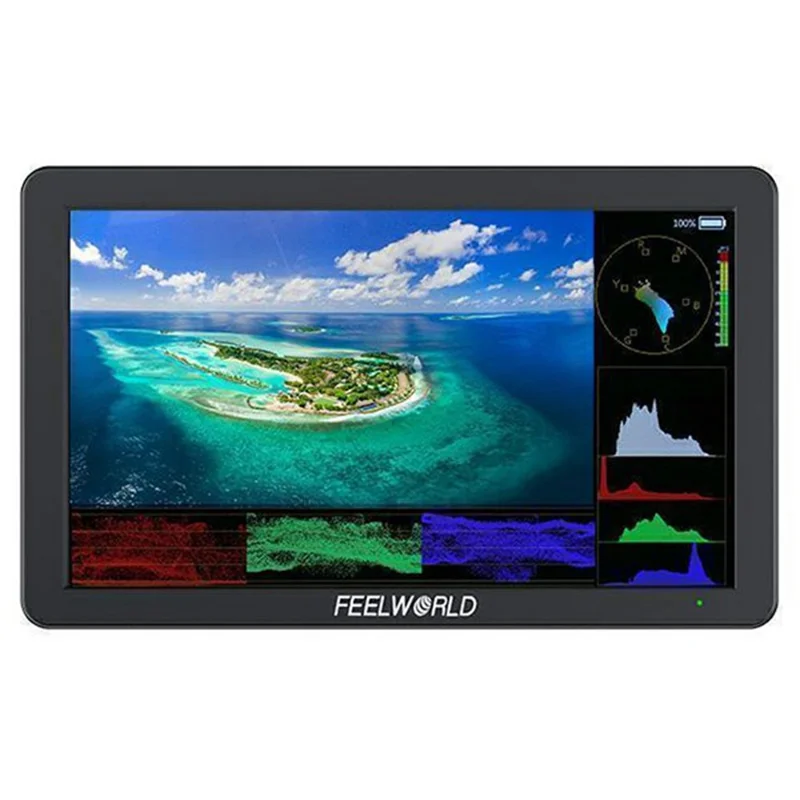

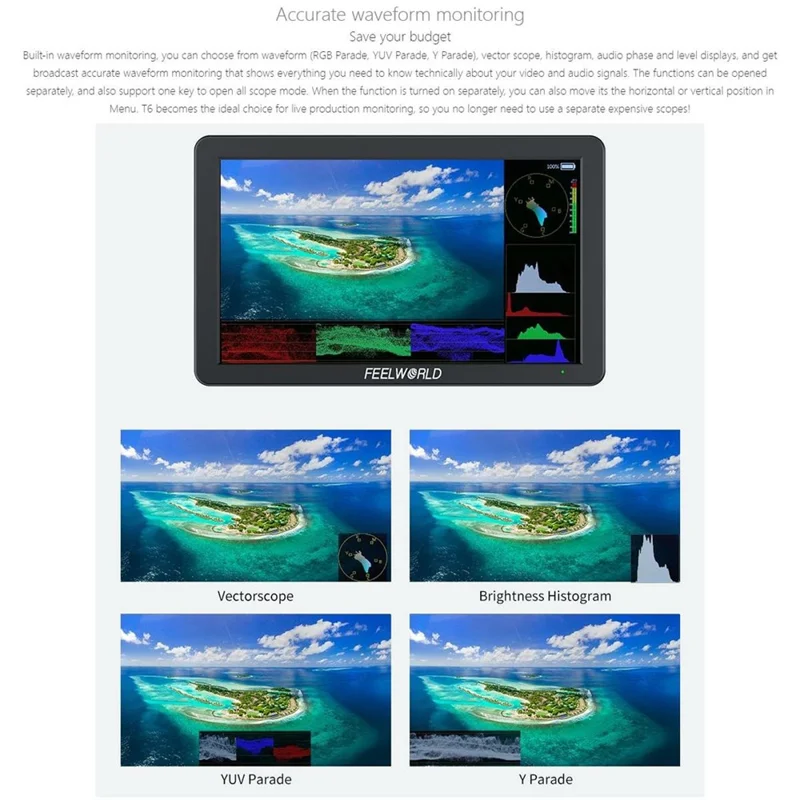

• 【Professional Monitoring Tools】 Features include waveform, vectorscope, histogram, focus assist, and false color for precise image analysis.
• 【Customizable LUT Support】 Upload up to 32 user 3D LUTs for accurate color grading and monitoring.
• 【Compact and Durable Design】 Aluminum construction weighing only 184g with multiple mounting options for versatile use.

Specifications:

• Model: T6
• Screen Size: 6-inch IPS Display
• Resolution: 1920 x 1080 pixels
• Pixel Pitch: 0.069 (H) x 0.069 (V) mm
• Color Depth: 8-bit
• Aspect Ratio: 16:9
• Brightness: 450 cd/m²
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80°/80° (Left/Right), 80°/80° (Up/Down)
• Signal Input: 1 x HD (compatible with HD 2.0)
• Signal Output: 1 x HD (compatible with HD 2.0)
• Audio: 3.5mm Stereo Headphone Jack
• Supported HD Input/Output Formats:
• 480i / 576i / 480p / 576p
• 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 4K 3840 x 2160p (60 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 4K 4096 x 2160p (60 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

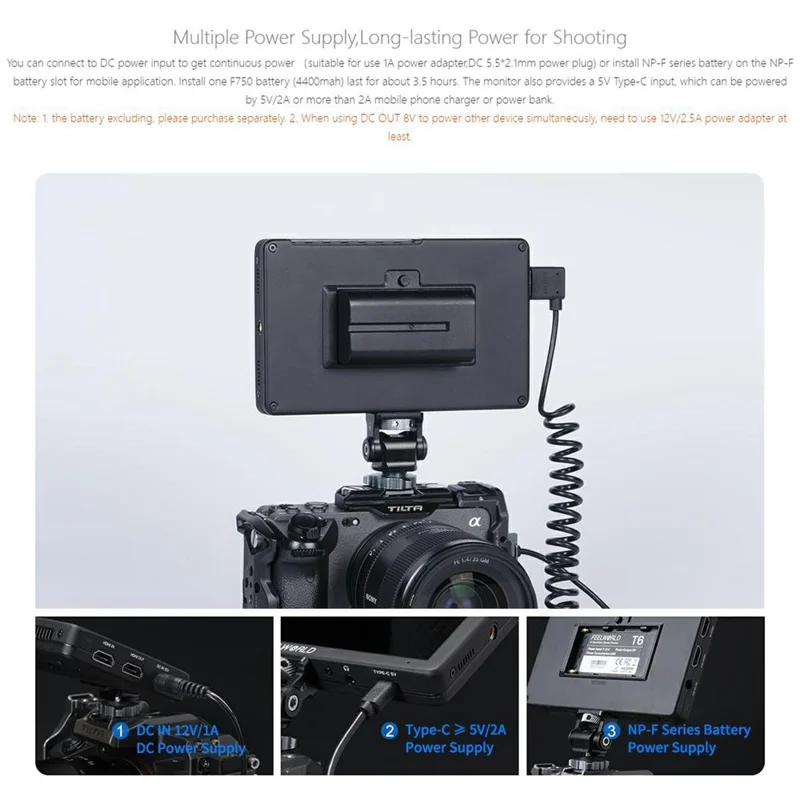

• Power Input: DC IN 12V, Barrel Connector (5.5mm outer / 2.1mm inner); Type-C 5V (use 5V/2A or above Type-C power supply)

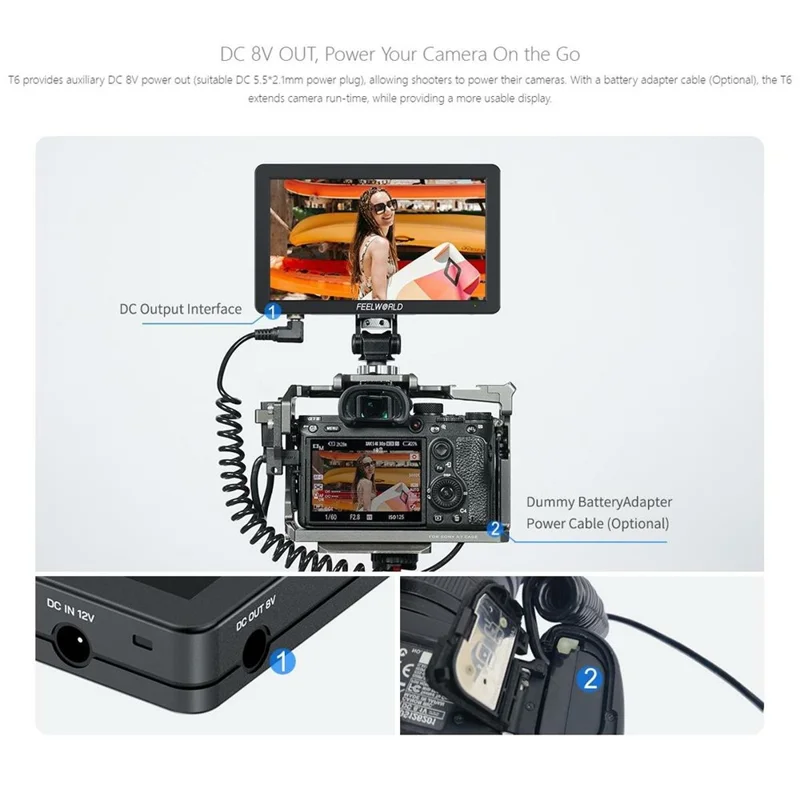

• Power Output: DC OUT 8V, Barrel Connector (5.5mm outer / 2.1mm inner), supports power output to DSLR or mirrorless cameras
• Power Consumption: ≤9W
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -30°C to 60°C

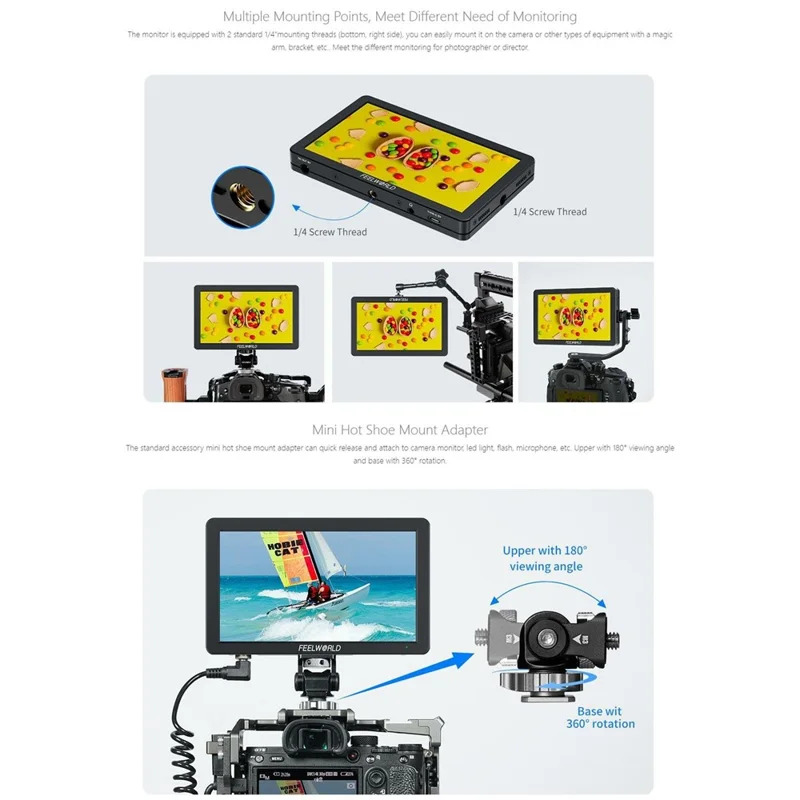

• Mounting Options: 1/4"-20 Threaded Sockets (Right Side, Bottom)
• Dimensions: 151.8 x 92.8 x 17.1 mm
• Weight: 184 g
