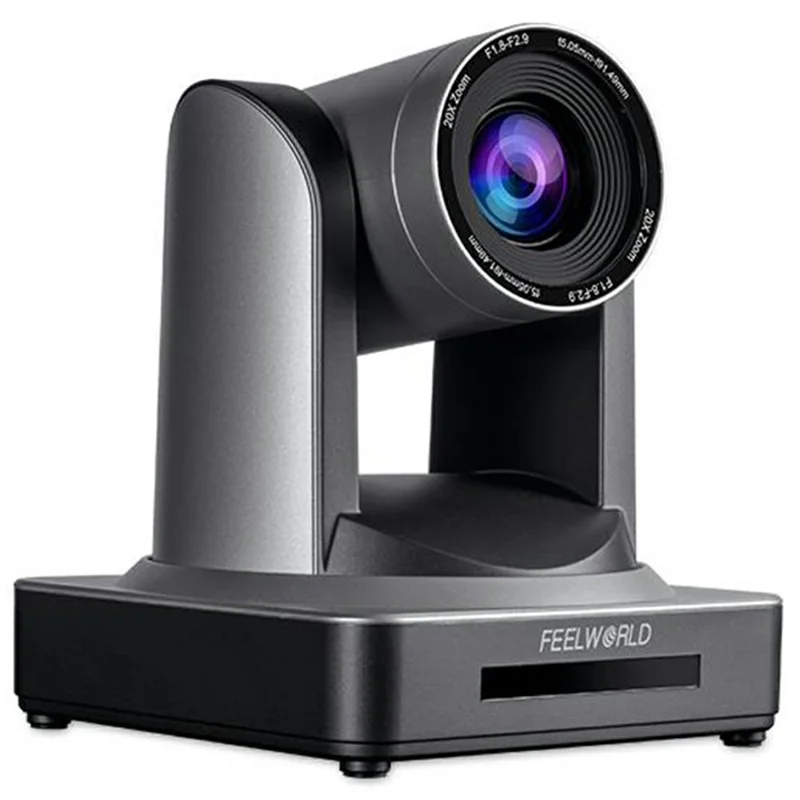

• 【20X Optical Zoom】Professional HD camera with 20x optical zoom, perfect for large venues and long-distance shooting. Provides clear, lossless magnification with focal length range from 5.05mm to 91.49mm.
• 【High-Definition Video Output】Delivers up to 1080P@60fps for superior picture quality. Supports multiple video compression formats including H.265 and H.264 for smooth, clear images even at low bandwidth.

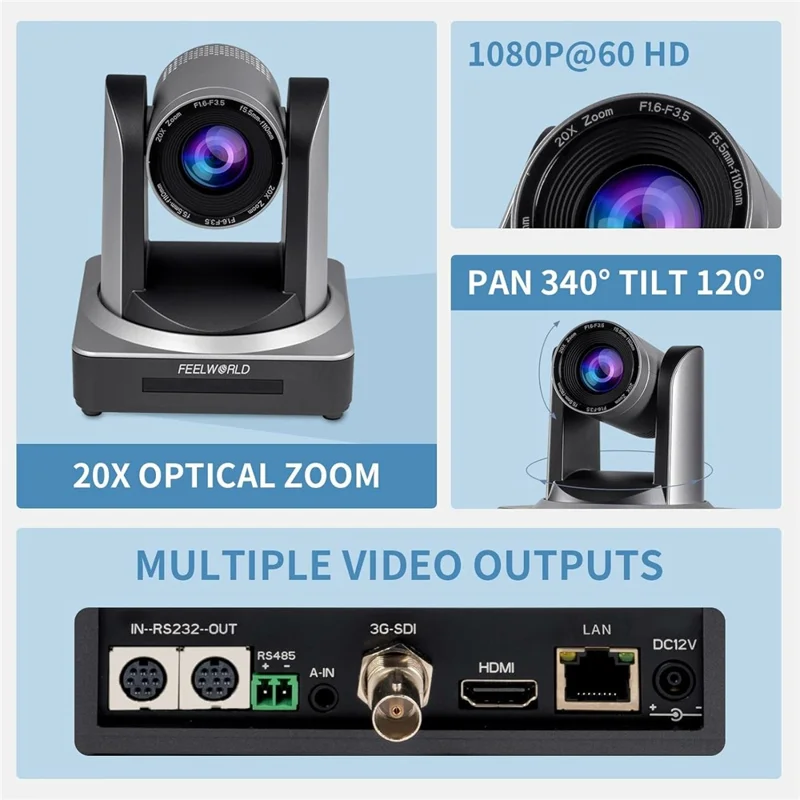

• 【Multiple Video Output Interfaces】Rich connectivity options including USB/HDMI/3G-SDI/IP network ports, easily handling various video production needs. Dual-stream output capability for flexible broadcasting requirements.
• 【PoE Support】Supports Power over Ethernet (PoE), eliminating the need for complex wiring installations and providing convenient, quick setup. Also compatible with DC12V power supply for flexibility.
• 【Auto Focus Technology】Accurate and fast autofocus function captures every shot precisely. Manual focus option also available for professional control requirements.
• 【Audio Integration】Supports dual-channel 3.5mm linear audio input for comprehensive multimedia capture with AAC, MP3, and G.711A audio compression formats.
• 【Advanced Noise Reduction】2D & 3D noise reduction technology further reduces noise while ensuring image clarity, delivering professional-grade video quality.
• 【High-Speed Silent PTZ】Ultra-quiet pan-tilt-zoom rotation for multi-angle, comprehensive shooting. Pan range: -170° to +170°, Tilt range: -30° to +90°.

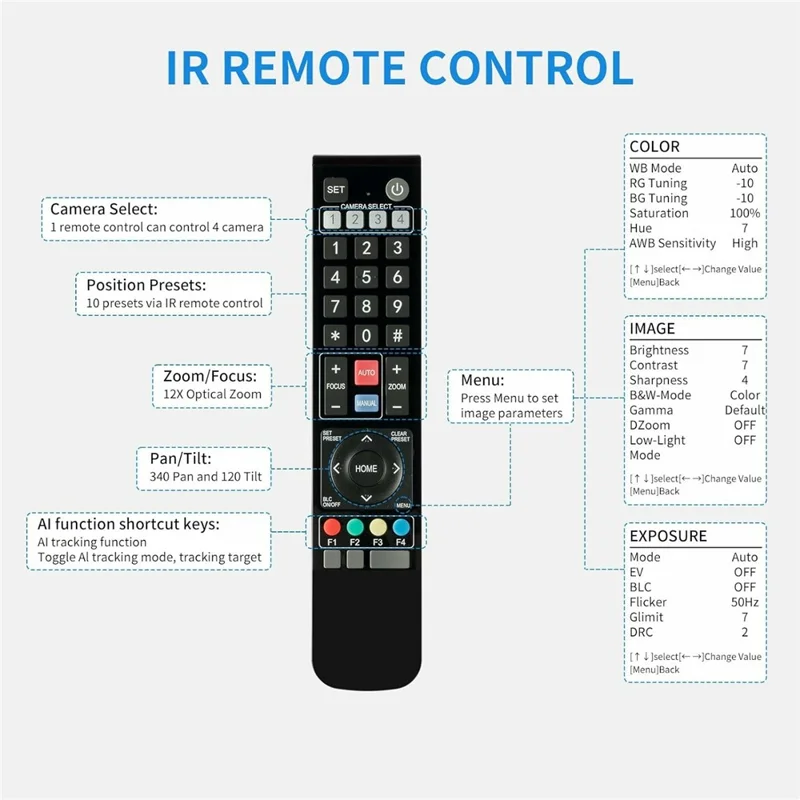

• 【Extensive Preset Positions】Supports up to 255 preset positions (remote control can preset 10), enabling quick positioning and automated shooting sequences.

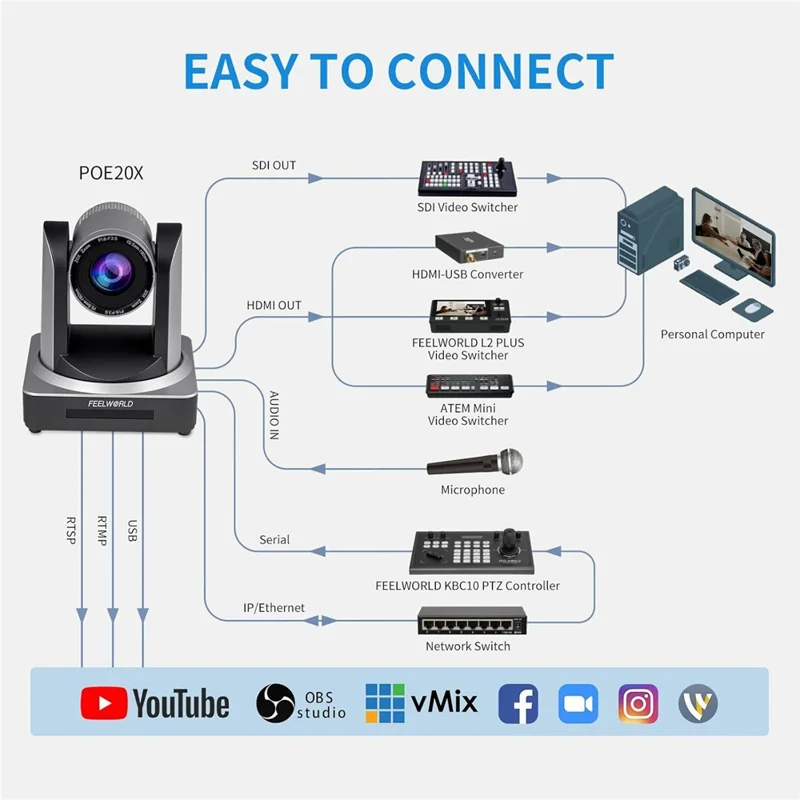

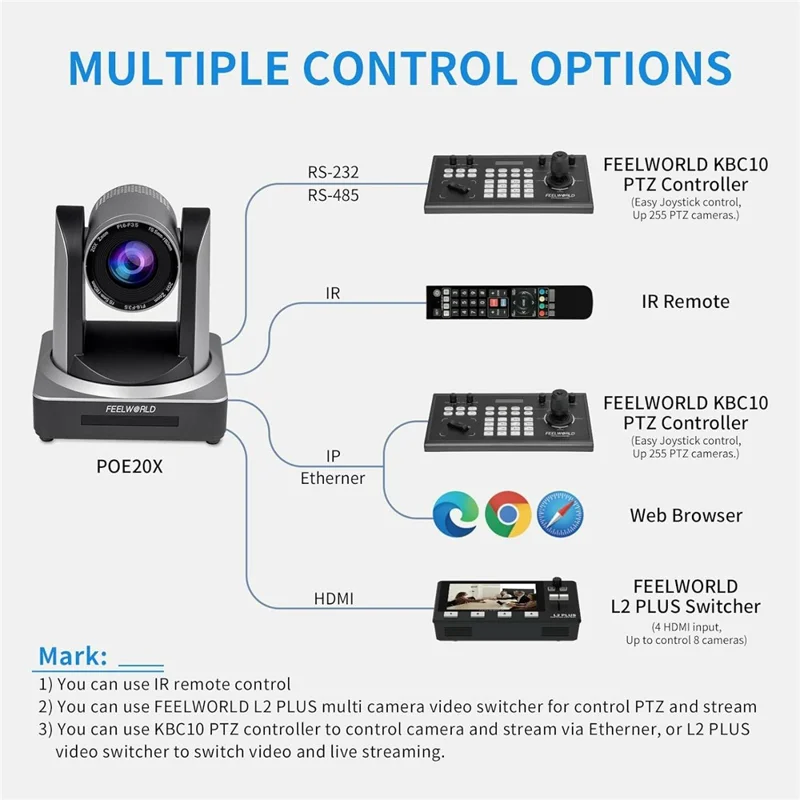

• 【Versatile Control Options】Multiple control interfaces and protocols including RS232, RS485, VISCA/Pelco-D/Pelco-P. Compatible with network protocols RTSP, RTMP, ONVIF, and GB/T28181.

Specifications:

• Camera Parameter:
• Model: POE20X
• Image Sensor: 1/2.8 inch high-quality CMOS sensor
• Effective Pixels: 2.07 million, 16:9
• Viewing Angle: 3.45° to 60.04°
• Focal Length: f=5.05-91.49mm
• Aperture: F1.8 to F2.9
• Optical Zoom: 20X
• Minimum Illumination: 0.5 lux (F1.8, AGC ON)
• Digital Noise Reduction: 2D & 3D
• White Balance: Auto/Manual/One-key white balance/Specified color temperature (3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K)
• Focus: Auto/Manual/One-key focus
• Exposure: Auto/Manual
• Backlight Compensation: On/Off
• Wide Dynamic Range: Off/Dynamic Level Adjustment
• Video Adjustments: Brightness, Chroma, Saturation, Contrast, Sharpness, Black & White Mode, Gamma Curve
• Signal-to-Noise Ratio: >55dB
• Interfaces Parameter:

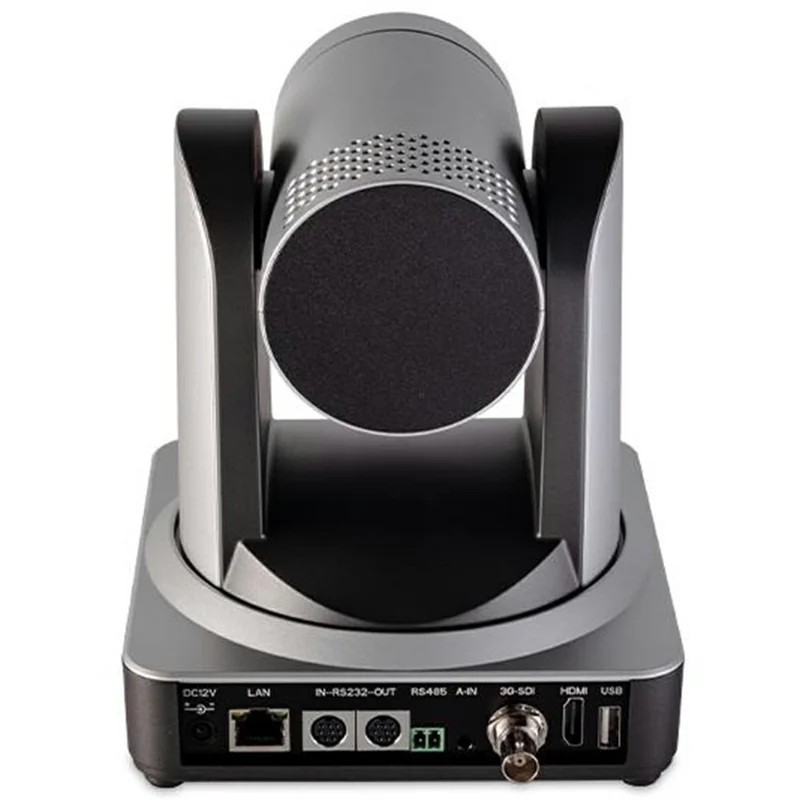

• Video Output Interfaces: USB2.0, HD, 3G-SDI, LAN (PoE support)
• Video Stream: Dual-stream output
• Video Compression Format: H.264, H.265
• Control Interface: RS232 (loop-through), RS485
• Control Protocol: VISCA/Pelco-D/Pelco-P
• Audio Input Interface: Dual-channel 3.5mm linear input
• Audio Compression Format: AAC, MP3, G.711A
• Network Interface: 100M Ethernet port (10/100BASE-TX)
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA
• Power Interface: HEC3800 power socket (DC12V)
• Gimbal Parameter:
• Horizontal Rotation: -170° to 170°
• Vertical Rotation: -30° to 90°
• Horizontal Control Speed: 0.1 to 60°/sec
• Vertical Control Speed: 0.1 to 30°/sec
• Preset Position Speed: Horizontal: 60°/sec, Vertical: 30°/sec
• Preset Positions: Up to 255 user-configurable (10 on remote control)
• Video Format:
• HD/SDI Video Format: 1080P60/50/30/25/59.94/29.97; 1080i60/50/59.94; 720P60/50/59.94
• USB 2.0 Formats: 320x240|352x288|640x360|640x480|704x576|704x480|720x576|800x448|800x600|960x540|1024x576|1024x768|1280x720|1920x1080P30/25/20/15/10/5
• Other Parameter:
• Operating Voltage: 12V/1.5A
• Power Consumption: 12W (maximum)
• Storage Temperature: -40℃ to +70℃
• Storage Humidity: 20% to 90%
• Operating Temperature: -10℃ to +50℃
• Operating Humidity: 20% to 80%
• Dimensions (W×H×D): 150mm×150mm×167.5mm
• Weight: 1.4kg
