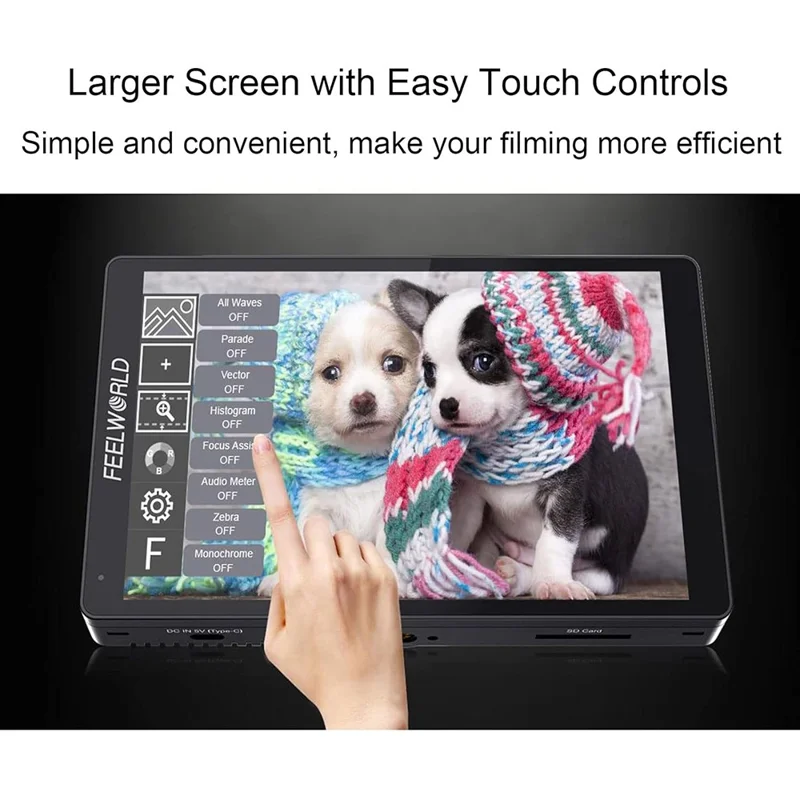

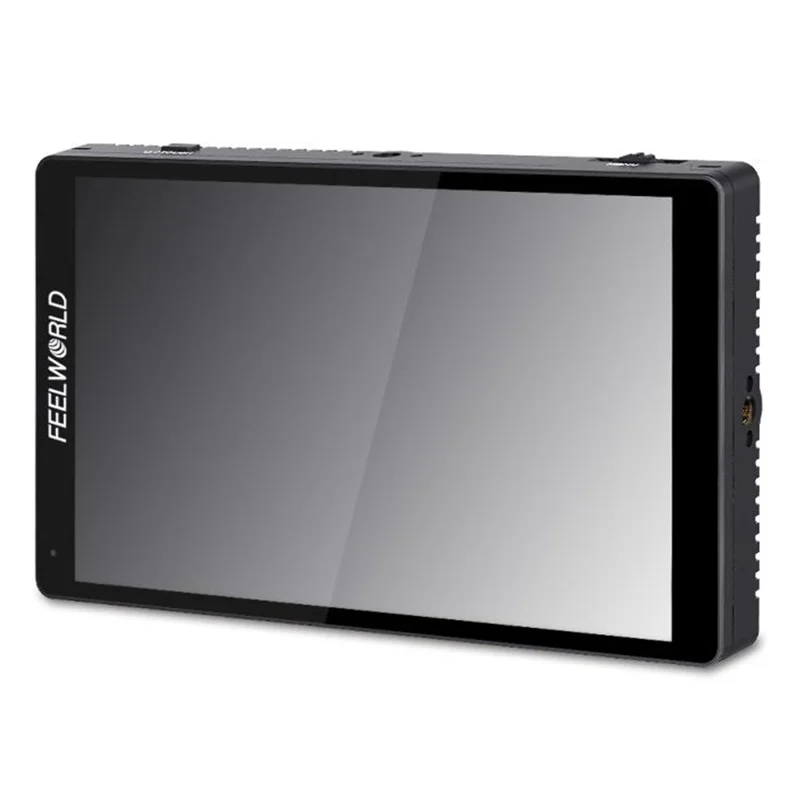

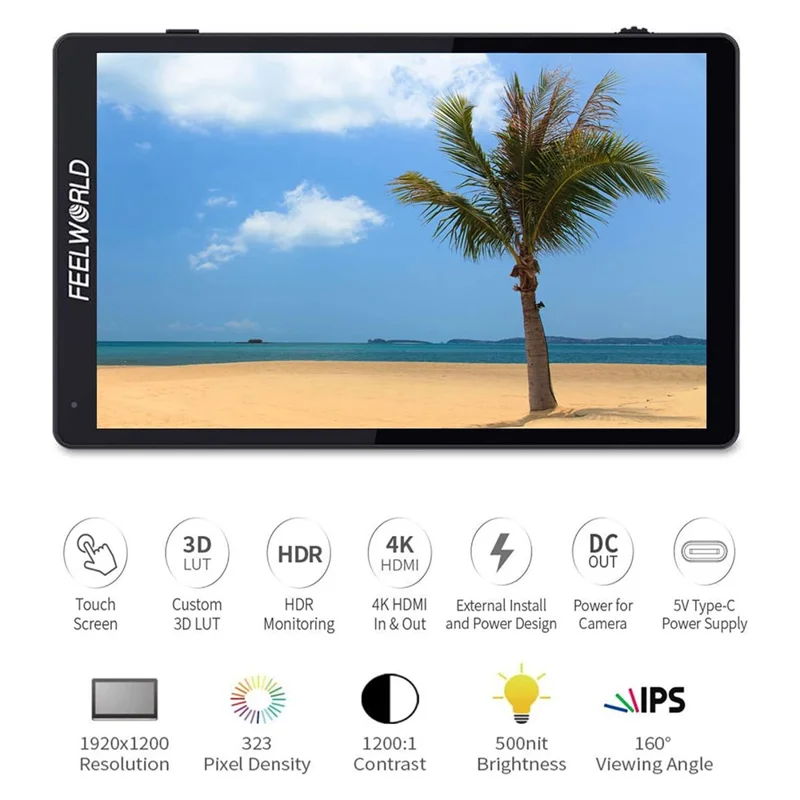

• 【4K Touch Display】 7-inch IPS screen with 1920x1200 resolution, 500cd/m² brightness, and 1200:1 contrast ratio for superior image quality.

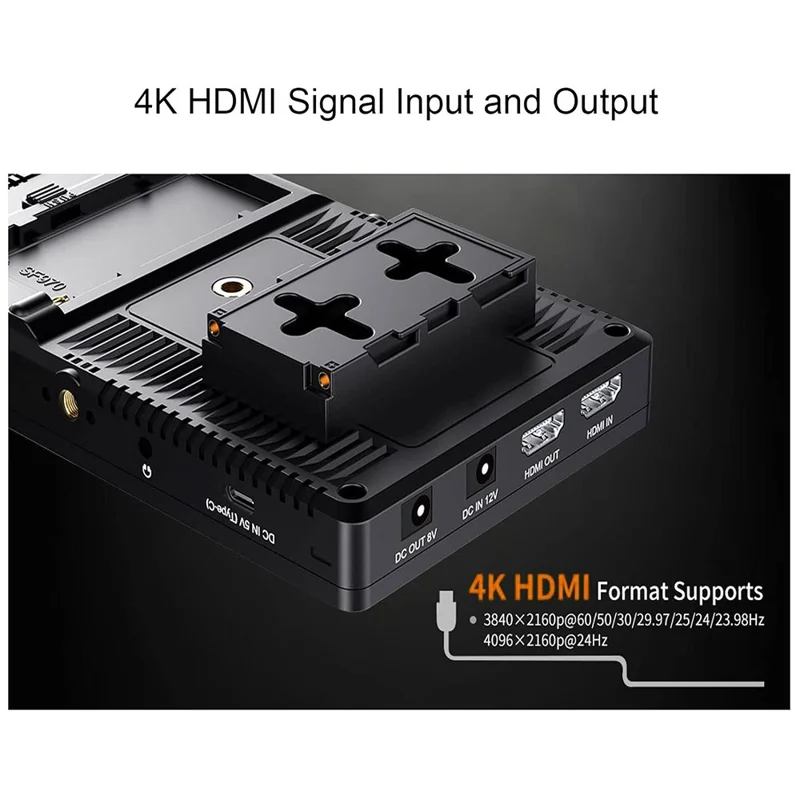

• 【Advanced Input/Output】 Supports 4K@60Hz HD input and output, with DC 8V power output for DSLR or mirrorless cameras.

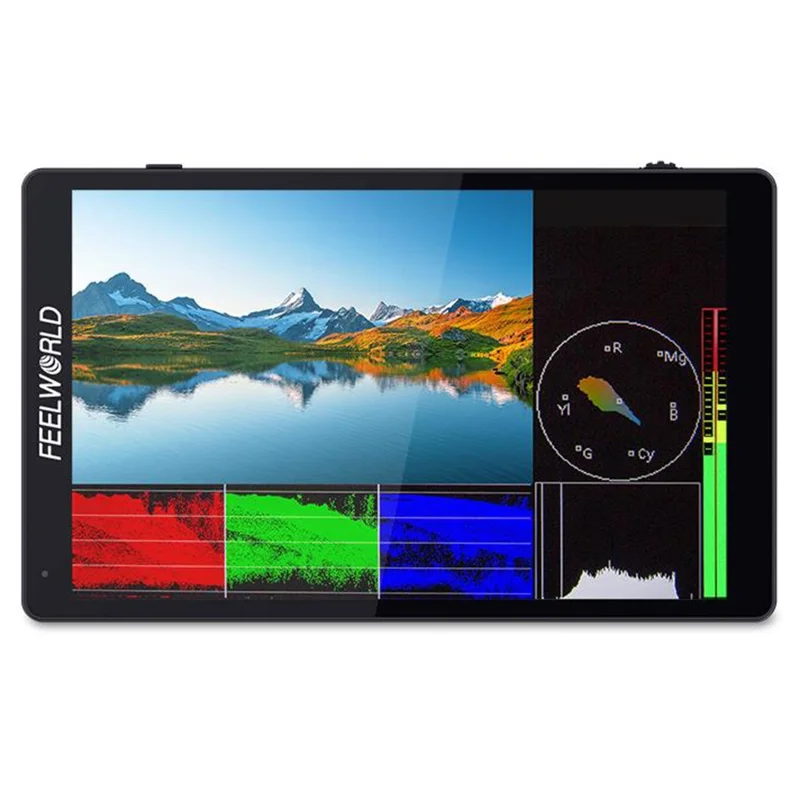

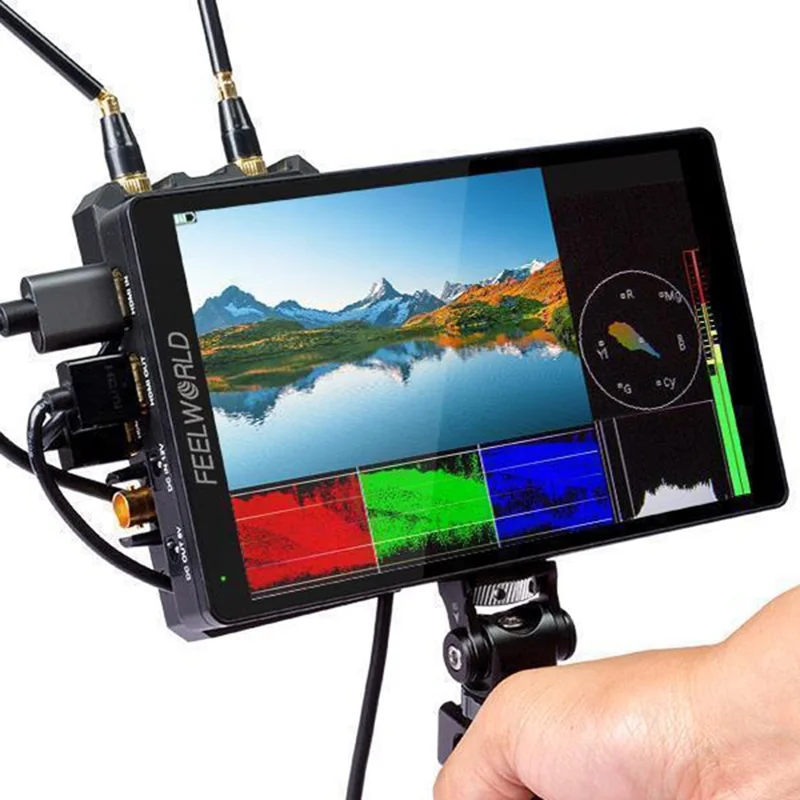

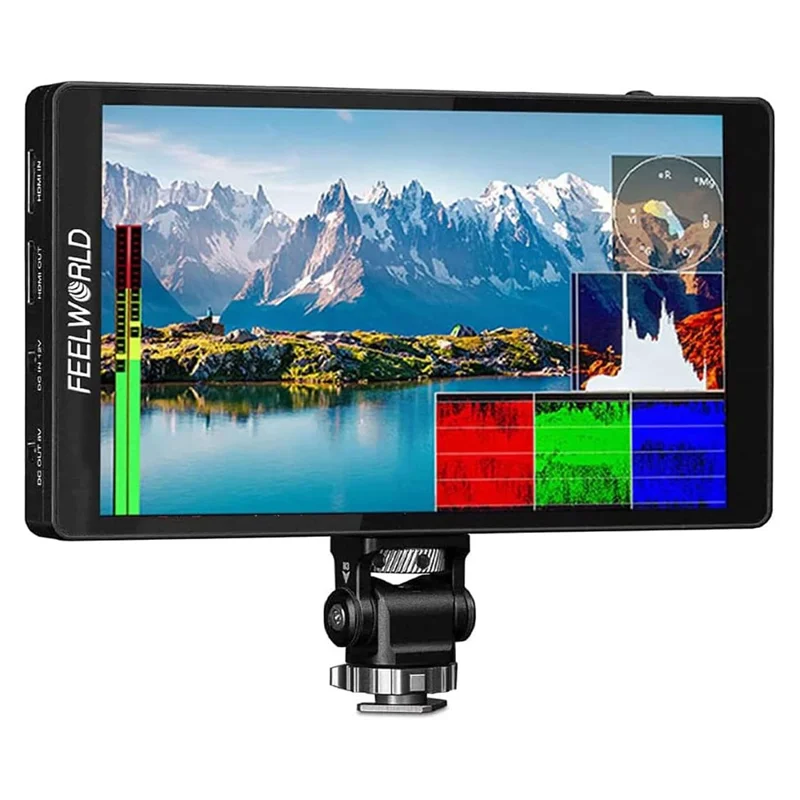

• 【Professional Monitoring Tools】 Features waveform, vectorscope, RGB histogram, focus assist, zebra pattern, and center marker for accurate focusing and exposure.
• 【HDR Monitoring】 Supports HDR monitoring and 3D LUT Log to Rec.709 conversion, with user-uploadable 3D LUTs.

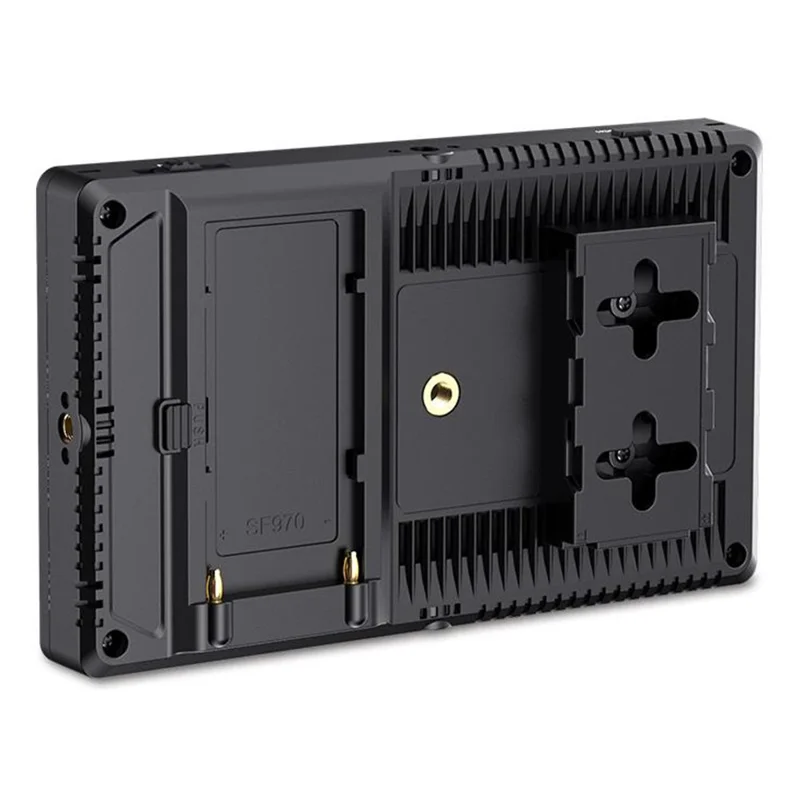

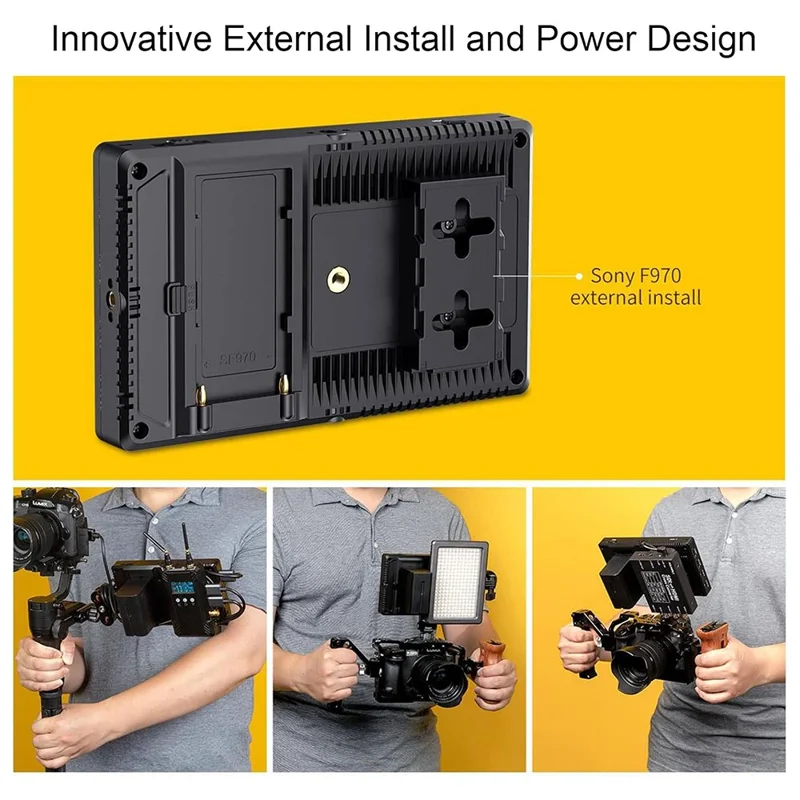

• 【Versatile Power Solution】 F970 battery plate design allows for external device mounting and power supply, simplifying photography equipment setup.

Specifications:

• Screen Size: 7-inch IPS
• Resolution: 1920 × 1200 pixels
• Pixel Pitch: 0.07875 (H) x 0.07875 (W) mm
• Aspect Ratio: 16:10
• Brightness: 500 cd/m²
• Contrast Ratio: 1200:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

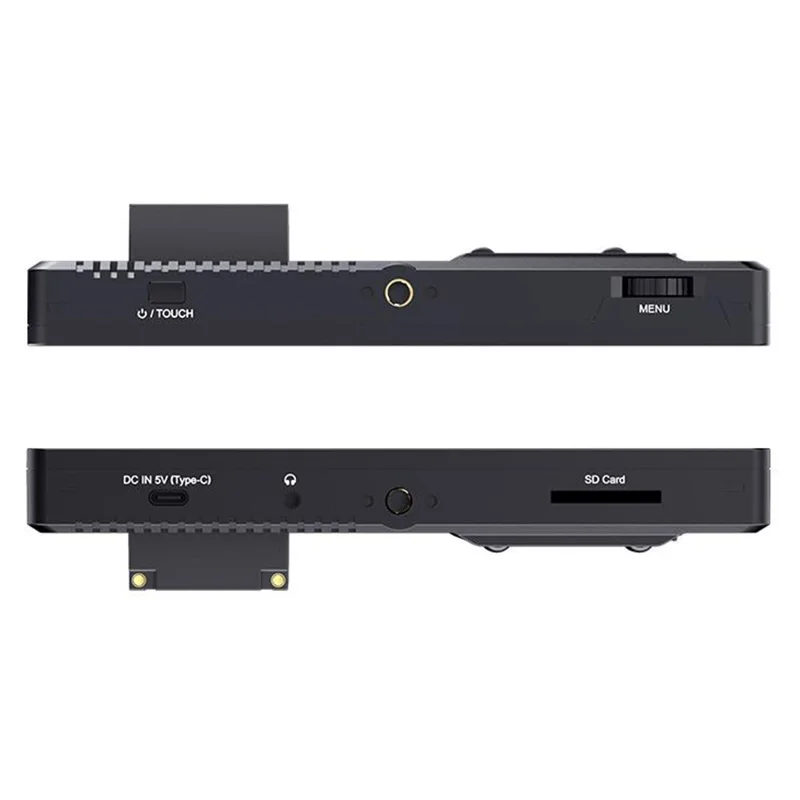

• Input: 1 x HD (Input)
• Output:
• 1 x HD (Output)
• 1 x DC OUT 8V (Outer diameter: 5.5mm, Inner diameter: 2.1mm; can supply power to DSLR or mirrorless cameras)
• Audio: 1 x 3.5mm Headphone Jack
• Supported HD Input/Output Formats:
• 480i / 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50 / 30 / 29 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
• 4K UHD 3840 x 2160p (60 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 4096 x 2160p (24Hz)
• Input Voltage: DC 7–24V
• Power Consumption: ≥9W
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -30°C to 60°C
• Mounting Type: 1/4"-20 Standard Quick-Release Screw Holes (Top, Left, Right, Bottom)
• Product Dimensions: 175 x 105 x 22 mm
• Product Weight: 330g
