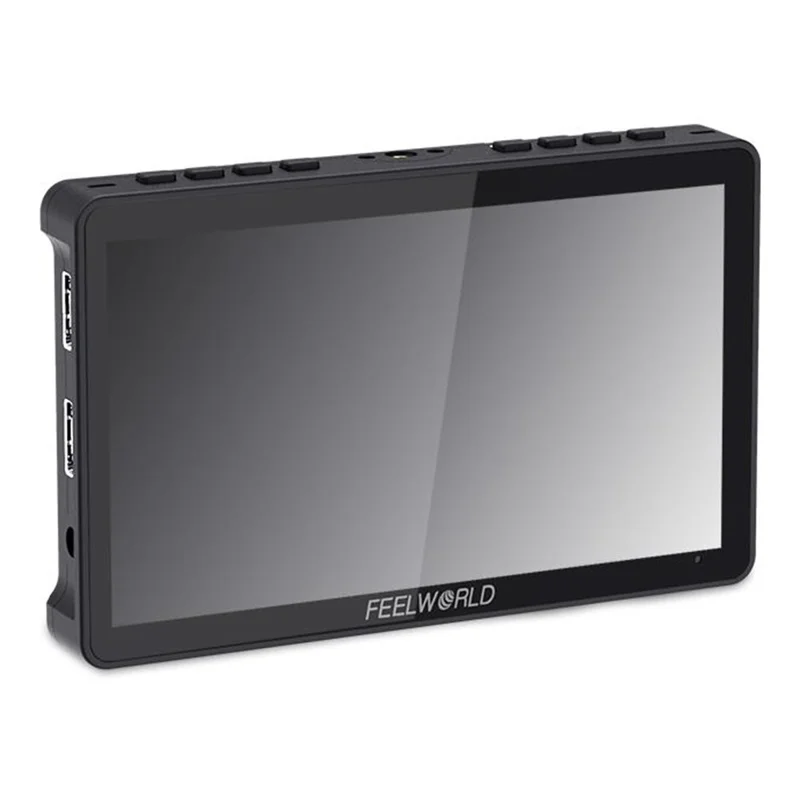

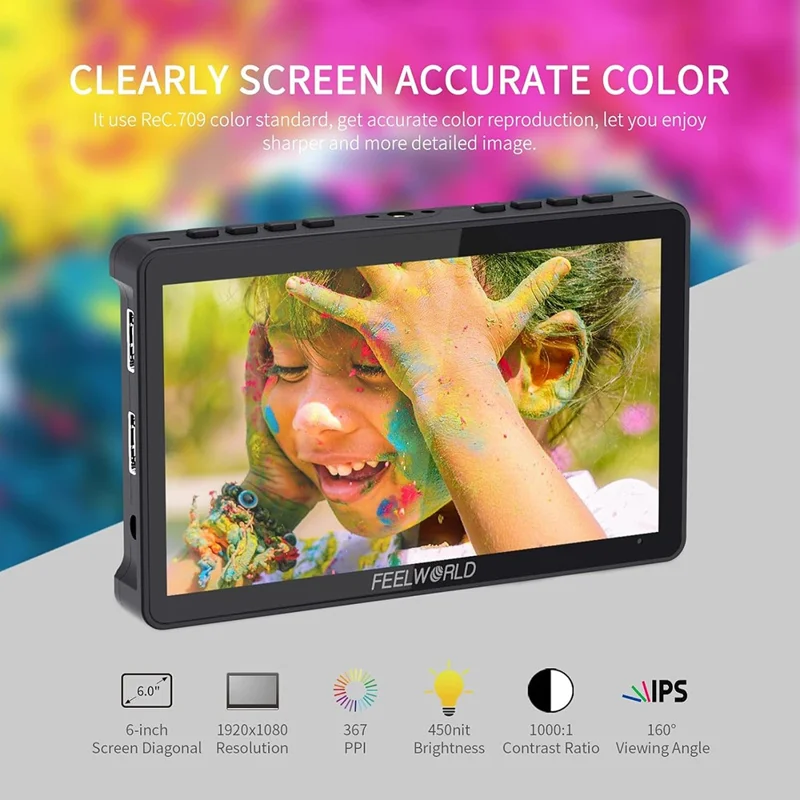

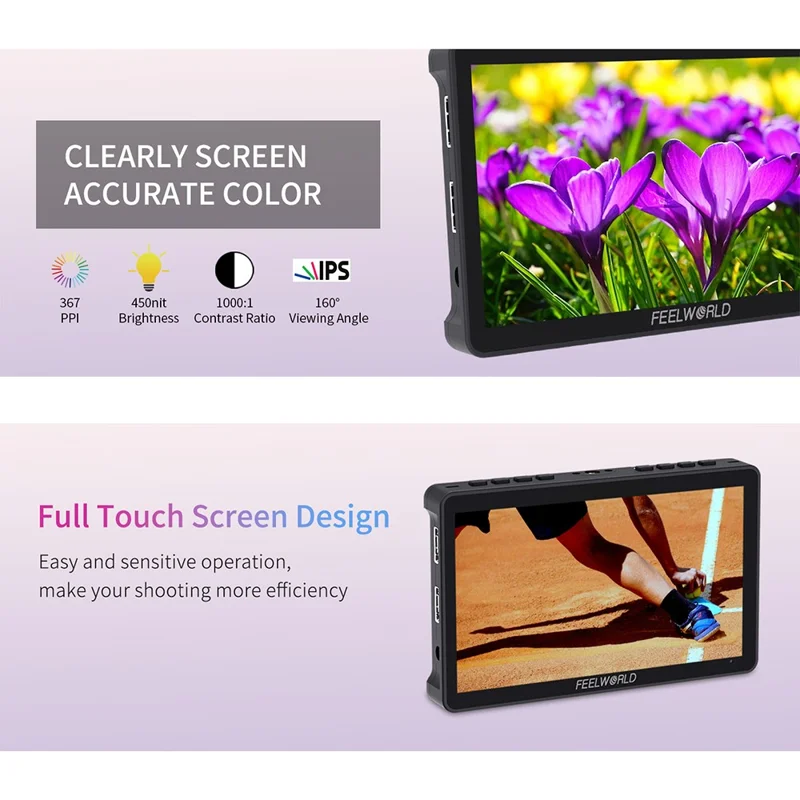

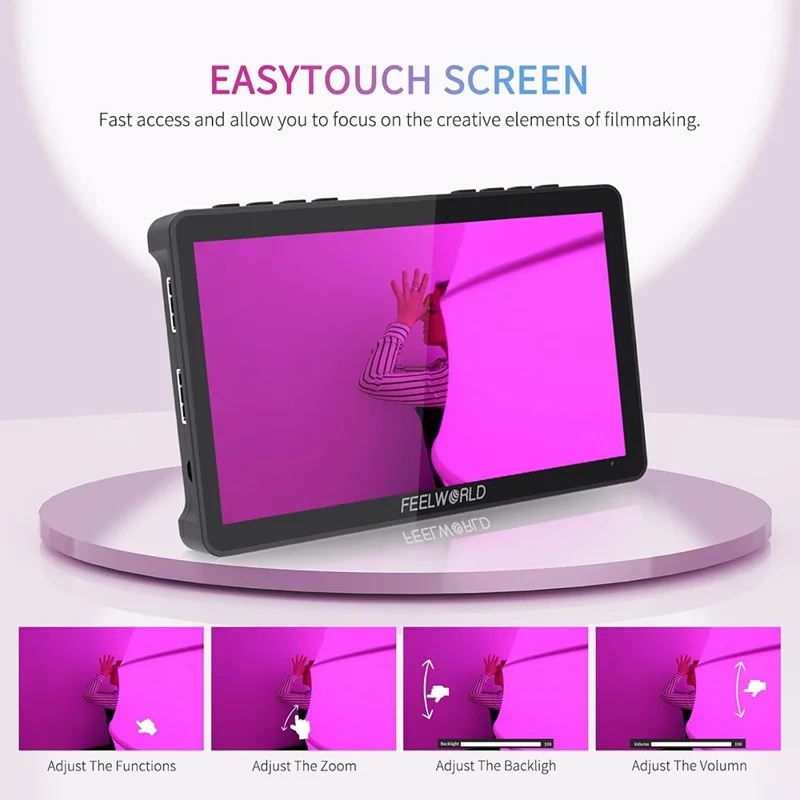

• 【High-Resolution Display】 6-inch IPS touchscreen with 1920x1080 resolution, 1000:1 contrast ratio, and 450cd/m² brightness for superior image quality.

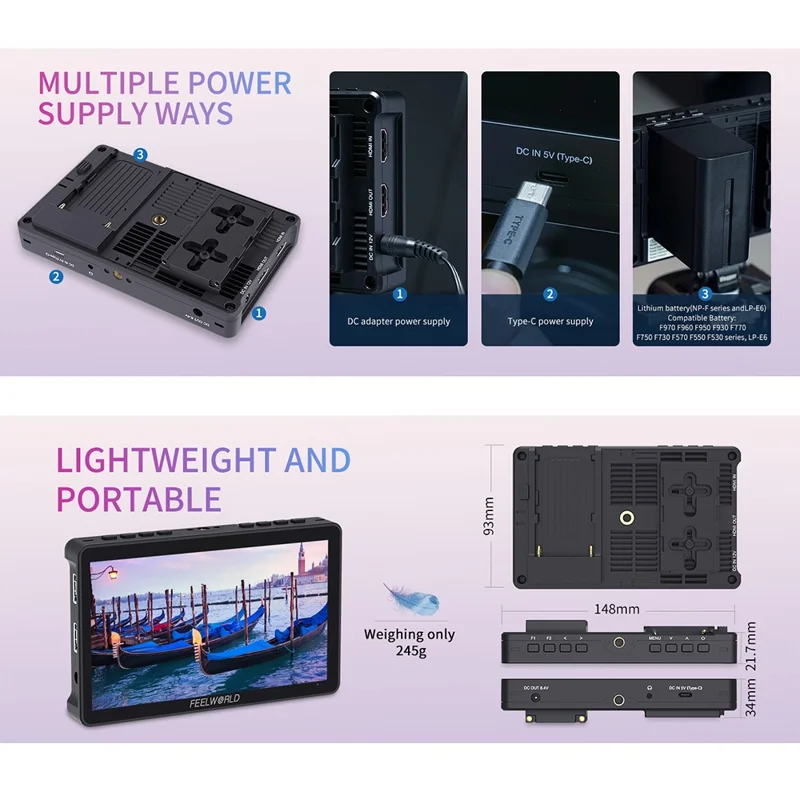

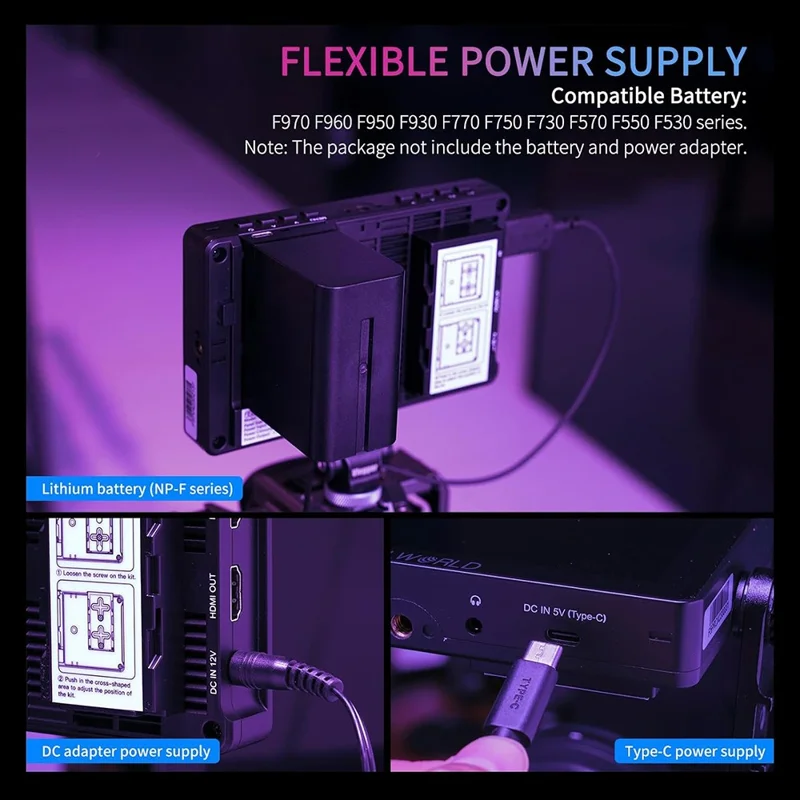

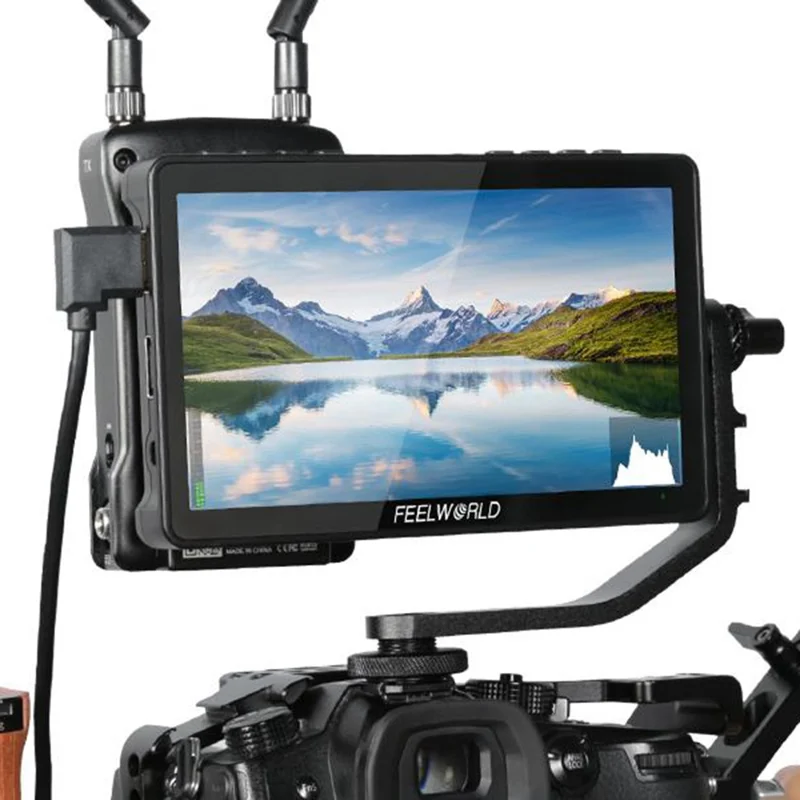

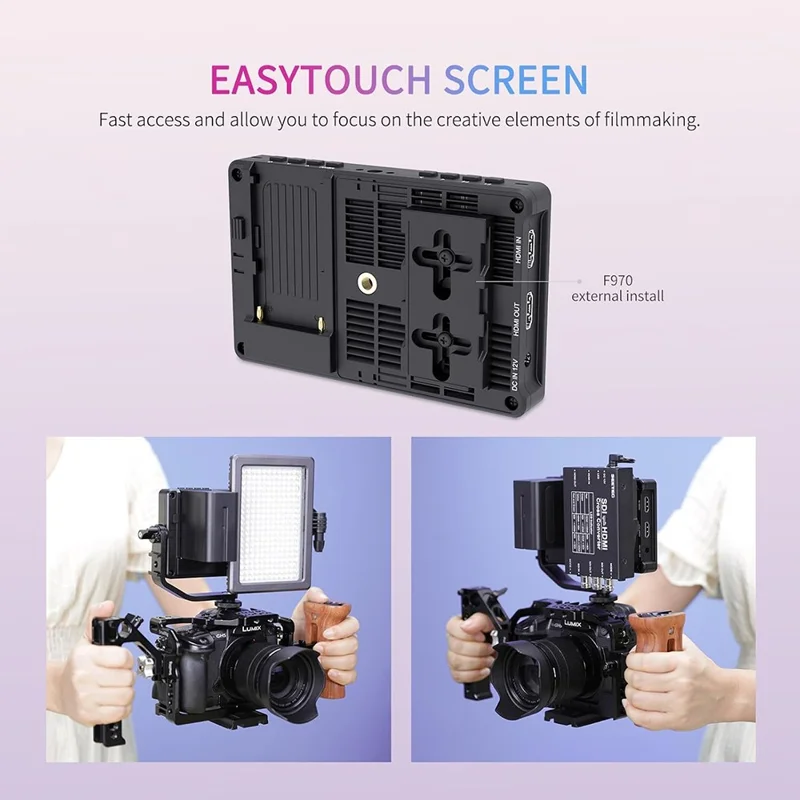

• 【Versatile Power Solution】 Innovative external power design reduces the need for connecting additional wireless transmission devices or LED lights.

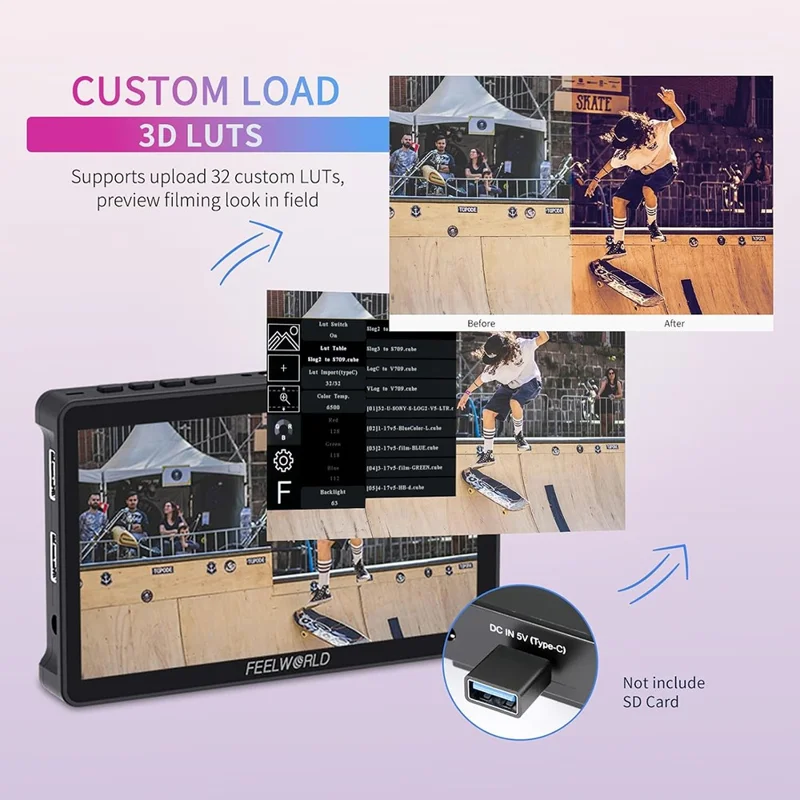

• 【Advanced Color Management】 Supports 3D LUT Log to Rec.709 conversion and custom 3D LUT uploads for precise color grading.
• 【Auxiliary Power Output】 Provides power output capability, allowing photographers to power their cameras directly from the monitor.

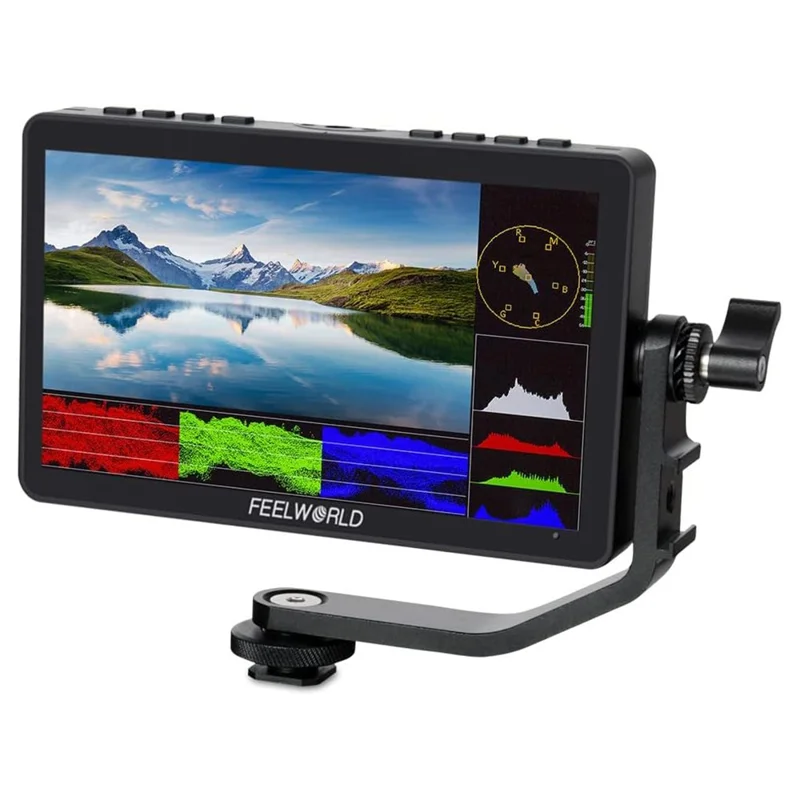

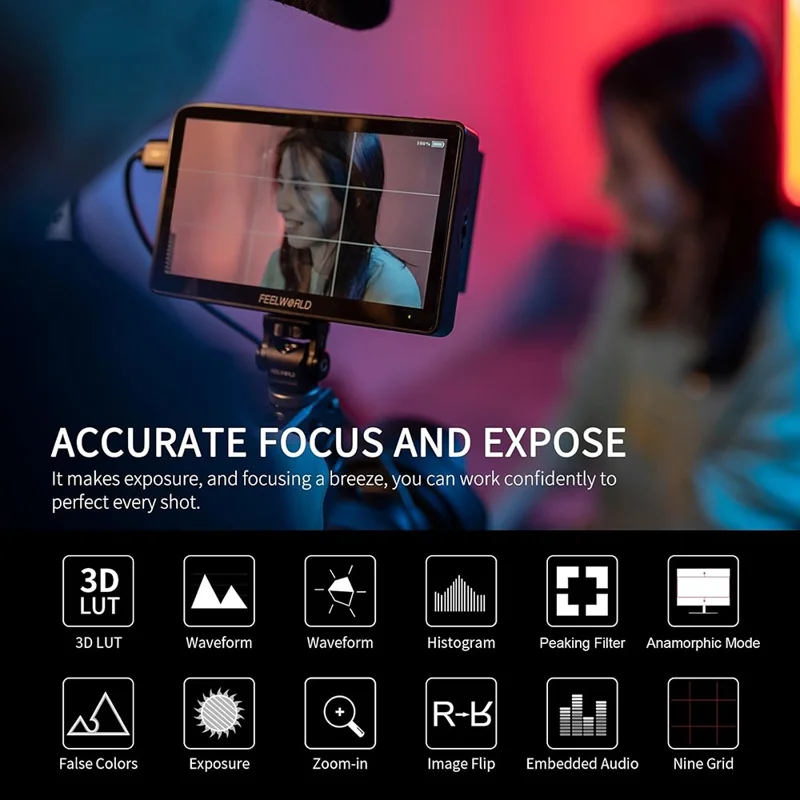

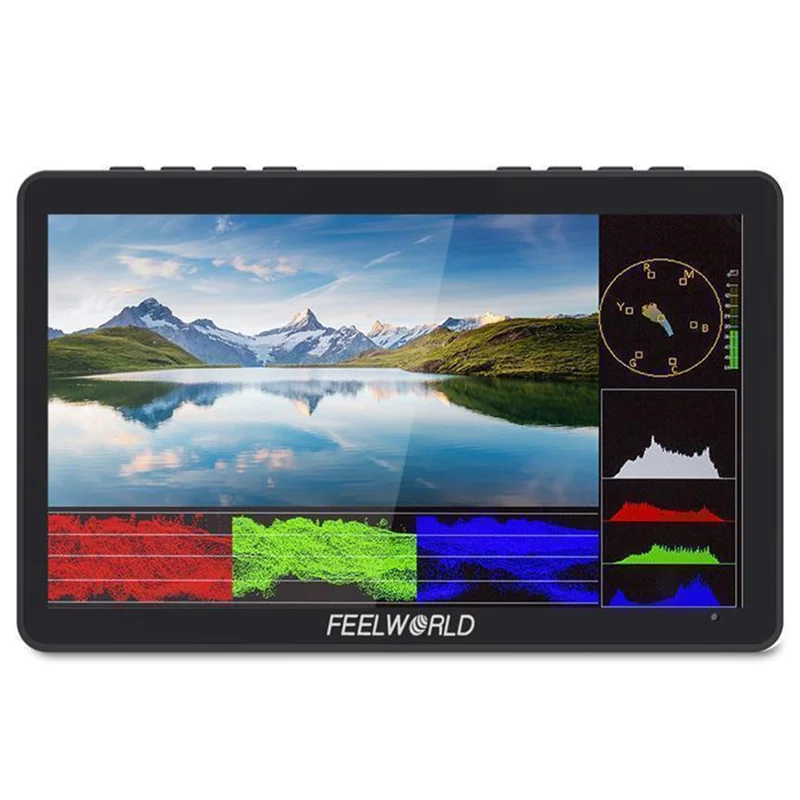

• 【Professional Monitoring Tools】 Includes waveform, histogram, focus peaking, false color, zebra exposure, and various aspect ratio markers for enhanced shooting accuracy.

Specifications:

• Model: F5 Pro V4
• Screen Size: 6.0-inch IPS Touchscreen
• Resolution: 1920 x 1080 pixels
• Pixel Pitch: 0.069 (H) x 0.069 (W) mm
• Aspect Ratio: 16:9
• Brightness: 450 cd/m²
• Contrast Ratio: 1000:1
• Backlight: LED
• Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

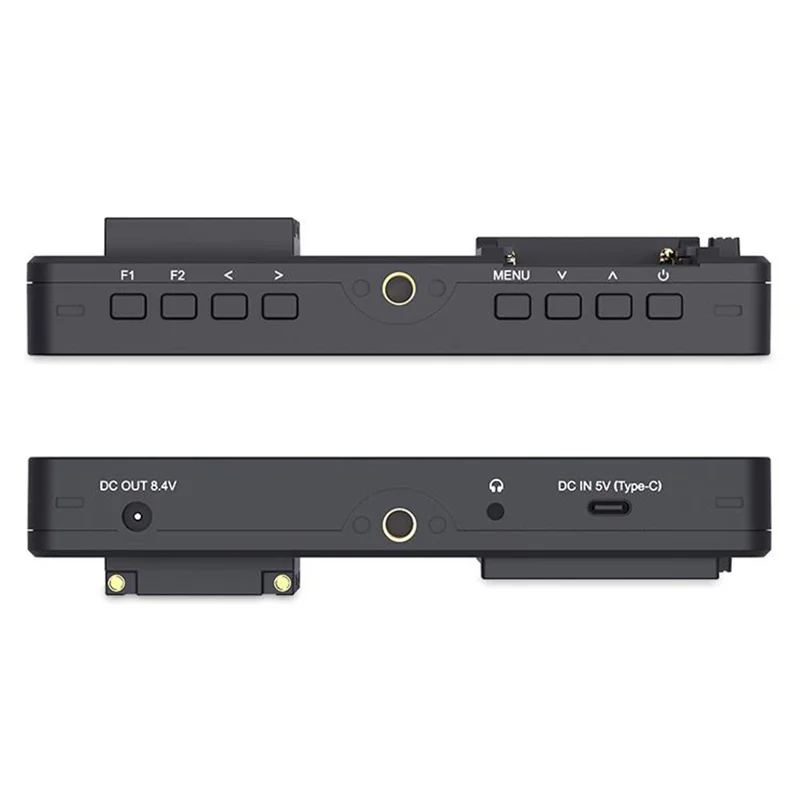

• Inputs
• 1 x HD: HD Input

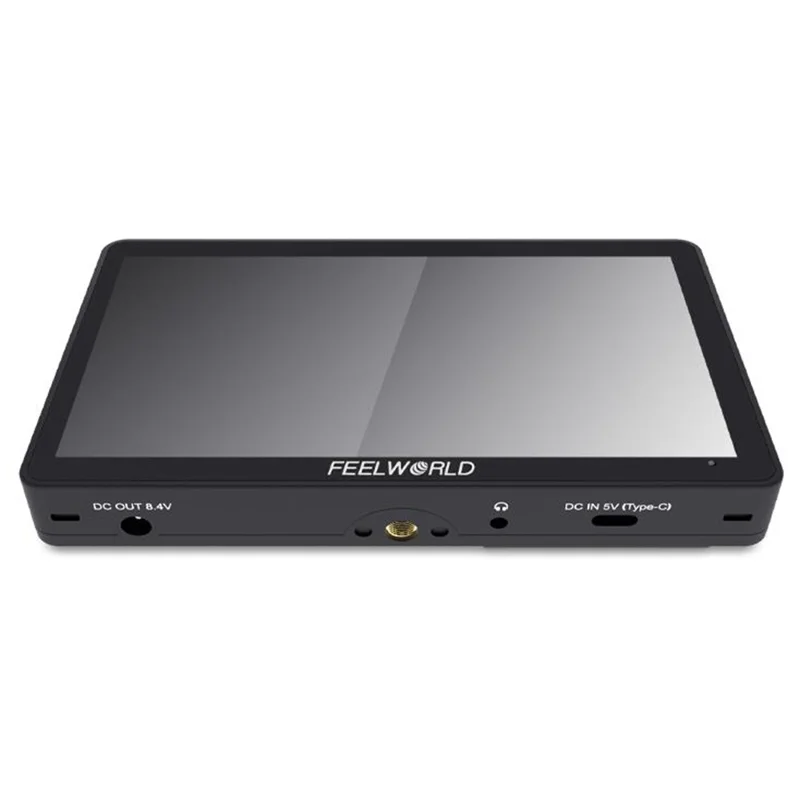

• 1 x Type-C: 5V Type-C (Note: Please use a Type-C power supply of 5V/2A or higher)
• Outputs
• 1 x HD: HD Output
• 1 x DC Output: DC Power Output
• Audio Output: Stereo Headphone Jack
• Supported HD Input/Output Formats:
• 480i / 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)

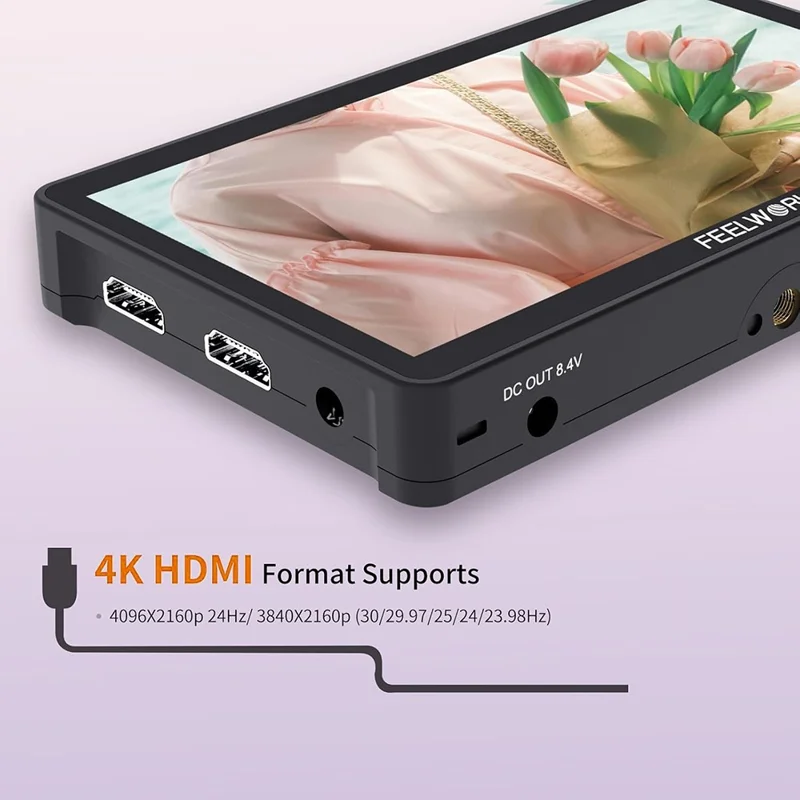

• 4K UHD 3840 x 2160p (30 / 29.97 / 25 / 24 / 23.98Hz), 4096 x 2160p (24Hz)
• Input Voltage: DC 7–24V
• Power Consumption: ≤ 8W
• Power Connector: DC
• Operating Temperature: -20℃ to 50℃
• Storage Temperature: -30℃ to 60℃

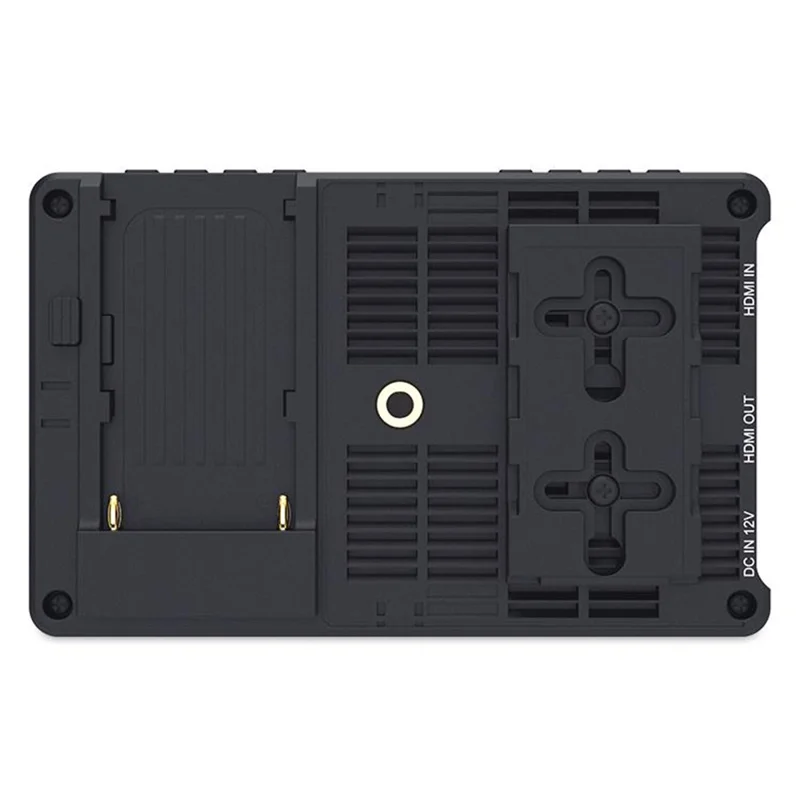

• Mounting Method: 1/4-20 Threaded Mounting Point
• Dimensions: 148(L) x 93(H) x 20(D) mm
• Weight: 245g
