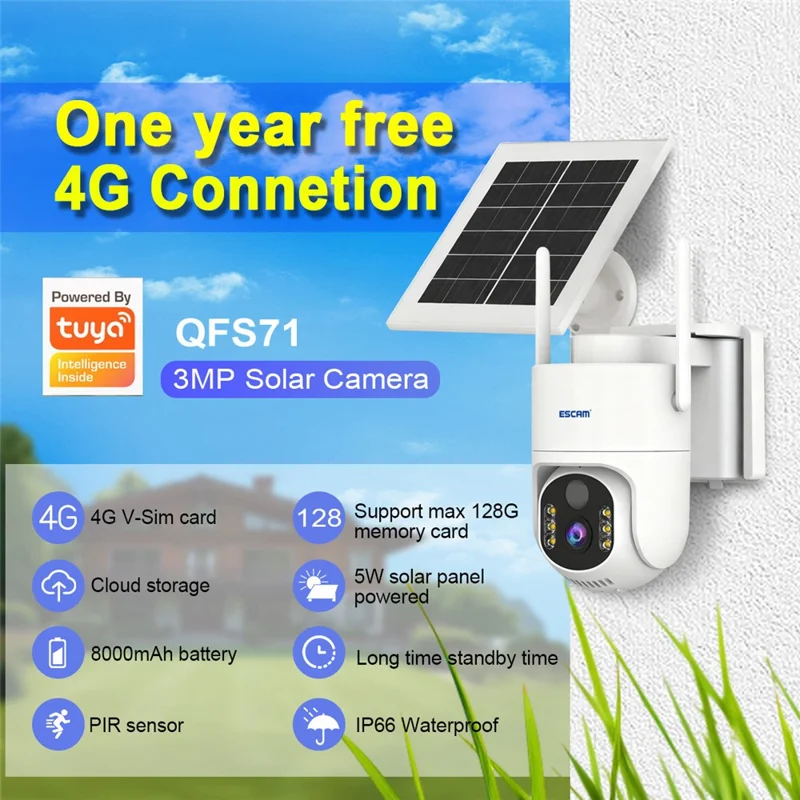

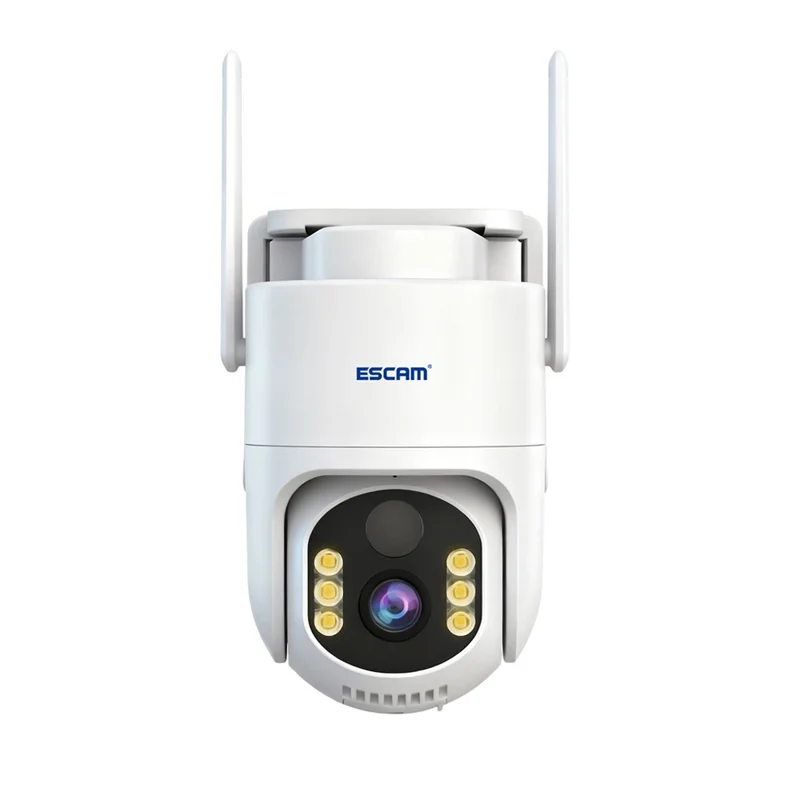

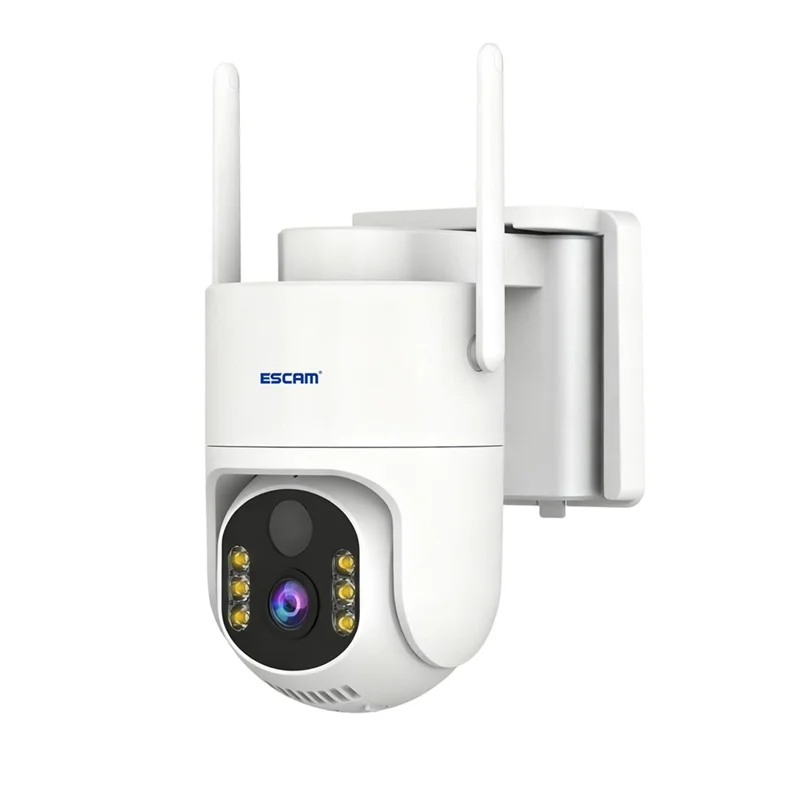

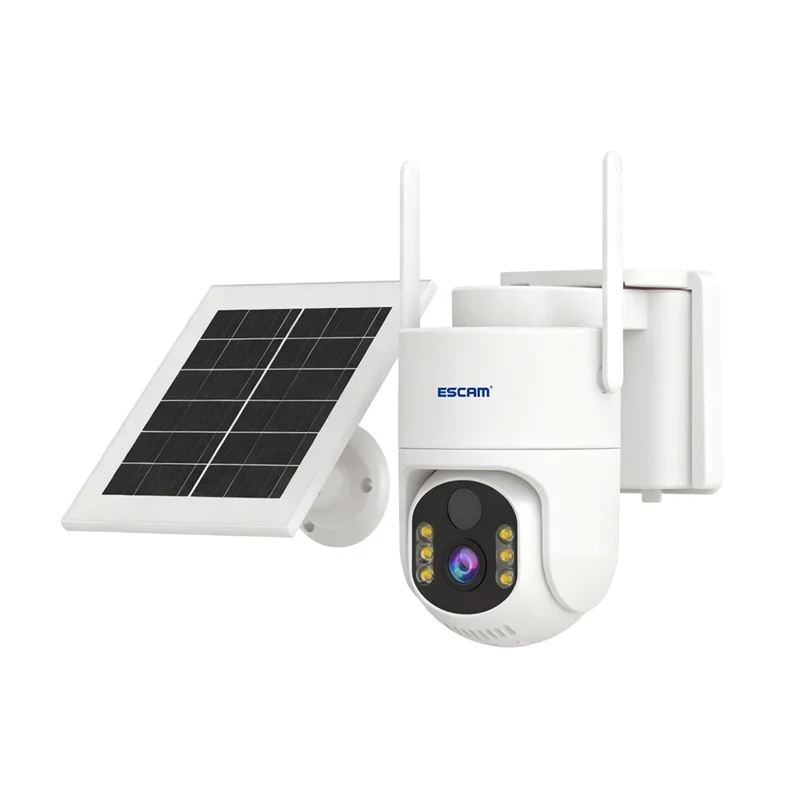

ESCAM QFS71 3MP Wireless Solar Security Camera PIR Alarm Two-Way Audio Night Vision Camera with 4G Virtual SIM Card
- 【4G Connectivity】Built-in 4G virtual SIM card with one year of free 4G network service included, ensuring constant connectivity without additional costs.

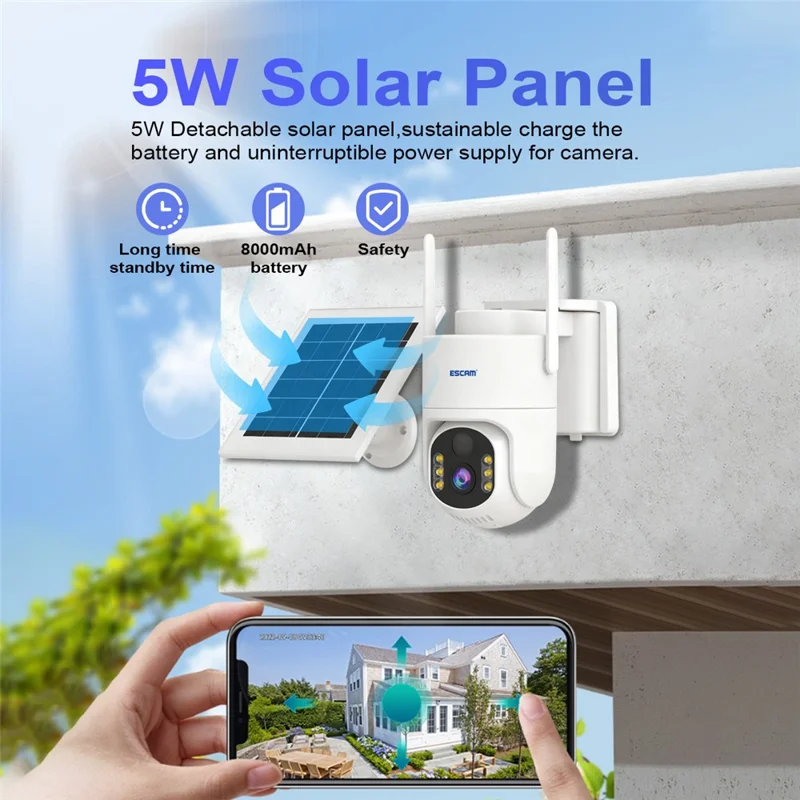

- 【Energy Efficiency】Smart sleep and wake mechanism for intelligent power conservation, coupled with an 8000mAh battery and detachable solar panel for continuous charging and ultra-low power consumption.
- 【High-Definition Imaging】3MP (2304x1296) high-resolution camera with intelligent dual-color night vision and full-color mode for clear footage day and night.
- 【Two-Way Audio】Integrated microphone and speaker support real-time two-way voice communication for enhanced interaction.
- 【Intelligent Alerts】Built-in PIR alarm sensor for accurate and timely alerts with mobile app push notifications.
- 【Wide Coverage】App-controlled pan-tilt function with 350° horizontal and 90° vertical rotation for comprehensive surveillance.
- 【Flexible Storage】Supports both cloud storage and local storage with up to 128GB TF card capacity (not include TF card).
- 【Night Vision】Equipped with 6 infrared LEDs, providing clear night vision up to 15 meters (49ft). IP66-rated outdoor protection, suitable for various weather conditions.
Specifications:
| Product Specification | |||||

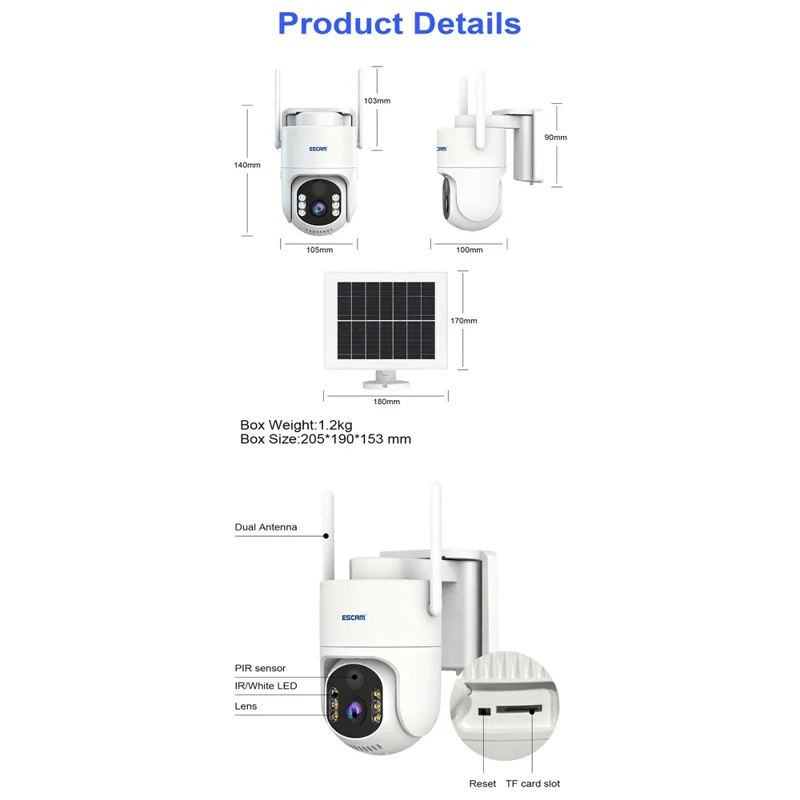

| ◆ Product Dimension | 117*158.3*174.5mm | ||||
| ◆ Net Weight | 708g | ||||
| ◆ Power Cable Length | 0.5M | ||||
| ◆ Housing Material | ABS | ||||
| ◆ Hosing Flame Retardance | V-0 | ||||

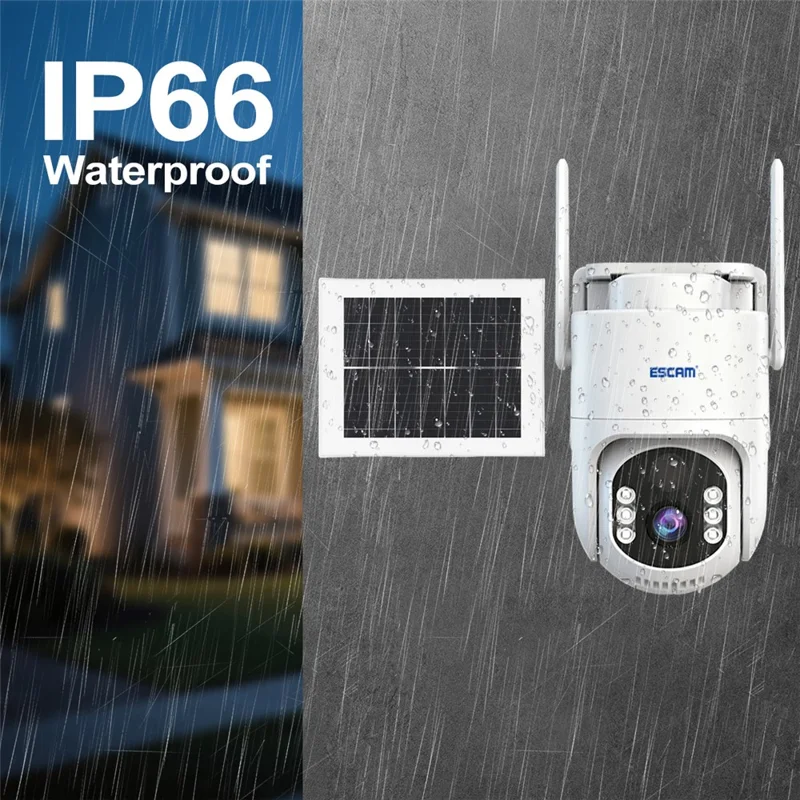

| ◆ Ingress Protection(IP) | IP66 | ||||
| Hardware Specification | |||||
| ◆ Image Sensor | 1/3" 3Megapixel progressive CMOS | ||||
| ◆ Sensor Brand And Model | SMARTSENS, SC2337p | ||||
| ◆ Main Chipset Brand And Model | INGENIC, T31ZL | ||||
| ◆ 4G Module Brand And Model | YUGA CLM920 | ||||
| ◆ Lens Brand And Model | YT12001+AHN0760 | ||||
| ◆ lens Focal Length | 4mm | ||||
| ◆ Aperture | F2.0 | ||||
| ◆ Antenna Gain (dBi) | 3dB | ||||
| Electrical Specification | |||||
| ◆ Power Supply | lithium battery pack | ||||
| ◆ Standby Power Consumption | 4.8MW | ||||
| ◆ Working Power Consumption | 880MW | ||||
| ◆ Live Stream Video Resolution | 3MP HD(2304*1296) / SD(640*360) | ||||
| ◆ Notification Image Resolution | SD(640*360) | ||||
| ◆ Angle of View(H/V/D) | H 52.3° / V 28.4° / D60.7° | ||||
| ◆ Angle of Pan and Tilt | H 350° / V90° | ||||
| ◆ Microphone Sensitive | -38dB | ||||
| ◆ Noise Reduction | 3D NR | ||||
| ◆ Audio Input | Built in Mic | ||||
| ◆ Audio Output | Built in 8Ω1.5W Speaker | ||||
| ◆ Audio Compression | G711U | ||||
| ◆ Video Compression | H.264 / H.265 | ||||
| ◆ Frame Rate | Main streaming 1024Kbps / Sub streaming 256Kbps | ||||
| Lighting Specification | |||||
| ◆ IR CUT | Support | ||||
| ◆ IR On/Off Control | Auto / Manual | ||||
| ◆ IR Distance | 15m (49ft) | ||||
| ◆ Night Vision Mode | Infrared mode & Color mode | ||||
| ◆ Number of Infrared Light | 6 pcs | ||||
| ◆ Number of White Light | 6 pcs | ||||
| ◆ Indicator Color Status | solid red - not connected to base station, no SIM card inserted, or no data traffic | ||||
| flashing blue - connected to 4G network but not configured | |||||
| solid blue - connected to server | |||||
| both red and blue light up (purple) - Firmware upgrade in progress | |||||
| all off - powered off or in sleep mode | |||||
| Network and Condition | |||||
| ◆ Wireless Standard | LTE-FDD | ||||
| ◆ Wireless Frequency | North American version: Cat1: CLM920-HE9 NA: (B2, 4, 5, 12, 13, 17, 66) | ||||
| ◆ Working Temperature | -10℃ ~ 50℃ | ||||
| ◆ Working Humidity | 20%-85%RH (no condensation) | ||||
| Basic Specification | |||||
| ◆ Pairing Method | The device scans the APP's QR code/The APP scans the device's QR code. | ||||
| ◆ Two-way Talk | Support | ||||
| ◆ Sound Detection | N/A | ||||
| ◆ Motion Detection | Support | ||||
| ◆ Area Monitoring Detection | Support | ||||
| ◆ Humanoid Body Filtering | Support | ||||
| ◆ Trigger Siren | Support | ||||
| ◆ Privacy Mode | N/A | ||||
| ◆ Privacy Zones | N/A | ||||
| ◆ Tamper Alarm | N/A | ||||
| ◆ Cloud Storage | N/A | ||||
| ◆ PIR Set | N/A | ||||
| ◆ WebRTC | Support | ||||
| ◆ Siren | Support | ||||
| ◆ Condition to trigger local storage | Motion detection & Preview | ||||
| ◆ Condition to trigger cloud storage | N/A | ||||
| ◆ WDR | N/A | ||||
| ◆ Anti Flicker | Support | ||||
| ◆ Local Storage SD Slot | Micro SD Slot (up to 128GB) | ||||
| ◆ Hot Swappable SD Card | Support | ||||
| ◆ Local SIM Card Slot | N/A | ||||
| ◆ Voice Solution Configuration | Amazon Alexa, Google Assistant | ||||
| Battery | |||||
| ◆ Battery Type | 4 * 18650 Rechargeable Lithium Battery (Low temperature resistant) | ||||

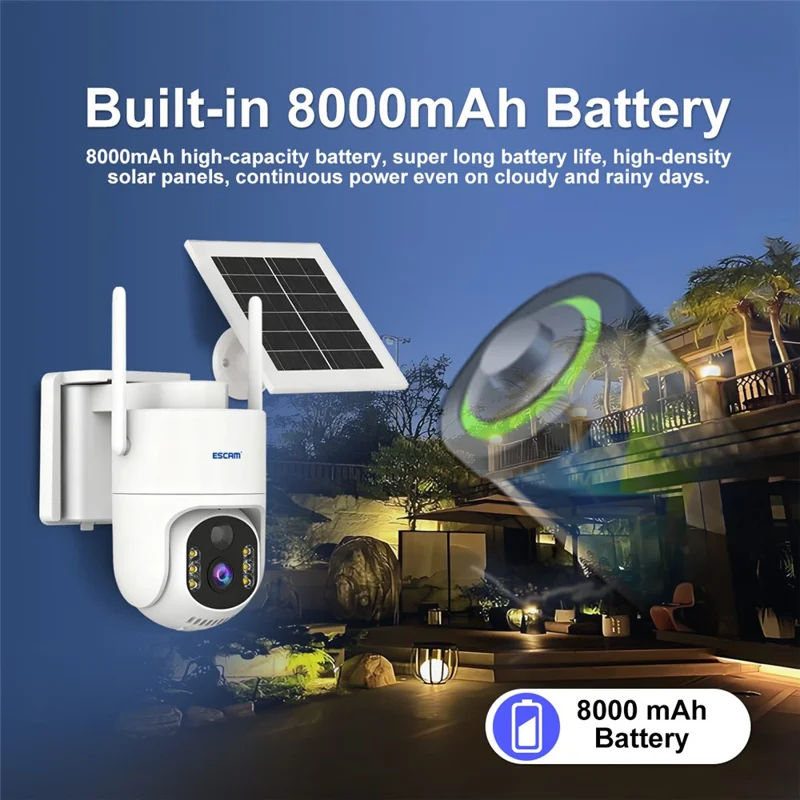

| ◆ Battery Capacity | 8000mAh | ||||
| ◆ Battery Charging Time (Input DC 5V1A) | 18 hours | ||||
| ◆ Battery Life | 2 months (triggered 10 times per day) | ||||
| Solar Panel | |||||
| ◆ Solar Panel Dimension | 183*168*15mm | ||||
| ◆ Solar Panel Net Weight | 316g | ||||
| ◆ Solar Panel Power Cord Length | 2 meters | ||||
| ◆ Solar Panel Shell Material | ABS | ||||
| ◆ Solar Panel Craftsmanship | Glass + EVA + Monocrystalline silicon solar cell + EVA + PTP backsheet | ||||
| ◆ Solar Panel Output Power | 5w | ||||
| ◆ Does Solar Panel Include Battery | N/A | ||||
| ◆ Solar Panel Energy Conversion Rate | ≥21% | ||||
| ◆ Solar Panel Charging time for the camera | Charging from 0% to 100% costs 8-10 days, depending on sunlight conditions. | ||||
| ◆ Working Temperature | －20℃ ~ 55℃ | ||||
| ◆ Working Humidity | ≤60%RH | ||||
