Made of PA66 flame retardant material, it has good insulation, heat resistance and flame retardancy
Self-tapping screws make installation more convenient and safer
Stickers are attached to the electrical appliances, which can better distinguish the electrical appliances corresponding to each line
Double the fuses to make sure there are enough fuses to replace
IP66 waterproof fuse box for off-road vehicles, RVs, boats and other wading vehicles
Specification:

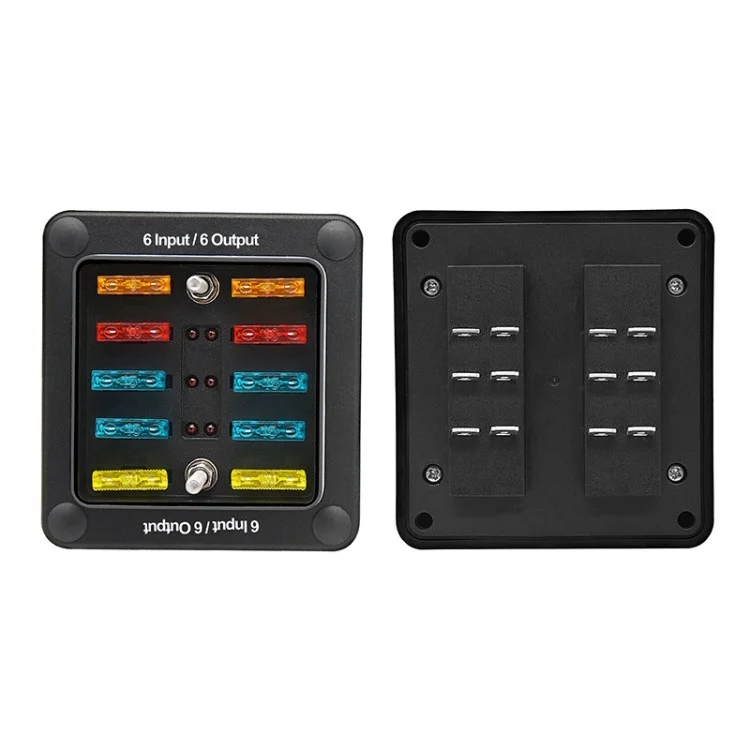

Product: Fuse Box
Model: ZH-1704B1
Size: 8.7x9.2x4.2cm
Input voltage: 32V
Input current: 50A
Output current: 20A per circuit, max
Material: PA66 base, PC dust cover
Main wire conductor: #4-6AWG
Main line terminal: 1015/12# (50A 32V DC.max)
Wire terminals: Copper/Nickel Plated 1/4" (6.3mm) (20A 32V DC max)
Wire diameter: #12-16AWG
Main line terminal: 1015/12# (50A 32V DC.max)
Wire terminals: Copper/Nickel Plated 1/4" (6.3mm) (20A 32V DC max)
Wire diameter: #12-16AWG
Hole size: 5.5*6cm
Indicator light: red light - disconnected
The role of the fuse: make the circuit operate safely
Installation: installed in cars, off-road vehicles, RVs, buses, yachts, boats, etc.
Scope: such as dome lights, car headlights, width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
Accessories: Sticker x2; Self-tapping screws x4; Waterproof gasket x4; 20A safety piece x4; 15A safety piece x4; 10A safety piece x2; 5A safety piece x2; flat terminal & protective cover x6
