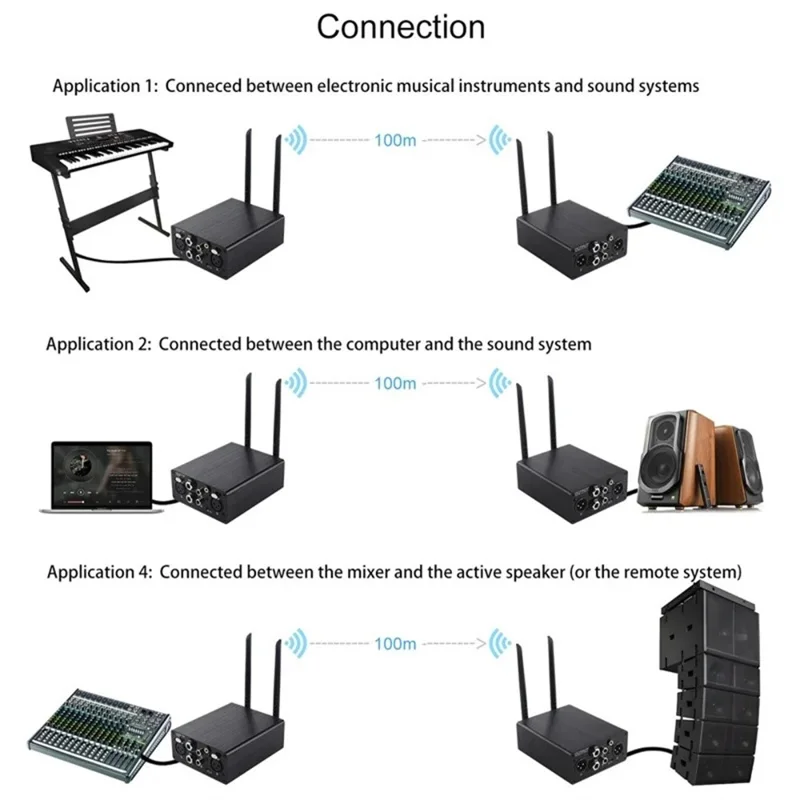

• 【Wireless Audio Transmission】The transmitter connects computers, mixers, microphones, and other sources, while receivers connect mixers or speakers for wireless audio playback.
• 【UHF Frequency Operation】UHF wireless transmission operates across 590-619MHz with 10 channels, 4MHz channel spacing, and GFSK modulation for audio signal transfer.

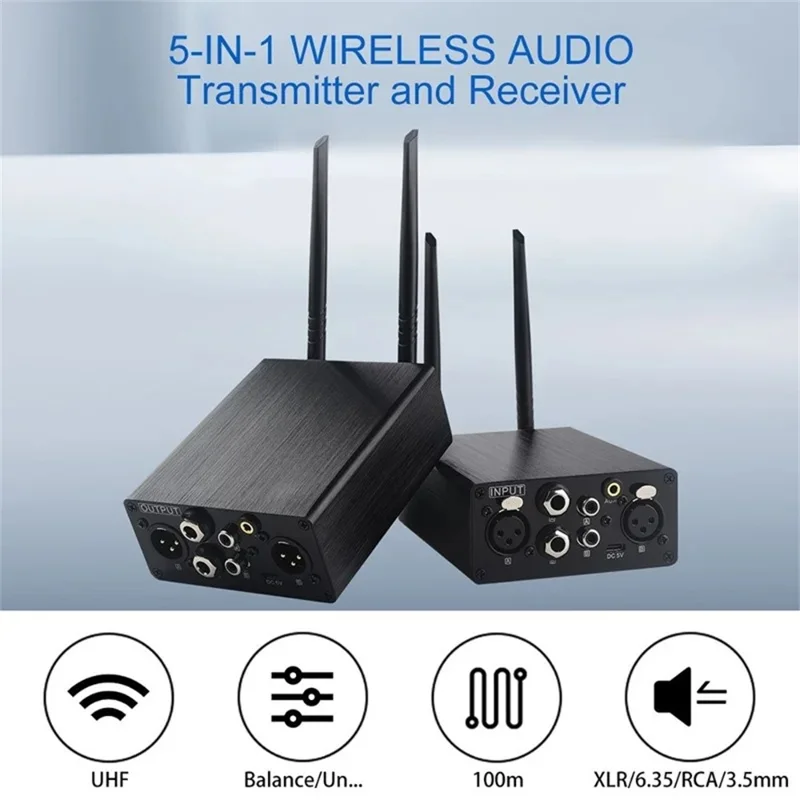

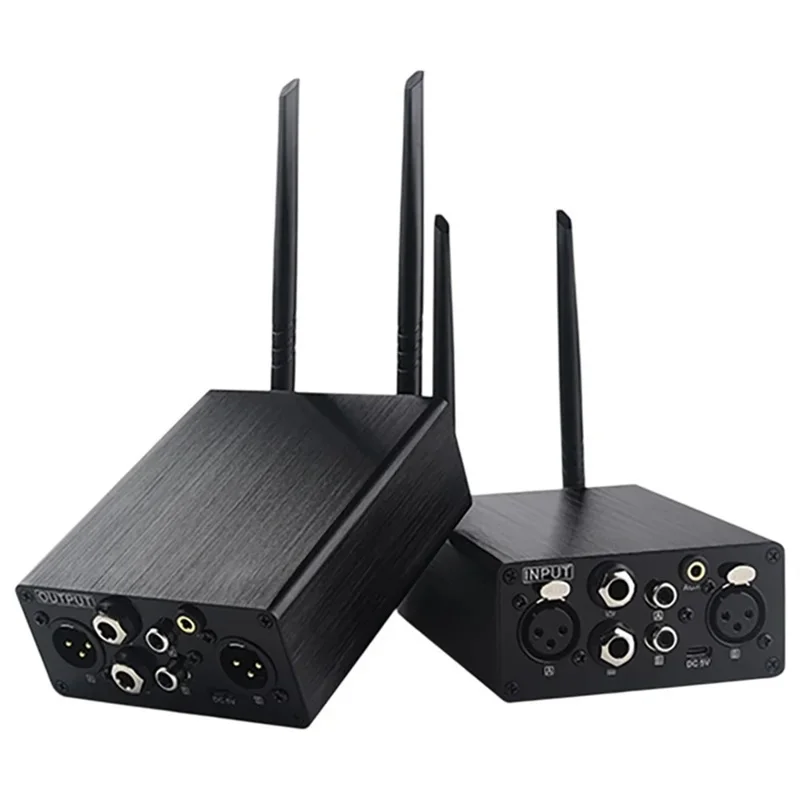

• 【Multi-Interface Connectivity】XLR, 6.35mm, RCA, and 3.5mm interfaces support balanced and unbalanced signal connections across the transmitter and receiver devices.
• 【Multiple Input Modes】The transmitter supports stereo audio, standard microphone, and monitoring pickup input modes, while receivers provide stereo output through connected audio equipment.

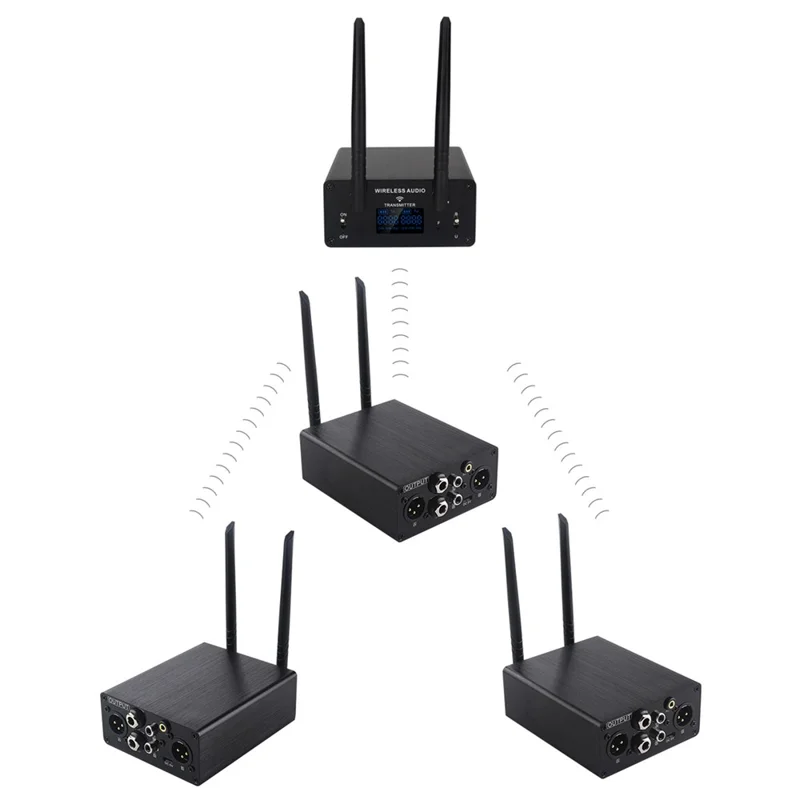

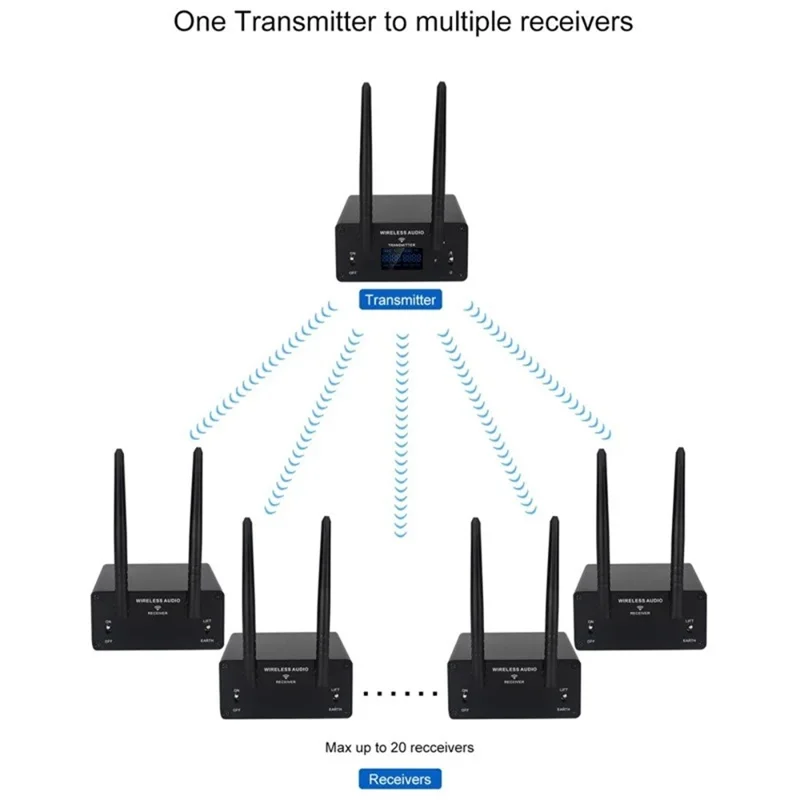

• 【Long Range Audio Link】The system supports transmission up to 100m in open unobstructed areas, with transmitter-to-multiple-receiver broadcasting for mixers, speakers, and remote systems.

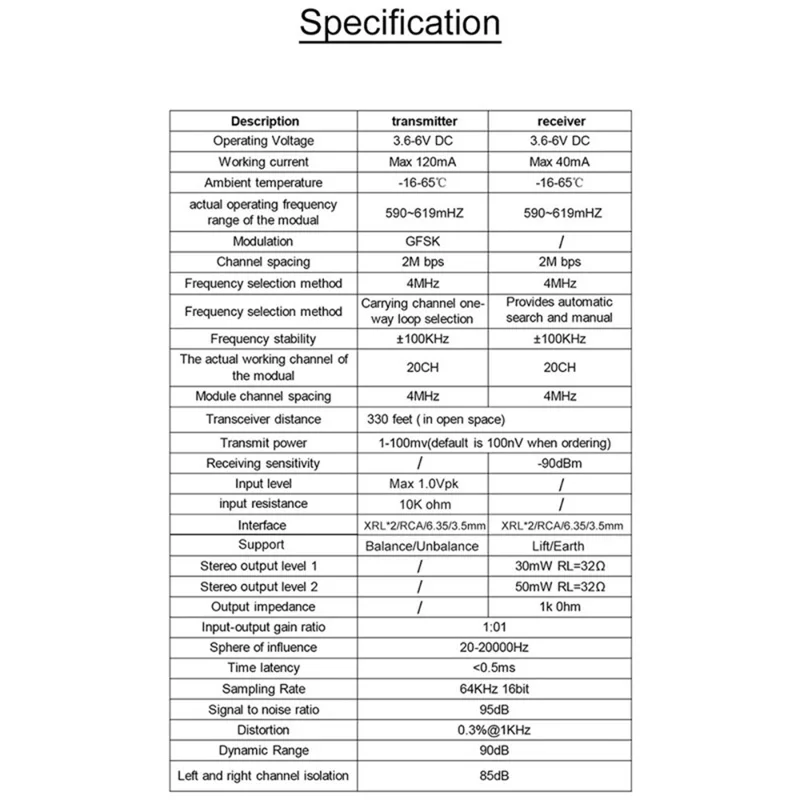

Specifications:

• Operating Voltage: 3.6-6V DC
• Operating Current: Transmitter Max 120mA; Receiver Max 40mA
• Operating Temperature: -16-65°C
• Operating Frequency Range: 590-619MHz
• Modulation: GFSK
• Bit Rate: 2M bps
• Channel Spacing: 4MHz
• Frequency Stability: ±100KHz
• Operating Channels: 10CH
• Transmission Distance: 100m in open unobstructed areas
• Transmitter Power: 1-100mV
• Receiver Sensitivity: -90dBm
• Input Level: Max 1.0Vpk
• Input Impedance: 10k ohm
• Input Modes: Stereo Audio Input; Standard Microphone Input; Monitoring Pickup Input
• Receiver Stereo Output: 30mW RL=32Ω; 50mW RL=32Ω
• Receiver Output Impedance: 1k ohm
• Frequency Response: 20-20000Hz
• Latency: <0.5ms
• Sampling Rate: 64KHz 16bit
• Signal-to-Noise Ratio: 95dB
• Distortion: 0.3%@1KHz
• Dynamic Range: 90dB
• Left-Right Channel Separation: 85dB
• Interfaces: XLR, 6.35mm TRS, RCA, 3.5mm TRS, DC 5V
• Controls: ON/OFF Switch, F Button, U Button

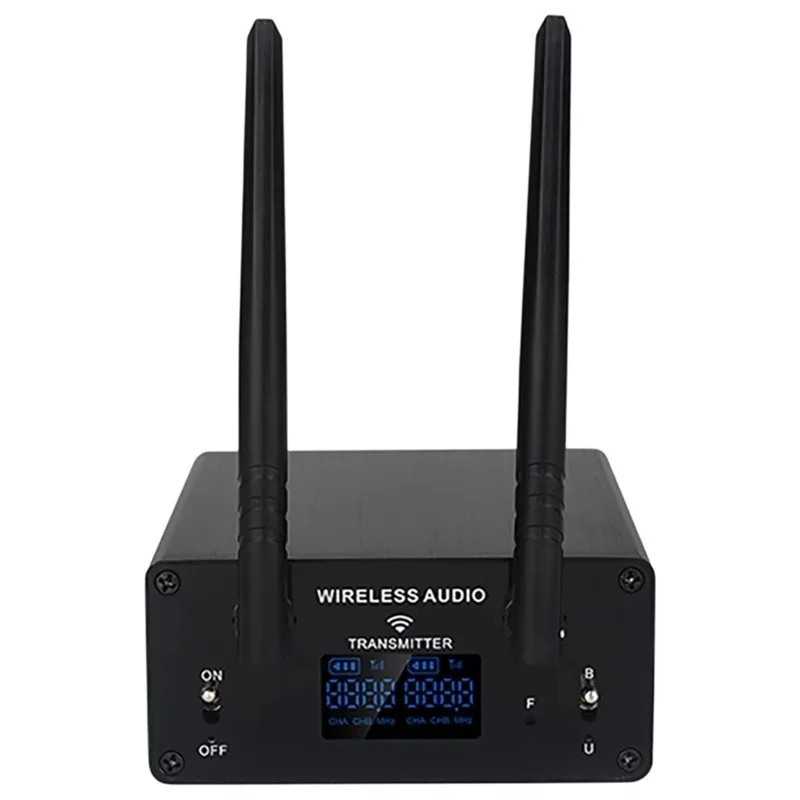

• Display: Transmitter OLED Dual-Channel Digital Display
