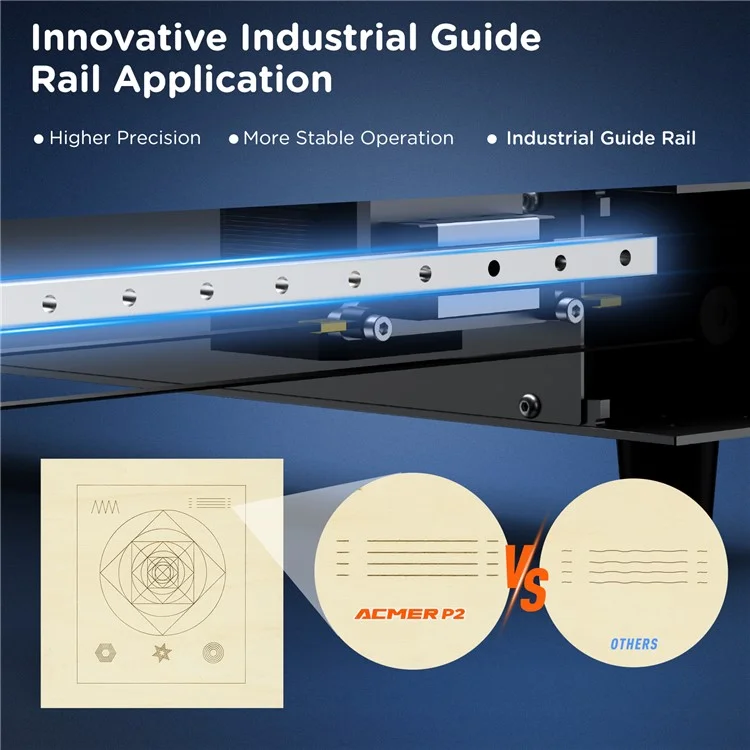

• Industrial Rail Drive: The X and Y axes are equipped with industrial-grade linear guides, featuring superior structural design for enhanced stability and precision in engraving. Achieve a photo-quality experience with ultra-high pixel resolution

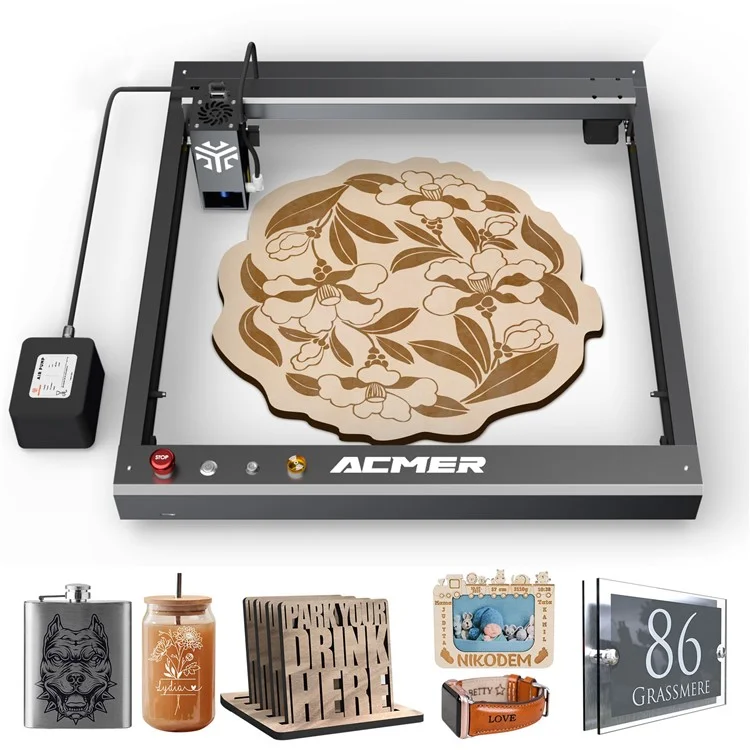

• Unbox and start using instantly: With ACMER P2 Pre-Assembled Edition, the machine is already assembled and rigorously tested before leaving the factory, ensuring a superior user experience
• Safety Features: Emergency stop button, gyroscope detection (tilt 15 degrees to automatically turn off the laser), motherboard over-temperature protection, child safety lock, flame detector
• Gyroscope Tilt Detector: Automatically stops working when tilted more than 15°, to prevent the laser from causing injury to the human body or damaging objects, good protection for your safety
• Child Safety Lock: Unauthorized use is strictly prohibited to prevent any accidents caused by unauthorized use
• Incredibly Fast: With a blazing speed of up to 30,000 mm/min, this engraving system inherits the proven motion control technology from ACMER Lab. Its robust mechanical structure ensures faster engraving times for artworks, without compromising on stability or ultra-high precision

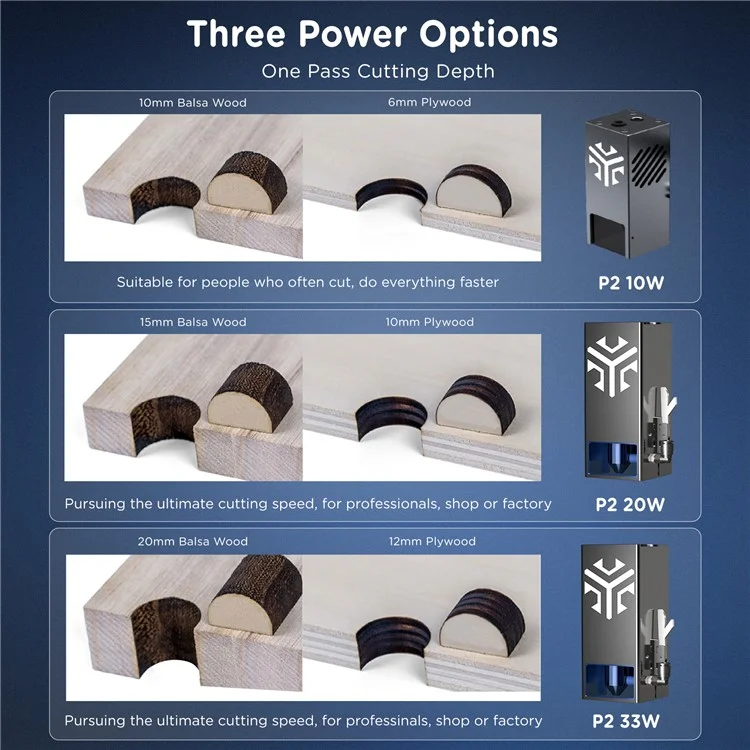

• Upgradeable is Important: Supports replacement of multiple power diode lasers (10w/20w/33w/1064) to accompany your growth from beginner to laser master. It also supports 1064 laser, making jewelry and metal ornaments engraving more professional

Specifications:

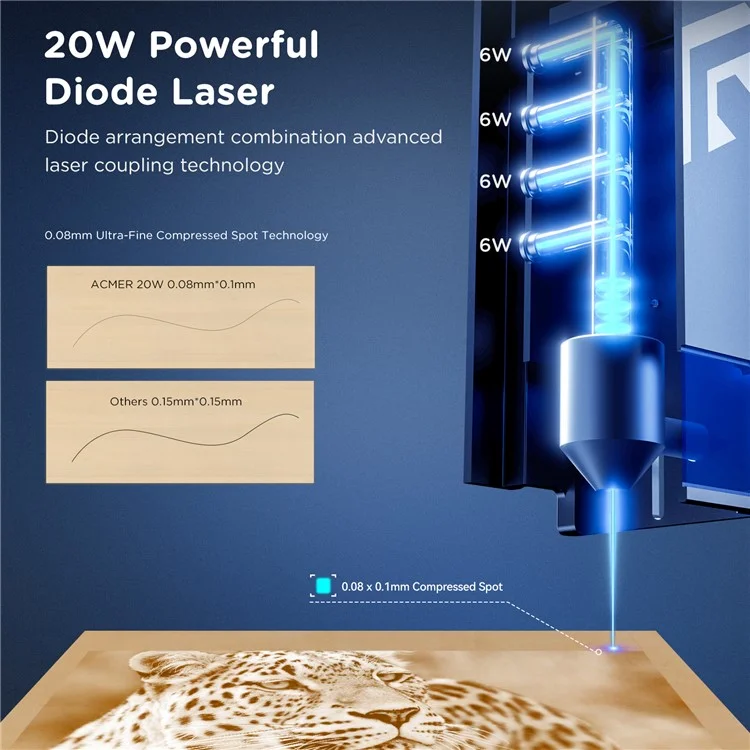

• Laser Output Power: 20000mw
• Laser Type: Diode laser/Upgradeable 1064 laser
• Machine Power: 120W
• Laser Wavelength: 450±5nm
• Power Supply: 24V/5A

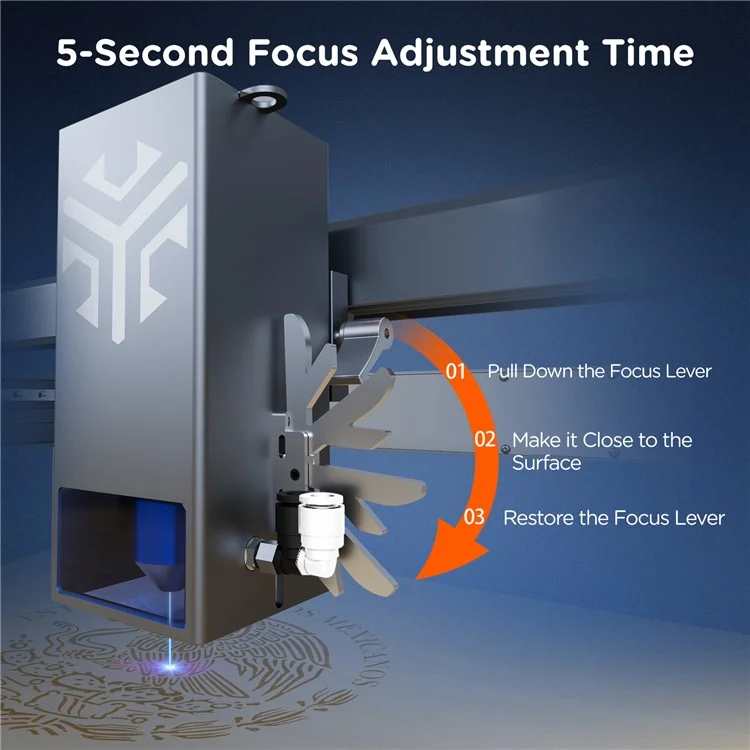

• Focal Length: 5mm
• Engraving Accuracy: 0.01mm
• Laser Module Design Life: 10000 hours
• Maximum Engraving Speed: 30,000 mm/min
• Working Area Size: 420*400mm
• Assembly Method: Pre-assembled
• Machine Size: 650*597*200mm
• Machine Weight: 6.5kg
• Movement structure: Industrial guide rail
• Certification: FCC/CE/RoHS/FDA
• Control Software: LightBurn/LaserGRBL/ACMER App(Android)/MKS(iOS)
• Compatible Accessories: 1064 laser module, ACMER P2 Engraving Area Expansion Kit, Honeycomb Laser Bed , R10 Laser Enclosure Box, ACMER M2 Rotary Roller, ACMER C4 Air Assist
• File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.
• Engraving materials: Basswood, Leather, Kraft Paper, MDF, Carton, Stainless Steel, Anodized Aluminum, Wrench (galvanized iron), Glass, Ceramics, Acrylic
• Cutting ability: Cut through 25mm wood, 20mm acrylic, 0.1mm metal
