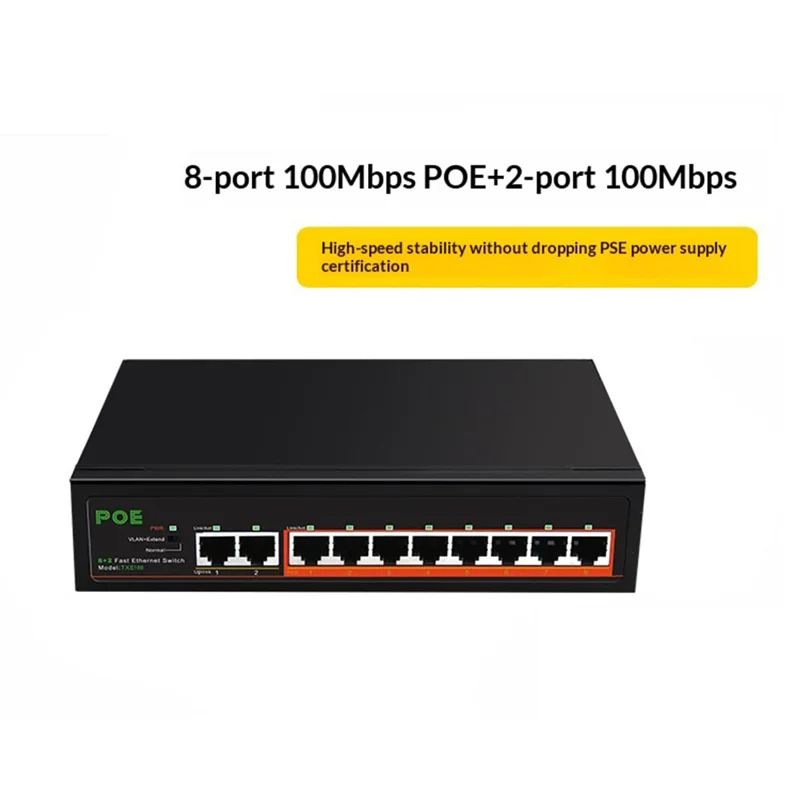

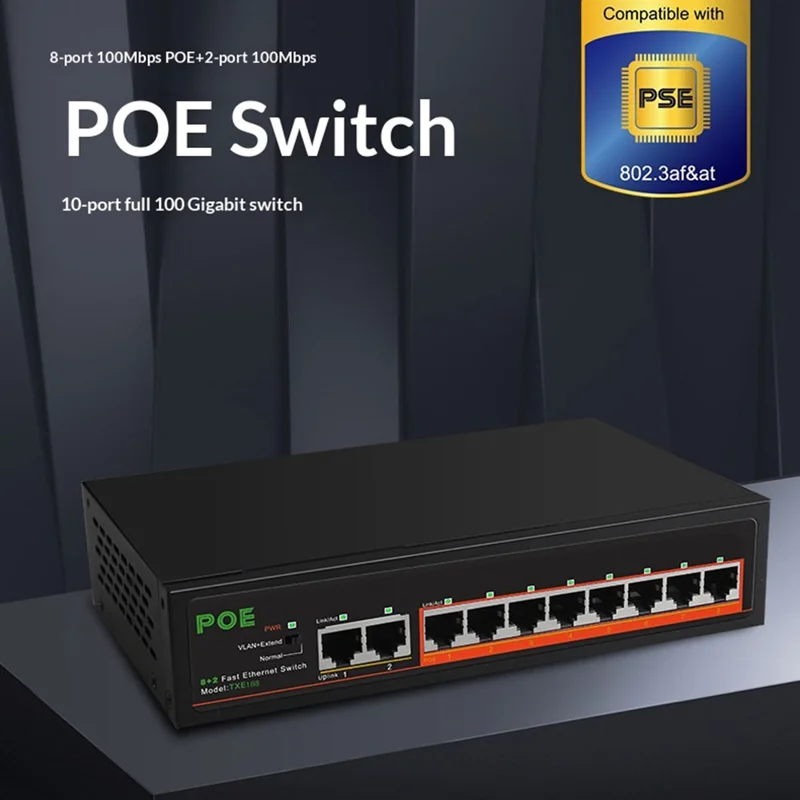

• 【8-Port PoE + 2 Uplink Design】Features 8 PoE ports and 2 uplink ports supporting IEEE 802.3af/at standards with PSE certification for reliable power delivery.

• 【90W High-Power Supply】Built-in 90W power supply with 220V input supports intelligent functions including recognition, classification, power supply, monitoring, and disconnection for stable operation.

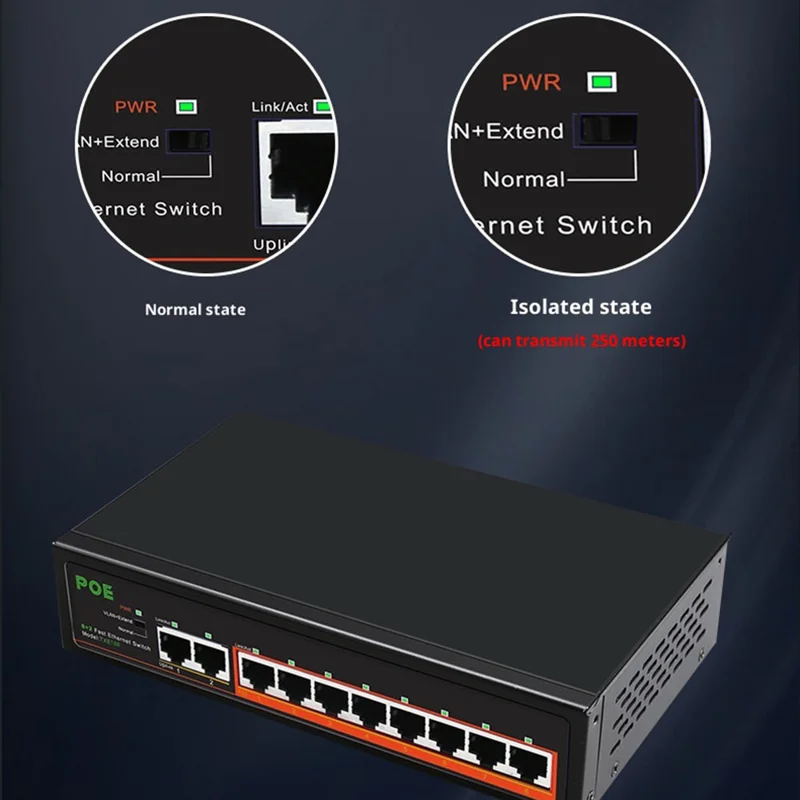

• 【30W Per Port Output】Each PoE port delivers up to 30W power with VLAN isolation and distance enhancement mode, extending transmission up to 250 meters for remote device power supply.

• 【Full Gigabit Auto-Adaptive】All ports support 10/100Mbps auto-negotiation with full/half-duplex adaptive transmission ensuring high-speed stable network communication.

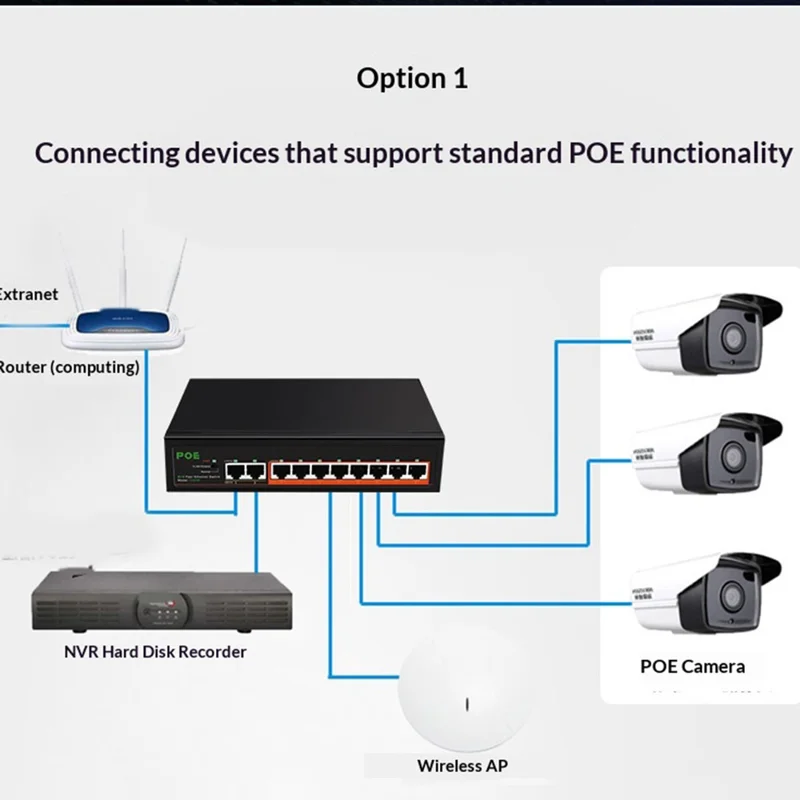

• 【Flexible Networking Solutions】Supports multiple deployment scenarios including direct PoE device connection, splitter integration for non-PoE cameras, cascade expansion, and aggregation structures.

• 【Efficient Heat Dissipation】Side panel ventilation design ensures optimal cooling performance for reliable operation in various environmental conditions.

Specifications:

• Number of Ports: 8 PoE + 2 Uplink
• Transfer Rate: 10/100Mbps
• Network Standard: IEEE 802.3af/at
• Half-duplex/Full-duplex Mode: Auto-adaptive
• Power Requirements: 100-240V AC/50-60Hz
• PoE Power Output: 30W per port, 90W total
• Working Temperature Range: 0℃~45℃
• Humidity Range: 10%~90% (Non-condensing)
• Product Size: 200×117×43mm
• Transmission Distance: Up to 250m
