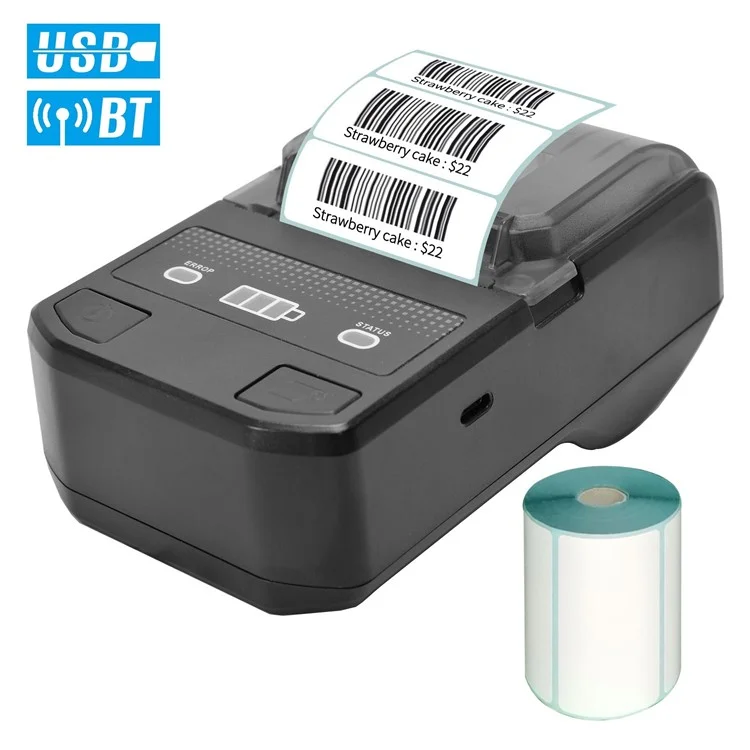

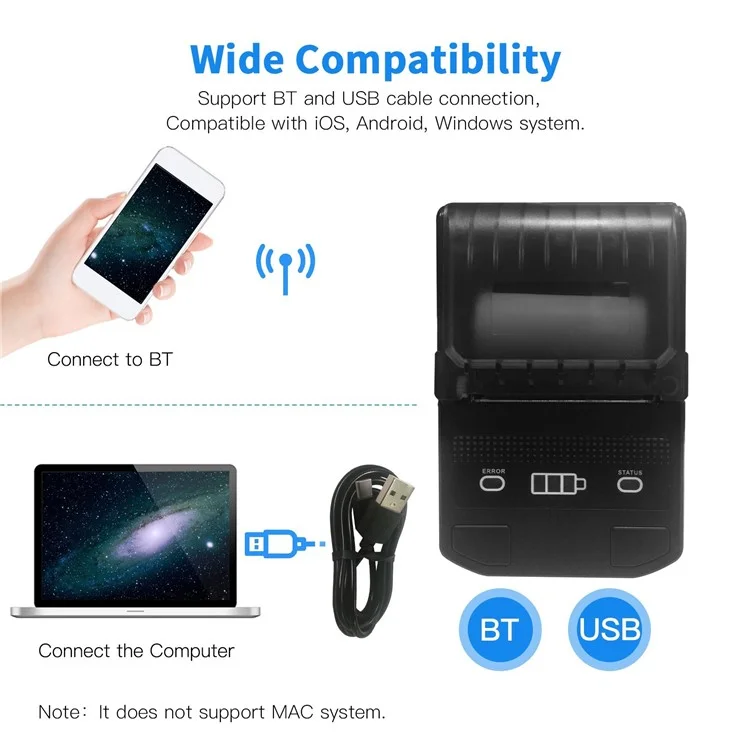

• 58mm portable thermal label printer, strong compatibility, support BT or USB cable connection, compatible with iOS, Android, Linux, Windows systems. Please download the relative APP or driver on your devices

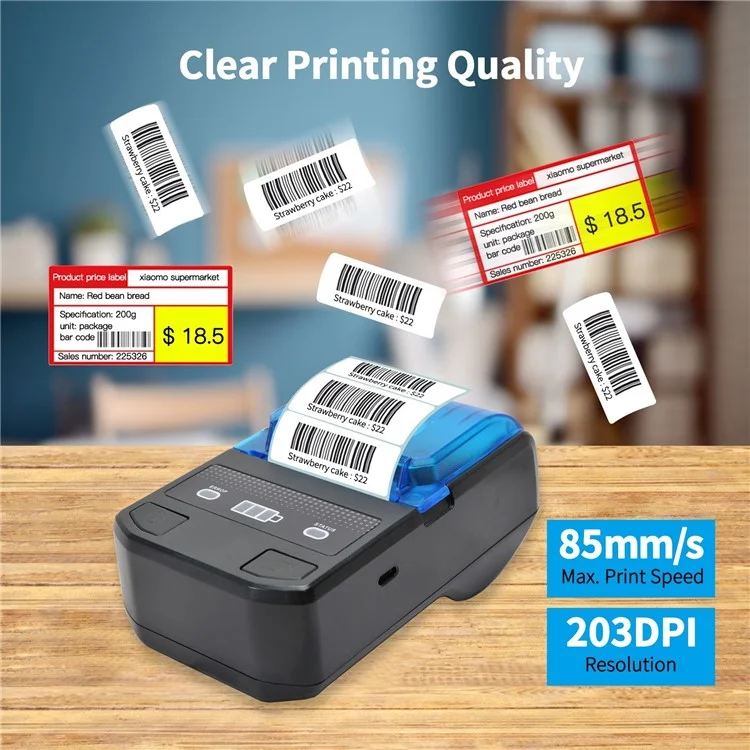

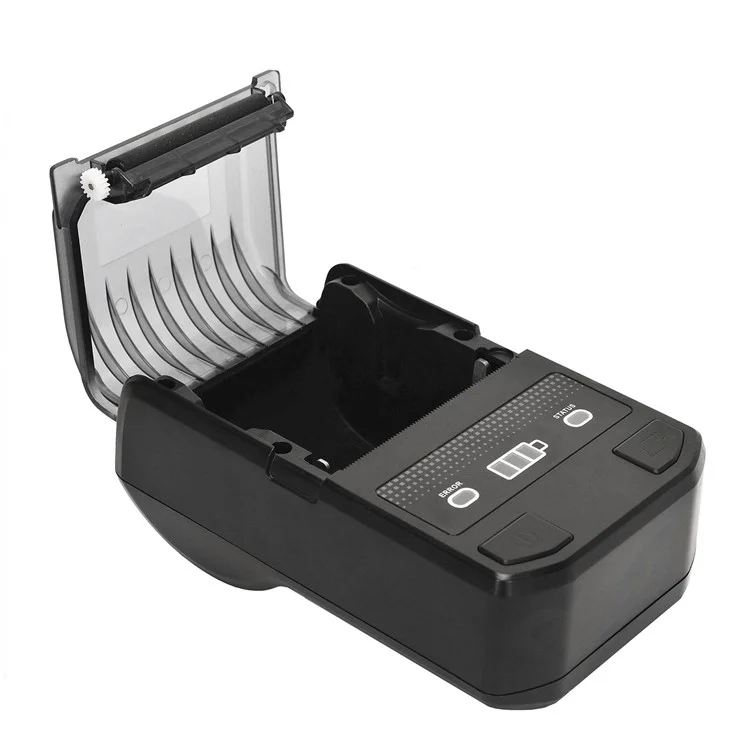

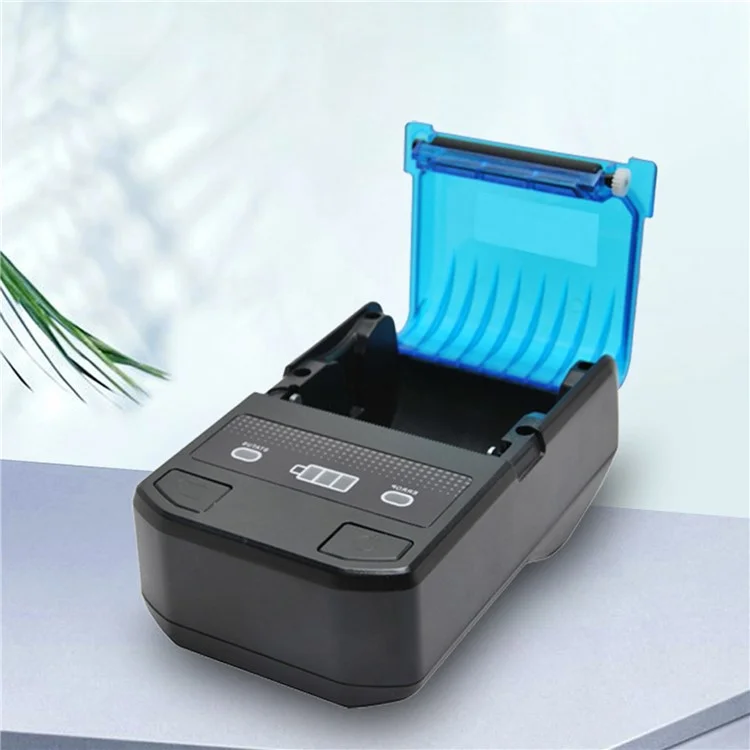

• Large paper bin design, support max. 50mm roll diameter, reduce paper change times. Easy to load paper. 57.5±0.5mm paper width, 48mm effective print width, 85mm/s max. print speed, 203dpi resolution

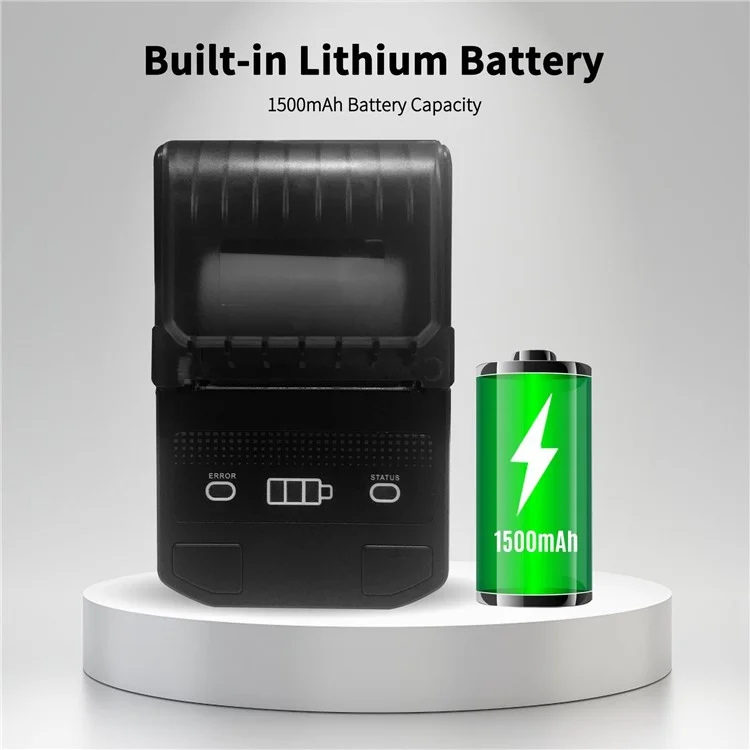

• Built-in 1500mAh large-capacity rechargeable lithium battery, super battery life, with smart power saving and power consumption control functions, to ensure longer print time. Using a Type-C interface, it is more convenient to charge and more stable to transmit data

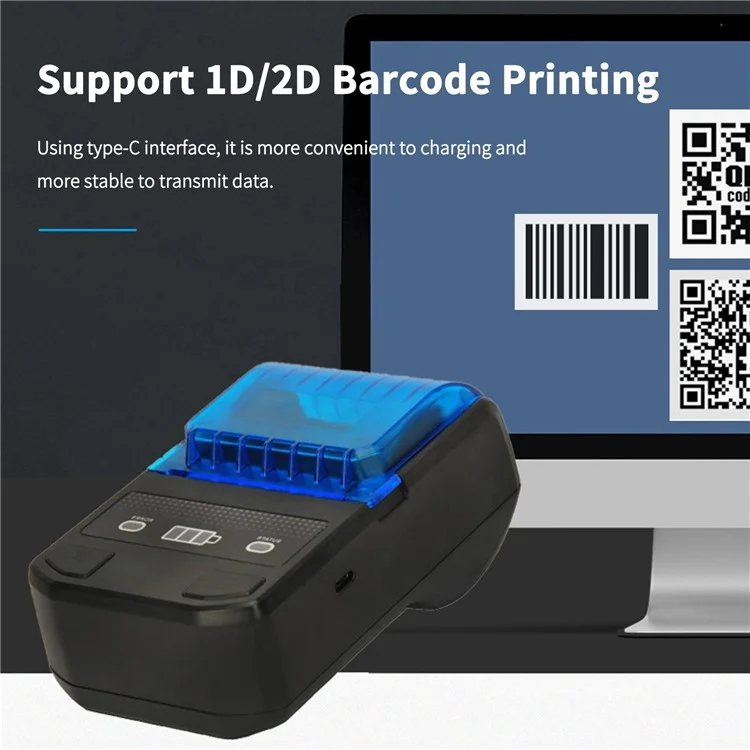

• Support 1D/2D barcode printing. You can download the "label" app on your smartphone through the instructions in the manual. Adopting a high-quality thermal print head, no need for ink cartridges or ribbons, low operation cost, clear and fast printing, improve your work efficiency

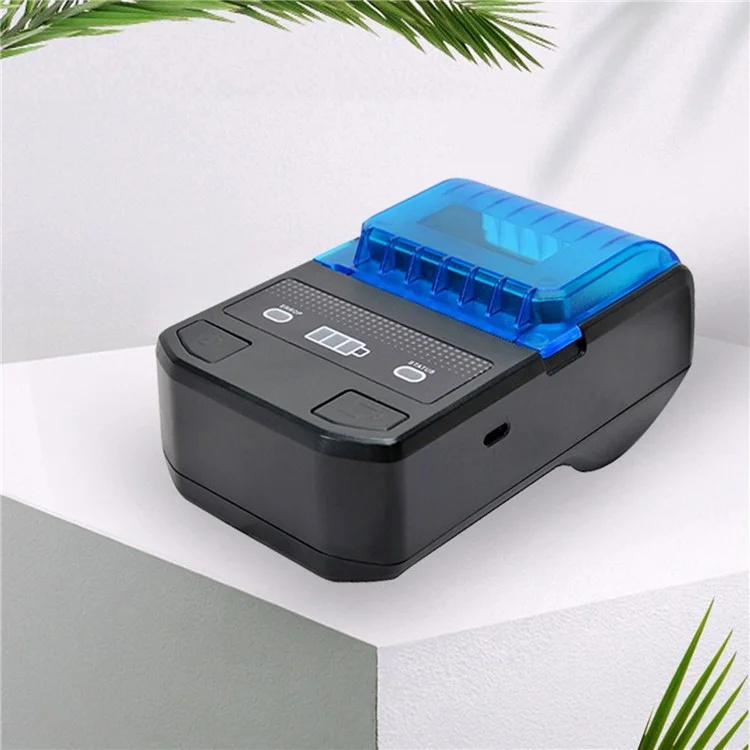

• Portable and lightweight, convenient to carry around, it doesn't need much space. Widely used in commercial retail, warehouse label printing, price tag, jewelry label, shelf label, packing list label, drug label, etc.

Specifications:

• Model: JK-58PL
• Version: Label Print Version
• Print Method: Direct Thermal Printing
• Print Head Life: 50KM (printing Density ≤12.5)
• Paper Width: 57.5±0.5mm
• Effective Printing Width: 48mm
• Roll Diameter: 50mm (max.)
• Resolution: 384 dots/line (8dots/mm,203dpi)
• Max. Printing Speed: 85mm/s
• Interface: USB/BT
• Commands: Label Print Version: TSC
• Line No.: Font A: 32 Character/Line, Font B: 42 Character/Line, Simple/Traditional Chinese: 16 charaters/line
• Character: The Standard GB18030 Simplified/traditional Chinese Characters Library
• Character Size: ANK Character, Font A: 1.5*3.0mm(12*24dots) Font B: 1.1 * 2.1mm(9*17 dots) Simplified/Traditional: 3.0 * 3.0mm(24*24dots)
• Barcode Character:
• -Extended Character Set: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/ (PC1001)/(PT151,1251)/(PC1257)/(PC864)/(Vietnam)/(Thai)
• -Bar code: 1D Barcode: UPC-A/UPC-E/JANI3(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
• 2D Barcode: QRCODE
• Graphics Printing: Supports bitmap download and print(support each bitmap size Max.8K, download up to 5pcs)
• Smart Power Saving: Support
• Variable Speed Printing: Support
• Dormancy: Support
• Battery: Built-in 1500mAh rechargeable lithium-polymer battery, 7.4V
• Operating System: Compatible with Android, iOS, for Linux, Windows
• Operating Temperature: 0~50℃, Operating Humidity: 20~85%
• Storage Temperature: -20~ 60℃, Storage Humidity: 5~95% (No Dew)

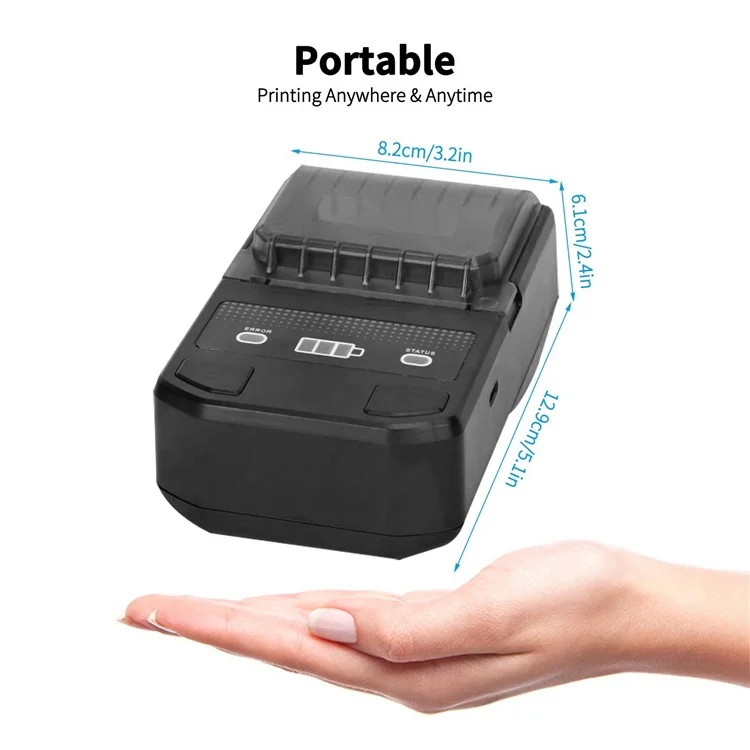

• Item Size: 12.9 * 8.2 * 6.1cm / 5.1 * 3.2 * 2.4in
• Item Weight: 245g / 8.6oz

Notes:

• It does not support for Mac system.

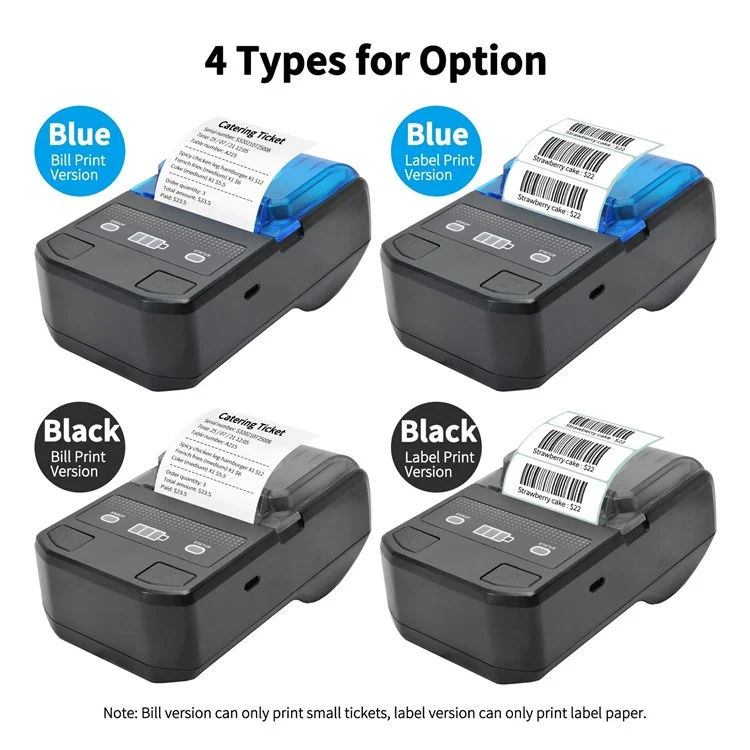

• Bill version can only print small tickets, label version can only print label paper.
• Before using, please follow the driver link to download the printer driver to the computer. If you have any questions, please contact us for help.
• The PC driver download link: //www.dgkinkon.com/res/soft/2021/b2b7e8617220caa3.zip
