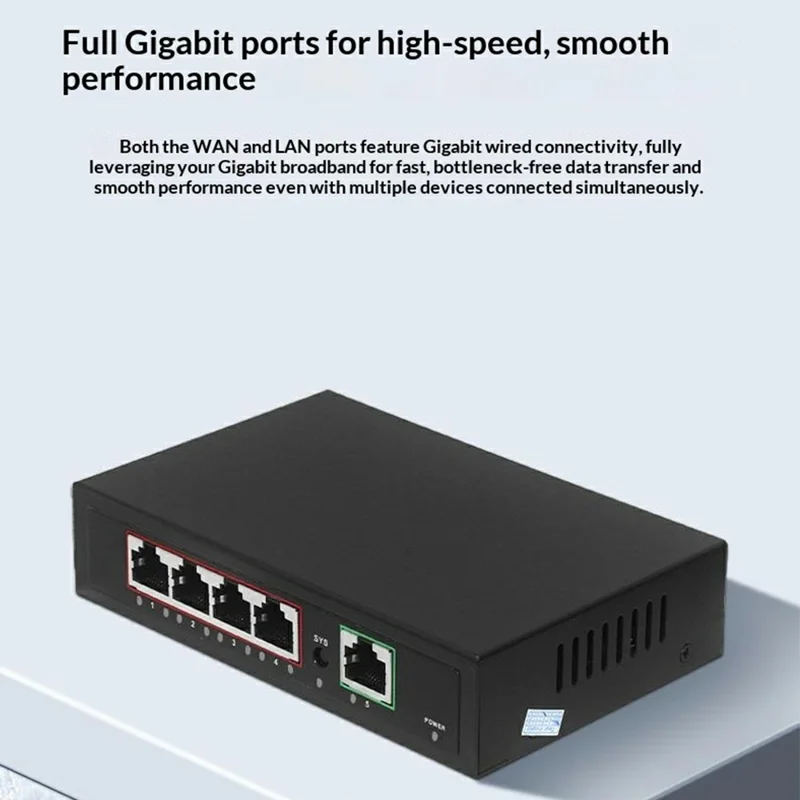

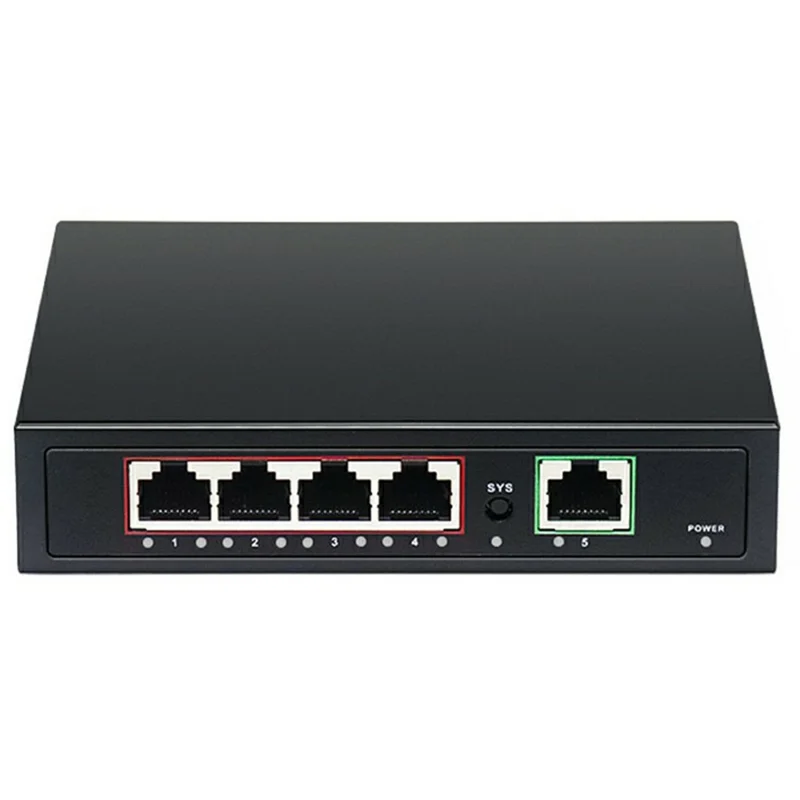

• 【Gigabit Port Configuration】The 5-port controller provides one 100/1000Base-T Ethernet WAN port and four 100/1000Base-T PoE LAN ports for simultaneous data transmission and connected-device power.

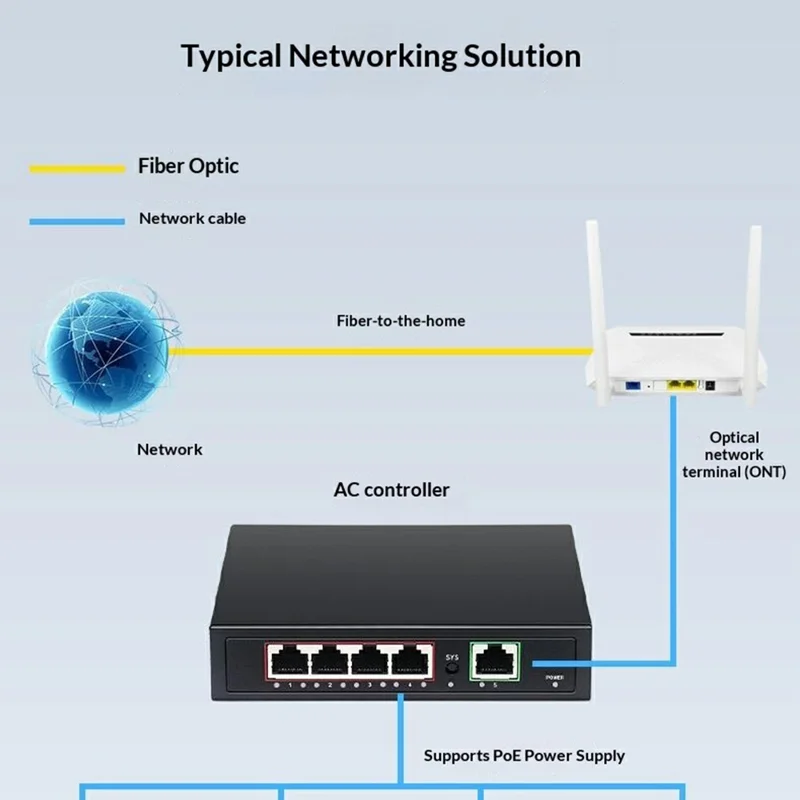

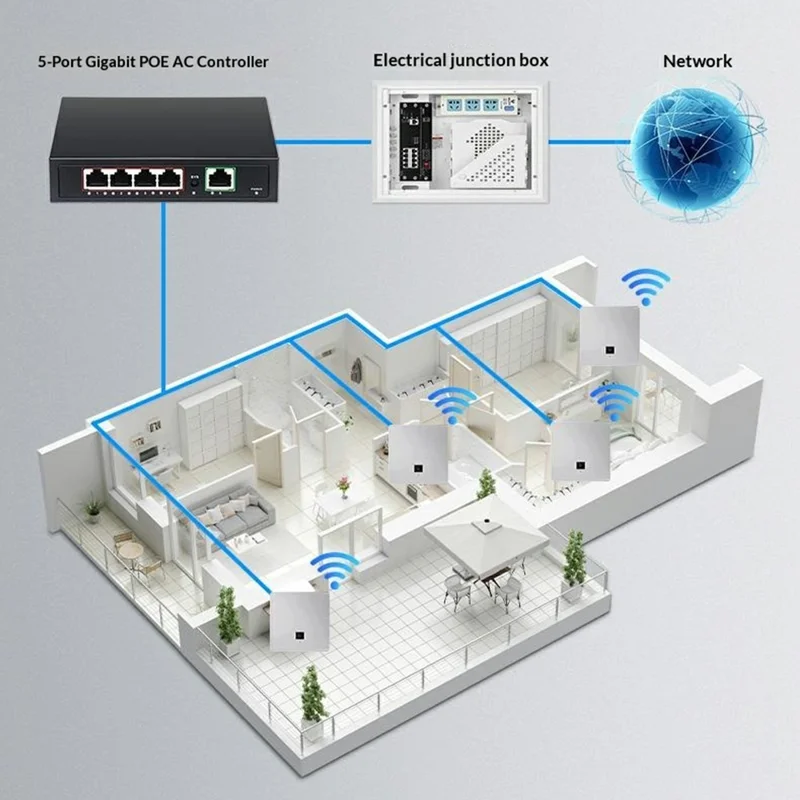

• 【Standard PoE Power Delivery】Standard PoE technology combines power and network data over the PoE ports, supporting centralized wireless access point deployment through a single controller.

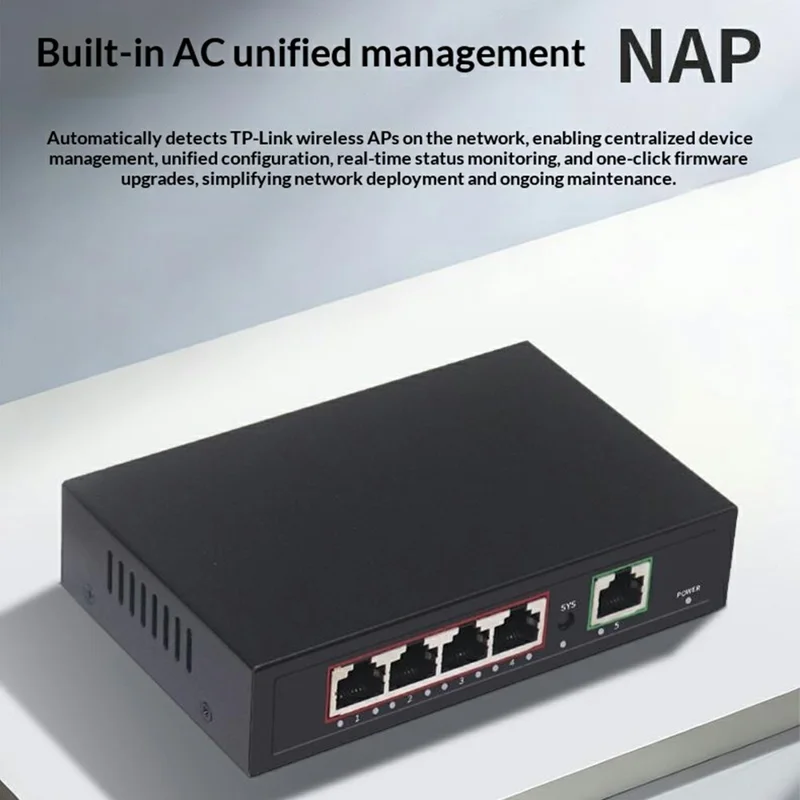

• 【Centralized AP Management】Built-in AC management supports centralized configuration, status monitoring, automatic access point detection, and one-click firmware upgrades for multi-access-point network installations.

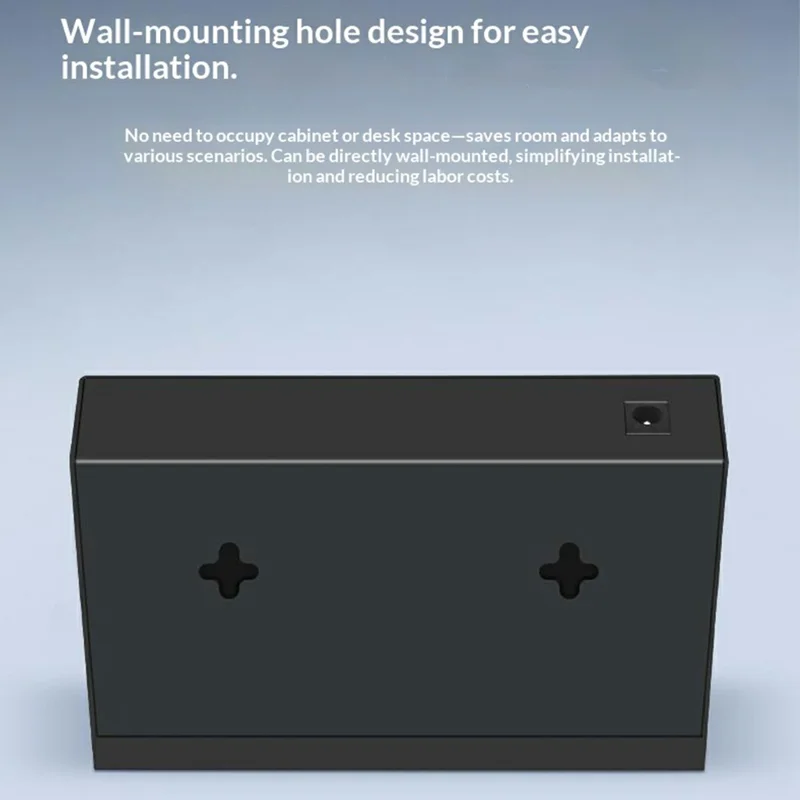

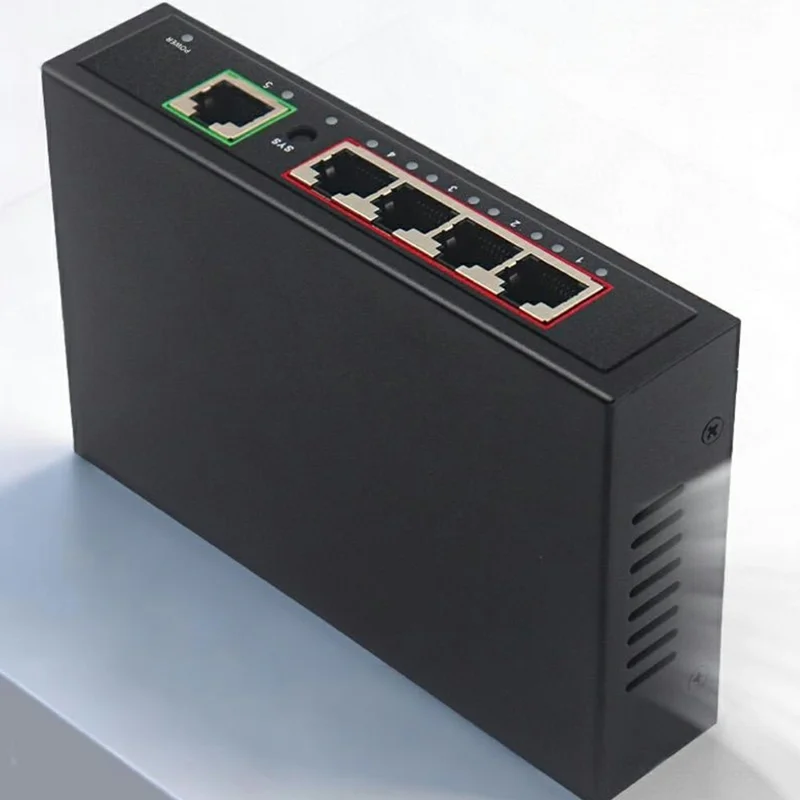

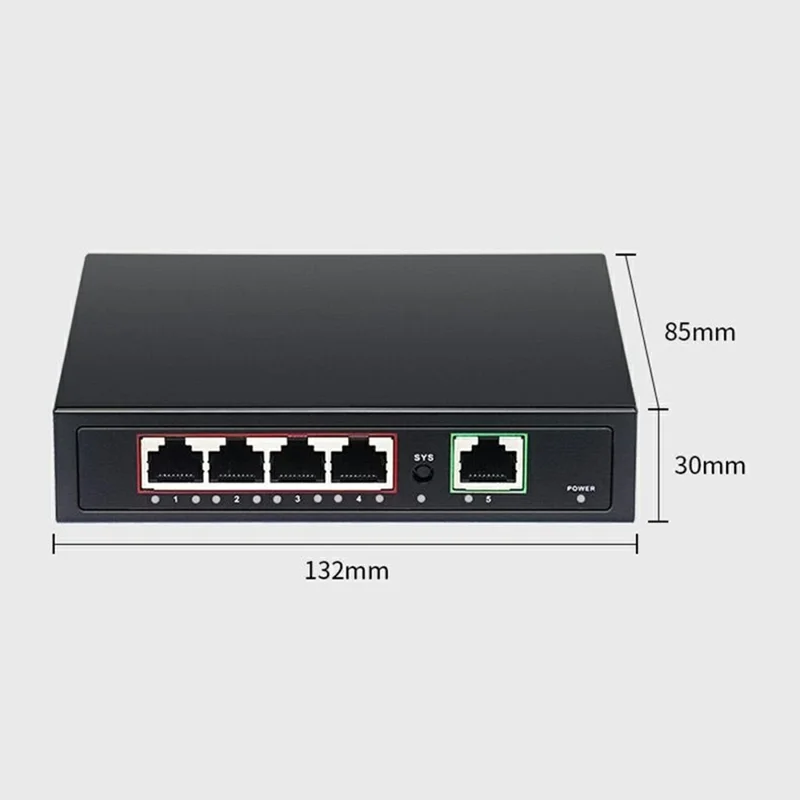

• 【Compact Metal Construction】The metal body measures 132mm x 85mm x 30mm and weighs 265g, providing a compact structure for placement in limited spaces.

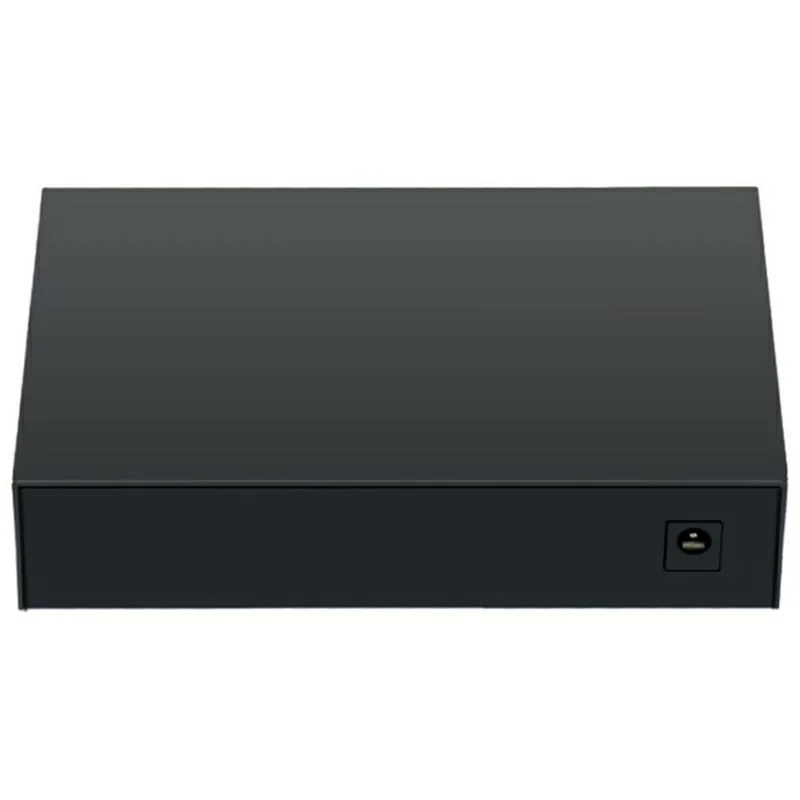

• 【Convenient DC Power Interface】Plug-and-play operation, silent cooling, and a 55 x 21 DC power jack support quick setup and straightforward DC power connection.

Specifications:

• PoE Standard: IEEE 802.3af/at

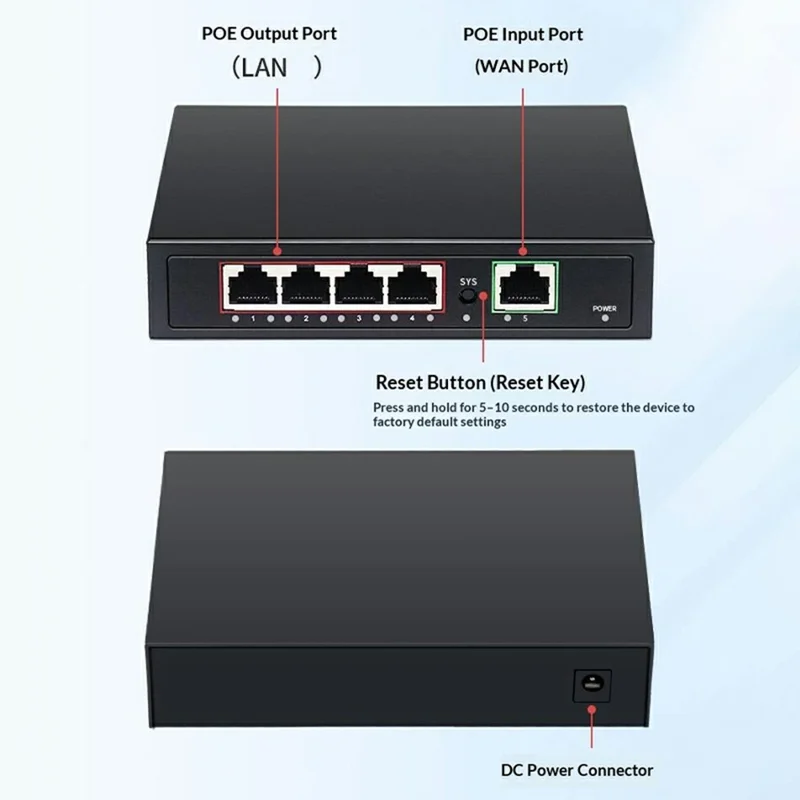

• Ports: 1 x 100/1000Base-T Ethernet WAN port; 4 x 100/1000Base-T PoE Ethernet LAN ports
• Product Dimensions: 132mm x 85mm x 30mm
• Product Weight: 265g
• Material: Metal body
• DC Power Interface: 55 x 21
• Single-Port PoE Output: Up to 30W
• Total PoE Output: DC 52V-0.92A, Max 48W
• Terminal Connections: Up to 250
• Power Input: AC 100-240V, 50-60Hz
• Working Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Working Humidity: 10% to 90% RH, non-condensing
• Storage Humidity: 5% to 90% RH, non-condensing
• AP Capacity: Up to 32 APs via a standard PoE switch
• Cooling: Silent cooling
• Operation: Plug-and-play
