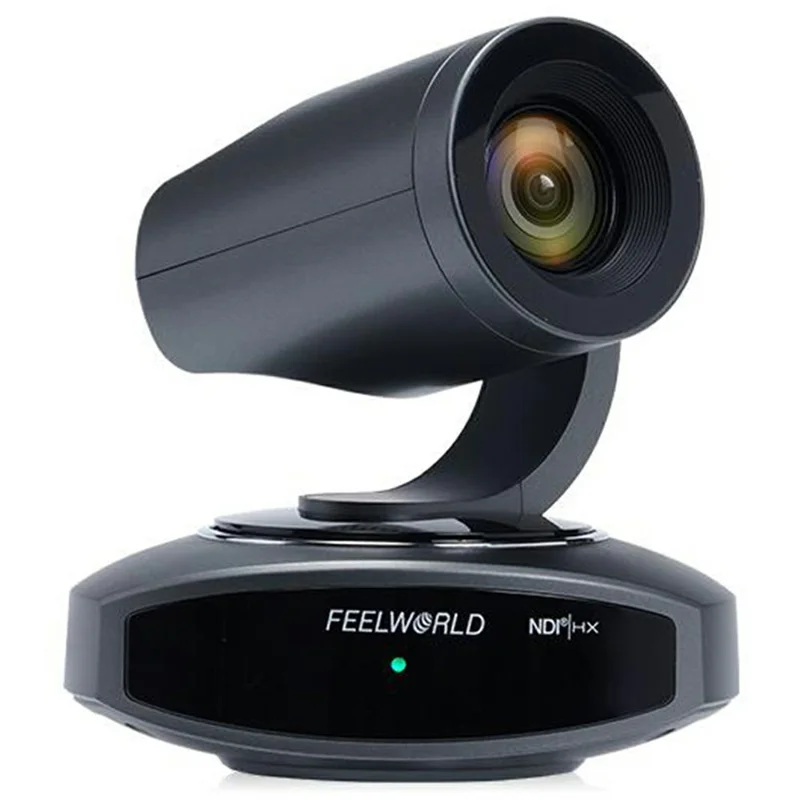

• 【Professional 4K Ultra HD Output】Features 8.29 million pixel high-quality SONY CMOS image sensor with up to 4K@30fps video output, delivering crystal-clear ultra-high-definition video that vividly captures facial expressions and movements.

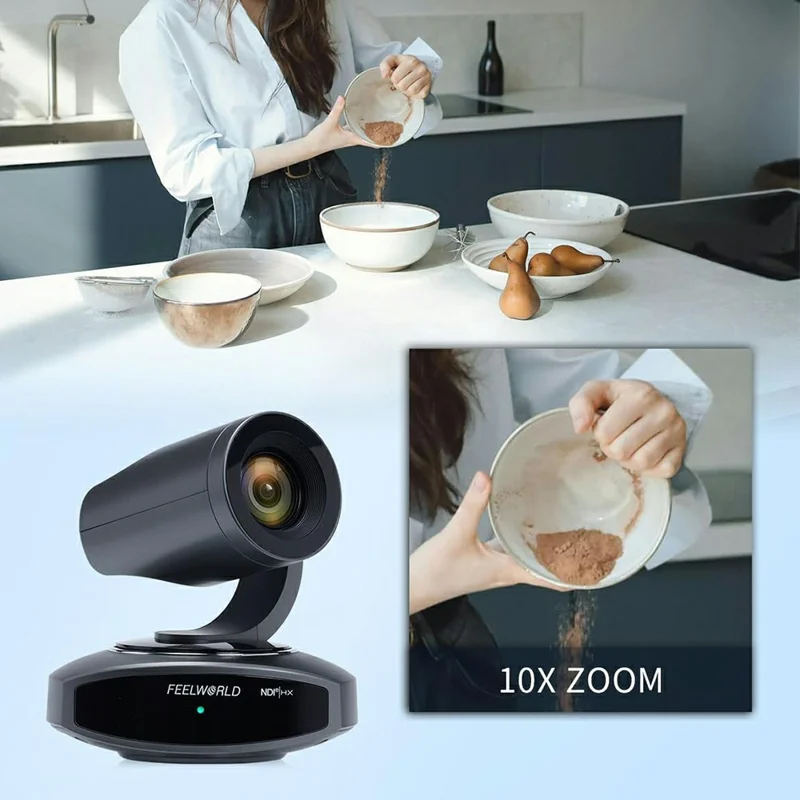

• 【10X Optical Zoom with Wide Angle】Equipped with 10x 67.5° wide-angle optical zoom lens, meeting various shooting scenarios and providing flexible framing options for different applications.
• 【Multiple Video Output Interfaces】Rich connectivity options including HDMI, USB, and IP network interfaces, easily handling various video production requirements and ensuring seamless integration with existing equipment.
• 【PoE Power Support】Supports Power over Ethernet (PoE), eliminating complex wiring installation for more convenient and efficient setup.
• 【Advanced Auto Focus】Intelligent auto-focus function accurately and quickly captures every shot, ensuring sharp and clear images at all times.
• 【Superior Noise Reduction】2D & 3D noise reduction technology further reduces noise while maintaining image clarity, delivering professional-quality video even in low-light conditions.
• 【High-Speed Silent PTZ Rotation】Ultra-quiet pan-tilt-zoom rotation enables multi-angle comprehensive shooting without disturbing the environment.
• 【Real-time AI Tracking】Features real-time AI portrait tracking and area tracking capabilities for automated subject following and enhanced shooting efficiency.

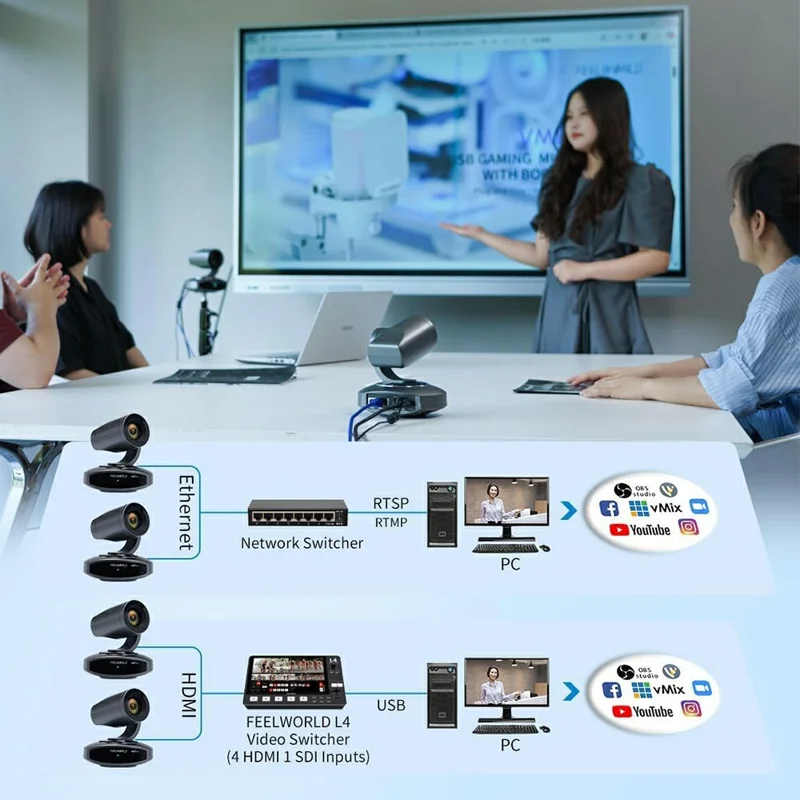

• 【Versatile Applications】Perfect for online education, live streaming, video conferencing, telemedicine, and other professional broadcasting applications.

Specifications:

• Model: NDI10X
• Image Sensor: 1/2.8 inch high-quality CMOS sensor
• Effective Pixels: 8.29M, 16:9
• Viewing Angle: Horizontal: 7.6° (narrow angle) ~ 67.5° (wide angle)
• Aperture Ratio: F1.76 ~ F3.0±5%
• Digital Zoom: 16X
• Optical Zoom: 10X
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• Digital Noise Reduction: 2D & 3D
• White Balance: Auto/Manual/One-key white balance/Specified color temperature
• Focus Mode: Auto/Manual/One-key focus
• Exposure Mode: Auto, Manual, Shutter priority, Aperture priority, Brightness priority
• Aperture: F1.8 ~ F11, CLOSE
• Shutter Speed: 1/25~1/20000
• Signal-to-Noise Ratio: >50dB

Interface Functionality and Performance:

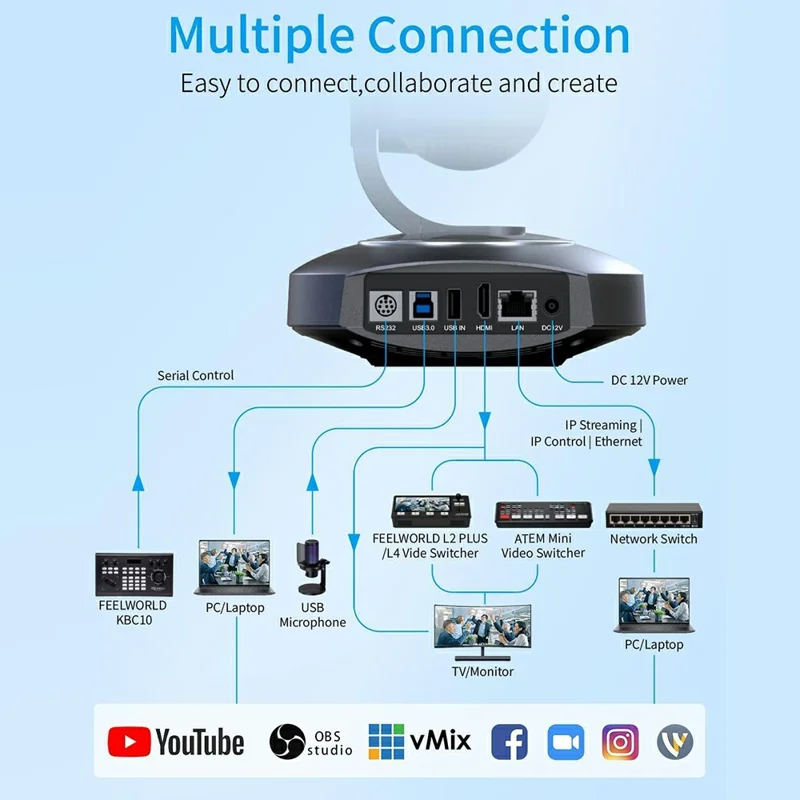

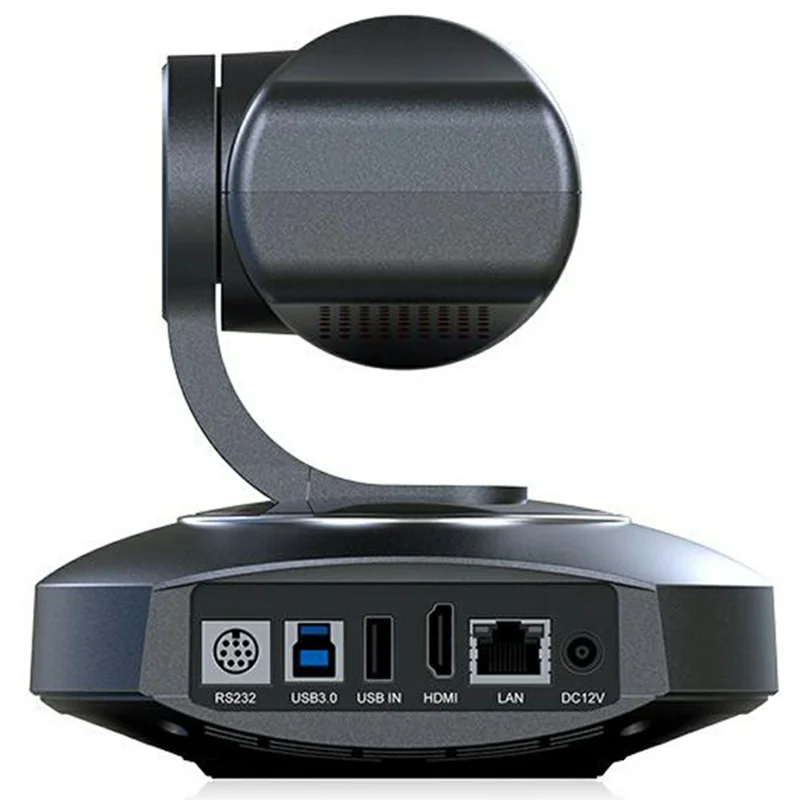

• Interfaces: HDMI, LAN (PoE support), USB3.0, USB2.0, RS232-IN, DC12V power
• Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12
• Audio Compression Format: AAC
• Network Interface: 100M Ethernet port, PoE power support, audio and video output support

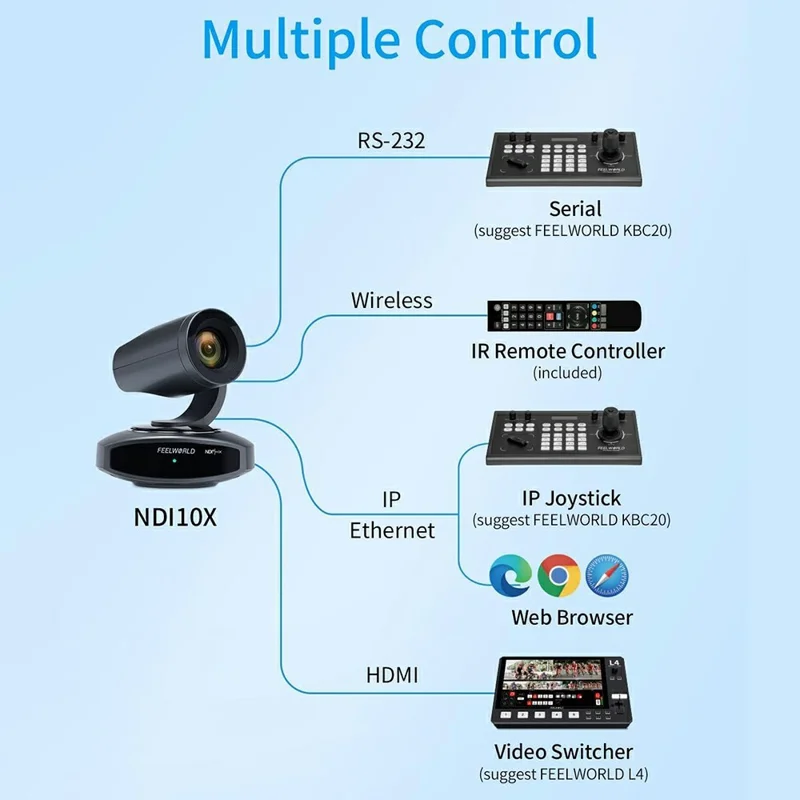

• Control Interface: RS232-IN serial port
• Communication Protocol: VISCA/Pelco-D/Pelco-P, supports baud rates 115200/38400/9600/4800/2400
• USB Communication Protocol: UVC (Video Communication Protocol), UAC (Audio Communication Protocol)
• Network Protocols: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI
• Power Interface: HEC3800 power socket (DC12V)

Gimbal Parameters:

• Horizontal Rotation: -125°~+125°
• Tilt Rotation: -30°~+30°
• Horizontal Control Speed: 0.1~65°/sec
• Tilt Control Speed: 0.1~35°/sec
• Preset Speed: Horizontal: 65°/s, Tilt: 35°/s

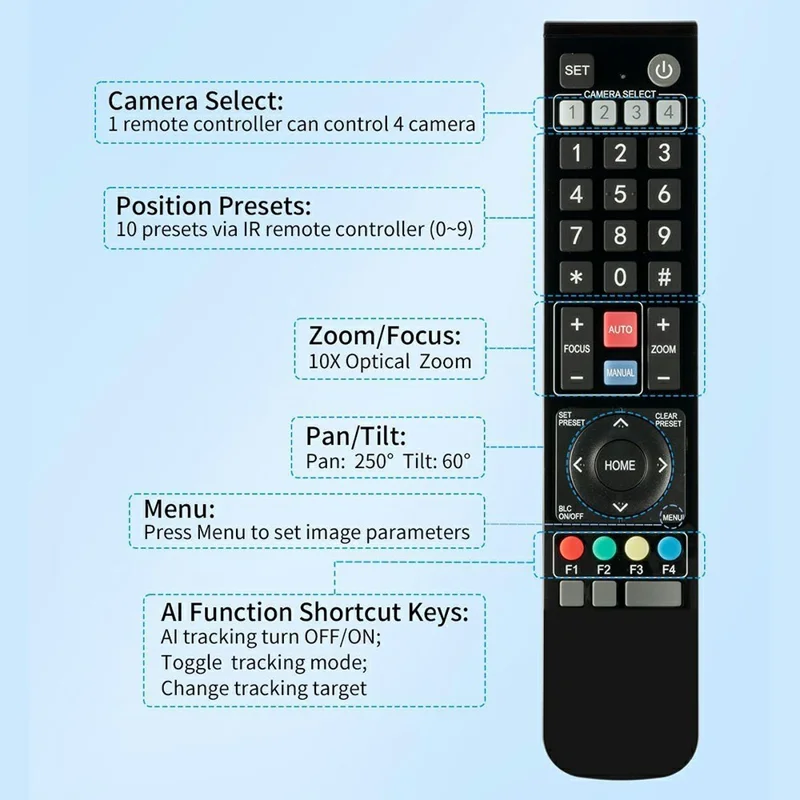

• Preset Positions: Up to 255 user-configurable preset positions (10 via remote control)

Other Parameters:

• Input Voltage: DC12V
• Input Current: <1.2A
• Power Consumption: ≤13.3W
• Storage Temperature: -10℃~+70℃
• Storage Humidity: 20%~95%
• Working Temperature: -10℃~+50℃
• Working Humidity: 20%~80%
• Dimensions (W*H*D): 152×155×126mm
• Weight: 0.9kg
