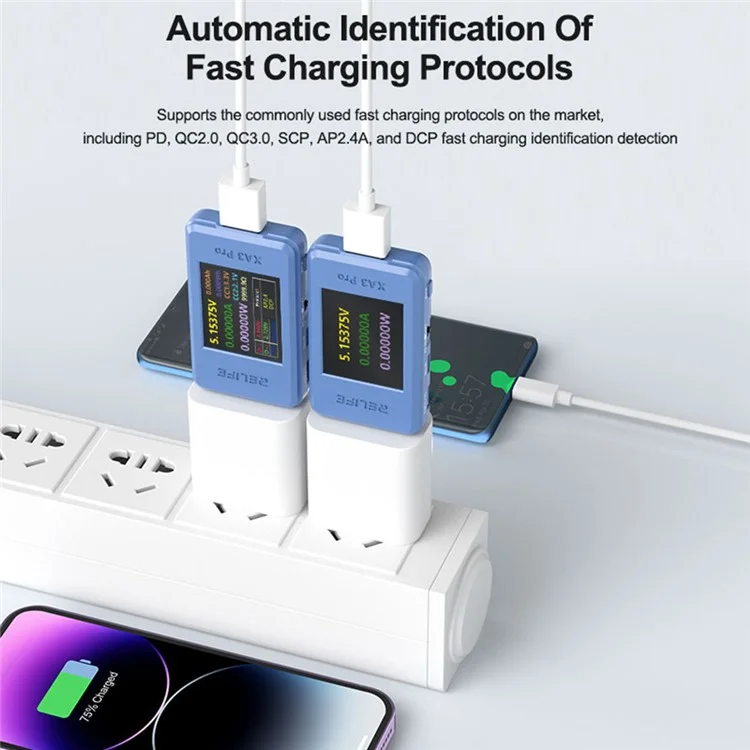

• 【Automatic Identification】Compatible with multiple devices and multiple fast charging protocols
• 【HD Color Screen Display】1.77-inch TFT LCD display, real-time detection of multiple parameters

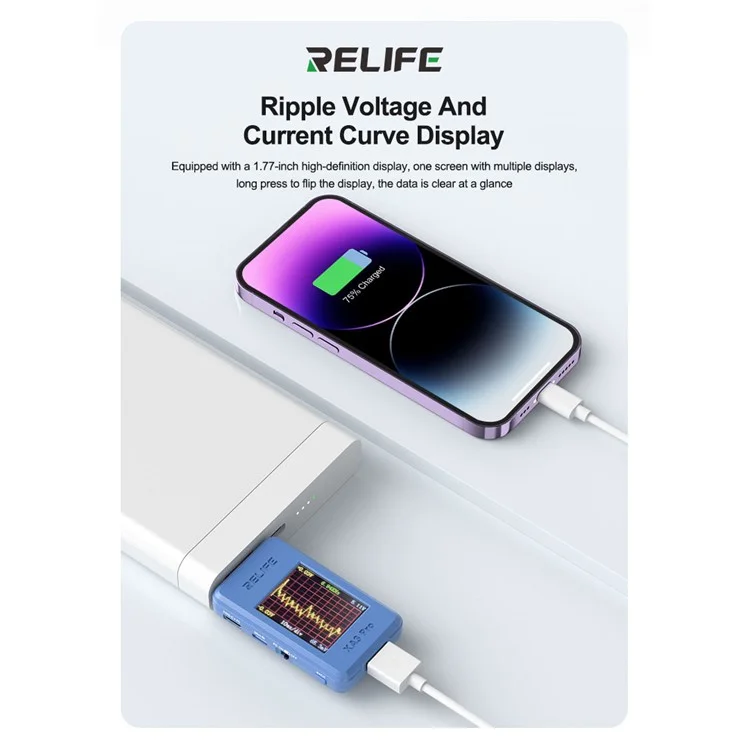

• 【Digital Curve Display】Ripple, voltage and current curve display
• 【Six-digit Display】Real-time monitoring, accurate values
• 【6.5A High Current】Supports 6.5A high current measurement, wide range of uses

Specifications:

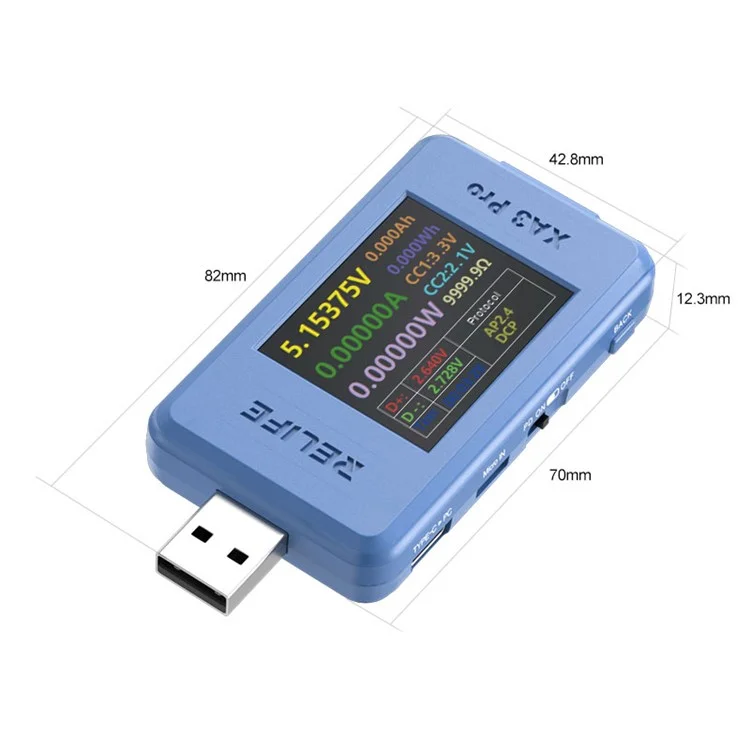

• Product size: 82*42.8*12.3mm
• Voltage range: 4~24V
• Current range: 0~6.5A
• Power range: 0~156W
• D+/D- voltage range: 0~3.3V
• Capacity range: 0~9999.99Ah
• Power consumption range: 0~9999.99Wh
• Cable internal resistance range: 0~9999.99Ω
• Resolution: 0.00001 (V/A/W)
• Sampling rate: 3.2Msps
• Display: 1.77-inch TFT LCD
