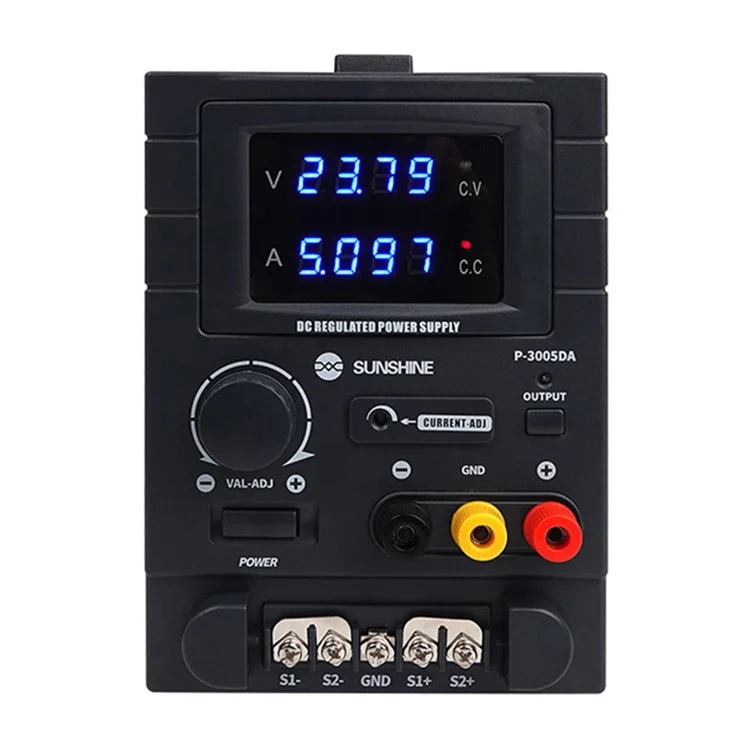

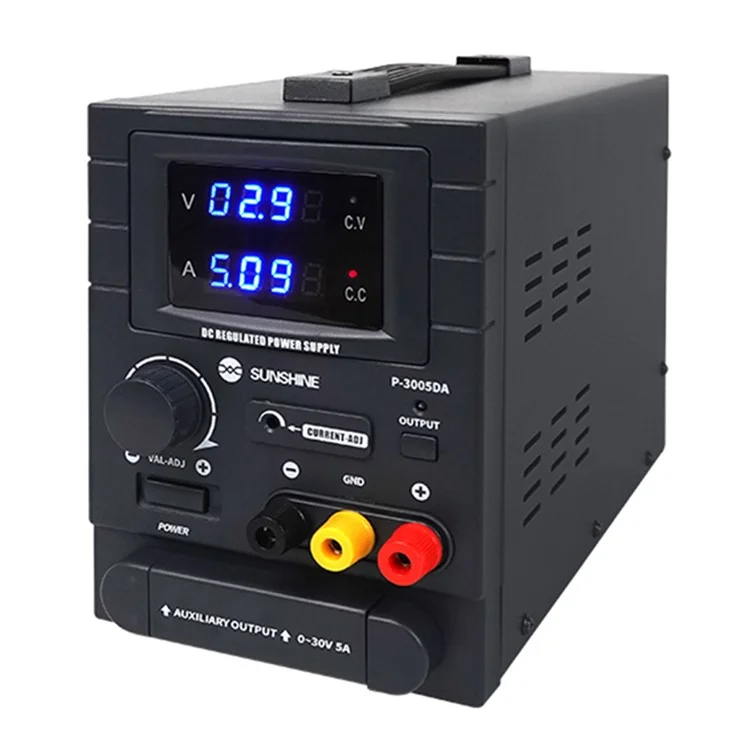

SUNSHINE P-3005DA 30V 5A 4 Digital Display Regulated Power Supply DC Mobile Phone Repair Intelligent Power Source - EU Plug
DC Power Supply is widely used in various environments such as institutions laboratories, automated test equipment, electronic test equipment, factory production line etc.
-

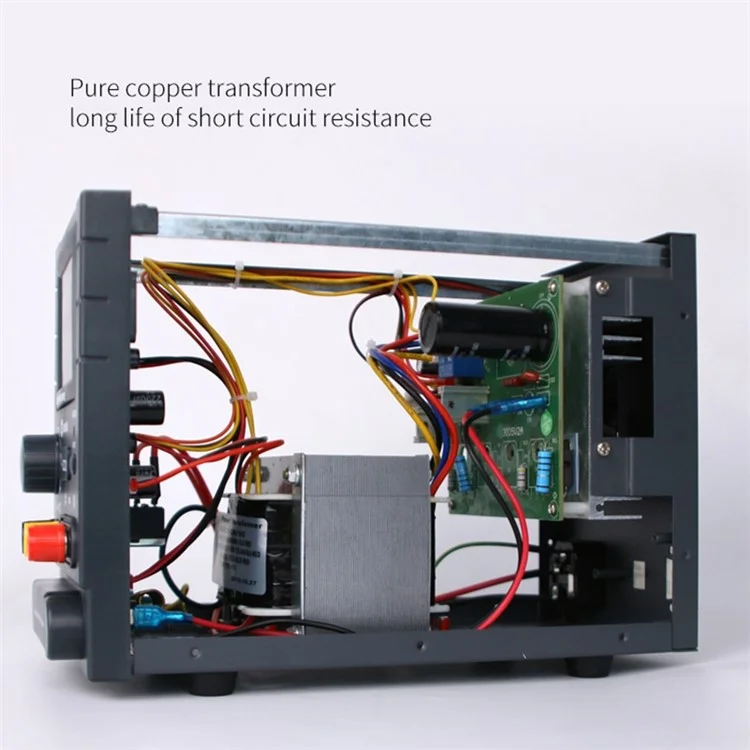

High-performance linear power supply
-

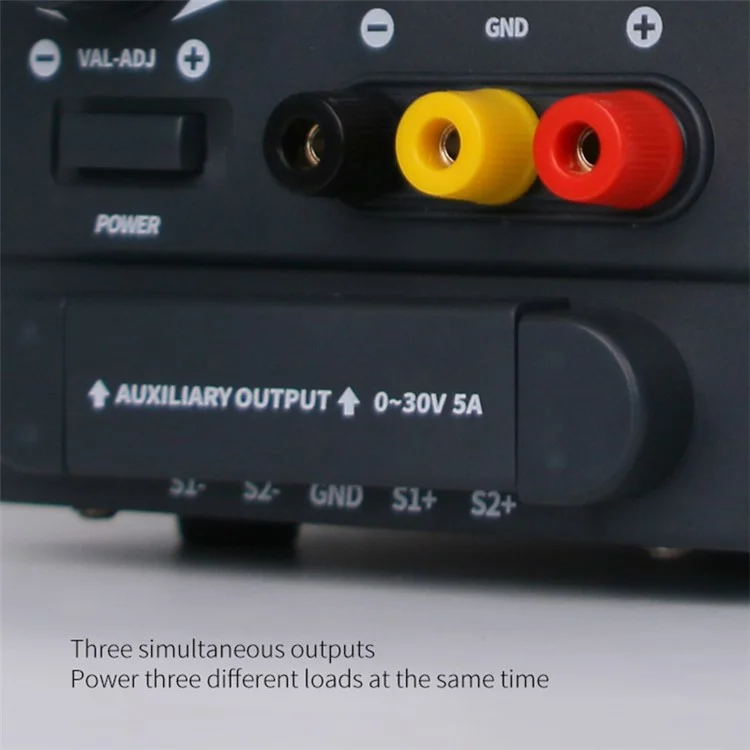

Multiple protection functions, with single three-point simultaneous output function
-
Bold high quality terminal with copper core
- New design, high-precision 5A DC power supply makes maintenance easier
Specifications:
| Brand | SUNSHINE |
| Model | P-3005DA |
| Product | DC power supply |
| Size | 128 (W)*78 (H)*188 (D) mm |
| Weight | 4.515kg |
| Output voltage | 0-30V |
| Output current | 0-5A |
| The channels number | Single channel |
| Output resolution | Voltage: 1mV electric current: 1mA |
| Display type | Voltage/electric current/4-digit display |
| Load effect | Voltage: ≤0.01%+2mV electric current: ≤0.02%+10mA |
| Power supply effect | Voltage: ≤0.01%+3mV electric current: ≤0.02%+3mA |
| Set accuracy | Voltage: ≤0.5%+20mV electric current: ≤0.01%+10mA |
| Ripple | Voltage: ≤2mVrms electric current: ≤3mArms |
| Output temperature coefficient | Voltage: ≤150ppm electric current: ≤150ppm |
