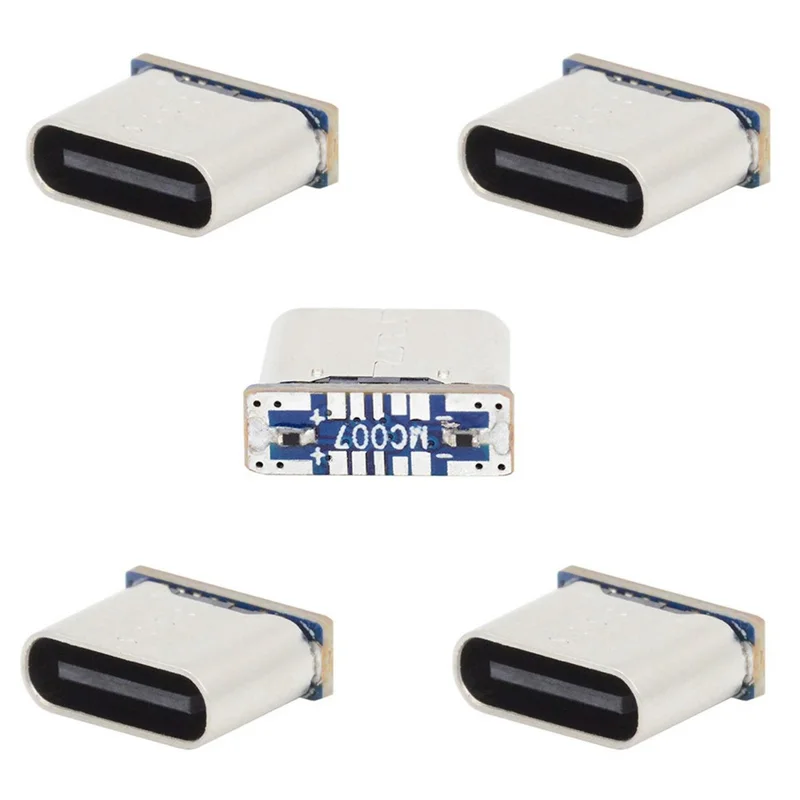

CN-037 5Pcs DIY Solder Type C Female Socket Connector Replace for Micro-USB 5Pin Female SMT Type DC 5V

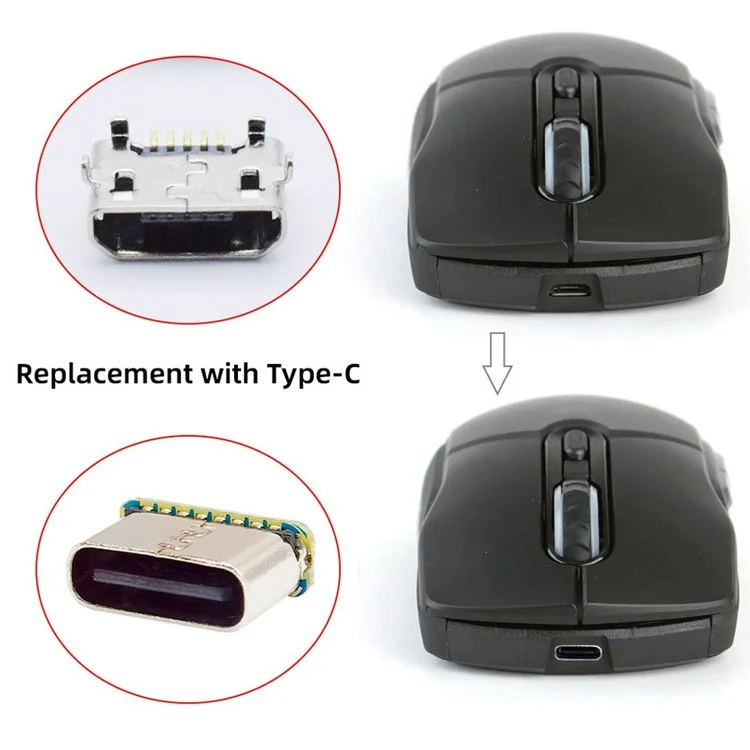

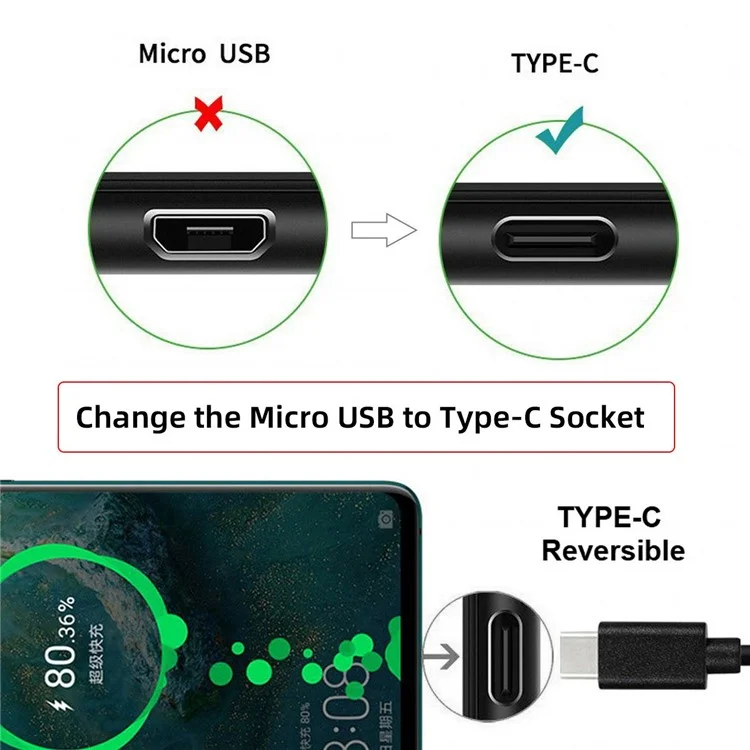

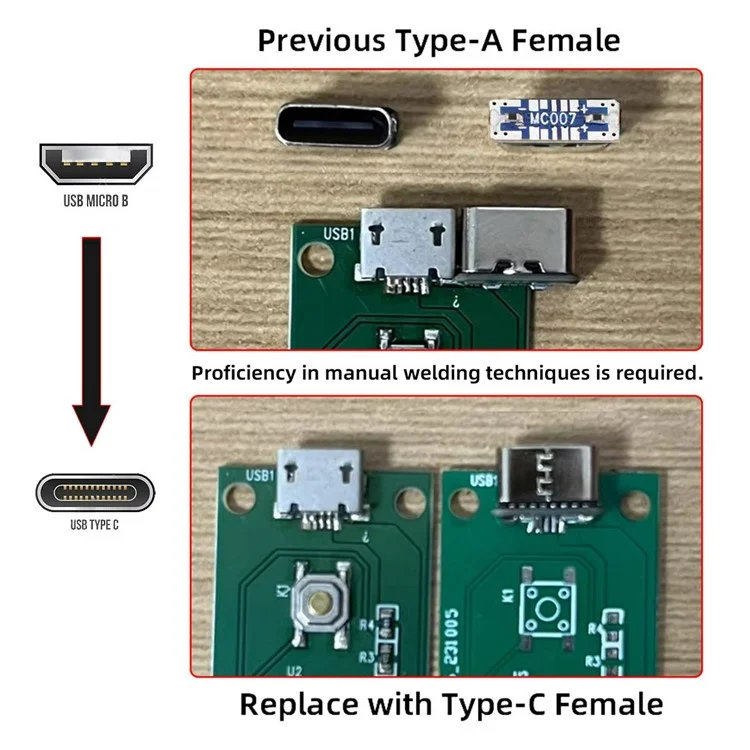

- 【Replacement for Micro USB Connector】The Type-C female connector is replaced for Micro USB 5Pin Female; For DIY OEM solder use.

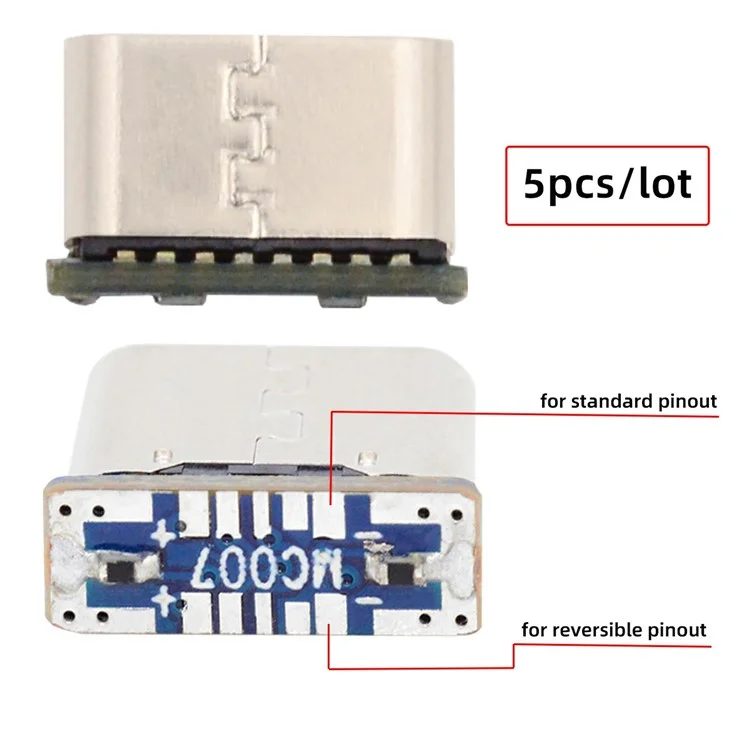

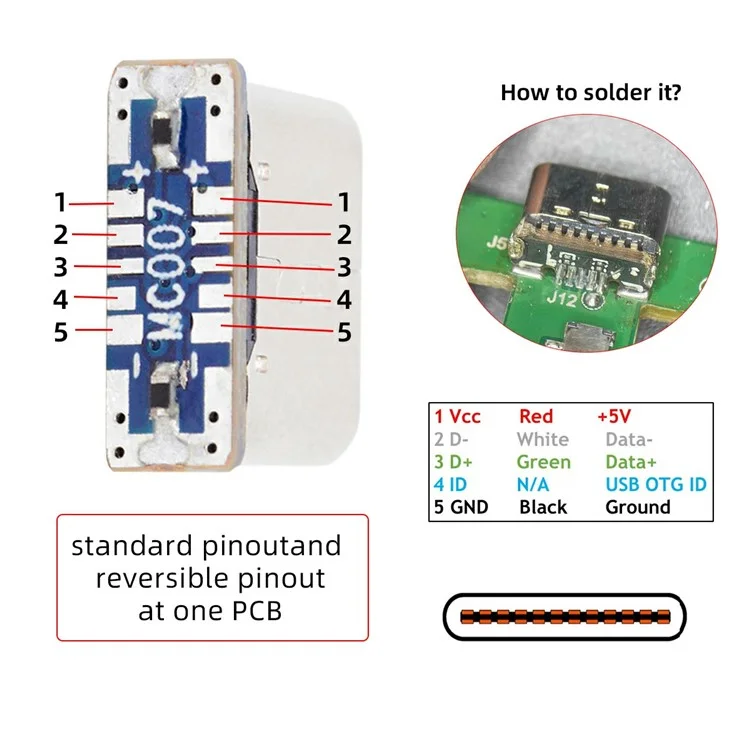

- 【Pinout Configuration Warning】Two pinout at the connector, Please check the micro usb pinout is standard or reversible pinout when you solder it.
- 【Fast Power & Data Transfer】Fast power and data,Offers a throughput of up to DC 5V 2A when used with a Type-C USB2.0 power and device.
- 【USB 2.0 Compliance & Speed】Compliant with USB Base Specification 2.0, Output USB Type-C interface. Compliant with USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
- 【Wide Peripheral Compatibility】Connect Camera, MP3, Speaker, and any peripheral using Micro USB connector.
Notes:

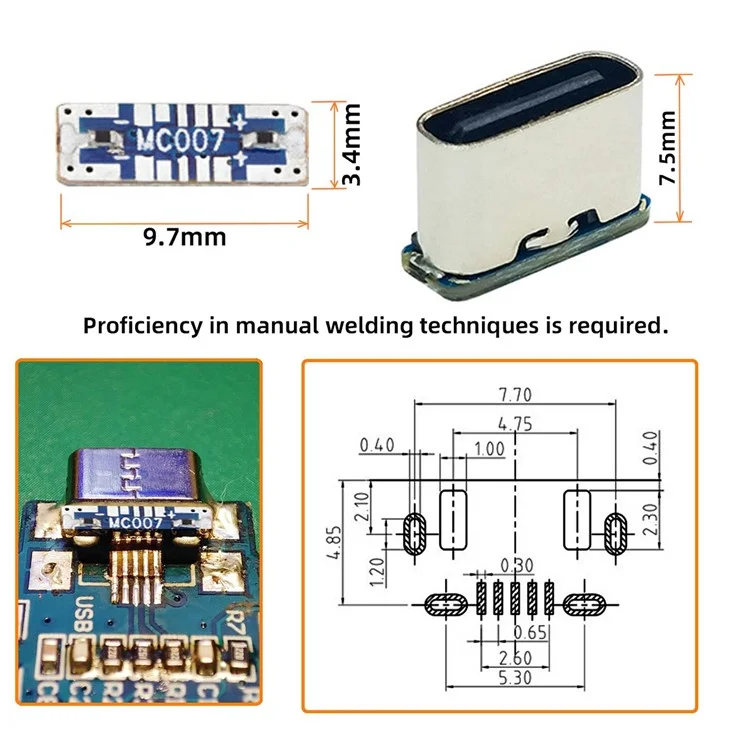

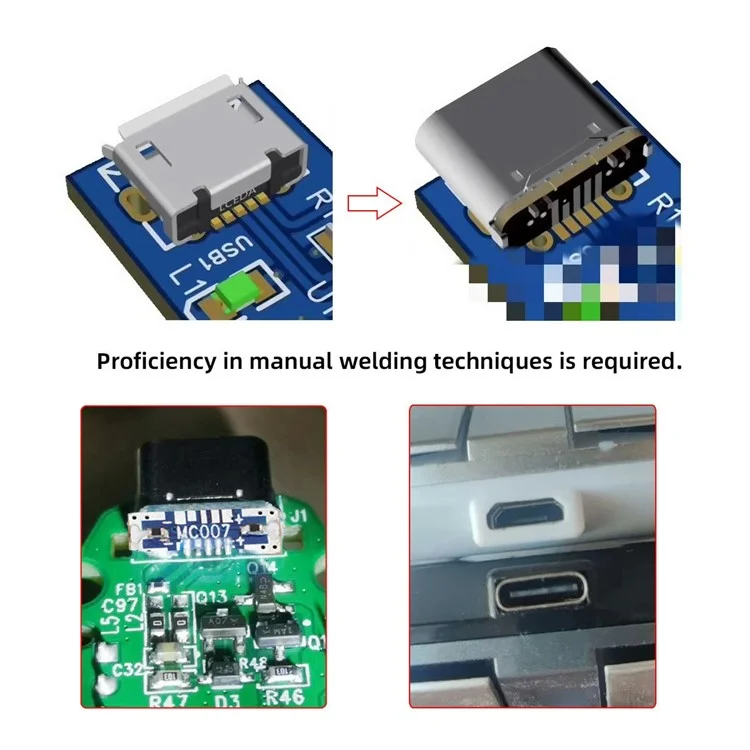

- You need to solder the connector yourself. Proficiency in manual soldering techniques is required.
- The hole of Micro-USB is larger than that of Type-C. You need to repair the hole yourself when changed the plug.
