• 【Next-Generation WiFi 7 Performance】Equipped with cutting-edge WiFi 7 dual-band technology, delivering ultra-high wireless speeds up to 5100Mbps (5GHz: 4323Mbps, 2.4GHz: 688Mbps) for seamless connectivity and superior network performance.
• 【Weather-Resistant Design】IP67 waterproof and dustproof rating with 15KV ESD protection and 4KV lightning protection, specifically engineered for extreme outdoor environments and harsh weather conditions.

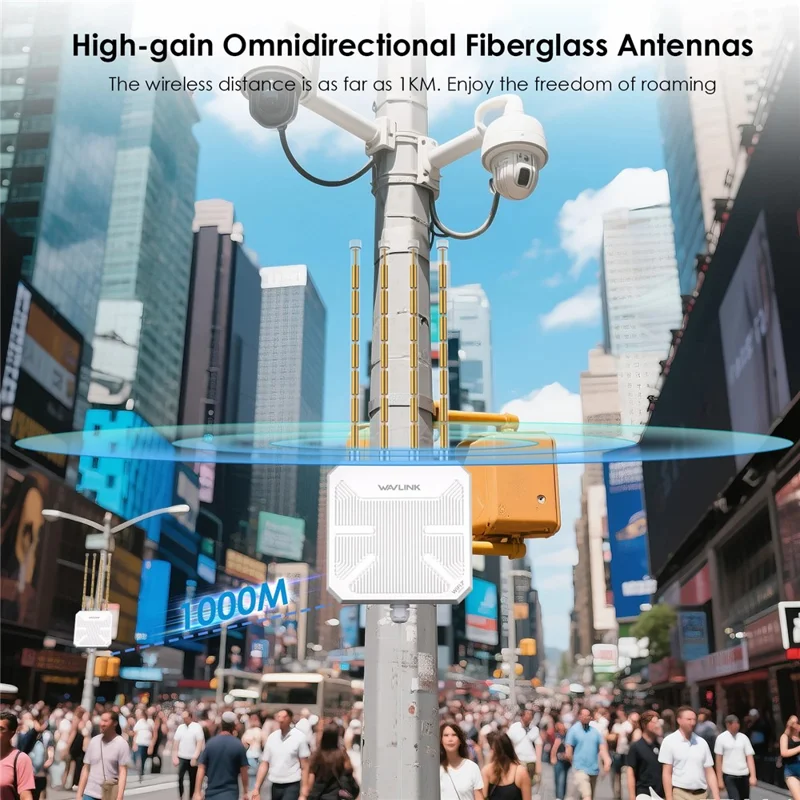

• 【High-Gain Fiberglass Antennas】Four 8dBi omnidirectional antennas with durable fiberglass construction expand signal coverage range, withstand severe conditions, and provide exceptional WiFi performance with extended service life.
• 【Advanced WPA3-SAE Security】WPA3-SAE encryption significantly reduces risks of network eavesdropping, man-in-the-middle attacks, and data theft, ensuring robust network security for outdoor deployments.

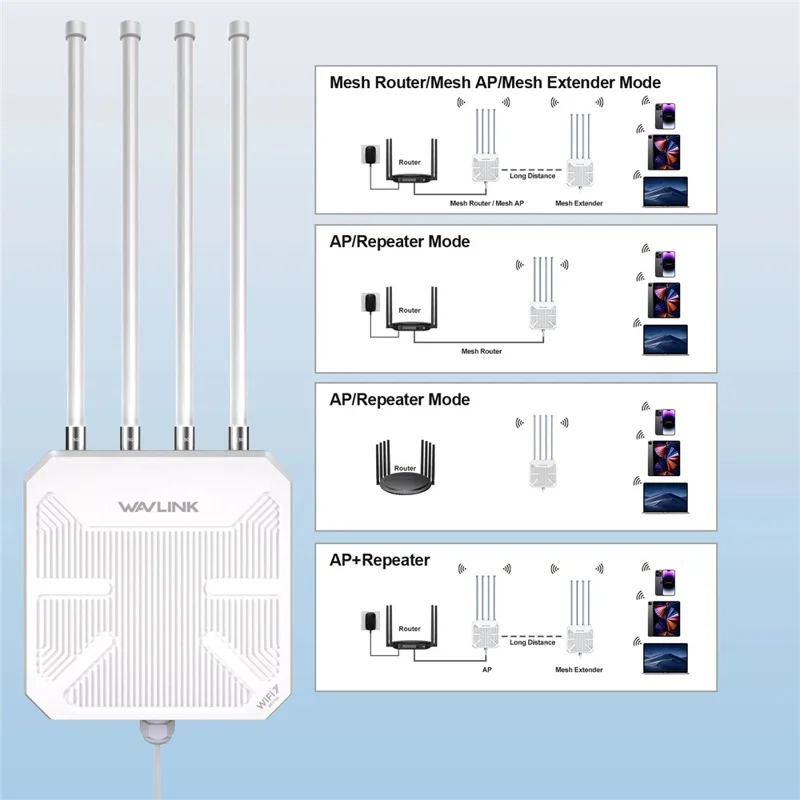

• 【Versatile Operation Modes】Supports multiple deployment configurations including Mesh AP, AP, Repeater, Mesh Router, and Mesh Extender modes, providing flexible networking solutions for various outdoor scenarios.

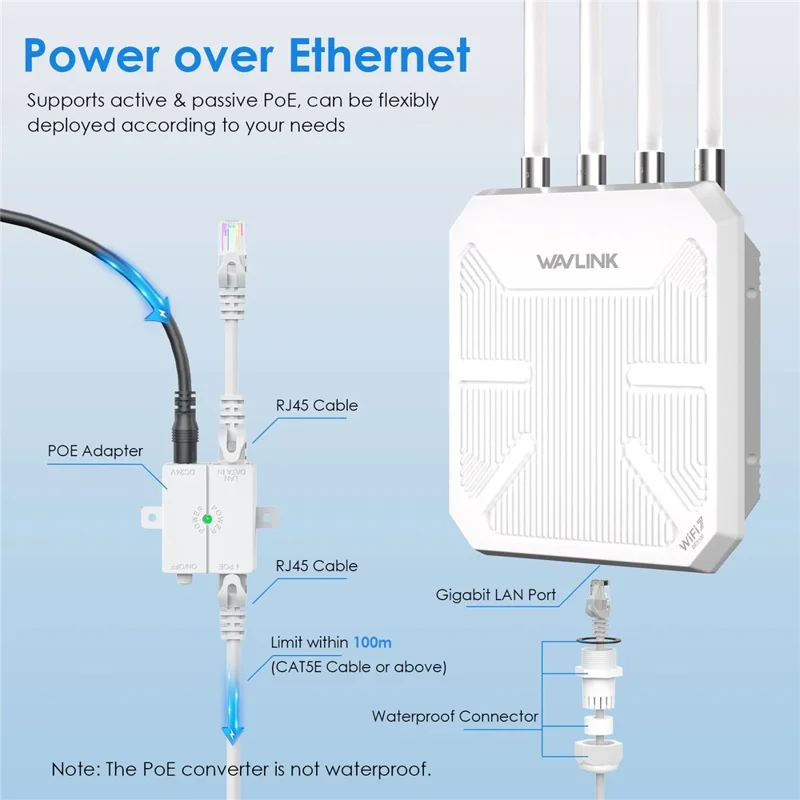

• 【Dual PoE Support】Compatible with both active and passive PoE power options, allowing flexible installation with appropriate PoE converters based on your infrastructure requirements.
• 【Extended Range Coverage】Outdoor transmission distance up to 1000 meters with optimized antenna design for long-range wireless connectivity and reliable performance.

Specifications:

• Wireless Standard: IEEE 802.11be/ax/ac/a/n/g/b
• Frequency Bands: Dual-band 2.4GHz + 5GHz
• Wireless Speed: Up to 5100Mbps (5GHz: 4323Mbps, 2.4GHz: 688Mbps)
• Ethernet Interface: 1 x 2.5G WAN/LAN port
• Antennas: 4 x 8dBi + 1 x 5dBi high-gain omnidirectional antennas
• Transmission Power: 2.4G: Max 27dBm, 5G: Max 27dBm
• Receive Sensitivity: -95 dBm
• Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK-MIX
• Power Supply: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE)
• Protection Rating: IP67 waterproof/dustproof, 15KV ESD, 4KV lightning protection

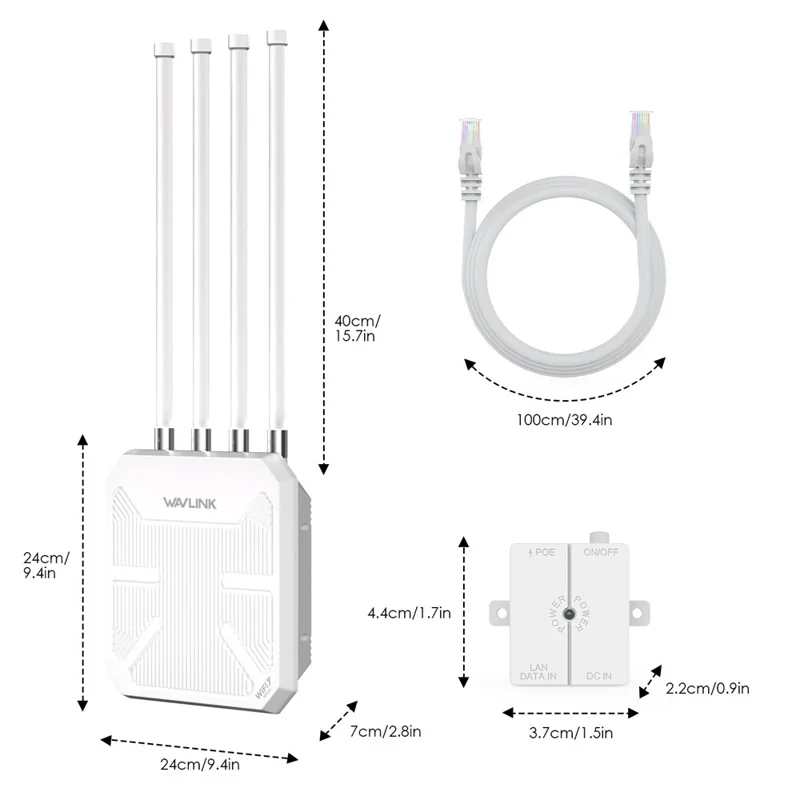

• Dimensions: 24cm x 24cm x 7cm (9.4 in x 9.4 in x 2.8 in)
• Total Height (with antennas): 40cm (15.7 in)
• Operating Distance: Up to 1000 meters outdoor (conditions dependent)
• PoE Support: 802.3 AT/AF PoE and Passive PoE
• Buttons: 1 x PAIR & Reset
• LED Indicators: 1 x SYS

Notes:

• 1. The PoE converter is not waterproof; please install indoors.
• 2. Please ensure your Ethernet cable is CAT5E or higher certified and shorter than 100 meters/328 feet.
• 3. Please install the product 2-3 meters above the ground for better performance.
• 4. In mesh mode, the WN573HBE2 supports interfacing with WN586X3, WN572HP3 (*requires latest firmware), and WN573HBE2.
