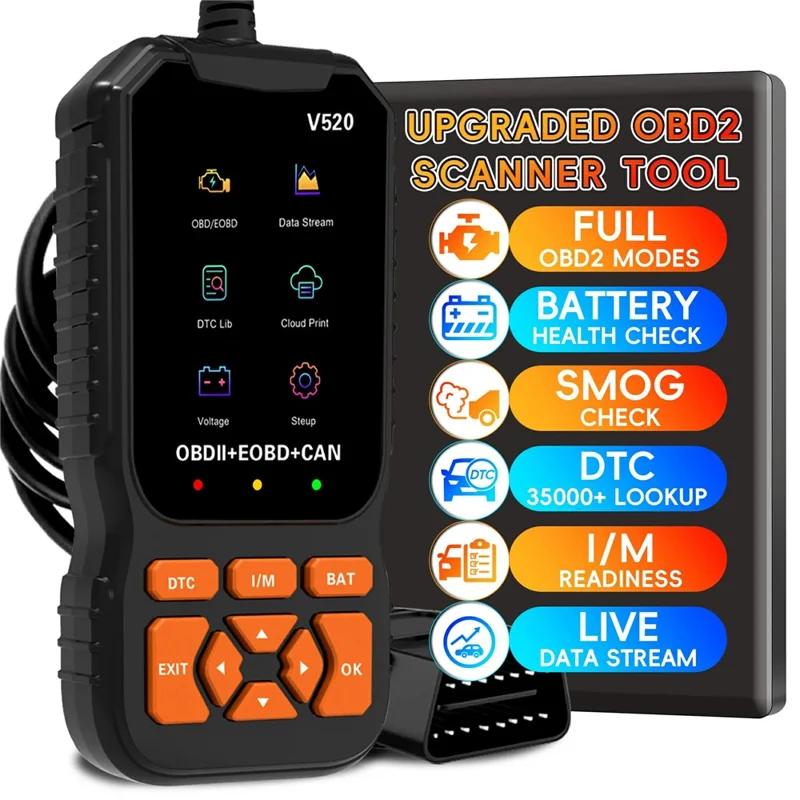

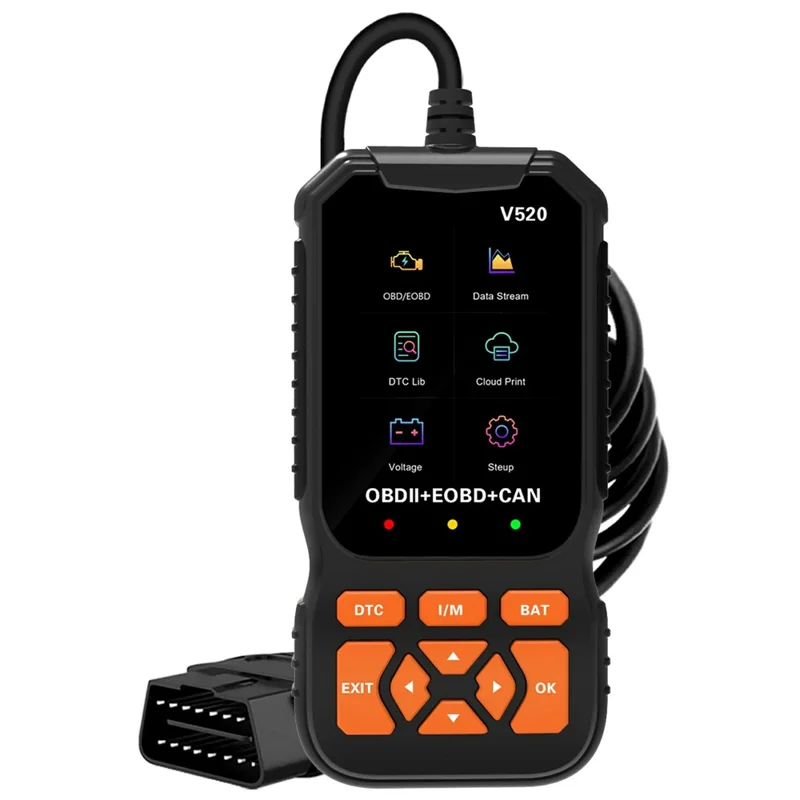

• 【Comprehensive Diagnostic Tool】The V520 OBD2 car scanner is a professional diagnostic tool with enhanced capabilities for OBDII/EOBD engine checks, supporting vehicles manufactured from 1996 onwards.

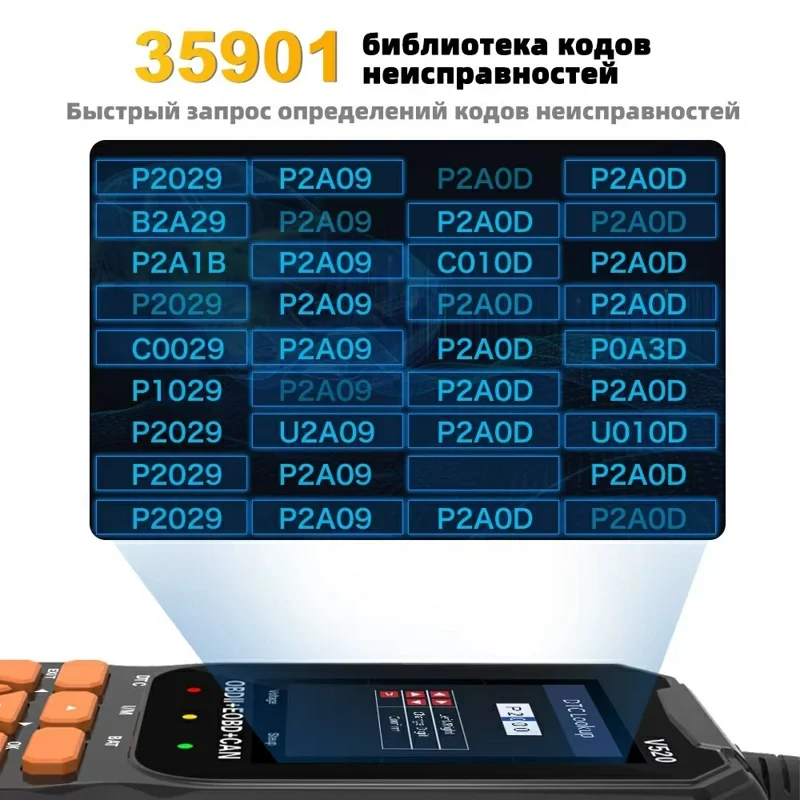

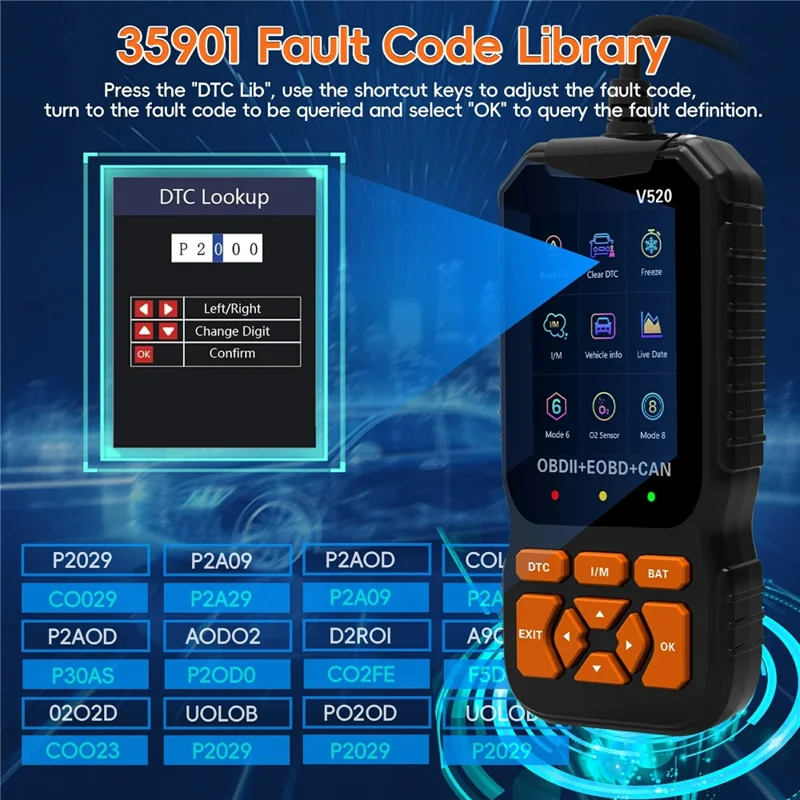

• 【Extensive DTC Database】With an built-in database of 35,901 DTCs, this scanner surpasses older models, allowing for more comprehensive fault diagnosis and easier troubleshooting, even for beginners.

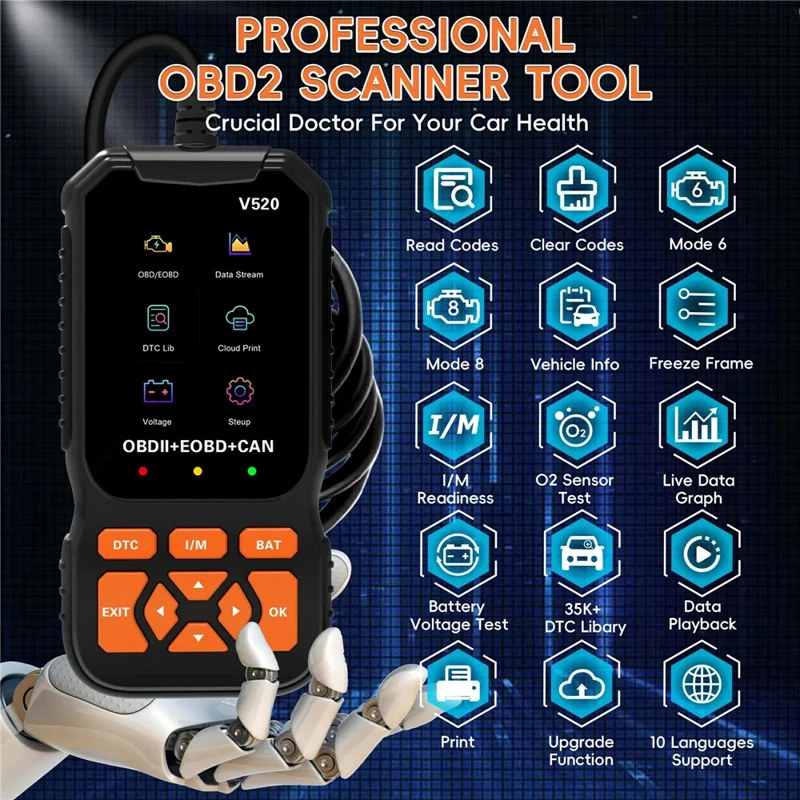

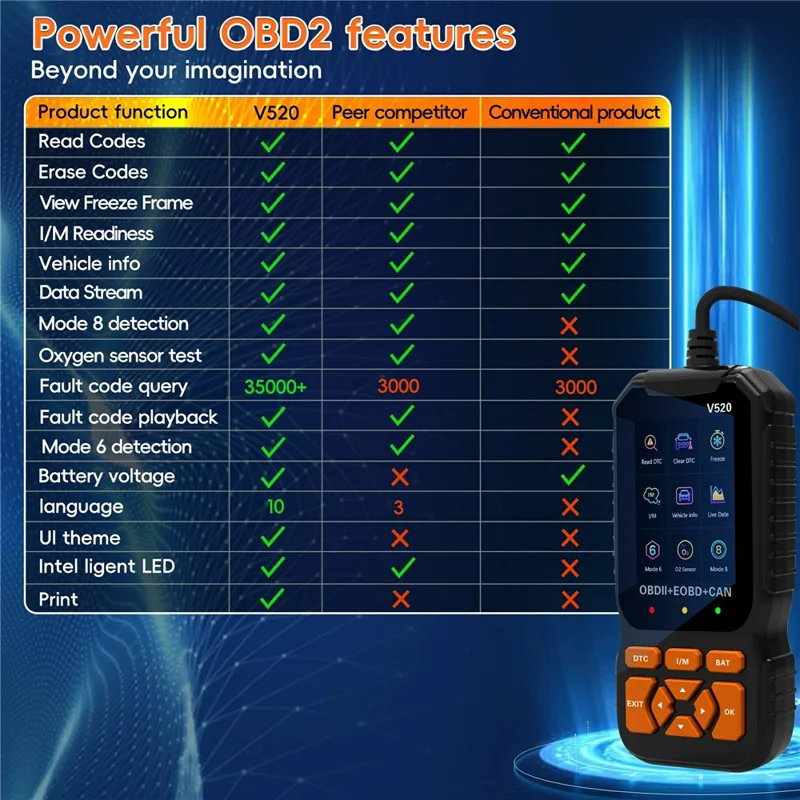

• 【Complete OBD2 Functions】Features include reading/erasing codes, viewing freeze frame data, checking engine readiness status, vehicle information, data stream, O2 sensor tests, Mode 6, Mode 8, cloud printing, and battery voltage testing.

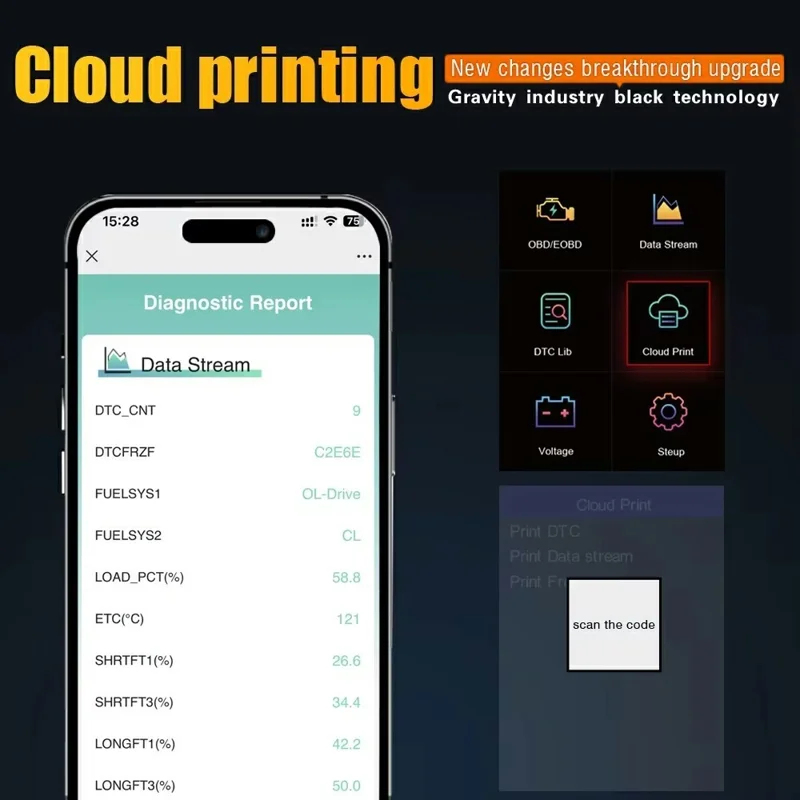

• 【Cloud Printing Capability】Easily access and share diagnostic data by scanning a QR code with your smartphone, enabling you to save, print, or send results to a professional technician.
• 【Wide Compatibility】This scanner works with most vehicles post-1996, featuring a universal OBD interface for easy plug-and-play operation.

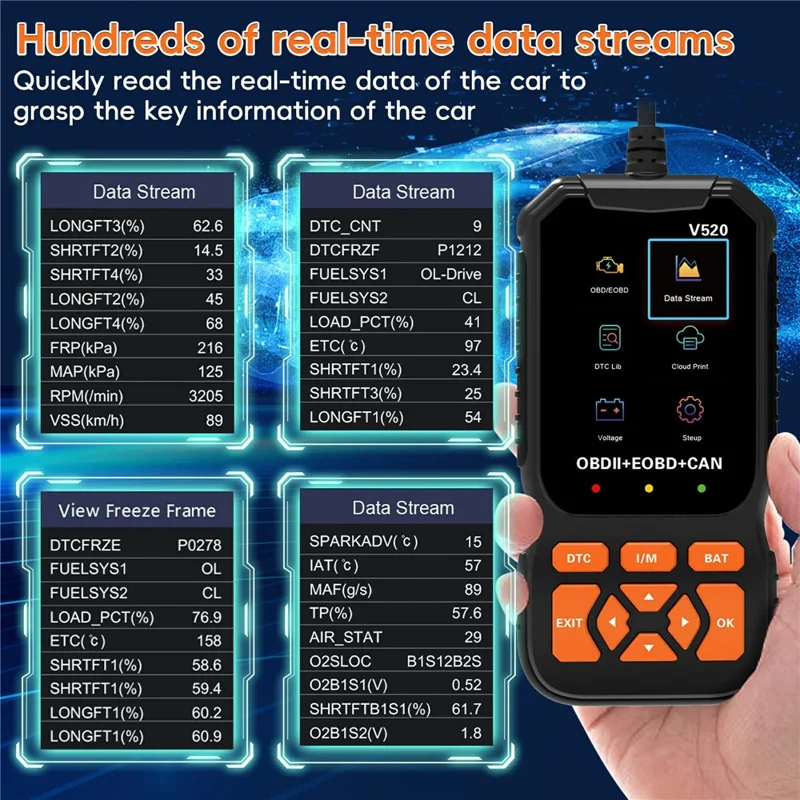

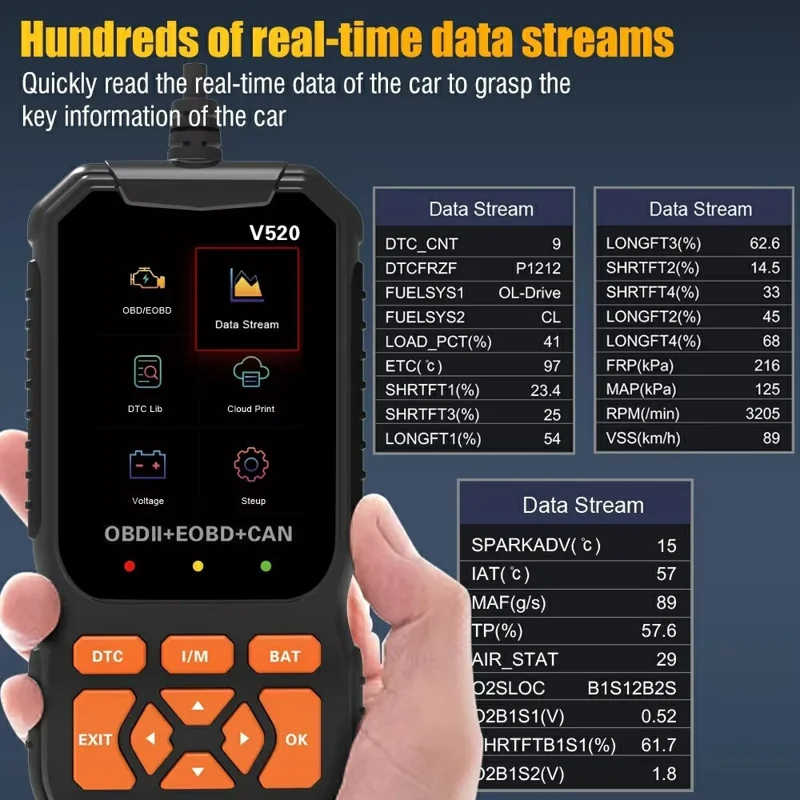

• 【Real-Time Data Monitoring】Monitor real-time engine data such as RPM, fuel pressure, and coolant temperature, crucial for diagnosing vehicle performance issues and reducing maintenance time.

Specifications:

• Operating Voltage: DC 9V-16V
• Operating Current: 36mA-54mA
• Storage Temperature: -30℃-70℃

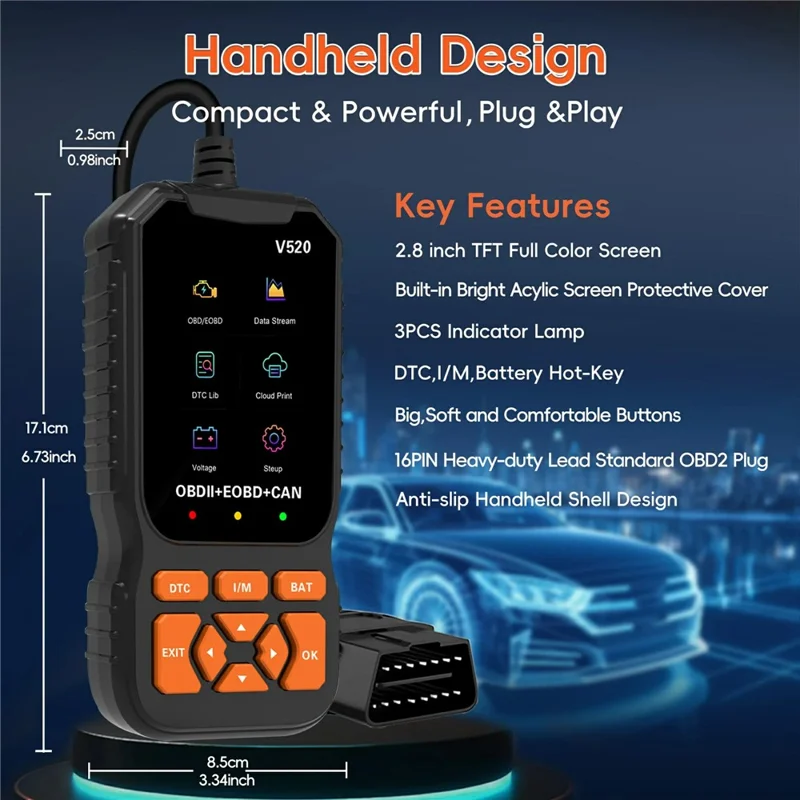

• Dimensions: 171*85*28mm

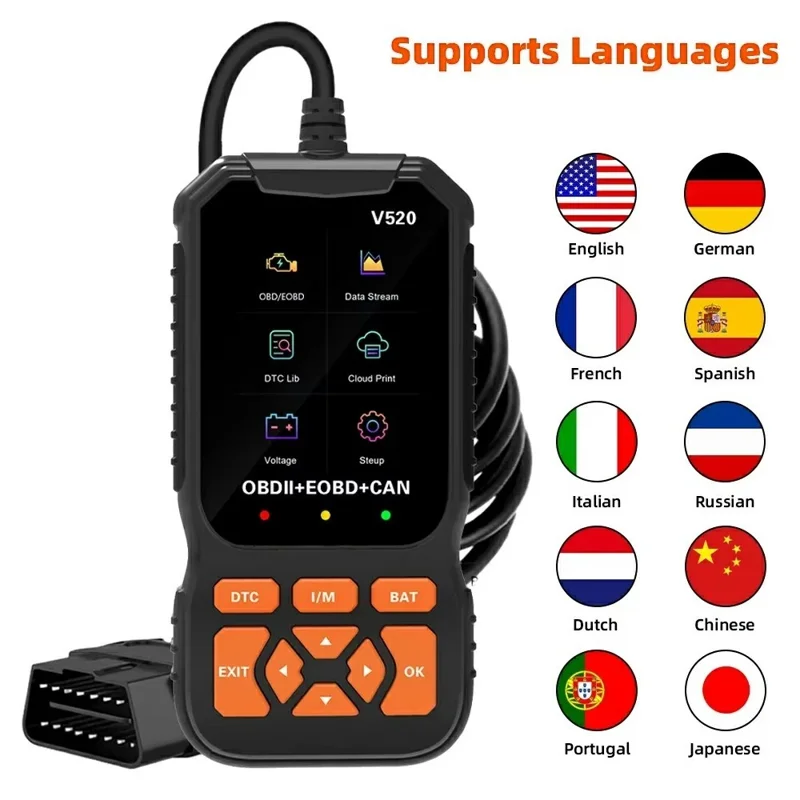

• Supported Languages: English, Russian, French, German, Spanish, Italian, Portuguese, Dutch, Japanese, Chinese

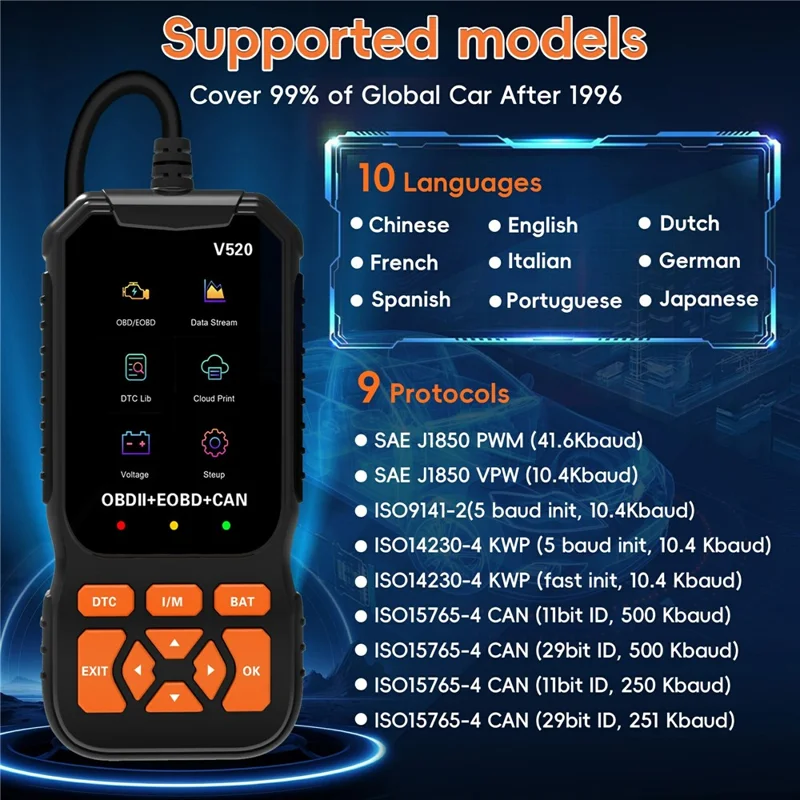

• Supported Protocols:
• SAE J1850 PWM (41.6kbaud)
• SAE J1850 VPW (10.4kbaud)
• ISO9141-2 (5 baud initialization, 10.4kbaud)
• ISO14230-4 KWP (5 baud initialization, 10.4kbaud)
• ISO14230-4 KWP (Fast Initialization, 10.4kbaud)
• ISO15765-4 CAN (11-bit ID, 500kbaud)
• ISO15765-4 CAN (29-bit ID, 500kbaud)
• ISO15765-4 CAN (11-bit ID, 250k baud)
• ISO15765-4 CAN (29-bit ID, 250k baud)
