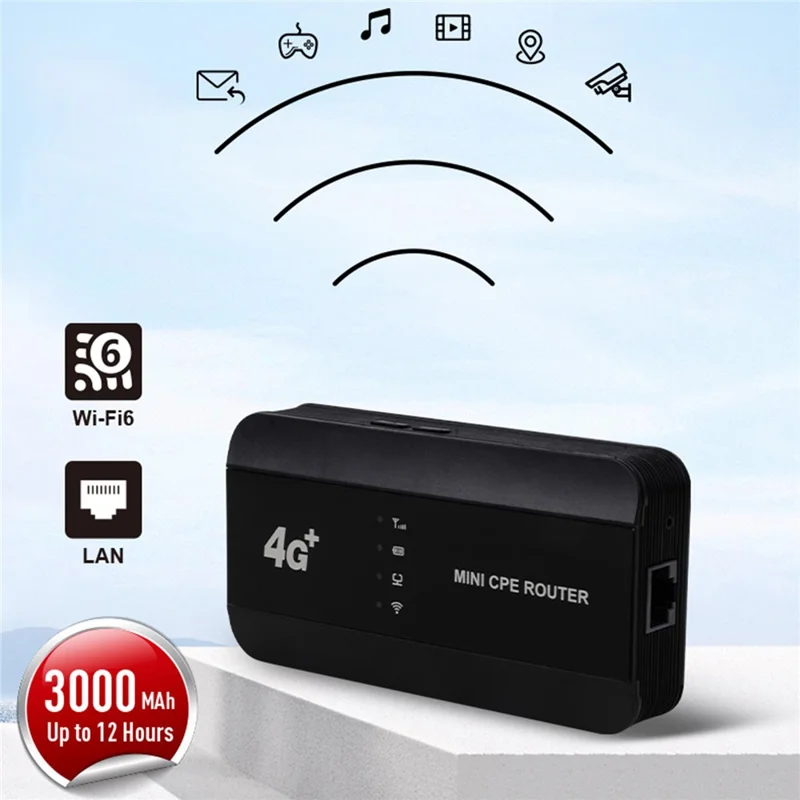

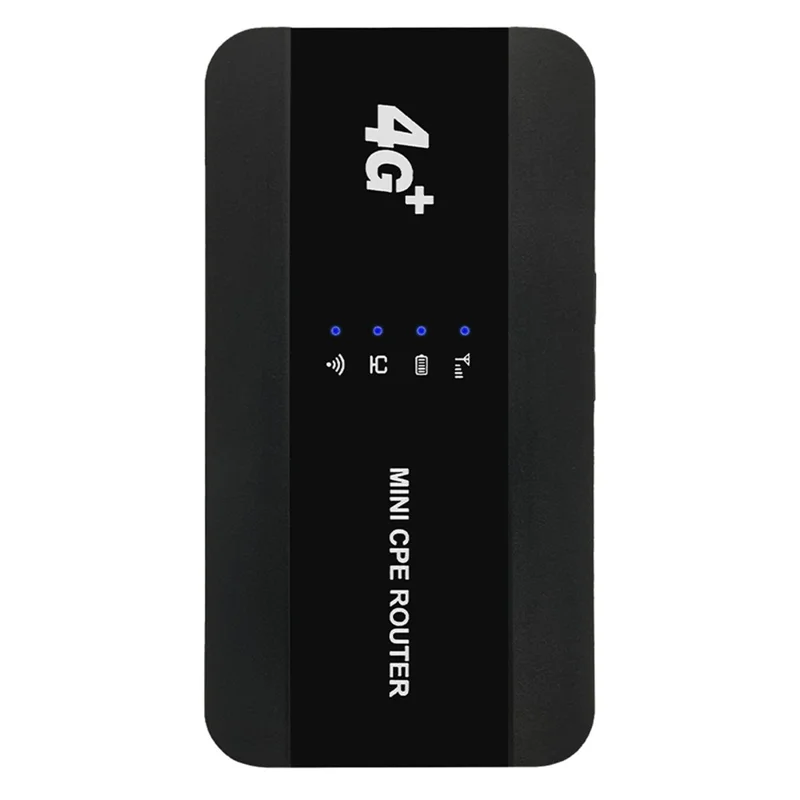

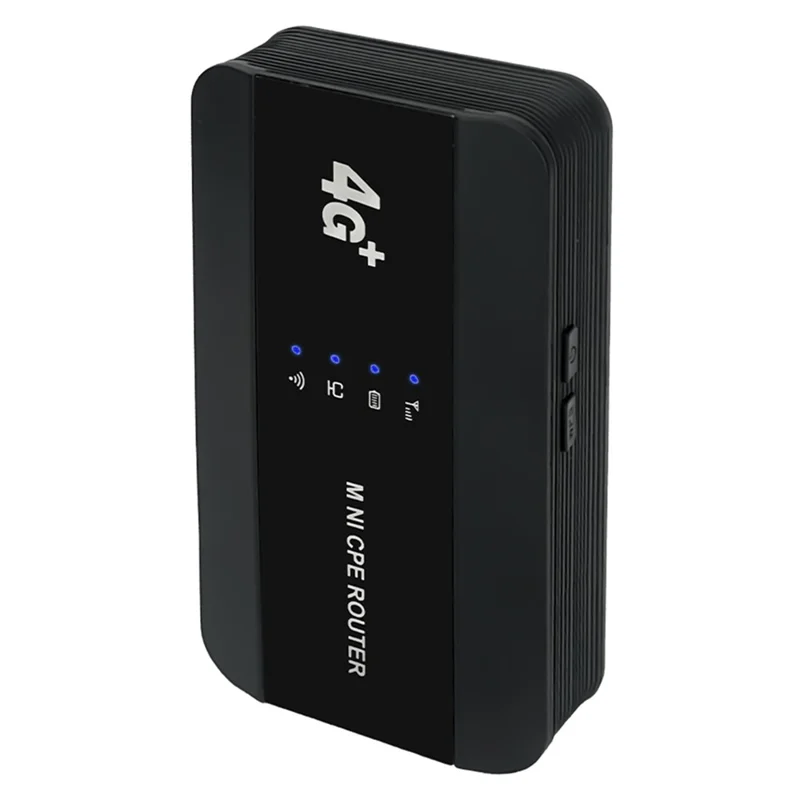

M10-EW WiFi 6 Portable Wireless Router 150Mbps 4G LTE CPE Router Modem with Ethernet Port
- 【Versatile Connectivity】This 4G portable WiFi router supports multiple network modes, including LTE TDD/FDD and WCDMA, ensuring wide-ranging compatibility and connectivity options.
- 【High-Speed Performance】With downlink speeds up to 150Mbps and uplink speeds up to 50Mbps, enjoy fast and reliable internet access on the go.
- 【Global Band Support】Features extensive frequency band support for Europe, Asia, North America, and China, making it ideal for international travelers.

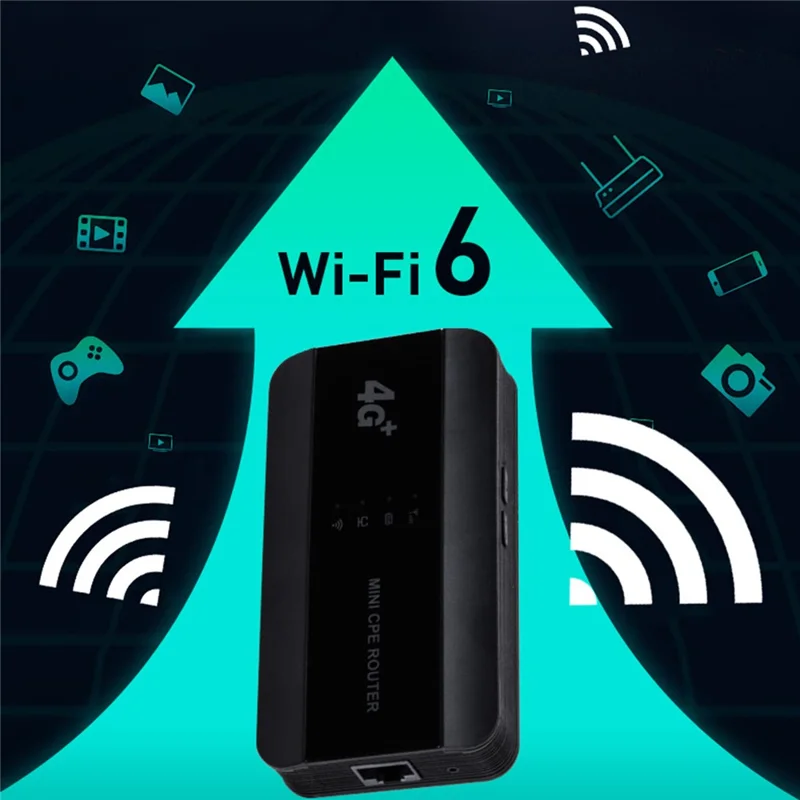

- 【Advanced WiFi 6 Technology】Incorporates the latest IEEE 802.11AX (WiFi 6) protocol, ensuring improved efficiency and performance in crowded networks.

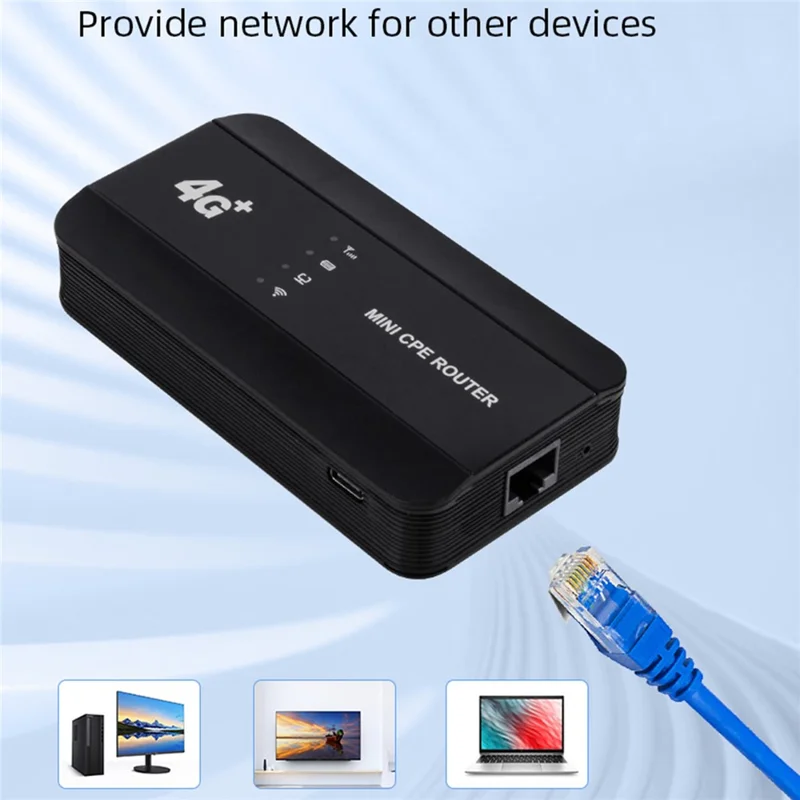

- 【Versatile Interfaces】Includes a SIM card slot, USB Type-C port, and RJ45 Ethernet port for flexible connection options and easy charging.
- 【User-Friendly Management】Features a standard web UI with quick setup, dashboard, and various network settings for easy device management and customization.
Specifications:
| Hardware Platform | Chipset | ASR1803 |
| Memory | 64Mb Norflash SDR 256Mbit |
|
| Protocol | LTE TDD/FDD | 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps |
| WCDMA | 3GPP R7 Downlink/Uplink up to 21Mbps/5.76Mbps | |
| RF BAND | EU | LTE 1 /3 /7 / 8 /20 /38 / 40 / 41 WCDMA 1/ 8 |
| NA | LTE 2 / 4 / 5 / 7 /28 /38/ 40/ 41 /66 WCDMA 2 /4 /5 | |
| CN | LTE 1 /3/ 5 /8 /34 /38 /39 /40 /41 WCDMA 1 /5 /8 | |
| WIFI Protocol | IEEE 802.11AX | Support |
| IEEE 802.11n | Support | |
| IEEE 802.11g | Support | |
| IEEE 802.11b | Support | |
| Frequency | 2.4G | 1~13 channel |
| Antenna | 4G Antenna connector | LTE Main*1/Diversity antenna*1 |
| External Interface | SIM card slot | 3FF SIM card |
| USB | Type C INPUT 5V1A | |
| RJ45 | 100M | |
| WPS | Support | |
| POWER ON/OFF | Support | |
| Reset button | Support | |
| Indicator | LED indicator | Signal/WIFI/Battery/Ethnet |
| Power Supply | Battery | 3000mAh |
| Software | ||
| WEB UI | Standard WEB UI | |
| Quick Setup | support | |
| Dashboard（Device Status） | support | |
| Internet Settings | support | |
| Home Network Settings | support | |
| Wireless Settings | support | |
| Router Settings | support | |
| System Settings | support | |
| SMS | support | |
| System upgrade | Firmware upgrade | support |
| Operation System | WIN7(32bit/64bit), WIN8, WIN10, for Mac OS X10.6 and above version | |
| Environment | Working Temperature | 0~45℃ |
| Storage Temperature | -20~70℃ | |
