Specifications:

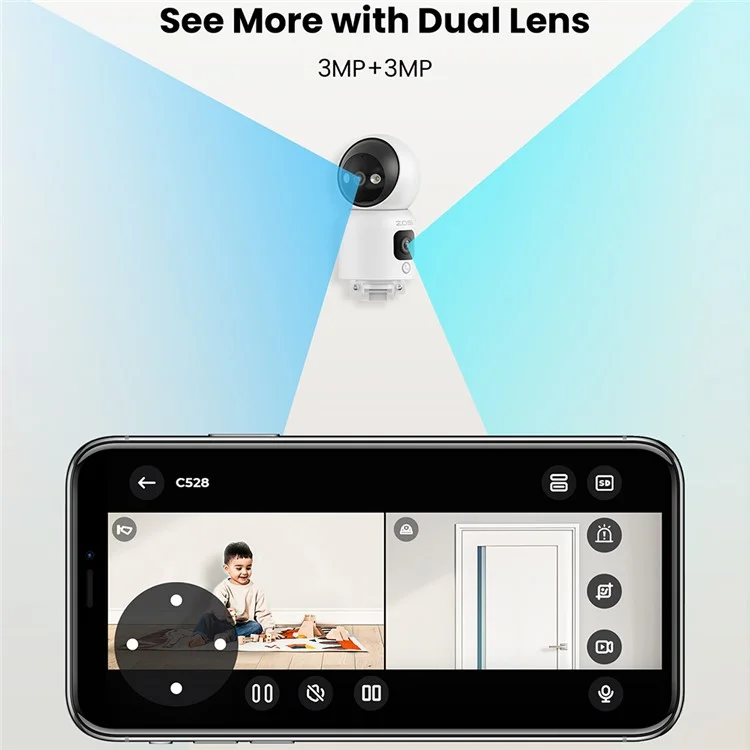

Dome camera | Camera pixels | Dual 6MP (2560 x1440) |
Image sensor | 1/3.0" Progressive Scan CMOS | |
Lens specifications | 4.0mm/F2.0 | |
Lens interface type | M12 | |
Minimum illumination | Soft photosensitivity: > 3Lux (day mode); < 3Lux (infrared light on) | |
Infrared light | 2 | |
White light | None | |
Day/night mode | ICR infrared filter type | |
Night vision distance | 32ft (10M) | |
Frame rate | Video frame rate: 15fps Network transmission frame rate adaptive | |
Dual stream | Main stream: 6MP (2560 x1440); sub-stream D1 (640*360) | |
Screen | Screen size | 1.44 inches |
Resolution | 128 * 128 | |
Video compression standard | H.265 | |
Screen interface | SPI 4W | |
Display function | Date/time display, weather/temperature and humidity display, two-way video call | |
Video | Video compression standard | H.265/H.265+ Main Profile |
Video compression bit rate | 32Kbps~2Mbps | |
Image ratio | 16:9 | |
Privacy zone setting | Support (5 areas can be set) | |
Region of interest (ROI) | Support | |
Image setting | Support HD/SD; Support mirroring; | |
Watermark OSD | Support | |
Audio | Audio input | Built-in microphone |
Audio output | Built-in speaker | |
Audio compression standard | G.711A | |
Camera Features | White balance | Automatic |
Gain control | Automatic | |
Digital noise reduction | 3D digital noise reduction | |
Backlight compensation | Support | |
Wide dynamic range | Support | |
Dynamic range | 81dB | |
Signal-to-noise ratio | 38dB | |
Status indicator | Button white light strip (slow flash: no network indicator; fast flash: call/unanswered indicator; always on: already connected to the network) | |
High light suppression | Support | |
Flash | GD 1G nand flash | |
Motor type | Linglong motor | |

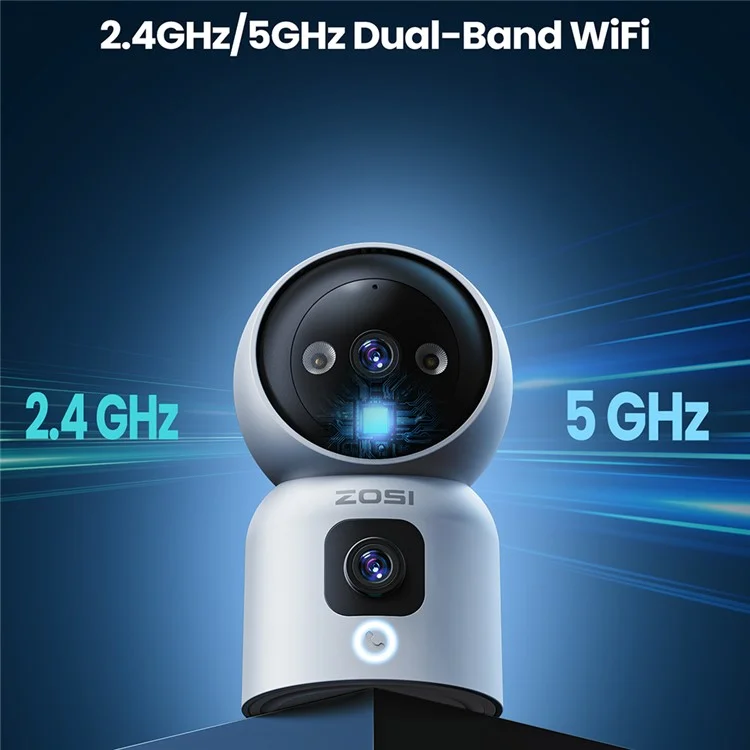

Network | Wifi | 2.4GHz/5GHz EEE 802.11a/b/g/n |
Supported protocols | TCP/IP, HTTP, DHCP, DNS, MQTT, P2P, ONVIF, RTSP | |
Cloud storage | Cloud storage (binocular cloud storage can be switched) | |
Software | Software support | ZOSI Smart (Android/IOS) AVSS (PC/for MacBook) |
Maximum number of users supported by the APP | 5 | |
General Features | Intelligent detection | Support: human, face, gesture, crying, abnormal sound, pet detection; (support zosi algorithm store, download algorithm package through settings) |

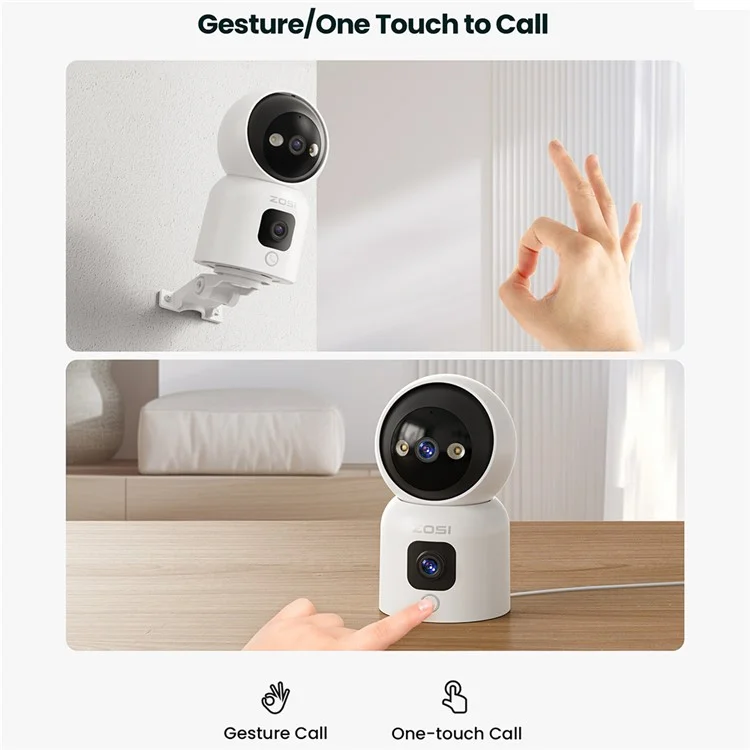

One-touch call | Call family members at any time for two-way intercom (main account) | |
Human tracking | Support human automatic tracking (tracking completed, return to original position) | |

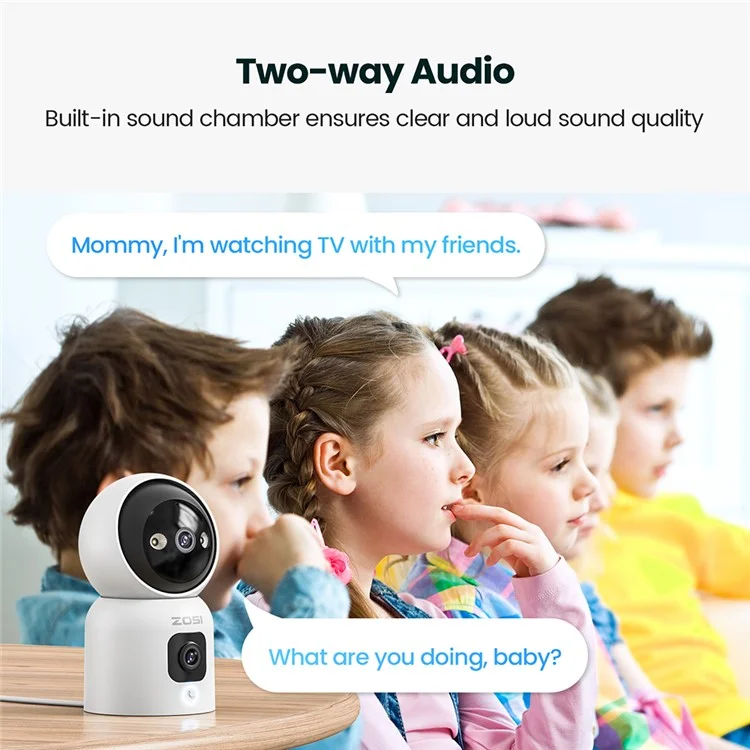

Voice function | Two-way voice (full-duplex) | |
Night vision type | Black and white night vision (default), night vision mode can be turned off | |
Recording type | Full-time recording, alarm recording | |
Recording mode | Main stream/sub stream (optional, default main stream) | |
Alarm push | Select information push type, human/face/crying/mixed line/abnormal sound/pet, etc. | |
One-touch reset | Support | |

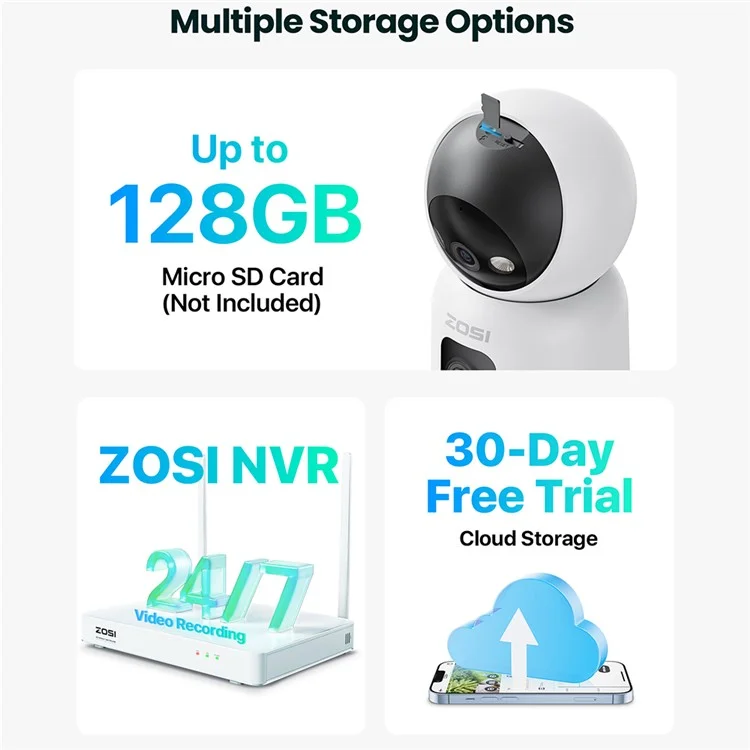

Local storage | TF, video recorder storage | |
General | Power supply | DC 5V/2A (Type- c interface) |
Power consumption | 5W MAX | |
Protection level | Not waterproof | |
Installation method | Horizontal/ceiling/wall mounted | |
Working temperature and humidity | -10℃~60℃, humidity less than 95% (no condensation) | |

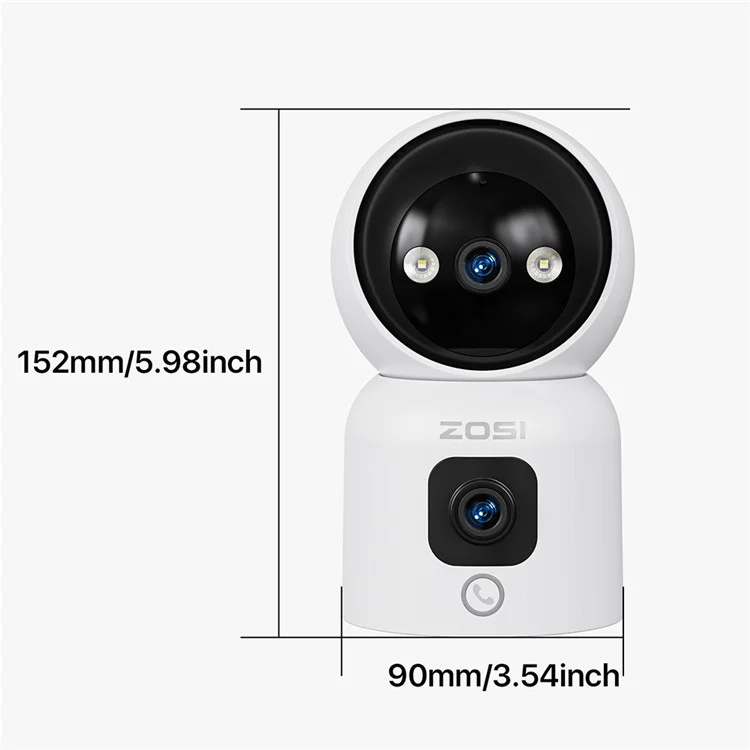

Dimensions (mm) | 90*90*151 | |
Weight (g) | 270 |
